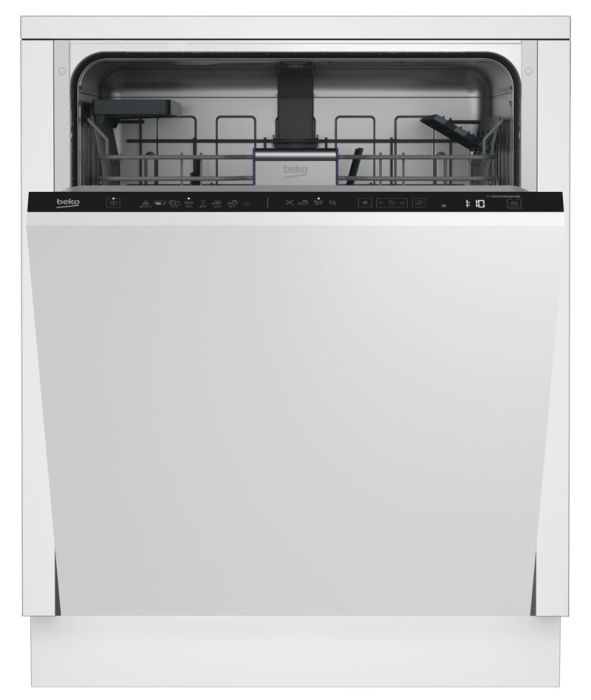

main product photo

DIN48430AD FULL INTEGREERBARE VAATWASSER AUTODOSE

Comfort
Artikelnr: 111180
Referentienr: DIN48430AD
Aanbevolen verkoopprijs: € 799,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8 progr. 6 temp. FULL INTEGRE BLDC - AUTODOSE

EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1783200400 14 angora back side adjustable foot right 7 1 Meer info
1783200300 16 angora back side adjustable foot gr left 7 1 Meer info
1757740200 20 REAR ADJUSTABLE FOOT CONNECTION PART_3 1 2 Meer info
1741690800 35 SLIDING HINGE GROUP SUPPORT SHEET LEFT 0 1 Meer info
1741690700 36 SLIDING HINGE GROUP SUPPORT SHEET LEFT 0 1 Meer info
1758670100 37 SLIDING DOOR SUPPORT SHEET 3 1 Meer info
1758670200 38 SLIDING DOOR SUPPORT SHEET 3 1 Meer info
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
1783660300 110 ANGORA BUILT UNDER FOOT 2 4 Meer info
1764120102 220 SIDE PANEL-LEFT 15 1 Meer info
1764120202 221 SIDE PANEL-RIGHT 15 1 Meer info
1759270101 403 WIRE 4 1 Meer info
1783060200 530 ANGORA BI KICK PLATE STEEL 16 1 Meer info
1744930100 649 REAR FRAME COTTON FLEECE 16 1 Meer info
1784130200 650 ANGORA UPPER ISOLATION 10 1 Meer info
1783840100 652 ANGORA BI KICK PLATE PAD 5 1 Meer info
1731490100 654 KICK PLATE FELT 6 1 Meer info
1783950100 660 ANGORA KICK PLATE ISOLATION 12 1 Meer info
5733280300 789 REED SWITCH CARD 8 1 Meer info
1762650100 953 ATLANTIS MOTOR CLAMP GROUP 34 1 Meer info
1880073511 1030 OUTER DOOR B_I 15 1 Meer info
1780960100 1035 FULL BI SIDE COVER SHEET METAL HALF BEND 18 1 Meer info
1780960200 1036 FULL BI SIDE COVER SHEET METAL HALF BEND 18 1 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
1512251000 1200 ATLANTIS INNER DOOR BITUMEN GR ODD 27 1 Meer info
1783050200 1201 ANGORA FRONT LOWER SUPPORT SHEET 9 1 Meer info
1882270600 1230 DOOR INSULATION 9 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760980100 1311 DOOR LOCK HOOK SUPPORT BI 1 1 Meer info
1783500400 1725 ANGORA FLAP FUNNEL GROUP 14 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1887560300 1920 DOOR SEALING GASKET - BOTTOM 5 1 Meer info
1513401303 2000 ATLANTIS STRUCTURE GR. 32 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783700200 2004 ANGORA BUILT-IN BOTTOM TRAY GR 20 1 Meer info
1783700500 2004 ANGORA BUILT-IN BOTTOM TRAY GR 19 0 Meer info
1752970300 2408 TRAY HOLDER 1 2 Meer info
1752970400 2409 TRAY HOLDER 1 2 Meer info
1513080100 2411 EU3 BEKO TOP BASKET SHELF GR 4 2 Meer info
1513360018 2414 EU3 UPPER BASKET GROUP 28 1 Meer info
1513100100 2416 EU3 MECHANISM GROUP 12 1 Meer info
1513100200 2417 EU3 MECHANISM GROUP 12 1 Meer info
1766810005 2420 LOWER RACK GR. 27 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1513590101 2423 LOWER BASKET PLATE HOLDER BACK LEFT1 6 1 Meer info
1513610101 2424 LOWER BASKET PLATE HOLDER BACK RIGHT1 6 1 Meer info
1769250600 2428 LOWER BASKET HANDLE/INOX-PURPLE 12 1 Meer info
1781500600 2430 SLIDING CUTLERY BASKET GR-PURPLE HANDLE 13 1 Meer info
1781520100 2437 GRD 60CM CUTLERY BASKET SEPERATOR 4 2 Meer info
1769230500 2438 LOWER BASKET HANDLE BACK PART/PURPLE 2 1 Meer info
1513280500 2439 EU3 BEKO HANDLE BACK PART INOX 2 1 Meer info
1513300100 2440 EU3 BEKO HANDLE INOX GROUP 11 1 Meer info
1513620101 2447 LOWER BASKET PLATE HOLDER BACK LEFT2 6 1 Meer info
1513670101 2450 LOWER BASKET PLATE HOLDER BACK RIGHT2 6 1 Meer info
1513010101 2457 EU3 FOLDABLE WIRE OF THE BOWL HOLDER 9 1 Meer info
1513020101 2458 EU3 FOLDABLE WIRE OF THE BOWL HOLDER 9 1 Meer info
1513050101 2461 EU3 FOLDABLE WIRE OF THE GLASS HOLDER 8 1 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1512980100 2719 EU3 TOP BASKET BOWL FOLDABLE PART 7016 1 2 Meer info
1512990100 2720 EU3 TOP BASKET GLASS FOLDABLE PART 7016 1 1 Meer info
1763070027 3010 PANEL GROUP 31 1 Meer info
1512040100 4000 ATLNATÄ°S MOTOR GROUP 32 0 Meer info
1752480100 4000 ATLANTIS FERRIT MOTOR GROUP 33 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1512080100 4007 KARÄ°NA QUADRO MOTOR HANGING BRACKET 10 1 Meer info
1757190100 4210 AMERICA BOBBIN TERFERENCE FILTER 16 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1759324000 4800 MESE CABLE HARNESS 21 1 Meer info
1745691000 4801 CABLE HARNESS-1.5MM 2 1 Meer info
1736492700 4801 ODD CABLE 17 1 Meer info
1758432800 4810 MESE CABLE HARNESS 21 1 Meer info
1867110100 4814 SDD tablet apparatus gr 16 1 Meer info
1751591800 4901 MAIN PLUG-CABLE PROTECTION GR 1 1 Meer info
1510157471 5050 ELECTRONIC CARD E914823 0 1 Meer info
1512230200 5051 MESE CARD HOLDER FRONT PART 4 1 Meer info
1512240200 5052 MESE CARD HOLDER BACK PART 4 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1761250100 5750 REGENERATION VALVE 12 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1761260100 6160 SALT INDICATOR SWITCH 12 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1866500200 6800 LIQUID DETERGENT DOSING UNIT 32 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1867050200 6821 LDD fixed body 26 1 Meer info
1867090100 6822 LDD DECORATIVE FRONT COVER 10 1 Meer info
1867030100 6823 LDD DETERGENT CARTRIDGE GR 14 1 Meer info
1867010200 6824 LDD-RINSE AID CARTRIDGE GR 10 1 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1760360200 7000 T&P AQUASTOP NEWDESIGN 21 1 Meer info
1783230100 7011 ANGORA AQUASTOP HOLDER 2 2 Meer info
1782500100 7100 GRD SOFTENER GROUP BITRON 21 1 Meer info
1760190100 7101 O-RING WATER SOFTENER AIR BREAKER 2009 3 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1760200400 7160 AIR BREAKER_COUNTER GR 16 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 3 Meer info
1882620700 7162 air funnel cup 1 3 Meer info
1764790200 7211 ATLANTS LOWER SPRAY ARM GROUP 2 8 1 Meer info
1512700100 7220 ATLANTIS TOP SPRAY ARM GROUP COMPLETE 8 1 Meer info
1512280100 7221 ATLANTIS UPPER SPRAY ARM FEEDING HOSE GR 8 1 Meer info
1800865900 7229 HOSE (REGENERATION UNIT) 3 1 Meer info
1512590100 7260 ATLANTIS WATER SUPPLY TUBE GR. 16 1 Meer info
1512590400 7260 ATLANTIS WATER SUPPLY TUBE GR. 15 0 Meer info
1512510100 7261 UPPER SPRAY ARM FEED PIPE CENTERING PART 3 1 Meer info
1511900200 7510 KARÄ°NA SUMP GROUP 37 1 Meer info
1889860600 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870300 7515 REAR CORNER PADDING GR-BACK 10 1 Meer info
1788060400 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1885480100 7520 SUPPORT SYROPOR OF B_I KICK PLATE 4 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 1 Meer info
1767140100 7561 LED HOLDER OVERFLOW SIPHON 1 1 Meer info
1799990100 7562 2019 CABLE HOLDER UPPER PART 3 1 Meer info
1799980100 7563 2019 CABLE HOLDER TOP PART 2 1 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1512150100 7611 KARÄ°NA FILTER SUPPORT GROUP 7 1 Meer info
1512000200 7612 KARÄ°NA VALVE GROUP 21 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230300 7630 COARSE FILTER-7016 8 1 Meer info
1796092100 7640 FILTER GROUP COMPLETE 3 NO RING 9 1 Meer info
1740160900 7810 DRAIN HOSE 4 1 Meer info
1740161500 7810 DRAIN HOSE 8 1 Meer info
1752000100 7815 DRAIN HOSE-L=440MM 7 1 Meer info
1752000400 7815 DRAIN HOSE-L=2085MM 9 1 Meer info
1800865800 7839 HOSE 2 1 Meer info
1800866800 7845 HOSE (OVERFLOW SIPHON) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1734730100 7919 CAD ITEM 1 2 Meer info
1783300200 8000 ANGORA FAN GROUP 17 1 Meer info
1783330100 8003 Fan Outlet Part-Angora 3 1 Meer info
1766500100 8004 FAN FUNNEL GR 16 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1761990100 8365 HÄ°TÄ°T DISCHARGE HOSE HOLDER 2 0 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9001231200 8382 PLASTIC CLAMP. 298 mm 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 6 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 4 Meer info
2829060200 8395 CHIPBOARD SCREW 1 8 Meer info
1757470300 9019 CRIMP CLAMP 2 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 7 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 8 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1882820100 9107 INNER DOOR STOPER 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 12 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 8 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 6 Meer info
1802860200 9153 SCREW M5x8 1 6 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 8 Meer info
1803431300 9203 SCREW (TOP TABLE) 1 1 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1783720100 9641 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1783720200 9642 ANGORA BUILT IN NOISE INSULATOR 5 1 Meer info
1513630100 9659 FOLDABLE PART LONG 1 4 Meer info
1513640200 9660 CLIPS LONG 1 4 Meer info
1513390200 9663 beko knife holder 8 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1731480500 9938 KICK PLATE RUBBER 18 1 Meer info
1784430049 9940 ACCESSORIES GROUP 12 1 Meer info
1783540100 9966 ANGORA DRAIN HOSE LOCK 2 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1786700100 9991 ZONE WASH GROUP-7016-PURPLE 9 1 Meer info
1767160100 9995 SLIDING DOOR PROGRAM END SIGNAL MODUL 8 1 Meer info
1783410200 9996 BUILT IN CENTERING PLUG-7037 1 2 Meer info
1512220300 9997 MESE CARD HOLDER CASING 10 1 Meer info
1762670200 9998 KARÄ°NA SUMP GROUP 21 1 Meer info
Productfiche (547.29 kB)
Mode d'emploi (13.56 MB)
Handleiding (11.50 MB)
