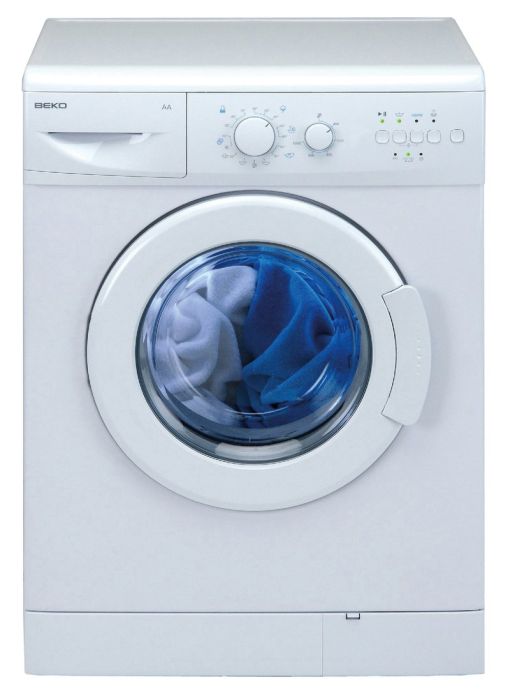

WML15100P WASMACHINE elektronisch

Artikelnr: 114918
Referentienr: WML15100P
Vergelijk

Productomschrijving

1000 t
Meer informatie
Hoogte 85
Breedte 60
Diepte 54
Gewicht (Kg) 64
ArtRef WML15100P
AsogemID 114918
Merk BEKO
Soort 1000 t/m
ArtEAN 8690842172786
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1710350100 0 EPS_BLOCK 0 0 Meer info
2805020500 0 TUB FRONT CAP 14 1 Meer info
2806720200 0 NTC 7 0 Meer info
9730100 0 EPS(0_7-1_0mm)-WH-S-HB 8 0 Meer info
9003271900 0 PLASTIC SCREW 1 6 Meer info
2849100100 1 TOP PLATE ASSY. 18 0 Meer info
2877400100 1 TOP PLATE ASS.. 21 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2804940100 9 HANDLE 9 0 Meer info
2816190100 9 HANDLE (ARCP1) 5 1 Meer info
2811300300 10 FRONT DOOR ASSEMBLY. 27 0 Meer info
2860201700 10 FRONT DOOR ASSEMBLY 22 1 Meer info
2807280100 11 PORTHOLE GLASS 18 1 Meer info
2804930100 12 INNER COVER 16 0 Meer info
2816170100 12 INNER COVER 10 1 Meer info
2805310100 13 SECURITY SWITCH 11 0 Meer info
2805310400 13 NTC 10 1 Meer info
2805710100 14 HINGE 8 0 Meer info
2905710100 14 HINGE 8 1 Meer info
2905820100 14 HINGE 8 0 Meer info
2843840200 16 HINGE SUPPORT 3 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 4 Meer info
2737601400 20 TRANSPORT SAFETY ASSEMBLY 5 3 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 2 Meer info
2704110100 38 SPRING HOLDER 1 1 Meer info
2810540908 43 USERS MANUAL (FL_FR_DA) 6 1 Meer info
2805010100 45 COUNTERWEIGHT (UPPER) 14 1 Meer info
2804200500 47 TUB ASSEMBLY (COMPLETE) 33 1 Meer info
2841000100 48 DRUM ASSEMBLY (COMPLETE) 27 1 Meer info
2801760100 49 TUB GASKET 6 1 Meer info
2803610100 51 TUB CLIPS 1 16 Meer info
2805680300 53 SUSPENSION SPRING 4 2 Meer info
2804860300 54 DOOR HOOD-RUBBER 21 1 Meer info
2802580300 55 DOOR HOOD CLAMP(SPRING) 4 1 Meer info
2801650100 56 PULLEY 54 15 1 Meer info
2005170300 59 ELASTIC POLY-V BELT 10 0 Meer info
2809040100 59 ELASTIC POLY-V BELT (J4) 10 0 Meer info
2810970100 59 ELASTIC POLY-V BELT. 11 1 Meer info
2808150100 60 SPECIAL BOLT. 4 1 Meer info
2806850500 63 MOTOR 36 0 Meer info
2806850900 63 MOTOR 33 1 Meer info
2816871200 66 SHOCK ABSORBER 15 2 Meer info
2821190100 68 COUNTERWEIGHT-LOWER 12 1 Meer info
2702950100 69 MOTOR SUPPORT 1 2 Meer info
2801660101 72 HEATER SUPPORT 4 1 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 2 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2814080100 99 SIPHON... 2 1 Meer info
2000810600 100 HOSE 5 1 Meer info
2000812000 100 AIR PIPE HOSE 3 0 Meer info
2800830100 101 PRESSURE TUBE 3 1 Meer info
2007300200 103 HOSE CLAMP ASSEMBLY 2 0 Meer info
2814430100 103 HOSE CLAMP 2 1 Meer info
2855800200 105 HOSE ASSEMBLY. 11 1 Meer info
2426000200 106 HOSE -WATER INLET SLIM-COLD 12 0 Meer info
2906760300 106 HOSE -WATER INLET -COLD 8 0 Meer info
2906860700 106 WATER INLET HOSE ASSEMBLY 10 1 Meer info
2800880100 117 TUB INLET HOSE 10 1 Meer info
2845300100 146 DETERGENT DISPENSER ASSEMBLY 12 1 Meer info
2724300101 162 INTERFERENCE SUPPRESSOR ASSY.. 12 0 Meer info
2724300601 162 INTERFERENCE SUPPRESSOR ASSY.. 12 1 Meer info
2827980200 162 INTERFERENCE SUPPRESSOR 12 1 Meer info
2827980400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2853300200 166 MAIN CABLE HARNESS. 22 1 Meer info
2820901400 169 POWER CORD ASSY. 15 1 Meer info
2801560600 170 PRESSURE SWITCH 12 1 Meer info
2804980200 171 NTC 8 0 Meer info
2827990100 180 PUSH BUTTON SWITCH 8 1 Meer info
2827790036 186 MAIN BOARD ASSY. 25 1 Meer info
2801103700 194 PUMP-FILTER ASSEMBLY 17 0 Meer info
2880400600 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 1 Meer info
2826619109 197 DETERGENT DRAWER FRONT COVER 8 1 Meer info
2854700400 201 TEMP.KNOB ASSEMBLY 4 1 Meer info
2854600400 203 PROGRAMME KNOB BUTTOM. ASSY 5 1 Meer info
2826589096 208 PANEL BODY 13 1 Meer info
2603900900 230 CABÄ°NET BELLOWS CLAMP ASSEMBLY 2 1 Meer info
2845400100 336 DETERGENT DRAWER ASSEMBLY... 10 1 Meer info
2807570200 338 PRESSURE SWITCH HOLDER 2 1 Meer info
2804920100 339 OUTER COVER 16 0 Meer info
2816160100 339 OUTER COVER 12 1 Meer info
2804970300 340 hook spring 1 0 Meer info
2804970400 340 hook spring 2 1 Meer info
2804950200 341 LOCK HOOK 4 0 Meer info
2804950500 341 LOCK HOOK 3 1 Meer info
2800860200 342 PIN 1 2 Meer info
2820710500 365 KICKPLATE BODY. 12 1 Meer info
2002373000 367 HOSE CLAMP 1 1 Meer info
2800890100 370 STEAM DISCHARGE HOSE 9 1 Meer info
2821500100 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2812730800 401 FRONT PANEL (WHITE) 18 1 Meer info
2834050100 402 BEAD GROOVE 9 2 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 4 Meer info
2804670100 414 FRONT PANEL HOLDER 2 2 Meer info
2809830100 481 SELECTION SWITCH 8 1 Meer info
2820720200 481 POTENTIOMETER 7 0 Meer info
2827190100 481 SELECTION SWITCH 7 0 Meer info
2705870100 583 SELF LOCKING CABLE HOLDER 1 5 Meer info
2812260300 584 BUFFLE 4 0 Meer info
2810900100 598 FILTER ASSEMBLY 5 1 Meer info
2002370500 605 HOSE CLAMP 1 1 Meer info
2804960100 622 HOOK COVER 4 0 Meer info
2816180100 622 HOOK COVER 7 1 Meer info
2810540909 631 USERS MANUAL (DE_PT_FI_SV_NO_IT_EN) 6 1 Meer info
2804910100 632 HINGE BUSHING 1 2 Meer info
2800860300 641 PIN 1 1 Meer info
101301407 682 NUT M8 DIN934. 1 1 Meer info
2901250100 737 WATER INLET VALVE... 16 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2816670100 964 CARD PROTECTOR FOIL 3 1 Meer info
2829960100 1008 PULLEY FIXING SCREW 3 0 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2814980200 1014 PROGRAMME KNOB INTERVAL PART 2 1 Meer info
2814050200 1015 KNOB SHAFT 2 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2600941800 1118 HOSE 2 2 Meer info
2720500100 1203 SPECIAL BOLT. 3 3 Meer info
2855700300 1210 HOSE ASSEMBLY 15 1 Meer info
2720500300 1229 SPECIAL BOLT 3 2 Meer info
130500920 1284 SERRATED LOCK WASHER (A8.4 DIN 6798) 1 1 Meer info
2863400500 1384 HEATER ASSEMBLY 17 0 Meer info
2863700500 1384 HEATER ASSEMBLY 0 0 Meer info
2882600500 1384 HEATER ASSEMBLY 16 1 Meer info
2867700400 1396 LIGHT CARRIER - BUTTON ASSEMBLY (WHITE) 5 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2870200100 1416 ON-OFF BUTTON ASSEMBLY 8 1 Meer info
2812450200 1420 BUTTOM SUPPORT BRACKET. 10 0 Meer info
2906090100 1420 BUTTOM SUPPORT BRACKET 6 1 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 2 Meer info
2890200300 1451 TERMINAL BODY ASSEMBLY 8 1 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2896100500 1470 CABINET ASSEMBLY AND BACK COVER 35 1 Meer info
2707920100 1486 SPRING HOLDER RIGHT 1 1 Meer info
2828340100 1519 EDGE COVER 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
100601520 8320 SHEET METAL SCREW (B4.2X13 DIN 7981-H) 1 2 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 4 Meer info
371201205 8331 Carbon Brush Assembly (BLACK_RED_L13MF7) 12 2 Meer info
372205505 8335 TACHO COIL WITH METAL SHELL 8 1 Meer info
373500801 8336 Tachometer Cover.. 2 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372600 8361 HOSE CLAMP (x 49.8) 1 1 Meer info
2002740200 8365 DRAIN HOSE HOLDER 1 0 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
2003720300 8366 INTERFERENCE SUPPRESSOR 14 0 Meer info
2812050100 8373 SELECTION SWITCH 8 0 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 2 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 6 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 2 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 1 Meer info
9003610300 8392 sheet metal screw(B4_2x9_5-perforated) 1 1 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 4 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 7 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003860300 8403 SHEET METAL SCREW 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 5 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 10 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 2 Meer info
2811240100 8426 CABLE HOLDER 2 2 Meer info
