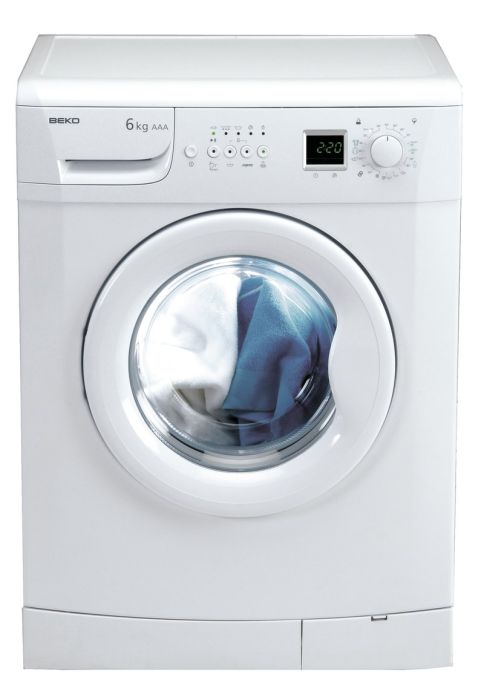

WMD66166 WASMACHINE elektronisch

Artikelnr: 115113

Referentienr: WMD66166

Productomschrijving

1600 t/min. 6 kg - polyp. deur 30 cm.

Specificaties

Meer informatie
Hoogte	84
Breedte	60
Diepte	50
Gewicht (Kg)	67
ArtRef	WMD66166
AsogemID	115113
Merk	BEKO
Soort	1600 t/m
ArtEAN	8690842324055

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2463200100	1	TOP FRAME ASSEMBLY	20	1	Meer info
2880100100	1	TOP PLATE ASSY.	20	0	Meer info
2827610100	7	BACK COVER WHITE	17	1	Meer info
2813170100	9	HANDLE.	8	1	Meer info
2878302500	10	FRONT DOOR ASSEMBLY	23	1	Meer info
2905560100	11	PORTHOLE GLASS	15	1	Meer info
2821140100	12	INNER COVER..	10	1	Meer info
2805310800	13	DOOR LOCK	11	0	Meer info
2805311600	13	DOOR LOCK	10	1	Meer info
2805311700	13	DOOR LOCK	11	1	Meer info
2905730100	14	HINGE	9	1	Meer info
2843840200	16	HINGE SUPPORT	3	1	Meer info
2912701200	18	ADJUSTABLE FEET ASSEMBLY	3	0	Meer info
2737601500	20	TRANSPORT SAFETY ASSEMBLY.	4	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2820520866	43	USERS MANUAL (FL_EN_FR_DE)	5	1	Meer info
2816990200	45	UPPER COUNTER WEIGHT	13	0	Meer info
2816990700	45	UPPER COUNTER WEIGHT	13	1	Meer info
2820360100	53	SUSPENSION SPRING	5	2	Meer info
2466300303	54	DOOR HOOD-RUBBER ASSY	21	1	Meer info
2802580600	55	DOOR GASGET SPRING	2	1	Meer info
2816660200	56	PULLEY	14	1	Meer info
2816750200	59	ELASTIC POLY-V BELT	12	1	Meer info
2845710200	59	ELASTIC POLY-V BELT	12	0	Meer info
2818450100	60	ENGINE CONNECTION SCREW	2	0	Meer info
2818450300	60	ENGINE CONNECTION SCREW	2	0	Meer info
2818450400	60	ENGINE CONNECTION SCREW	2	2	Meer info
2818450500	60	ENGINE CONNECTION SCREW	2	2	Meer info
2825440100	63	MOTOR	37	1	Meer info
2816871100	66	SHOCK ABSORBER	9	2	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	0	Meer info
2801430400	78	SHOCK ABSORBER PIN	1	2	Meer info
2898400200	80	SPECIAL BOLT.	4	6	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2835750100	99	SYPHON	2	1	Meer info
2000811700	100	AIR PIPE HOSE	3	1	Meer info
2814430100	103	HOSE CLAMP	2	0	Meer info
2814430200	103	HOSE CLAMP	2	1	Meer info
2818440200	117	TUB INLET HOSE.	8	1	Meer info
2416702700	146	Detergent dispenser assembly	12	1	Meer info
2829510800	149	COUNTERWEIGHT-LOWER	18	1	Meer info
2724300801	162	INTERFERENCE SUPPRESSOR ASSY..	12	1	Meer info
2831861200	166	MAIN CABLE HARNESS.	23	1	Meer info
2820901400	169	POWER CORD ASSY.	15	1	Meer info
2820510100	180	PUSH BUTTON SWITCH	5	0	Meer info
2827990100	180	PUSH BUTTON SWITCH	8	1	Meer info
2826740381	186	MAIN BOARD ASSY.	30	1	Meer info
2840940100	194	PUMP-FILTER ASSEMBLY	21	1	Meer info
2880401800	194	PUMP-FILTER ASSEMBLY(WATER COOLING)	20	0	Meer info
2813299290	197	DETERGENT DRAWER FRONT COVER	8	1	Meer info
2811570200	201	MODULE HOLDER	5	1	Meer info
2847200500	203	TIMER KNOB ASSEMBLY.	4	1	Meer info
2819189136	208	PANEL BODY ASSY.	0	1	Meer info
2603901200	230	CABINET BELLOWS CLAMP ASSEMBLY	3	1	Meer info
2416600400	336	Drawer Assembly	9	1	Meer info
2821130100	339	OUTER COVER...	13	1	Meer info
2814360100	340	HOOK SPRING	3	1	Meer info
2813130100	341	LOCK HOOK.	3	1	Meer info
2800860600	342	PIN.	1	1	Meer info
2812860400	365	KICKPLATE BODY.	9	0	Meer info
2830790100	365	KICKPLATE BODY.	10	0	Meer info
2830790400	365	KICKPLATE BODY.	8	0	Meer info
2846340400	365	KICKPLATE BODY	8	1	Meer info
2803800900	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2812411800	401	FRONT PANEL	19	1	Meer info
2834050100	402	BEAD GROOVE	9	2	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	2	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
2819920100	468	ON OFF BUTTON	2	1	Meer info
2815190100	571	REFLECTOR.	1	1	Meer info
2872700100	598	FILTER ASSEMBLY	5	1	Meer info
2703942000	617	FELT (SIDE PANEL)	10	0	Meer info
2804910100	632	HINGE BUSHING	1	2	Meer info
2812870100	672	KICKPLATE COVER.	5	0	Meer info
2812870400	672	KICKPLATE COVER.	5	0	Meer info
2846350400	672	KICKPLATE COVER.	5	1	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2839500100	723	DC MODULE HOLDER	7	1	Meer info
2836480100	737	WATER INLET VALVE	16	0	Meer info
2906850200	737	WATER INLET VALVE	15	0	Meer info
2906870200	737	WATER INLET VALVE	15	1	Meer info
2817690100	748	DC MODULE	16	0	Meer info
2817690101	748	DC MODULE	18	1	Meer info
2471600100	775	MECHANIC AQUASTOP	22	1	Meer info
2831320200	797	Cable Holder	1	1	Meer info
2831370100	797	CABLE HOLDER	1	2	Meer info
2812110200	827	PANEL SUPPORT BRACKET	7	0	Meer info
2825170100	827	PANEL SUPPORT BRACKET	10	0	Meer info
2851980100	827	PANEL SPAREPART	6	1	Meer info
2903090300	953	DOOR LOCK FOIL	2	1	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2829960500	1008	PULLEY FIXING SCREW	3	0	Meer info
2814040200	1014	TIMER KNOB SHAFT	2	1	Meer info
2818935100	1048	GLASS FRAME	4	1	Meer info
2836970300	1096	SCREW (4x11)	1	2	Meer info
2865200100	1210	TUB-FILTER HOSE ASSEMBLY COMPLETE	12	1	Meer info
2707340300	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2707340400	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2817470100	1232	SPRING HOLDER...	2	1	Meer info
2817480100	1233	SPRING HOLDER...	2	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2880603700	1363	WELDED TUBASSEMBLY	41	0	Meer info
2880607100	1363	WELDED TUBASSEMBLY	42	1	Meer info
2863401700	1384	HEATER ASSEMBLY	18	0	Meer info
2863403100	1384	HEATER ASSEMBLY with NICKEL	18	1	Meer info
2863701700	1384	HEATER ASSEMBLY	19	0	Meer info
2882601700	1384	HEATER ASSEMBLY with NICKEL	18	0	Meer info
2877700200	1396	FUNCTION BUTTON ASSEMBLY	7	1	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2812450200	1420	BUTTOM SUPPORT BRACKET.	10	0	Meer info
2906090100	1420	BUTTOM SUPPORT BRACKET	6	1	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	0	Meer info
2817050400	1442	SHOCK ABSORBER PIN	1	2	Meer info
2890200300	1451	TERMINAL BODY ASSEMBLY	8	1	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	5	Meer info
2896300100	1470	CABINET ASSEMBLY AND BACK COVER	37	1	Meer info
2828340100	1519	EDGE COVER	1	1	Meer info
2830690100	1520	CABLE HOLDER	1	3	Meer info
2834480100	1521	CABLE HOLDER	1	1	Meer info
2831380100	1529	CABLE HOLDER	1	1	Meer info
2707730400	1592	PLASTIC SCREW 3x4_5	1	1	Meer info
2819711100	1640	PRESSURE SWITCH	12	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	4	Meer info
2837560100	1701	PINNED CABLE CONNECTOR	2	1	Meer info
2907194400	1712	HOSE	2	2	Meer info
2848710600	1719	FELT	7	2	Meer info
9003611200	1785	SHEET METAL SCREW(B4_2x11.5-TOOTHED)	1	1	Meer info
2912701400	1880	ADJUSTABLE FEET ASSEMBLY	5	4	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	4	Meer info
371202407	8331	Carbon Brush Assembly (L24MF7_39mm)	12	2	Meer info
372205506	8335	Tacho Assembly	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	3	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	3	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	9	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	2	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	1	Meer info
2832450100	8416	SPEC├ä┬░AL PT SREW	1	11	Meer info
2826150100	8430	HOSE CLAMP	1	1	Meer info
2826150200	8431	HOSE CLAMP	3	0	Meer info
