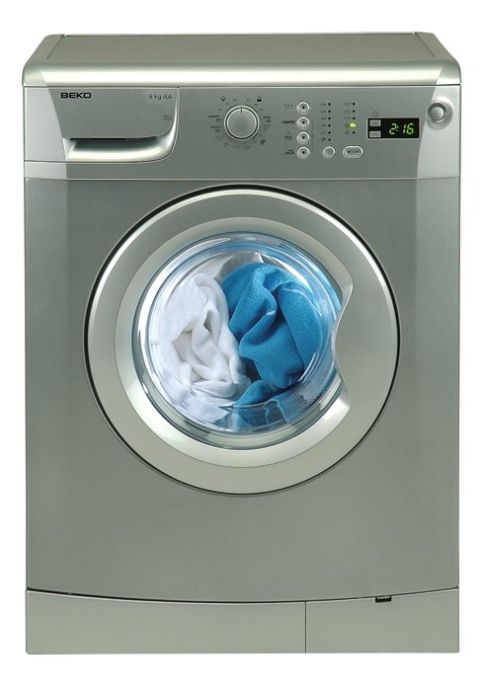

WMD56140S WASMACHINE elektronisch

Artikelnr: 114931

Referentienr: WMD56140S

Productomschrijving

SILVER Electronic 1400 t

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	54
Gewicht (Kg)	68
ArtRef	WMD56140S
AsogemID	114931
Merk	BEKO
Soort	1400 t/m
ArtEAN	8690842131981

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2812290100	0	RADIAL CONNECTION BOLT	1	3	Meer info
2844700200	1	TOP PLATE ASSY.	25	1	Meer info
2827613700	7	BACK COVER	18	1	Meer info
2813120200	9	HANDLE.	12	1	Meer info
2842700400	10	FRONT DOOR ASSEMBLY.	30	1	Meer info
2807280100	11	PORTHOLE GLASS	18	1	Meer info
2813110200	12	INNER COVER	17	1	Meer info
2805310100	13	SECURITY SWITCH	11	1	Meer info
2805310400	13	NTC	10	0	Meer info
2842600100	14	HINGE ASSEMBLY..	18	1	Meer info
2912700100	18	ADJUSTABLE FEET ASSEMBLY	2	2	Meer info
2737601600	20	TRANSPORT SAFETY ASSEMBLY	4	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	4	Meer info
2704110100	38	SPRING HOLDER	1	2	Meer info
2810540740	43	USERS MANUAL (FL_FR_DA)	6	1	Meer info
2811040100	45	COUNTERWEIGHT (UPPER)	15	1	Meer info
2808120100	46	COUNTER (UPPER) BRACKET	2	2	Meer info
2723100100	48	DRUM ASSEMBLY (COMPLETE).	33	1	Meer info
2806840300	49	TUB GASKET	6	1	Meer info
2807790100	53	SUSPENSION SPRING	4	2	Meer info
2804860100	54	DOOR HOOD-RUBBER	19	1	Meer info
2802580300	55	DOOR HOOD CLAMP(SPRING)	4	1	Meer info
2816150100	56	PULLEY	15	1	Meer info
2005170300	59	ELASTIC POLY-V BELT	10	0	Meer info
2005170400	59	ELASTIC POLY-V BELT	12	1	Meer info
2807270100	60	MOTOR CONNECTION NUT	1	4	Meer info
2845600400	63	MOTOR	39	1	Meer info
2703371600	65	HEATER.	17	0	Meer info
2816871400	66	SHOCK ABSORBER	9	2	Meer info
2812750100	72	HEATER SUPPORT	4	1	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	2	Meer info
2820600100	80	SPECIAL BOLT	5	1	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2000811400	100	HOSE.	4	1	Meer info
2800830100	101	PRESSURE TUBE	3	1	Meer info
2007300200	103	HOSE CLAMP ASSEMBLY	2	0	Meer info
2814430100	103	HOSE CLAMP	2	2	Meer info
2855800200	105	HOSE ASSEMBLY.	11	1	Meer info
2426000200	106	HOSE -WATER INLET SLIM-COLD	12	0	Meer info
2906760300	106	HOSE -WATER INLET -COLD	8	0	Meer info
2906860700	106	WATER INLET HOSE ASSEMBLY	10	1	Meer info
2818440100	117	TUB INLET HOSE.	8	1	Meer info
2862100100	146	DETERGENT DISPENSER ASSEMBLY	12	1	Meer info
2809740100	149	COUNTERWEIGHT (FRONT)	13	1	Meer info
2003720900	162	INTERFERENCE SUPPRESSOR	16	0	Meer info
2724300201	162	INTERFERENCE SUPPRESSOR ASSY..	13	1	Meer info
2727001000	166	MAIN CABLE HARNESS.	22	1	Meer info
2820901100	169	POWER CORD ASSY.	16	1	Meer info
2820510100	180	PUSH BUTTON SWITCH	5	0	Meer info
2827990100	180	PUSH BUTTON SWITCH	8	1	Meer info
2822440021	186	MAIN BOARD ASSY.	28	1	Meer info
2801102400	194	PUMP-FILTER ASSEMBLY	16	0	Meer info
2880401000	194	PUMP-FILTER ASSEMBLY(WATER COOLING)	20	1	Meer info
2813299017	197	DETERGENT DRAWER FRONT COVER	11	1	Meer info
2843209017	208	PANEL BODY ASSY.	14	1	Meer info
2603900900	230	CAB├ä┬░NET BELLOWS CLAMP ASSEMBLY	2	1	Meer info
2843300200	300	FUNCTION BUTTON ASSEMBLY	10	1	Meer info
2862300100	336	DRAWER ASSEMBLY.	9	1	Meer info
2813095000	339	OUTER COVER	18	1	Meer info
2813140100	340	HOOK SPRING.	3	1	Meer info
2813130100	341	LOCK HOOK.	3	1	Meer info
2800860600	342	PIN.	1	1	Meer info
2817125000	365	KICKPLATE COVER.	18	1	Meer info
2821500100	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2812410600	401	FRONT PANEL	19	1	Meer info
2834050100	402	BEAD GROOVE	9	2	Meer info
2819730100	403	FIXED FOOT RUBBER	2	2	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	4	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
2816625000	468	ON OFF BUTTON (TYPE02+GREY528)	1	1	Meer info
2704870100	472	CABLE HOLDER	1	0	Meer info
2812220100	472	CABLE HOLDER	2	1	Meer info
2809830100	481	SELECTION SWITCH	8	1	Meer info
2002370600	552	HOSE CLAMP (├â╦£ 13.3)	1	1	Meer info
2000610200	553	HOSE.	10	1	Meer info
2846700400	566	PROGRAMME KNOB BUTTOM. ASSY..	7	1	Meer info
2817820100	573	DISPLAY BOARD....	23	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	4	Meer info
2705570400	584	BAFFLE	6	3	Meer info
2600050000	585	BAFFLE NUT	7	3	Meer info
2825280100	586	M8 CIVATA (SPIRAL FORM)	2	3	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2703940900	617	ISOLATION FELT (SIDE WALL)	10	0	Meer info
2839900100	624	MAIN BOARD HOLDER ASSY.	8	1	Meer info
2810540741	631	USERS MANUAL (DE_PT_FI_SV_NO_IT_EN)	6	1	Meer info
2808880100	632	HINGE BUSHING	1	2	Meer info
2813830100	636	LIGHT PIPE..	2	1	Meer info
2813840100	637	LIGHT PIPE..	3	1	Meer info
2811590100	642	TUB SCREW..	1	20	Meer info
2812130100	664	RUBBER CUSHION	2	2	Meer info
9003890100	666	WASHER.	2	2	Meer info
2808860100	668	HINGE HOLDER	8	1	Meer info
2808740200	677	STOPPER.	2	1	Meer info
2807840100	681	UPPER COUNTER WEIGHT BOLT	4	2	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2811250100	682	M8 x 1_25 FLANGED NUT	1	2	Meer info
2807770100	683	FIXING WASHER	2	2	Meer info
2813855000	685	TIME ADJUSTMENT BUTTON	5	1	Meer info
2813855100	686	TIME ADJUSTMENT BUTTON	0	1	Meer info
2807920200	687	TUB (FRONT)	27	1	Meer info
2825000500	688	TUB ASSEMBLY (REAR) (COMPLETE)	33	1	Meer info
2810560100	712	FIXING WASHER	1	2	Meer info
2810230100	713	FRONT COUNTERWEIGHT SCREW	2	4	Meer info
2809870500	722	MOTOR PROTECTIVE COVER	5	1	Meer info
2901250100	737	WATER INLET VALVE...	16	1	Meer info
2900960200	743	SELECTOR KNOB ADAPTER.	1	1	Meer info
2811910100	750	DISPLAY PCB HOLDER.	6	1	Meer info
2816610100	761	ON_OFF ADAPTOR	4	1	Meer info
2804110100	781	COUNTER WEIGTH COMPRESSION SPRING	2	4	Meer info
2812110200	827	PANEL SUPPORT BRACKET	7	0	Meer info
2825170100	827	PANEL SUPPORT BRACKET	10	0	Meer info
2851980100	827	PANEL SPAREPART	6	1	Meer info
2903090300	953	DOOR LOCK FOIL	2	1	Meer info
2813235200	997	ON OFF RING.	3	1	Meer info
2829960100	1008	PULLEY FIXING SCREW	3	0	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2814140100	1025	ROTARY SELECTOR BRACKET	4	1	Meer info
2600940700	1107	HOSE	2	2	Meer info
2855700100	1210	HOSE ASSEMBLY	12	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2812130400	1354	RUBBER CUSHION	2	1	Meer info
2863401700	1384	HEATER ASSEMBLY	18	0	Meer info
2863403000	1384	HEATER ASSEMBLY without NICHEL	18	0	Meer info
2863701600	1384	HEATER HARNESS....	18	0	Meer info
2863701700	1384	HEATER ASSEMBLY	19	0	Meer info
2882601600	1384	HEATER ASSEMBLY without NICHEL	22	1	Meer info
2882601700	1384	HEATER ASSEMBLY with NICKEL	18	0	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2824400100	1415	SPIDER ARM ASSEMBLY(COMPLETE)	23	1	Meer info
2812450100	1420	BUTTOM SUPPORT BRACKET	7	1	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	2	Meer info
2890200200	1451	TERMINAL BODY ASSEMBLY	5	1	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	5	Meer info
2896100200	1470	CABINET ASSEMBLY AND BACK COVER	36	1	Meer info
2805890100	1640	PRESSURE SWITCH	15	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	4	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	4	Meer info
371202402	8331	Carbon Brush Assembly (BLACK_L93MF7)	9	2	Meer info
372205506	8335	Tacho Assembly	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2812050100	8373	SELECTION SWITCH	8	0	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	14	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	7	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	6	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	8	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	6	Meer info
9003270900	8399	PLASTIC SCREW	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	2	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
2811240100	8426	CABLE HOLDER	2	2	Meer info
