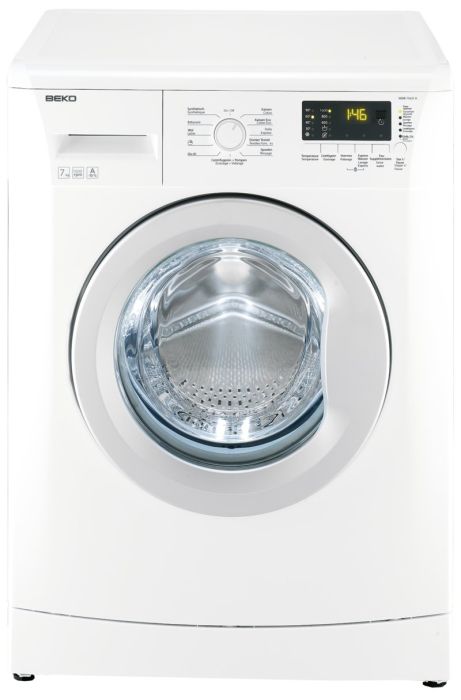

Productomschrijving
1600 t
| Hoogte | 84 |
|---|---|
| Breedte | 60 |
| Diepte | 54 |
| Gewicht (Kg) | 71 |
| ArtRef | WMB71631A |
| AsogemID | 114620 |
| Merk | BEKO |
| Soort | 1600 t/m |
| ArtEAN | 8690842342745 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2877500100 | 1 | TOP PLATE ASSY. | 21 | 0 | Meer info | |||
| 2827611400 | 7 | BACK COVER | 17 | 1 | Meer info | |||
| 2828780200 | 9 | HANDLE. | 2 | 1 | Meer info | |||
| 2915100200 | 10 | FRONT DOOR ASSEMBLY | 25 | 1 | Meer info | |||
| 2905560100 | 11 | PORTHOLE GLASS | 15 | 1 | Meer info | |||
| 2828770200 | 12 | INNER COVER. | 9 | 1 | Meer info | |||
| 2805310200 | 13 | DOOR LOCK | 11 | 0 | Meer info | |||
| 2805310800 | 13 | DOOR LOCK | 11 | 0 | Meer info | |||
| 2805311600 | 13 | DOOR LOCK | 10 | 1 | Meer info | |||
| 2805311700 | 13 | DOOR LOCK | 11 | 1 | Meer info | |||
| 2905730100 | 14 | HINGE | 9 | 1 | Meer info | |||
| 2843840200 | 16 | HINGE SUPPORT | 3 | 1 | Meer info | |||
| 2912700500 | 18 | ADJUSTABLE FEET ASSEMBLY | 4 | 0 | Meer info | |||
| 2737601600 | 20 | TRANSPORT SAFETY ASSEMBLY | 4 | 4 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 1 | Meer info | |||
| 2704110100 | 38 | SPRING HOLDER | 1 | 1 | Meer info | |||
| 2820521360 | 43 | USERS MANUAL (EN_FR_FL_DE) | 14 | 1 | Meer info | |||
| 2820521926 | 43 | USER S MANUAL (DA_FI_NO_SV) | 6 | 1 | Meer info | |||
| 2816990100 | 45 | COUNTERWEIGHT (UPPER).. | 16 | 0 | Meer info | |||
| 2816990600 | 45 | UPPER COUNTER WEIGHT | 15 | 1 | Meer info | |||
| 2824010100 | 53 | SUSPENSION SPRING | 5 | 2 | Meer info | |||
| 2466300303 | 54 | DOOR HOOD-RUBBER ASSY | 21 | 1 | Meer info | |||
| 2802580600 | 55 | DOOR GASGET SPRING | 2 | 1 | Meer info | |||
| 2816660200 | 56 | PULLEY | 14 | 1 | Meer info | |||
| 2816750200 | 59 | ELASTIC POLY-V BELT | 12 | 1 | Meer info | |||
| 2845710200 | 59 | ELASTIC POLY-V BELT | 12 | 0 | Meer info | |||
| 2818450100 | 60 | ENGINE CONNECTION SCREW | 2 | 0 | Meer info | |||
| 2818450300 | 60 | ENGINE CONNECTION SCREW | 2 | 0 | Meer info | |||
| 2818450400 | 60 | ENGINE CONNECTION SCREW | 2 | 2 | Meer info | |||
| 2818450500 | 60 | ENGINE CONNECTION SCREW | 2 | 2 | Meer info | |||
| 2824170100 | 63 | MOTOR | 35 | 1 | Meer info | |||
| 2816871100 | 66 | SHOCK ABSORBER | 9 | 2 | Meer info | |||
| 2801430300 | 78 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2801430400 | 78 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2898400200 | 80 | SPECIAL BOLT. | 4 | 6 | Meer info | |||
| 2000811600 | 100 | AIR PIPE HOSE L=590 mm | 3 | 1 | Meer info | |||
| 2814430100 | 103 | HOSE CLAMP | 2 | 0 | Meer info | |||
| 2814430200 | 103 | HOSE CLAMP | 2 | 1 | Meer info | |||
| 2818440200 | 117 | TUB INLET HOSE. | 8 | 1 | Meer info | |||
| 2412700100 | 146 | DETERGENT DIPENSER ASSEMBLY | 13 | 0 | Meer info | |||
| 2412700600 | 146 | DETERGENT DIPENSER ASSEMBLY | 14 | 1 | Meer info | |||
| 2412701100 | 146 | DETERGENT DIPENSER ASSEMBLY | 14 | 0 | Meer info | |||
| 2829510600 | 149 | COUNTERWEIGHT-LOWER | 15 | 1 | Meer info | |||
| 2724300801 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 1 | Meer info | |||
| 2834081200 | 166 | MAIN CABLE HARNESS | 23 | 1 | Meer info | |||
| 2820901400 | 169 | POWER CORD ASSY. | 15 | 1 | Meer info | |||
| 2826330143 | 186 | MAIN BOARD ASSY. | 29 | 1 | Meer info | |||
| 2840940200 | 194 | PUMP-FILTER ASSEMBLY | 20 | 1 | Meer info | |||
| 2880402000 | 194 | PUMP-FILTER ASSEMBLY(WATER COOLING) | 20 | 0 | Meer info | |||
| 2828119050 | 197 | DRAWER PANEL | 9 | 1 | Meer info | |||
| 2811570300 | 201 | MODUL HOLDER (MEDIUM) | 4 | 1 | Meer info | |||
| 2899300500 | 203 | PROGRAM SELECTOR KNOB ASSY | 7 | 1 | Meer info | |||
| 2828279018 | 208 | PANEL BODY ASSY. | 15 | 1 | Meer info | |||
| 2603901200 | 230 | CABINET BELLOWS CLAMP ASSEMBLY | 3 | 1 | Meer info | |||
| 2413000500 | 336 | DRAWER ASSEMBLY | 12 | 1 | Meer info | |||
| 2828765000 | 339 | OUTER DOOR | 20 | 1 | Meer info | |||
| 2814360500 | 340 | HOOK SPRING | 1 | 1 | Meer info | |||
| 2813130100 | 341 | LOCK HOOK. | 3 | 0 | Meer info | |||
| 2813130300 | 341 | LOCK HOOK. | 2 | 1 | Meer info | |||
| 2800860600 | 342 | PIN. | 1 | 1 | Meer info | |||
| 2812860400 | 365 | KICKPLATE BODY. | 9 | 0 | Meer info | |||
| 2830790100 | 365 | KICKPLATE BODY. | 10 | 0 | Meer info | |||
| 2830790400 | 365 | KICKPLATE BODY. | 8 | 0 | Meer info | |||
| 2846340400 | 365 | KICKPLATE BODY | 8 | 1 | Meer info | |||
| 2803801300 | 373 | DISCHARGE HOSE ASSEMBLY | 7 | 1 | Meer info | |||
| 2819100300 | 373 | DISCHARGE HOSE ASSEMBLY(OUTER) | 8 | 1 | Meer info | |||
| 2812413500 | 401 | FRONT PANEL | 17 | 1 | Meer info | |||
| 2811230100 | 411 | DISCHARGE HOSE HOLDER | 2 | 2 | Meer info | |||
| 2849330100 | 470 | SIPHON ELBOW | 1 | 1 | Meer info | |||
| 2732000500 | 471 | DISCHARGE HOSE ASSEMBLY (COMPLETE) | 8 | 1 | Meer info | |||
| 2002370600 | 552 | HOSE CLAMP (Ø 13.3) | 1 | 1 | Meer info | |||
| 2000610200 | 553 | HOSE. | 10 | 1 | Meer info | |||
| 2828430100 | 571 | REFLECTOR | 2 | 1 | Meer info | |||
| 2872700100 | 598 | FILTER ASSEMBLY | 5 | 1 | Meer info | |||
| 2703940900 | 617 | ISOLATION FELT (SIDE WALL) | 10 | 0 | Meer info | |||
| 2915790200 | 632 | HINGE BUSHING | 2 | 2 | Meer info | |||
| 2812870100 | 672 | KICKPLATE COVER. | 5 | 0 | Meer info | |||
| 2812870400 | 672 | KICKPLATE COVER. | 5 | 0 | Meer info | |||
| 2846350400 | 672 | KICKPLATE COVER. | 5 | 1 | Meer info | |||
| 2808740200 | 677 | STOPPER. | 2 | 1 | Meer info | |||
| 101301407 | 682 | NUT M8 DIN934. | 1 | 1 | Meer info | |||
| 2839500200 | 723 | DC MODULE CARD HOLDER | 5 | 1 | Meer info | |||
| 2836480100 | 737 | WATER INLET VALVE | 16 | 0 | Meer info | |||
| 2906850200 | 737 | WATER INLET VALVE | 15 | 0 | Meer info | |||
| 2906870200 | 737 | WATER INLET VALVE | 15 | 1 | Meer info | |||
| 2906920100 | 737 | WATER INLET VALVE | 16 | 0 | Meer info | |||
| 2817690100 | 748 | DC MODULE | 16 | 0 | Meer info | |||
| 2817690101 | 748 | DC MODULE | 18 | 1 | Meer info | |||
| 2471600100 | 775 | MECHANIC AQUASTOP | 22 | 1 | Meer info | |||
| 2831320200 | 797 | Cable Holder | 1 | 1 | Meer info | |||
| 2831370100 | 797 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2812110200 | 827 | PANEL SUPPORT BRACKET | 7 | 0 | Meer info | |||
| 2825170100 | 827 | PANEL SUPPORT BRACKET | 10 | 0 | Meer info | |||
| 2851980100 | 827 | PANEL SPAREPART | 6 | 1 | Meer info | |||
| 2903090300 | 953 | DOOR LOCK FOIL | 2 | 1 | Meer info | |||
| 2829960200 | 1008 | PULLEY FIXING SCREW | 3 | 1 | Meer info | |||
| 2829960500 | 1008 | PULLEY FIXING SCREW | 3 | 0 | Meer info | |||
| 2828450200 | 1014 | TIMER KNOB SHAFT | 2 | 1 | Meer info | |||
| 2836970300 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2836970500 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2849320300 | 1110 | Siphonage preventing flat hose | 1 | 1 | Meer info | |||
| 2865200100 | 1210 | TUB-FILTER HOSE ASSEMBLY COMPLETE | 12 | 1 | Meer info | |||
| 2707340300 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 2707340400 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 130500920 | 1284 | SERRATED LOCK WASHER (A8.4 DIN 6798) | 1 | 1 | Meer info | |||
| 2500702000 | 1363 | WELDED TUB ASSY. | 0 | 1 | Meer info | |||
| 2863401700 | 1384 | HEATER ASSEMBLY | 18 | 0 | Meer info | |||
| 2863403100 | 1384 | HEATER ASSEMBLY with NICKEL | 18 | 1 | Meer info | |||
| 2863701700 | 1384 | HEATER ASSEMBLY | 19 | 0 | Meer info | |||
| 2882601700 | 1384 | HEATER ASSEMBLY with NICKEL | 18 | 0 | Meer info | |||
| 2898700500 | 1396 | LIGHT GUIDE BUTTON ASSEMBLY | 10 | 1 | Meer info | |||
| 2820820100 | 1406 | CHASSIS FLAP | 2 | 2 | Meer info | |||
| 2817050300 | 1442 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2817050400 | 1442 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2890200300 | 1451 | TERMINAL BODY ASSEMBLY | 8 | 1 | Meer info | |||
| 2826440100 | 1459 | FRONT WALL HOLDER | 2 | 2 | Meer info | |||
| 2826450100 | 1460 | FRONT WALL HOLDER PIN | 2 | 2 | Meer info | |||
| 9003860400 | 1467 | SHEET METAL SCREW 4.2x6.5 | 1 | 5 | Meer info | |||
| 2896100900 | 1470 | CABINET ASSEMBLY AND BACK COVER | 37 | 1 | Meer info | |||
| 2707920100 | 1486 | SPRING HOLDER RIGHT | 1 | 1 | Meer info | |||
| 2830690100 | 1520 | CABLE HOLDER | 1 | 3 | Meer info | |||
| 2834480100 | 1521 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2828820400 | 1528 | PANEL GASKET | 1 | 1 | Meer info | |||
| 2831380100 | 1529 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2826420100 | 1535 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2707730400 | 1592 | PLASTIC SCREW 3x4_5 | 1 | 1 | Meer info | |||
| 2819711100 | 1640 | PRESSURE SWITCH | 12 | 0 | Meer info | |||
| 2833830400 | 1640 | PRESSURE SENSOR METALFLEX | 10 | 1 | Meer info | |||
| 2907194600 | 1662 | HOSE L=240 mm | 2 | 2 | Meer info | |||
| 2002374300 | 1686 | HOSE CLAMP (├â┬© 1.8) | 2 | 4 | Meer info | |||
| 2837560100 | 1701 | PINNED CABLE CONNECTOR | 2 | 2 | Meer info | |||
| 2848710500 | 1719 | FELT | 8 | 2 | Meer info | |||
| 9003611200 | 1785 | SHEET METAL SCREW(B4_2x11.5-TOOTHED) | 1 | 1 | Meer info | |||
| 2912701400 | 1880 | ADJUSTABLE FEET ASSEMBLY | 5 | 4 | Meer info | |||
| 2859590100 | 1951 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 181300303 | 8325 | M4X10 TAPTITE SCREW. | 1 | 4 | Meer info | |||
| 371202407 | 8331 | Carbon Brush Assembly (L24MF7_39mm) | 12 | 2 | Meer info | |||
| 372205506 | 8335 | Tacho Assembly | 8 | 1 | Meer info | |||
| 373500801 | 8336 | Tachometer Cover.. | 2 | 1 | Meer info | |||
| 2002371700 | 8355 | HOSE CLAMP (x 28,7) | 1 | 3 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2828040300 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 3 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 4 | Meer info | |||
| 9003610700 | 8390 | SHEET METAL SCREW (B4.2x11.5) | 1 | 2 | Meer info | |||
| 2705810100 | 8394 | PT SCREW (3_5x9.5) | 1 | 3 | Meer info | |||
| 111201020 | 8396 | BOLT (AM5x10 DIN 7985 4.8-H) | 1 | 2 | Meer info | |||
| 9003610500 | 8397 | SHEET METAL SCREW(B4_2x9_5-TOOTHED) | 1 | 3 | Meer info | |||
| 9003610900 | 8397 | SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED | 1 | 3 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 2 | Meer info | |||
| 9003860300 | 8403 | SHEET METAL SCREW | 1 | 2 | Meer info | |||
| 2831790100 | 8412 | SPECIAL SHEET SREW | 2 | 0 | Meer info | |||
| 2832450100 | 8416 | SPECÄ°AL PT SREW | 1 | 11 | Meer info | |||
| 9001230300 | 8419 | PLASTIC CLAMP 100 mm | 1 | 1 | Meer info | |||
| 2826150100 | 8430 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2826150200 | 8431 | HOSE CLAMP | 3 | 0 | Meer info |
