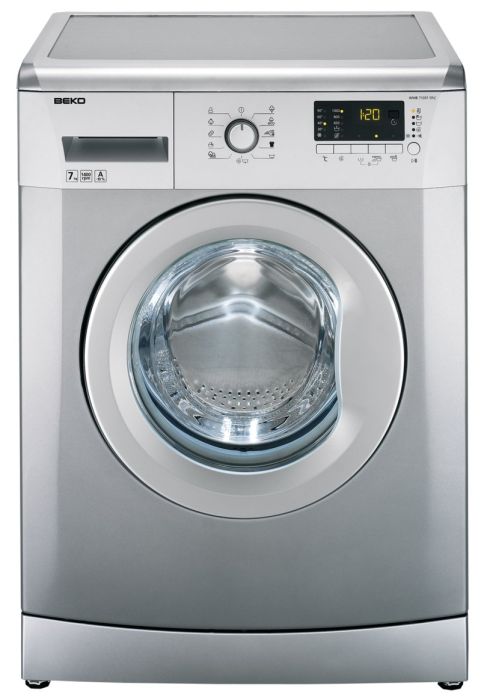

main product photo

WMB71431S WASMACHINE elektronisch

Artikelnr: 114619
Referentienr: WMB71431S
Vergelijk

Productomschrijving

SILVER 1400 t/min. 7 kg - polyp. AAB 19u/h
Meer informatie
Hoogte 84
Breedte 60
Diepte 54
Gewicht (Kg) 71
ArtRef WMB71431S
AsogemID 114619
Merk BEKO
Soort 1400 t/m
ArtEAN 8690842342905
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2844700200 1 TOP PLATE ASSY. 25 0 Meer info
2877500200 1 TOP PLATE ASSY. 26 1 Meer info
2827613700 7 BACK COVER 18 1 Meer info
2828780200 9 HANDLE. 2 1 Meer info
2915101500 10 FRONT DOOR ASSEMBLY 25 1 Meer info
2905560100 11 PORTHOLE GLASS 15 1 Meer info
2828770200 12 INNER COVER. 9 1 Meer info
2805310200 13 DOOR LOCK 11 0 Meer info
2805310800 13 DOOR LOCK 11 0 Meer info
2805311600 13 DOOR LOCK 10 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2905730100 14 HINGE 9 1 Meer info
2843840200 16 HINGE SUPPORT 3 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 4 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2704110100 38 SPRING HOLDER 1 1 Meer info
2820521360 43 USERS MANUAL (EN_FR_FL_DE) 14 1 Meer info
2820521926 43 USER S MANUAL (DA_FI_NO_SV) 6 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2824010100 53 SUSPENSION SPRING 5 2 Meer info
2466300303 54 DOOR HOOD-RUBBER ASSY 21 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660200 56 PULLEY 14 1 Meer info
2816750200 59 ELASTIC POLY-V BELT 12 1 Meer info
2845710200 59 ELASTIC POLY-V BELT 12 0 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 4 Meer info
2826520100 63 MOTOR 38 1 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2830730200 66 SHOCK ABSORBER 11 0 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2000811600 100 AIR PIPE HOSE L=590 mm 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2412700100 146 DETERGENT DIPENSER ASSEMBLY 13 0 Meer info
2412700600 146 DETERGENT DIPENSER ASSEMBLY 14 1 Meer info
2412701100 146 DETERGENT DIPENSER ASSEMBLY 14 0 Meer info
2831720900 149 LOWER COUNTER WEIGHT 16 1 Meer info
2841180700 149 COUNTERWEIGHT-LOWER 16 0 Meer info
2724300801 162 INTERFERENCE SUPPRESSOR ASSY.. 12 1 Meer info
2834081200 166 MAIN CABLE HARNESS 23 1 Meer info
2820901400 169 POWER CORD ASSY. 15 1 Meer info
2826330133 186 MAIN BOARD ASSY. 29 1 Meer info
2840940200 194 PUMP-FILTER ASSEMBLY 20 1 Meer info
2880402000 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2828119098 197 DRAWER PANEL 17 1 Meer info
2811570300 201 MODUL HOLDER (MEDIUM) 4 1 Meer info
2899301700 203 PROGRAM SELECTOR KNOB ASSY 10 1 Meer info
2828279040 208 PANEL BODY ASSY. 23 1 Meer info
2603901200 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2413000500 336 DRAWER ASSEMBLY 12 1 Meer info
2828765300 339 OUTER DOOR 19 1 Meer info
2814360500 340 HOOK SPRING 1 1 Meer info
2813130100 341 LOCK HOOK. 3 0 Meer info
2813130300 341 LOCK HOOK. 2 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2830795000 365 KICKPLATE BODY. (TYPE02+GREY528 14 1 Meer info
2803801300 373 DISCHARGE HOSE ASSEMBLY 7 1 Meer info
2819100300 373 DISCHARGE HOSE ASSEMBLY(OUTER) 8 1 Meer info
2812413600 401 FRONT PANEL 17 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 2 Meer info
2849330100 470 SIPHON ELBOW 1 1 Meer info
2732000500 471 DISCHARGE HOSE ASSEMBLY (COMPLETE) 8 1 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2828430100 571 REFLECTOR 2 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703940900 617 ISOLATION FELT (SIDE WALL) 10 0 Meer info
2915790200 632 HINGE BUSHING 2 2 Meer info
2812875000 672 KICKPLATE COVER. (TYPE02+GREY528) 8 1 Meer info
2808740200 677 STOPPER. 2 1 Meer info
101301407 682 NUT M8 DIN934. 1 1 Meer info
2839500200 723 DC MODULE CARD HOLDER 5 1 Meer info
2836480100 737 WATER INLET VALVE 16 0 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 1 Meer info
2906920100 737 WATER INLET VALVE 16 0 Meer info
2817690100 748 DC MODULE 16 0 Meer info
2817690101 748 DC MODULE 18 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2828450200 1014 TIMER KNOB SHAFT 2 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2849320300 1110 Siphonage preventing flat hose 1 1 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
130500920 1284 SERRATED LOCK WASHER (A8.4 DIN 6798) 1 1 Meer info
2415704100 1363 WELDED TUB ASSEMBLY 41 0 Meer info
2415705500 1363 WELDED TUB ASSEMBLY 41 1 Meer info
2863401700 1384 HEATER ASSEMBLY 18 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2863701700 1384 HEATER ASSEMBLY 19 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2898700700 1396 LIGHT GUIDE BUTTON ASSEMBLY 10 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2890200400 1451 TERMINAL BODY ASSEMBLY 6 1 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2896100200 1470 CABINET ASSEMBLY AND BACK COVER 36 1 Meer info
2707920100 1486 SPRING HOLDER RIGHT 1 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820100 1528 PANEL GASKET 2 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2819711100 1640 PRESSURE SWITCH 12 0 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2907194600 1662 HOSE L=240 mm 2 2 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 4 Meer info
371202407 8331 Carbon Brush Assembly (L24MF7_39mm) 12 2 Meer info
372205506 8335 Tacho Assembly 8 1 Meer info
373500801 8336 Tachometer Cover.. 2 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 3 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 3 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 4 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 5 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 3 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003860300 8403 SHEET METAL SCREW 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 11 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
