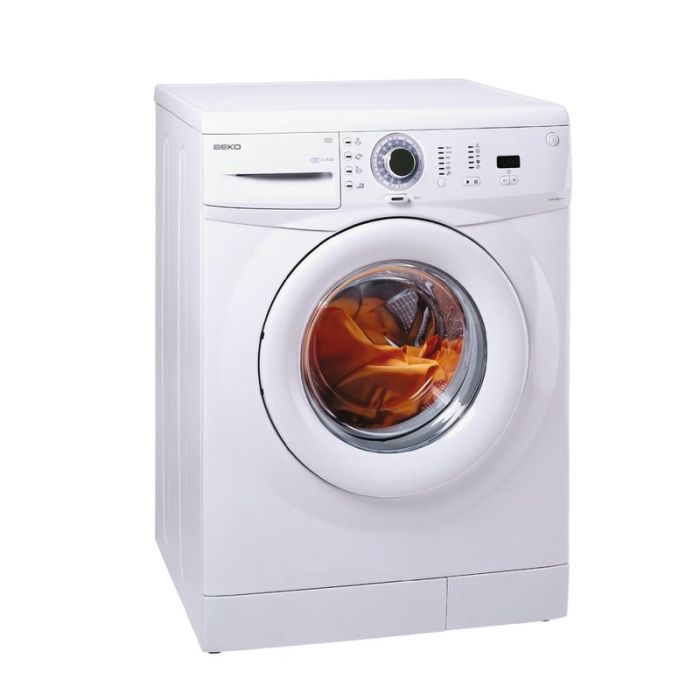

WM5556T WASMACHINE elektronisch

Artikelnr: 114934
Referentienr: WM5556T
Vergelijk

Productomschrijving

Electronic 1600 t
Meer informatie
Hoogte 85
Breedte 60
Diepte 54
Gewicht (Kg) 68
ArtRef WM5556T
AsogemID 114934
Merk BEKO
Soort 1600 t/m
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2003310000 0 BEARING 14 1 Meer info
2812290100 0 RADIAL CONNECTION BOLT 1 3 Meer info
2826700100 1 TOP PLATE ASSY. 20 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2835100900 10 FRONT DOOR ASSEMBLY 26 1 Meer info
2807280100 11 PORTHOLE GLASS 18 1 Meer info
2808820100 12 INNER COVER 16 1 Meer info
2704830300 13 SECURITY SWITCH. 17 1 Meer info
2849700100 14 HINGE ASSEMBLY 18 1 Meer info
2912700100 18 ADJUSTABLE FEET ASSEMBLY 2 2 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 4 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 4 Meer info
2704110100 38 SPRING HOLDER 1 2 Meer info
2810540131 43 USERS MANUAL (DA_SV) 6 1 Meer info
2810380100 45 COUNTERWEIGHT (UPPER).. 14 1 Meer info
2808120100 46 COUNTER (UPPER) BRACKET 2 1 Meer info
2723100300 48 DRUM ASSEMBLY (COMPLETE). 32 1 Meer info
2806840300 49 TUB GASKET 6 1 Meer info
2807790100 53 SUSPENSION SPRING 4 2 Meer info
2821430200 54 DOOR HOOD-RUBBER 21 1 Meer info
2802580300 55 DOOR HOOD CLAMP(SPRING) 4 1 Meer info
2816150100 56 PULLEY 15 1 Meer info
2005170400 59 ELASTIC POLY-V BELT 12 1 Meer info
2807270100 60 MOTOR CONNECTION NUT 1 4 Meer info
2835800400 63 MOTOR ASSEMBLY 38 1 Meer info
2703371600 65 HEATER. 17 0 Meer info
2816871400 66 SHOCK ABSORBER 9 2 Meer info
2812750100 72 HEATER SUPPORT 4 1 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 2 Meer info
2820600100 80 SPECIAL BOLT 5 1 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2809540100 99 SIPHON 3 1 Meer info
2000811400 100 HOSE. 4 1 Meer info
2800830100 101 PRESSURE TUBE 3 1 Meer info
2007300200 103 HOSE CLAMP ASSEMBLY 2 0 Meer info
2814430100 103 HOSE CLAMP 2 1 Meer info
2808060100 105 TUB-FILTER HOSE 12 1 Meer info
2426000200 106 HOSE -WATER INLET SLIM-COLD 12 0 Meer info
2906760300 106 HOSE -WATER INLET -COLD 8 0 Meer info
2906860700 106 WATER INLET HOSE ASSEMBLY 10 1 Meer info
2818440100 117 TUB INLET HOSE. 8 1 Meer info
2817700400 146 DETERGENT DISPENSER ASSEMBLY 18 1 Meer info
2809740100 149 COUNTERWEIGHT (FRONT) 13 1 Meer info
2003720900 162 INTERFERENCE SUPPRESSOR 16 0 Meer info
2724300201 162 INTERFERENCE SUPPRESSOR ASSY.. 13 1 Meer info
2727000200 166 MAIN CABLE HARNESS.. 25 1 Meer info
2820901100 169 POWER CORD ASSY. 16 1 Meer info
2809260800 172 PANEL SUPPORT 8 1 Meer info
2201920500 180 PUSH BUTTON SWITCH (ON_OFF) 8 1 Meer info
2822380121 186 MAIN BOARD ASSY. 29 1 Meer info
2801101900 194 PUMP-FILTER ASSEMBLY 18 0 Meer info
2880400800 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 1 Meer info
2806470057 197 DETERGENT DRAWER FRONT COVER. 9 1 Meer info
2811570200 201 MODULE HOLDER 5 1 Meer info
2809130100 207 SPIN SELECT BUTTON 4 1 Meer info
2831400069 208 PANEL BODY.. 0 1 Meer info
2603900900 230 CABÄ°NET BELLOWS CLAMP ASSEMBLY 2 1 Meer info
2832200100 301 FUNCTION BUTTON ASSEMBLY 11 1 Meer info
2832200200 302 FUNCTION BUTTON ASSEMBLY 4 1 Meer info
2832200300 303 FUNCTION BUTTON ASSEMBLY 4 1 Meer info
2832200400 304 FUNCTION BUTTON ASSEMBLY 4 1 Meer info
2800800500 336 DETERGENT DRAWER ASSEMBLY 19 1 Meer info
2808790100 339 OUTER COVER 16 1 Meer info
2707190100 341 LOCK HOOK 4 1 Meer info
2806620100 365 KICKPLATE COVER (WHITE) 8 0 Meer info
2806621100 365 KICKPLATE COVER (WHITE) 10 0 Meer info
2830350100 365 KICKPLATE BODY (WHITE) 8 0 Meer info
2830350500 365 KICK PLATE BODY ( ABS WHITE) 9 1 Meer info
2830350700 365 KICKPLATE COVER (WHITE) 9 0 Meer info
2821500100 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2707120600 401 FRONT PANEL 18 1 Meer info
2834050100 402 BEAD GROOVE 9 2 Meer info
2819730100 403 FIXED FOOT RUBBER 2 2 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 4 Meer info
2804670100 414 FRONT PANEL HOLDER 2 2 Meer info
2005680200 428 WATER INLET VALVE 19 1 Meer info
2810580100 441 OIL SEAL 8 1 Meer info
2849400100 447 DOOR OPENING BUTTON ASSEMBLY. 5 1 Meer info
2811420100 468 ON OFF BUTTON. 3 1 Meer info
2704870100 472 CABLE HOLDER 1 0 Meer info
2812220100 472 CABLE HOLDER 2 1 Meer info
2809830100 481 SELECTION SWITCH 8 1 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2834100002 566 PROGRAMME KNOB BUTTOM. ASSY 14 1 Meer info
2809370100 571 REFLECTOR. 3 1 Meer info
2817770100 573 DISPLAY BOARD... 25 1 Meer info
2810290100 577 BUTTON SPRING. 1 4 Meer info
2810290200 578 BUTTON SPRING. 1 4 Meer info
2706460100 581 CABLE PROTECTED 1 1 Meer info
2705870100 583 SELF LOCKING CABLE HOLDER 1 4 Meer info
2705570400 584 BAFFLE 6 3 Meer info
2600050000 585 BAFFLE NUT 7 3 Meer info
2825280100 586 M8 CIVATA (SPIRAL FORM) 2 3 Meer info
2705630100 597 CABLE GUIDE CUFF 3 1 Meer info
2810900100 598 FILTER ASSEMBLY 5 1 Meer info
2002370500 605 HOSE CLAMP 1 1 Meer info
2703940900 617 ISOLATION FELT (SIDE WALL) 10 0 Meer info
2839900100 624 MAIN BOARD HOLDER ASSY. 8 1 Meer info
2810540132 631 USERS MANUAL (FL_FR_DE) 6 1 Meer info
2808880100 632 HINGE BUSHING 1 2 Meer info
2809350100 636 LIGHT PIPE. 1 1 Meer info
2809140100 637 LIGHT PIPE. 1 1 Meer info
2811590100 642 TUB SCREW.. 1 20 Meer info
2811840100 646 START PAUSE BUTTON ASSEMBLY. 7 1 Meer info
2833900100 646 START PAUSE BUTTON ASSEMBLY 4 0 Meer info
2812130100 664 RUBBER CUSHION 2 2 Meer info
9003890100 666 WASHER. 2 1 Meer info
2808860100 668 HINGE HOLDER 8 1 Meer info
2810920100 672 KICKPLATE COVER.. 6 0 Meer info
2810920800 672 KICKPLATE COVER (WHITE) 5 0 Meer info
2830590100 672 KICKPLATE COVER 6 0 Meer info
2830590400 672 KICKPLATE COVER 6 1 Meer info
2830590700 672 KICKPLATE COVER (WHITE) 6 0 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2807840100 681 UPPER COUNTER WEIGHT BOLT 4 1 Meer info
101301407 682 NUT M8 DIN934. 1 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2807770100 683 FIXING WASHER 2 1 Meer info
2809110001 685 TIME ADJUSTMENT BUTTON (LEFT). 4 1 Meer info
2809340001 686 TIME ADJUSTMENT BUTTON (RIGHT) 4 1 Meer info
2811780200 687 TUB (FRONT) 30 1 Meer info
2825200700 688 TUB ASSEMBLY (REAR) (COMPLETE). 0 1 Meer info
2809080100 689 PROGRAMME CARD HOLDER 4 1 Meer info
2809070033 694 PROGRAMME CARD (ENGLISH).. 5 1 Meer info
2809070034 697 PROGRAMME CARD (DANISH) 4 1 Meer info
2810540138 703 USERS MANUAL (NO_FI_EN) 6 1 Meer info
2809070035 704 PROGRAMME CARD (NORWEGIAN) 4 1 Meer info
2809070036 705 PROGRAMME CARD (FINNISH) 4 1 Meer info
2809070037 706 PROGRAMME CARD (SWEDISH) 4 1 Meer info
2810560100 712 FIXING WASHER 1 2 Meer info
2810230100 713 FRONT COUNTERWEIGHT SCREW 2 4 Meer info
2828100100 715 7 SEGMENT ASSY 4 1 Meer info
2810540205 717 USERS MANUAL (EN_HR) 5 1 Meer info
2809870400 722 MOTOR PROTECTIVE COVER 5 1 Meer info
2839500100 723 DC MODULE HOLDER 7 1 Meer info
2849200100 730 DOOR PCB ASSY. 14 1 Meer info
2817690100 748 DC MODULE 16 1 Meer info
2804110100 781 COUNTER WEIGTH COMPRESSION SPRING 2 4 Meer info
2903090200 953 DOOR LOCK WATER PROTECTOR 2 1 Meer info
2809070038 958 QUICK REFERENCE CARD (FLEMISH) 4 1 Meer info
2809070039 959 QUICK REFERENCE CARD (FRENCH) 4 1 Meer info
2809070042 960 QUICK REFERENCE CARD (GERMAN) 4 1 Meer info
2829960100 1008 PULLEY FIXING SCREW 3 0 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2815810400 1094 PLASTIC CLAMP 2 1 Meer info
2600941000 1110 HOSE 2 1 Meer info
2600941700 1117 HOSE 15 1 Meer info
2600941800 1118 HOSE 2 1 Meer info
2739900900 1238 LOCK WIRE GR. 14 1 Meer info
130500920 1284 SERRATED LOCK WASHER (A8.4 DIN 6798) 1 1 Meer info
2812130400 1354 RUBBER CUSHION 2 1 Meer info
2811390100 1381 PRISM 2 1 Meer info
2811380100 1382 KNOB SHAFT GUIDE 6 1 Meer info
2863401700 1384 HEATER ASSEMBLY 18 0 Meer info
2863403000 1384 HEATER ASSEMBLY without NICHEL 18 0 Meer info
2863701600 1384 HEATER HARNESS.... 18 0 Meer info
2863701700 1384 HEATER ASSEMBLY 19 0 Meer info
2882601600 1384 HEATER ASSEMBLY without NICHEL 22 1 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2824400400 1415 SPIDER ARM ASSEMBLY(COMPLETE) 24 1 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 2 Meer info
2890200100 1451 TERMINAL BODY ASSEMBLY 6 1 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2896100100 1470 CABINET ASSY. AND BACK COVER White 36 1 Meer info
2810460100 1474 BEARING 17 1 Meer info
9003810200 1508 GREASE OIL (STAMINE RL2) 27 0 Meer info
2805890100 1640 PRESSURE SWITCH 15 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 6 Meer info
2848710500 1719 FELT 8 2 Meer info
100601520 8320 SHEET METAL SCREW (B4.2X13 DIN 7981-H) 1 2 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 4 Meer info
371202407 8331 Carbon Brush Assembly (L24MF7_39mm) 12 2 Meer info
372205506 8335 Tacho Assembly 8 1 Meer info
373500801 8336 Tachometer Cover.. 2 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372600 8361 HOSE CLAMP (x 49.8) 1 1 Meer info
2002740200 8365 DRAIN HOSE HOLDER 1 0 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 15 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 5 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 9 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 11 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 6 Meer info
9003270900 8399 PLASTIC SCREW 1 4 Meer info
9003860300 8403 SHEET METAL SCREW 1 4 Meer info
9003860100 8405 SCREW. 1 1 Meer info
9003660100 8408 BOLT (M4x5) 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2811240100 8426 CABLE HOLDER 2 2 Meer info
2826150100 8430 HOSE CLAMP 1 0 Meer info
