Productomschrijving

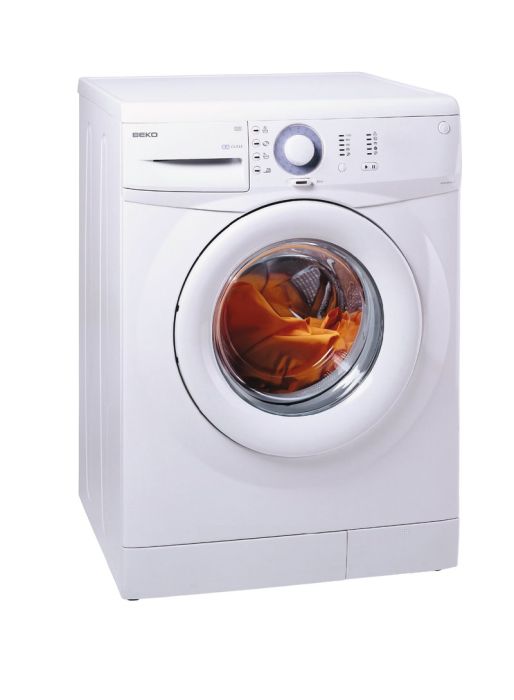

Electronic 1200 t
| Hoogte | 85 |
|---|---|
| Breedte | 60 |
| Diepte | 54 |
| Gewicht (Kg) | 68 |
| ArtRef | WM5552K |
| AsogemID | 114935 |
| Merk | BEKO |
| Soort | 1200 t/m |
| ArtEAN | 8690769109780 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2812290100 | 0 | RADIAL CONNECTION BOLT | 1 | 3 | Meer info | |||
| 2826700100 | 1 | TOP PLATE ASSY. | 20 | 1 | Meer info | |||
| 2827610100 | 7 | BACK COVER WHITE | 17 | 1 | Meer info | |||
| 2835100900 | 10 | FRONT DOOR ASSEMBLY | 26 | 1 | Meer info | |||
| 2807280100 | 11 | PORTHOLE GLASS | 18 | 1 | Meer info | |||
| 2808820100 | 12 | INNER COVER | 16 | 1 | Meer info | |||
| 2704830300 | 13 | SECURITY SWITCH. | 17 | 1 | Meer info | |||
| 2849700100 | 14 | HINGE ASSEMBLY | 18 | 1 | Meer info | |||
| 2912700100 | 18 | ADJUSTABLE FEET ASSEMBLY | 2 | 2 | Meer info | |||
| 2737601600 | 20 | TRANSPORT SAFETY ASSEMBLY | 4 | 4 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 4 | Meer info | |||
| 2704110100 | 38 | SPRING HOLDER | 1 | 2 | Meer info | |||
| 2810540151 | 43 | USERS MANUAL (DA_SV) | 6 | 1 | Meer info | |||
| 2808030100 | 45 | COUNTERWEIGHT (UPPER | 12 | 1 | Meer info | |||
| 2808120100 | 46 | COUNTER (UPPER) BRACKET | 2 | 2 | Meer info | |||
| 2723100200 | 48 | DRUM ASSEMBLY (COMPLETE) | 33 | 1 | Meer info | |||
| 2806840300 | 49 | TUB GASKET | 6 | 1 | Meer info | |||
| 2807790100 | 53 | SUSPENSION SPRING | 4 | 2 | Meer info | |||
| 2804860100 | 54 | DOOR HOOD-RUBBER | 19 | 1 | Meer info | |||
| 2802580300 | 55 | DOOR HOOD CLAMP(SPRING) | 4 | 1 | Meer info | |||
| 2808010100 | 56 | PULLEY | 15 | 1 | Meer info | |||
| 2808010200 | 56 | PULLEY | 13 | 0 | Meer info | |||
| 2816150100 | 56 | PULLEY | 15 | 0 | Meer info | |||
| 2005170300 | 59 | ELASTIC POLY-V BELT | 10 | 0 | Meer info | |||
| 2005170400 | 59 | ELASTIC POLY-V BELT | 12 | 1 | Meer info | |||
| 2807270100 | 60 | MOTOR CONNECTION NUT | 1 | 4 | Meer info | |||
| 2845600200 | 63 | MOTOR | 38 | 1 | Meer info | |||
| 2703371600 | 65 | HEATER. | 17 | 0 | Meer info | |||
| 2816871400 | 66 | SHOCK ABSORBER | 9 | 2 | Meer info | |||
| 2812750100 | 72 | HEATER SUPPORT | 4 | 1 | Meer info | |||
| 2801430300 | 78 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2820600100 | 80 | SPECIAL BOLT | 5 | 0 | Meer info | |||
| 2704480100 | 93 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2809540100 | 99 | SIPHON | 3 | 1 | Meer info | |||
| 2000811400 | 100 | HOSE. | 4 | 1 | Meer info | |||
| 2800830100 | 101 | PRESSURE TUBE | 3 | 1 | Meer info | |||
| 2007300200 | 103 | HOSE CLAMP ASSEMBLY | 2 | 0 | Meer info | |||
| 2814430100 | 103 | HOSE CLAMP | 2 | 1 | Meer info | |||
| 2808060100 | 105 | TUB-FILTER HOSE | 12 | 1 | Meer info | |||
| 2426000200 | 106 | HOSE -WATER INLET SLIM-COLD | 12 | 0 | Meer info | |||
| 2906760300 | 106 | HOSE -WATER INLET -COLD | 8 | 0 | Meer info | |||
| 2906860700 | 106 | WATER INLET HOSE ASSEMBLY | 10 | 1 | Meer info | |||
| 2818440100 | 117 | TUB INLET HOSE. | 8 | 1 | Meer info | |||
| 2817700400 | 146 | DETERGENT DISPENSER ASSEMBLY | 18 | 1 | Meer info | |||
| 2809740100 | 149 | COUNTERWEIGHT (FRONT) | 13 | 1 | Meer info | |||
| 2724300101 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 0 | Meer info | |||
| 2724300601 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 1 | Meer info | |||
| 2827980200 | 162 | INTERFERENCE SUPPRESSOR | 12 | 1 | Meer info | |||
| 2827980400 | 162 | INTERFERENCE SUPPRESSOR | 12 | 0 | Meer info | |||
| 2726800800 | 166 | MAIN CABLE HARNESS | 21 | 1 | Meer info | |||
| 2820901100 | 169 | POWER CORD ASSY. | 16 | 1 | Meer info | |||
| 2809260800 | 172 | PANEL SUPPORT | 8 | 1 | Meer info | |||
| 2201920500 | 180 | PUSH BUTTON SWITCH (ON_OFF) | 8 | 1 | Meer info | |||
| 2817710051 | 186 | MAIN BOARD ASSY. | 32 | 1 | Meer info | |||
| 2801101900 | 194 | PUMP-FILTER ASSEMBLY | 18 | 0 | Meer info | |||
| 2880400800 | 194 | PUMP-FILTER ASSEMBLY(WATER COOLING) | 20 | 1 | Meer info | |||
| 2806470008 | 197 | DETERGENT DRAWER FRONT COVER | 9 | 1 | Meer info | |||
| 2809130100 | 207 | SPIN SELECT BUTTON | 4 | 1 | Meer info | |||
| 2809060007 | 208 | PANEL BODY | 14 | 1 | Meer info | |||
| 2603900900 | 230 | CABÄ°NET BELLOWS CLAMP ASSEMBLY | 2 | 1 | Meer info | |||
| 2832200100 | 301 | FUNCTION BUTTON ASSEMBLY | 11 | 1 | Meer info | |||
| 2832200200 | 302 | FUNCTION BUTTON ASSEMBLY | 4 | 1 | Meer info | |||
| 2832200300 | 303 | FUNCTION BUTTON ASSEMBLY | 4 | 1 | Meer info | |||
| 2832200400 | 304 | FUNCTION BUTTON ASSEMBLY | 4 | 1 | Meer info | |||
| 2800800500 | 336 | DETERGENT DRAWER ASSEMBLY | 19 | 1 | Meer info | |||
| 2808790100 | 339 | OUTER COVER | 16 | 1 | Meer info | |||
| 2707190100 | 341 | LOCK HOOK | 4 | 1 | Meer info | |||
| 2806620100 | 365 | KICKPLATE COVER (WHITE) | 8 | 0 | Meer info | |||
| 2806621100 | 365 | KICKPLATE COVER (WHITE) | 10 | 0 | Meer info | |||
| 2830350100 | 365 | KICKPLATE BODY (WHITE) | 8 | 0 | Meer info | |||
| 2830350500 | 365 | KICK PLATE BODY ( ABS WHITE) | 9 | 1 | Meer info | |||
| 2830350700 | 365 | KICKPLATE COVER (WHITE) | 9 | 0 | Meer info | |||
| 2821500100 | 373 | DISCHARGE HOSE ASSEMBLY | 8 | 1 | Meer info | |||
| 2707120600 | 401 | FRONT PANEL | 18 | 1 | Meer info | |||
| 2834050100 | 402 | BEAD GROOVE | 9 | 2 | Meer info | |||
| 2819730100 | 403 | FIXED FOOT RUBBER | 2 | 2 | Meer info | |||
| 2811230100 | 411 | DISCHARGE HOSE HOLDER | 2 | 2 | Meer info | |||
| 2804670100 | 414 | FRONT PANEL HOLDER | 2 | 2 | Meer info | |||
| 2005680200 | 428 | WATER INLET VALVE | 19 | 1 | Meer info | |||
| 2849400100 | 447 | DOOR OPENING BUTTON ASSEMBLY. | 5 | 1 | Meer info | |||
| 2811420100 | 468 | ON OFF BUTTON. | 3 | 1 | Meer info | |||
| 2704870100 | 472 | CABLE HOLDER | 1 | 0 | Meer info | |||
| 2812220100 | 472 | CABLE HOLDER | 2 | 1 | Meer info | |||
| 2809830100 | 481 | SELECTION SWITCH | 8 | 1 | Meer info | |||
| 2002370600 | 552 | HOSE CLAMP (Ø 13.3) | 1 | 1 | Meer info | |||
| 2000610200 | 553 | HOSE. | 10 | 1 | Meer info | |||
| 2834100002 | 566 | PROGRAMME KNOB BUTTOM. ASSY | 14 | 1 | Meer info | |||
| 2809370100 | 571 | REFLECTOR. | 3 | 1 | Meer info | |||
| 2817720100 | 573 | DISPLAY BOARD | 22 | 1 | Meer info | |||
| 2810290100 | 577 | BUTTON SPRING. | 1 | 4 | Meer info | |||
| 2810290200 | 578 | BUTTON SPRING. | 1 | 2 | Meer info | |||
| 2706460100 | 581 | CABLE PROTECTED | 1 | 1 | Meer info | |||
| 2705870100 | 583 | SELF LOCKING CABLE HOLDER | 1 | 4 | Meer info | |||
| 2705570400 | 584 | BAFFLE | 6 | 3 | Meer info | |||
| 2600050000 | 585 | BAFFLE NUT | 7 | 3 | Meer info | |||
| 2825280100 | 586 | M8 CIVATA (SPIRAL FORM) | 2 | 3 | Meer info | |||
| 2705630100 | 597 | CABLE GUIDE CUFF | 3 | 1 | Meer info | |||
| 2810900100 | 598 | FILTER ASSEMBLY | 5 | 1 | Meer info | |||
| 2002370500 | 605 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2703940900 | 617 | ISOLATION FELT (SIDE WALL) | 10 | 0 | Meer info | |||
| 2839400100 | 624 | MODULE HOLDER ASSY. | 8 | 1 | Meer info | |||
| 2810540152 | 631 | USERS MANUAL (FL_FR_DE) | 6 | 1 | Meer info | |||
| 2808880100 | 632 | HINGE BUSHING | 1 | 2 | Meer info | |||
| 2809350100 | 636 | LIGHT PIPE. | 1 | 1 | Meer info | |||
| 2809140100 | 637 | LIGHT PIPE. | 1 | 1 | Meer info | |||
| 2811590100 | 642 | TUB SCREW.. | 1 | 17 | Meer info | |||
| 2811840100 | 646 | START PAUSE BUTTON ASSEMBLY. | 7 | 1 | Meer info | |||
| 2833900100 | 646 | START PAUSE BUTTON ASSEMBLY | 4 | 0 | Meer info | |||
| 2812130100 | 664 | RUBBER CUSHION | 2 | 2 | Meer info | |||
| 9003890100 | 666 | WASHER. | 2 | 2 | Meer info | |||
| 2808860100 | 668 | HINGE HOLDER | 8 | 1 | Meer info | |||
| 2810920100 | 672 | KICKPLATE COVER.. | 6 | 0 | Meer info | |||
| 2810920800 | 672 | KICKPLATE COVER (WHITE) | 5 | 0 | Meer info | |||
| 2830590100 | 672 | KICKPLATE COVER | 6 | 0 | Meer info | |||
| 2830590400 | 672 | KICKPLATE COVER | 6 | 1 | Meer info | |||
| 2830590700 | 672 | KICKPLATE COVER (WHITE) | 6 | 0 | Meer info | |||
| 2808740200 | 677 | STOPPER. | 2 | 1 | Meer info | |||
| 2807840100 | 681 | UPPER COUNTER WEIGHT BOLT | 4 | 2 | Meer info | |||
| 101301407 | 682 | NUT M8 DIN934. | 1 | 1 | Meer info | |||
| 2811250100 | 682 | M8 x 1_25 FLANGED NUT | 1 | 2 | Meer info | |||
| 2807770100 | 683 | FIXING WASHER | 2 | 2 | Meer info | |||
| 2807920200 | 687 | TUB (FRONT) | 27 | 1 | Meer info | |||
| 2825500300 | 688 | TUB ASSEMBLY (REAR) | 33 | 1 | Meer info | |||
| 2809080100 | 689 | PROGRAMME CARD HOLDER | 4 | 1 | Meer info | |||
| 2809070033 | 694 | PROGRAMME CARD (ENGLISH).. | 5 | 1 | Meer info | |||
| 2809070034 | 697 | PROGRAMME CARD (DANISH) | 4 | 1 | Meer info | |||
| 2810540153 | 703 | USERS MANUAL (NO_FI_EN) | 6 | 1 | Meer info | |||
| 2809070035 | 704 | PROGRAMME CARD (NORWEGIAN) | 4 | 1 | Meer info | |||
| 2809070036 | 705 | PROGRAMME CARD (FINNISH) | 4 | 1 | Meer info | |||
| 2809070037 | 706 | PROGRAMME CARD (SWEDISH) | 4 | 1 | Meer info | |||
| 2810560100 | 712 | FIXING WASHER | 1 | 2 | Meer info | |||
| 2810230100 | 713 | FRONT COUNTERWEIGHT SCREW | 2 | 4 | Meer info | |||
| 2809870500 | 722 | MOTOR PROTECTIVE COVER | 5 | 1 | Meer info | |||
| 2849200100 | 730 | DOOR PCB ASSY. | 14 | 1 | Meer info | |||
| 2804110100 | 781 | COUNTER WEIGTH COMPRESSION SPRING | 2 | 4 | Meer info | |||
| 2903090200 | 953 | DOOR LOCK WATER PROTECTOR | 2 | 1 | Meer info | |||
| 2809070038 | 958 | QUICK REFERENCE CARD (FLEMISH) | 4 | 1 | Meer info | |||
| 2809070039 | 959 | QUICK REFERENCE CARD (FRENCH) | 4 | 1 | Meer info | |||
| 2809070042 | 960 | QUICK REFERENCE CARD (GERMAN) | 4 | 1 | Meer info | |||
| 2829960100 | 1008 | PULLEY FIXING SCREW | 3 | 0 | Meer info | |||
| 2829960200 | 1008 | PULLEY FIXING SCREW | 3 | 1 | Meer info | |||
| 2726703401 | 1078 | CABLE ASSEMBLY | 21 | 1 | Meer info | |||
| 2726703300 | 1079 | CABLE ASSEMBLY. | 19 | 1 | Meer info | |||
| 2815810400 | 1094 | PLASTIC CLAMP | 2 | 1 | Meer info | |||
| 2600941000 | 1110 | HOSE | 2 | 1 | Meer info | |||
| 2600941700 | 1117 | HOSE | 15 | 1 | Meer info | |||
| 2600941800 | 1118 | HOSE | 2 | 1 | Meer info | |||
| 2739900900 | 1238 | LOCK WIRE GR. | 14 | 1 | Meer info | |||
| 130500920 | 1284 | SERRATED LOCK WASHER (A8.4 DIN 6798) | 1 | 1 | Meer info | |||
| 2812130400 | 1354 | RUBBER CUSHION | 2 | 1 | Meer info | |||
| 2811390100 | 1381 | PRISM | 2 | 1 | Meer info | |||
| 2811380100 | 1382 | KNOB SHAFT GUIDE | 6 | 1 | Meer info | |||
| 2863401700 | 1384 | HEATER ASSEMBLY | 18 | 0 | Meer info | |||
| 2863403000 | 1384 | HEATER ASSEMBLY without NICHEL | 18 | 0 | Meer info | |||
| 2863701600 | 1384 | HEATER HARNESS.... | 18 | 0 | Meer info | |||
| 2863701700 | 1384 | HEATER ASSEMBLY | 19 | 0 | Meer info | |||
| 2882601600 | 1384 | HEATER ASSEMBLY without NICHEL | 22 | 1 | Meer info | |||
| 2882601700 | 1384 | HEATER ASSEMBLY with NICKEL | 18 | 0 | Meer info | |||
| 2820820100 | 1406 | CHASSIS FLAP | 2 | 2 | Meer info | |||
| 2834600100 | 1415 | SPIDER ARM ASSEMBLY(COMPLETE) | 22 | 1 | Meer info | |||
| 2817050300 | 1442 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2890200100 | 1451 | TERMINAL BODY ASSEMBLY | 6 | 1 | Meer info | |||
| 9003860400 | 1467 | SHEET METAL SCREW 4.2x6.5 | 1 | 5 | Meer info | |||
| 2896100100 | 1470 | CABINET ASSY. AND BACK COVER White | 36 | 1 | Meer info | |||
| 2805890100 | 1640 | PRESSURE SWITCH | 15 | 1 | Meer info | |||
| 2002374300 | 1686 | HOSE CLAMP (├â┬© 1.8) | 2 | 6 | Meer info | |||
| 100601520 | 8320 | SHEET METAL SCREW (B4.2X13 DIN 7981-H) | 1 | 2 | Meer info | |||
| 181300303 | 8325 | M4X10 TAPTITE SCREW. | 1 | 4 | Meer info | |||
| 371202402 | 8331 | Carbon Brush Assembly (BLACK_L93MF7) | 9 | 2 | Meer info | |||
| 372205506 | 8335 | Tacho Assembly | 8 | 1 | Meer info | |||
| 373500801 | 8336 | Tachometer Cover.. | 2 | 1 | Meer info | |||
| 2002371700 | 8355 | HOSE CLAMP (x 28,7) | 1 | 1 | Meer info | |||
| 2002372100 | 8357 | HOSE CLAMP.(Ø 34_1) | 1 | 1 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2002372600 | 8361 | HOSE CLAMP (x 49.8) | 1 | 1 | Meer info | |||
| 2002740200 | 8365 | DRAIN HOSE HOLDER | 1 | 0 | Meer info | |||
| 2828040300 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 2003720300 | 8366 | INTERFERENCE SUPPRESSOR | 14 | 0 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 14 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 5 | Meer info | |||
| 9003270500 | 8386 | PLASTIC SCREW (4_12) | 1 | 2 | Meer info | |||
| 2705810100 | 8394 | PT SCREW (3_5x9.5) | 1 | 8 | Meer info | |||
| 111201020 | 8396 | BOLT (AM5x10 DIN 7985 4.8-H) | 1 | 2 | Meer info | |||
| 9003610500 | 8397 | SHEET METAL SCREW(B4_2x9_5-TOOTHED) | 1 | 3 | Meer info | |||
| 9003610900 | 8397 | SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED | 1 | 11 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 6 | Meer info | |||
| 9003270900 | 8399 | PLASTIC SCREW | 1 | 4 | Meer info | |||
| 9003860300 | 8403 | SHEET METAL SCREW | 1 | 4 | Meer info | |||
| 9003860100 | 8405 | SCREW. | 1 | 1 | Meer info | |||
| 9003660100 | 8408 | BOLT (M4x5) | 1 | 2 | Meer info | |||
| 2831790100 | 8412 | SPECIAL SHEET SREW | 2 | 0 | Meer info | |||
| 2811240100 | 8426 | CABLE HOLDER | 2 | 2 | Meer info | |||
| 2826150100 | 8430 | HOSE CLAMP | 1 | 0 | Meer info |
