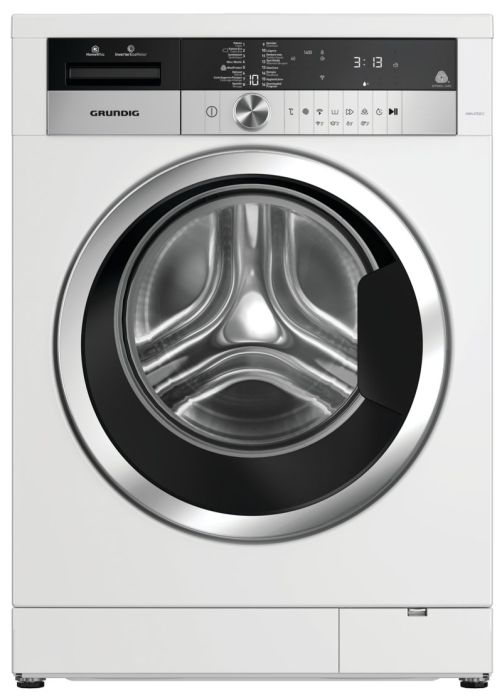

GWN47555C WASMACHINE Bluetooth + Wifi

Grundig
Artikelnr: 114173
Referentienr: GWN47555C
Aanbevolen verkoopprijs: € 499,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 7 kg - polyp. 24u Bluetooth
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2409900100 1 TOP FRAME ASSEMBLY 19 0 Meer info
2464700100 1 TOP FRAME ASSEMBLY 20 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2467200200 10 FRONT DOOR ASSEMBLY 39 1 Meer info
2842650100 11 PORTHOLE GLASS 18 1 Meer info
2848360400 12 ınner ddor 14 1 Meer info
2849660200 13 DOOR LOCK 20 0 Meer info
2849660500 13 DOOR LOCK 17 1 Meer info
2838570100 14 HINGE 12 1 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912701200 18 ADJUSTABLE FEET ASSEMBLY 3 0 Meer info
2737601500 20 TRANSPORT SAFETY ASSEMBLY. 4 4 Meer info
2801540200 25 REAR COVER CAP 1 5 Meer info
2801540300 25 REAR COVER CAP 1 0 Meer info
2824340300 25 REAR COVER CAP 1 2 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2820360100 53 SUSPENSION SPRING 5 2 Meer info
2466300300 54 DOOR HOOD-RUBBER ASSY 21 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2824490200 56 PULLEY 13 1 Meer info
2907260500 59 ELASTIC POLY-V BELT 12 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2843120300 63 MOTOR (ATLAS 32 MM) 32 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2810430900 66 SHOCK ABSORBER 9 0 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2000811700 100 AIR PIPE HOSE 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2412700100 146 DETERGENT DIPENSER ASSEMBLY 13 0 Meer info
2412700600 146 DETERGENT DIPENSER ASSEMBLY 14 1 Meer info
2412701100 146 DETERGENT DIPENSER ASSEMBLY 14 0 Meer info
2831721300 149 COUNTERWEIGHT-LOWER 19 1 Meer info
2841180900 149 COUNTERWEIGHT-LOWER 18 0 Meer info
2827981400 162 INTERFERENCE SUPPRESSOR 15 1 Meer info
2856670700 166 MAIN CANBLE HARMNESS 27 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2474001160 186 MAIN BORD 37 1 Meer info
2840940200 194 PUMP-FILTER ASSEMBLY 20 1 Meer info
2880402000 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2410609140 197 DETERGENT DRAWER FRONT COVER ASSY. 19 1 Meer info
2414000600 203 PROGRAM SELECTOR KNOB GROUP 12 1 Meer info
2473009024 208 PANEL BODY ASSY. 25 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2413500400 336 DRAWER GROUP 12 1 Meer info
2835765200 339 INNER DOOR 33 1 Meer info
2851560200 341 PULL OPEN HOOK 4 1 Meer info
2835960100 365 KICK PLATE BODY 10 1 Meer info
2835960700 365 KICK PLATE BODY 10 0 Meer info
2803801700 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2835953500 401 FRONT PANEL 19 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2856190100 571 REFLECTOR 6 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703942000 617 FELT (SIDE PANEL) 10 0 Meer info
2703946400 617 FELT 8 0 Meer info
2838910100 632 HINGE BUSHING 1 4 Meer info
2838320100 672 KICK PLATE DOOR 6 1 Meer info
2838320700 672 KICK PLATE DOOR 6 0 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2819410200 719 PLAG HOLDER 1 0 Meer info
2836480100 737 WATER INLET VALVE 16 0 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 1 Meer info
2906920100 737 WATER INLET VALVE 16 0 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090600 953 DOO LOCK WATER PROTECTOR 1 1 Meer info
2848350500 995 DECORATIVE OUTER DOOR 15 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2600940400 1104 HOSE 2 2 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2817470100 1232 SPRING HOLDER... 2 1 Meer info
2817480100 1233 SPRING HOLDER... 2 1 Meer info
2880607200 1363 WELDED TUBASSEMBLY 41 0 Meer info
2880607300 1363 WELDED TUBASSEMBLY 42 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2942700900 1470 CABINET ASSEMBLY AND BACK COVER 20 1 Meer info
2943700100 1485 FRONT DOOR SWITCH HOLDER ASSEMBLY 10 1 Meer info
9003271700 1497 PLASTIC SCREW 9 4 Meer info
2947400100 1517 Liquid Detergent Dispenser Group (Blue) 5 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2838390100 1541 HAND COVER 3 0 Meer info
2838390400 1541 HAND COVER 3 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2828170500 1640 PRESSURE SWITCH 12 0 Meer info
2833830300 1640 PRESSURE SENSOR METALFLEX 13 1 Meer info
2473101000 1661 MAIN BORD 31 1 Meer info
2856660200 1661 MAIN BOARD 30 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2856610100 1816 MAIN BOARD 22 1 Meer info
2714801700 1821 RAST CONNECTOR ADAPTER CABLE 3 1 Meer info
2443900100 1837 CUSHION SHEET ASSEMBLY 3 3 Meer info
9003272500 1845 PLASTIC SCREW 1 1 Meer info
2850540100 1846 PLASTIC CLAMP WITH PLUG 1 0 Meer info
2853170100 1869 DOOR OPENING ARM 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 2 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 3 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003270900 8399 PLASTIC SCREW 1 1 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 2 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 13 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
9001230200 8420 PLASTIC CLAMP 1 1 Meer info
9003611100 8424 SHEET METAL SCREW(B4.2x9.5) 1 0 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
