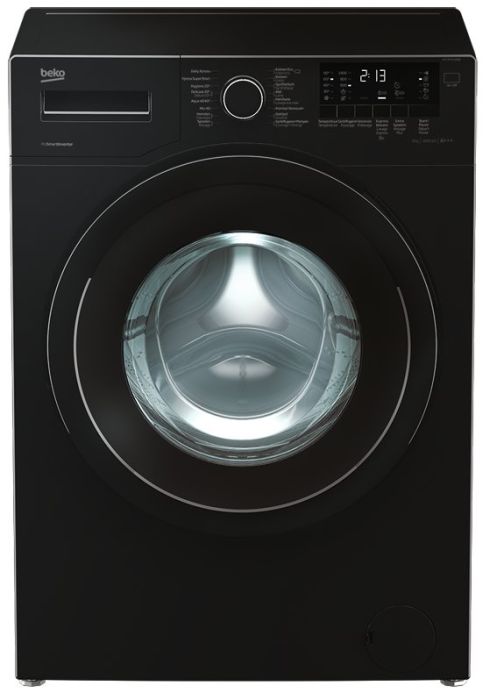

WTC8733XB0B WASMACHINE BLACK

Artikelnr: 114322
Referentienr: WTC8733XB0B
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 8 kg - polyp. 24u DISPLAY ZWART
Meer informatie
Hoogte 84
Breedte 60
Diepte 60
Gewicht (Kg) 75
ArtRef WTC8733XB0B
AsogemID 114322
MPN 7163641100
Merk BEKO
Going prijs 999,99
Soort 1400 t/m
ArtEAN 8690842032318
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425300200 1 TOP FRAME ASSEMBLY 21 0 Meer info
2467700200 1 TOP FRAME ASSEMBLY 19 1 Meer info
2827611200 7 BACK COVER 10 1 Meer info
2839780300 9 HANDLE (SIYAH) 6 1 Meer info
2429800700 10 FRONT DOOR ASSEMBLY B13XL P.BLACK_P.BLAC 29 1 Meer info
2842650100 11 PORTHOLE GLASS 18 1 Meer info
2841580200 12 INNER COVER GRY 12 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2841350100 14 HINGE 11 1 Meer info
2848720100 14 HINGE 12 0 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 4 Meer info
2801540200 25 REAR COVER CAP 1 0 Meer info
2801540300 25 REAR COVER CAP 1 5 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2820524576 43 USER S MANUAL (FR_FL) 4 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2820360300 53 SUSPENSION SPRING 4 2 Meer info
2466300300 54 DOOR HOOD-RUBBER ASSY 21 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2824490200 56 PULLEY 13 1 Meer info
2852280200 59 ELASTIC POLY-V BELT 12 0 Meer info
2907260600 59 ELASTIC POLY-V BELT 13 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2841940200 63 Atlas MOTOR 32 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 3 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2000811400 100 HOSE. 4 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2421701000 146 DETERGENT BOX GROUP 13 1 Meer info
2831720700 149 COUNTERWEIGHT-LOWER 16 1 Meer info
2841180900 149 COUNTERWEIGHT-LOWER 18 0 Meer info
2724301400 162 INTERFERENCE SUPPRESSOR ASSY.. 14 0 Meer info
2827981200 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2003721600 162 CONDENSATOR ANTIINTERFERENTA 13 0 Meer info
2843742400 166 MAIN CABLE HARNESS. 24 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2432301770 186 MAÄ°N BOARD ASS. 29 1 Meer info
2840940200 194 PUMP-FILTER ASSEMBLY 20 1 Meer info
2880402000 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2420709289 197 DRAWER PANEL 10 1 Meer info
2422401100 203 SELECTOR KNOB ASSEMBLY 11 1 Meer info
2426609101 208 PANEL BODY ASSY. 17 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2421900300 336 DRAWER ASSEMBLY 11 1 Meer info
2841570500 339 OUTER COVER P.BLACK 17 1 Meer info
2708180200 340 HOOK SPRING 2 1 Meer info
2838960300 341 LOCK HOOK 3 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2800860900 342 PIN 1 1 Meer info
2803801900 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2838991000 401 FRONT PANEL 21 0 Meer info
2840682400 401 FRONT PANEL 19 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703940700 617 FELT (SIDE) 11 0 Meer info
2820524577 631 USER S MANUAL (EN_DE) 4 1 Meer info
2838910100 632 HINGE BUSHING 1 4 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2836480100 737 WATER INLET VALVE 16 0 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2845370100 964 CARD PROTECTOR FOIL 2 0 Meer info
2849310100 964 CARD PROTECTOR FOIL 1 0 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907190600 1106 HOSE 2 2 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2419806000 1251 MAIN BOARD ASSY. 33 0 Meer info
2419806001 1251 MOTOR BOARD ASSY. 33 1 Meer info
2500703900 1363 WELDED TUB ASSY 42 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2429201100 1396 LIGHT GUIDE BUTTON ASSMBLY 9 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2833820500 1470 CABINET ASSEMBLY AND BACK COVER 41 1 Meer info
2443000200 1480 DECORATIVE DOOR 24 0 Meer info
9003271700 1497 PLASTIC SCREW 9 2 Meer info
2947400100 1517 Liquid Detergent Dispenser Group (Blue) 5 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2843030200 1537 FLAME BARRIER 5 0 Meer info
2858780100 1537 FLAME BARRIER 5 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2839570400 1585 PUMP COVER 3 1 Meer info
2839580500 1586 PUMP COVER HOLDER 4 0 Meer info
2849450600 1586 PUMP COVER HOLDER 3 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2819711100 1640 PRESSURE SWITCH 12 0 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2829010100 1646 SHOCK ABSORBER 10 1 Meer info
2838970200 1651 LEVER 3 1 Meer info
2840440100 1652 BUSHING 1 1 Meer info
2841630200 1657 HEXAGON NUT FÄ°BER 1 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2714801700 1821 RAST CONNECTOR ADAPTER CABLE 3 1 Meer info
2714801500 1823 RAST CONNECTOR ADAPTER CABLE 8 0 Meer info
2849430100 1829 STOPPER 1 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 2 Meer info
9003272500 1845 PLASTIC SCREW 1 3 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 1 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003270900 8399 PLASTIC SCREW 1 1 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 13 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 0 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 2 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
