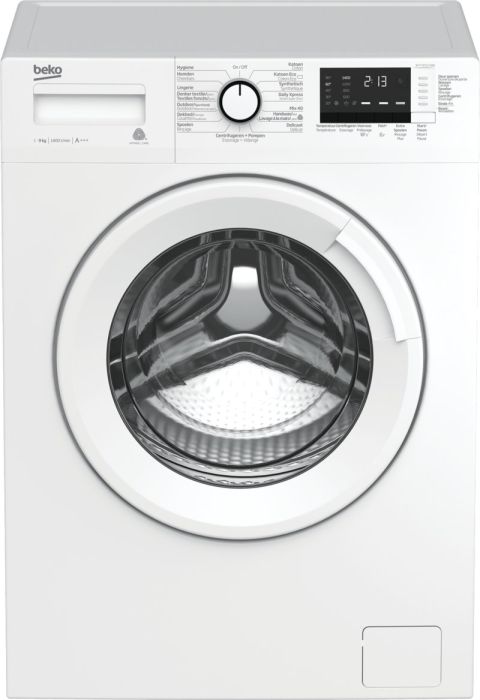

WTV9712XW0 WASMACHINE
Artikelnr:
114099
Referentienr:
WTV9712XW0
Aanbevolen verkoopprijs:
€ 999,99
(BTW & recupel inbegrepen)
Productomschrijving
1400 t/min. 9 kg - D 65 cm 15 progr
| Hoogte | 84 |
|---|---|
| Breedte | 60 |
| Diepte | 64 |
| Gewicht (Kg) | 75 |
| Hoogte met verpakking | 88 |
| Breedte met verpakking | 65 |
| Diepte met verpakking | 65 |
| Gewicht VPE (Kg) | 76 |
| ArtRef | WTV9712XW0 |
| AsogemID | 114099 |
| MPN | 7145642500 |
| Merk | BEKO |
| Going prijs | 999,99 |
| Soort | 1400 t/m |
| ArtEAN | 8690842195709 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2425300100 | 1 | TOP FRAME ASSEMBLY | 19 | 0 | Meer info | |||
| 2467700100 | 1 | TOP FRAME ASSEMBLY | 18 | 1 | Meer info | |||
| 2827610100 | 7 | BACK COVER WHITE | 17 | 1 | Meer info | |||
| 2850940100 | 9 | HANDLE BX XL | 4 | 1 | Meer info | |||
| 2453800100 | 10 | FRONT DOOR ASSEMBLY BX XL | 23 | 0 | Meer info | |||
| 2496600100 | 10 | FRONT DOOR ASSEMBLY BX XL | 25 | 1 | Meer info | |||
| 2842650100 | 11 | PORTHOLE GLASS | 18 | 1 | Meer info | |||
| 2850580300 | 12 | INNER DOOR PLX | 11 | 1 | Meer info | |||
| 2847740400 | 13 | DOOR LOCK | 18 | 0 | Meer info | |||
| 2847740500 | 13 | DOOR LOCK | 15 | 1 | Meer info | |||
| 2850610100 | 14 | BX XL HINGE | 11 | 0 | Meer info | |||
| 2835320100 | 16 | HINGE SUPPORT BRACKET | 4 | 1 | Meer info | |||
| 2858570200 | 16 | PLASTIC HINGE | 10 | 1 | Meer info | |||
| 2912700500 | 18 | ADJUSTABLE FEET ASSEMBLY | 4 | 0 | Meer info | |||
| 2737601600 | 20 | TRANSPORT SAFETY ASSEMBLY | 4 | 4 | Meer info | |||
| 2801540200 | 25 | REAR COVER CAP | 1 | 5 | Meer info | |||
| 2801540300 | 25 | REAR COVER CAP | 1 | 0 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 1 | Meer info | |||
| 2820526754 | 43 | USER S MANUAL (EN_DE_FR) | 6 | 1 | Meer info | |||
| 2816990200 | 45 | UPPER COUNTER WEIGHT | 13 | 0 | Meer info | |||
| 2816990700 | 45 | UPPER COUNTER WEIGHT | 13 | 1 | Meer info | |||
| 2820360300 | 53 | SUSPENSION SPRING | 4 | 2 | Meer info | |||
| 2466300300 | 54 | DOOR HOOD-RUBBER ASSY | 21 | 1 | Meer info | |||
| 2802580600 | 55 | DOOR GASGET SPRING | 2 | 1 | Meer info | |||
| 2816660200 | 56 | PULLEY | 14 | 1 | Meer info | |||
| 2816750200 | 59 | ELASTIC POLY-V BELT | 12 | 1 | Meer info | |||
| 2845710200 | 59 | ELASTIC POLY-V BELT | 12 | 0 | Meer info | |||
| 2834030100 | 60 | Screw | 2 | 4 | Meer info | |||
| 2834820200 | 63 | MOTOR | 39 | 1 | Meer info | |||
| 2852410200 | 65 | HEATER | 17 | 0 | Meer info | |||
| 2816871100 | 66 | SHOCK ABSORBER | 9 | 2 | Meer info | |||
| 2801430300 | 78 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2801430400 | 78 | SHOCK ABSORBER PIN | 1 | 3 | Meer info | |||
| 2898400200 | 80 | SPECIAL BOLT. | 4 | 6 | Meer info | |||
| 2000811400 | 100 | HOSE. | 4 | 1 | Meer info | |||
| 2814430100 | 103 | HOSE CLAMP | 2 | 0 | Meer info | |||
| 2814430200 | 103 | HOSE CLAMP | 2 | 1 | Meer info | |||
| 2818440200 | 117 | TUB INLET HOSE. | 8 | 1 | Meer info | |||
| 2421701000 | 146 | DETERGENT BOX GROUP | 13 | 1 | Meer info | |||
| 2831721000 | 149 | COUNTERWEIGHT-LOWER | 19 | 0 | Meer info | |||
| 2831721400 | 149 | COUNTERWEIGHT-LOWER | 20 | 1 | Meer info | |||
| 2724301600 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 0 | Meer info | |||
| 2827980700 | 162 | INTERFERENCE SUPPRESSOR | 12 | 1 | Meer info | |||
| 2834310100 | 162 | INTERFERENCE SUPPRESSOR | 15 | 0 | Meer info | |||
| 2003721300 | 162 | CONDENSATOR ANTIINTERFERENTA | 12 | 0 | Meer info | |||
| 2834083000 | 166 | MAIN CABLE HARNESS | 23 | 1 | Meer info | |||
| 2836390100 | 169 | POWER CORD ASSY. | 13 | 1 | Meer info | |||
| 2843260500 | 186 | MAIN BOARD | 29 | 1 | Meer info | |||
| 2840940200 | 194 | PUMP-FILTER ASSEMBLY | 20 | 1 | Meer info | |||
| 2880402000 | 194 | PUMP-FILTER ASSEMBLY(WATER COOLING) | 20 | 0 | Meer info | |||
| 2459209223 | 197 | DRAWER PANEL | 9 | 1 | Meer info | |||
| 2811570200 | 201 | MODULE HOLDER | 5 | 1 | Meer info | |||
| 2451901400 | 203 | SELECTOR KNOB ASSEMBLY | 8 | 1 | Meer info | |||
| 2451409155 | 208 | PANEL BODY ASSY. | 18 | 1 | Meer info | |||
| 2603901100 | 230 | CABINET BELLOWS CLAMP ASSEMBLY | 3 | 1 | Meer info | |||
| 2421900300 | 336 | DRAWER ASSEMBLY | 11 | 1 | Meer info | |||
| 2850590100 | 339 | OUTER COVER BX XL ARCP1 | 14 | 1 | Meer info | |||
| 2851560200 | 341 | PULL OPEN HOOK | 4 | 1 | Meer info | |||
| 2803801200 | 373 | DISCHARGE HOSE ASSEMBLY | 5 | 1 | Meer info | |||
| 2819100300 | 373 | DISCHARGE HOSE ASSEMBLY(OUTER) | 8 | 1 | Meer info | |||
| 2851420800 | 401 | FRONT PANEL ARCP1 BX_XL | 20 | 1 | Meer info | |||
| 2811230100 | 411 | DISCHARGE HOSE HOLDER | 2 | 3 | Meer info | |||
| 2849330100 | 470 | SIPHON ELBOW | 1 | 1 | Meer info | |||
| 2732002900 | 471 | DISCHARGE HOSE ASSEMBLY (COMPLETE) | 8 | 1 | Meer info | |||
| 2002370600 | 552 | HOSE CLAMP (Ø 13.3) | 1 | 1 | Meer info | |||
| 2000610200 | 553 | HOSE. | 10 | 1 | Meer info | |||
| 2872700100 | 598 | FILTER ASSEMBLY | 5 | 1 | Meer info | |||
| 2703940700 | 617 | FELT (SIDE) | 11 | 0 | Meer info | |||
| 2820526755 | 631 | USER S MANUAL (FL) | 3 | 1 | Meer info | |||
| 2838910100 | 632 | HINGE BUSHING | 1 | 3 | Meer info | |||
| 9003860200 | 658 | SHEET METAL SCREW(SELF WASHER) | 1 | 2 | Meer info | |||
| 2808740200 | 677 | STOPPER. | 2 | 1 | Meer info | |||
| 2841790100 | 679 | INPUT IMPEDERENCE INDUCTOR GROUP | 21 | 0 | Meer info | |||
| 2841790200 | 679 | INPUT IMPEDERENCE INDUCTOR GROUP | 0 | 0 | Meer info | |||
| 2844290100 | 679 | INPUT IMPEDERENCE INDUCTOR GROUP | 19 | 1 | Meer info | |||
| 2889400300 | 679 | INPUT IMPEDERENCE INDUCTOR GROUP | 23 | 0 | Meer info | |||
| 2811250100 | 682 | M8 x 1_25 FLANGED NUT | 1 | 1 | Meer info | |||
| 2811260100 | 719 | PLUG HOLDER(NATURAL) | 3 | 0 | Meer info | |||
| 2811260300 | 719 | PLAG HOLDER | 3 | 0 | Meer info | |||
| 2853580100 | 719 | PLUG HOLDER(NATURAL) | 1 | 1 | Meer info | |||
| 2839500100 | 723 | DC MODULE HOLDER | 7 | 1 | Meer info | |||
| 2836480100 | 737 | WATER INLET VALVE | 16 | 0 | Meer info | |||
| 2906850200 | 737 | WATER INLET VALVE | 15 | 0 | Meer info | |||
| 2906870200 | 737 | WATER INLET VALVE | 15 | 1 | Meer info | |||
| 2817690101 | 748 | DC MODULE | 18 | 1 | Meer info | |||
| 2471600100 | 775 | MECHANIC AQUASTOP | 22 | 1 | Meer info | |||
| 2831320200 | 797 | Cable Holder | 1 | 1 | Meer info | |||
| 2831370100 | 797 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2834830300 | 820 | SELF TAPPING SCREW L=16 | 1 | 3 | Meer info | |||
| 2832240400 | 827 | TOP SUPPORT BRACKET | 9 | 1 | Meer info | |||
| 2903090500 | 953 | DOOR LOCK WATER PROTECTOR | 1 | 1 | Meer info | |||
| 2845310300 | 964 | CARD PROTECTOR FOIL | 2 | 1 | Meer info | |||
| 2829960200 | 1008 | PULLEY FIXING SCREW | 3 | 1 | Meer info | |||
| 2850820100 | 1014 | ENCODER PROTECTION PART | 1 | 1 | Meer info | |||
| 2836970300 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2836970500 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2907190600 | 1106 | HOSE | 2 | 2 | Meer info | |||
| 2849320200 | 1110 | Siphonage preventing flat hose | 2 | 1 | Meer info | |||
| 2865200100 | 1210 | TUB-FILTER HOSE ASSEMBLY COMPLETE | 12 | 1 | Meer info | |||
| 2707340300 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 2707340400 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 2500703300 | 1363 | WELDED TUB ASSY | 42 | 1 | Meer info | |||
| 2850360200 | 1384 | HEATER ASSEMBLY | 22 | 0 | Meer info | |||
| 2863403100 | 1384 | HEATER ASSEMBLY with NICKEL | 18 | 0 | Meer info | |||
| 2882601700 | 1384 | HEATER ASSEMBLY with NICKEL | 18 | 1 | Meer info | |||
| 2451509025 | 1396 | FUNCTION BUTTON ASSEMBLY | 10 | 1 | Meer info | |||
| 2820820100 | 1406 | CHASSIS FLAP | 2 | 2 | Meer info | |||
| 2817050300 | 1442 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2817050400 | 1442 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2826440100 | 1459 | FRONT WALL HOLDER | 2 | 2 | Meer info | |||
| 2826450100 | 1460 | FRONT WALL HOLDER PIN | 2 | 2 | Meer info | |||
| 9003860400 | 1467 | SHEET METAL SCREW 4.2x6.5 | 1 | 0 | Meer info | |||
| 9003860800 | 1467 | SCREW. | 1 | 5 | Meer info | |||
| 2833820100 | 1470 | CABINET ASSEMBLY AND BACK COVER | 38 | 1 | Meer info | |||
| 2947400100 | 1517 | Liquid Detergent Dispenser Group (Blue) | 5 | 1 | Meer info | |||
| 2830690100 | 1520 | CABLE HOLDER | 1 | 3 | Meer info | |||
| 2834480100 | 1521 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2828820400 | 1528 | PANEL GASKET | 1 | 1 | Meer info | |||
| 2831380100 | 1529 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2826420100 | 1535 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2843030200 | 1537 | FLAME BARRIER | 5 | 0 | Meer info | |||
| 2858780100 | 1537 | FLAME BARRIER | 5 | 1 | Meer info | |||
| 2858560100 | 1575 | TERMINAK SHEET | 1 | 1 | Meer info | |||
| 2858560300 | 1575 | TERMINAK SHEET | 1 | 0 | Meer info | |||
| 2850850100 | 1585 | PUMP COVER ARCP1 | 3 | 1 | Meer info | |||
| 2850840100 | 1586 | PUMP COVER HOLDER | 2 | 1 | Meer info | |||
| 2707730400 | 1592 | PLASTIC SCREW 3x4_5 | 1 | 1 | Meer info | |||
| 2819711100 | 1640 | PRESSURE SWITCH | 12 | 0 | Meer info | |||
| 2833830400 | 1640 | PRESSURE SENSOR METALFLEX | 10 | 1 | Meer info | |||
| 2829010100 | 1646 | SHOCK ABSORBER | 10 | 1 | Meer info | |||
| 2841630200 | 1657 | HEXAGON NUT FÄ°BER | 1 | 1 | Meer info | |||
| 2840820200 | 1660 | INPUT IMPEDANCE COIL foil | 1 | 1 | Meer info | |||
| 2002374300 | 1686 | HOSE CLAMP (├â┬© 1.8) | 2 | 4 | Meer info | |||
| 2837560100 | 1701 | PINNED CABLE CONNECTOR | 2 | 2 | Meer info | |||
| 2850350100 | 1741 | INNER PART | 1 | 1 | Meer info | |||
| 9003611200 | 1785 | SHEET METAL SCREW(B4_2x11.5-TOOTHED) | 1 | 1 | Meer info | |||
| 2443900200 | 1837 | CUSHION SHEET ASSEMBLY | 3 | 3 | Meer info | |||
| 9003272500 | 1845 | PLASTIC SCREW | 1 | 3 | Meer info | |||
| 2450000100 | 1862 | PUMPE COVER ASSEMBLY | 5 | 1 | Meer info | |||
| 2848250100 | 1873 | TOP FRAME FIXING PART LEFT | 1 | 1 | Meer info | |||
| 2847840100 | 1874 | TOP FRAME FIXING PART RIGHT | 1 | 1 | Meer info | |||
| 2912701400 | 1880 | ADJUSTABLE FEET ASSEMBLY | 5 | 4 | Meer info | |||
| 2859590100 | 1951 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 181300303 | 8325 | M4X10 TAPTITE SCREW. | 1 | 4 | Meer info | |||
| 371202407 | 8331 | Carbon Brush Assembly (L24MF7_39mm) | 12 | 2 | Meer info | |||
| 372205506 | 8335 | Tacho Assembly | 8 | 1 | Meer info | |||
| 373500801 | 8336 | Tachometer Cover.. | 2 | 1 | Meer info | |||
| 2002371700 | 8355 | HOSE CLAMP (x 28,7) | 1 | 3 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2828040300 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 1 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 3 | Meer info | |||
| 111201020 | 8396 | BOLT (AM5x10 DIN 7985 4.8-H) | 1 | 2 | Meer info | |||
| 9003610500 | 8397 | SHEET METAL SCREW(B4_2x9_5-TOOTHED) | 1 | 3 | Meer info | |||
| 9003610900 | 8397 | SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED | 1 | 0 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 1 | Meer info | |||
| 9003270900 | 8399 | PLASTIC SCREW | 1 | 1 | Meer info | |||
| 2831790100 | 8412 | SPECIAL SHEET SREW | 2 | 0 | Meer info | |||
| 2832450100 | 8416 | SPECÄ°AL PT SREW | 1 | 10 | Meer info | |||
| 2963340100 | 8419 | WASHERED NUT (M6x1) | 1 | 0 | Meer info | |||
| 9001230300 | 8419 | PLASTIC CLAMP 100 mm | 1 | 1 | Meer info | |||
| 2826150100 | 8430 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2826150200 | 8431 | HOSE CLAMP | 3 | 0 | Meer info |
