Promotie
A+++B

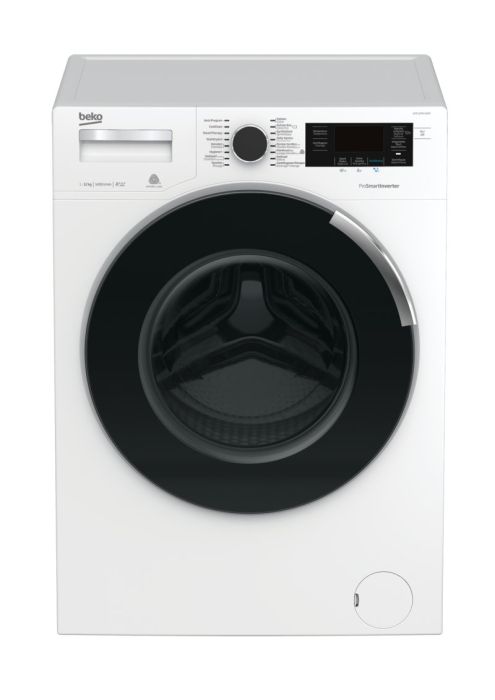

main product photo

WTV8744XW WASMACHINE

Artikelnr: 114238
Referentienr: WTV8744XW
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 8 kg - polyp. 24u DISPLAY
Meer informatie
Hoogte 84
Breedte 60
Diepte 54
Gewicht (Kg) 72
Hoogte met verpakking 88
Breedte met verpakking 65
Diepte met verpakking 60
Gewicht VPE (Kg) 73
ArtRef WTV8744XW
AsogemID 114238
MPN 7162841900
Merk BEKO
Going prijs 999,99
Soort 1400 t/m
ArtEAN 8690842129865
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425100100 1 TOP FRAME ASSEMBLY 19 0 Meer info
2467800100 1 TOP FRAME ASSEMBLY 21 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2448800100 10 FRONT DOOR ASSEMBLY PREMIUM 21 0 Meer info
2498800100 10 FRONT DOOR ASSEMBLY PREMIUM 31 1 Meer info
2849660200 13 DOOR LOCK 20 0 Meer info
2849660500 13 DOOR LOCK 17 1 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 5 Meer info
2801540200 25 REAR COVER CAP 1 5 Meer info
2801540300 25 REAR COVER CAP 1 0 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 2 Meer info
2820525825 43 USER S MANUAL (EN) 6 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2824010100 53 SUSPENSION SPRING 5 2 Meer info
2827084000 54 DOOR HOOD-RUBBER 19 0 Meer info
2827084400 54 DOOR HOOD-RUBBER 20 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2824490200 56 PULLEY 13 1 Meer info
2852280100 59 ELASTIC POLY-V BELT 12 0 Meer info
2907260500 59 ELASTIC POLY-V BELT 12 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2843120300 63 MOTOR (ATLAS 32 MM) 32 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2000811000 100 AIR PIPE HOSE 2 1 Meer info
2000811600 100 AIR PIPE HOSE L=590 mm 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2902090100 134 FILTER COVER 5 0 Meer info
2902090500 134 FILTER COVER 0 1 Meer info
2421701100 146 COVER ASSEMBLY 12 1 Meer info
2831721100 149 COUNTERWEIGHT-LOWER 15 1 Meer info
2841181100 149 COUNTERWEIGHT-LOWER 16 0 Meer info
2724301400 162 INTERFERENCE SUPPRESSOR ASSY.. 14 0 Meer info
2827981200 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2003721600 162 CONDENSATOR ANTIINTERFERENTA 13 0 Meer info
2853080800 166 MAIN CABLE HARNESS 26 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2452401070 186 MAIN BOARD 35 1 Meer info
2449809002 197 DETERGENT DRAWER FRONT COVER ASSY. 18 1 Meer info
2448900100 203 PROGRAM KNOB ASSEMBLY 18 1 Meer info
2422109160 208 PANEL BODY ASSY. 18 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2421900300 336 DRAWER ASSEMBLY 11 1 Meer info
2002373000 367 HOSE CLAMP 1 1 Meer info
2819101600 373 DISCHARGE HOSE ASSEMBLY(OUTER). 8 1 Meer info
2838992900 401 FRONT PANEL(B13 XL USA) 19 0 Meer info
2840682500 401 FRONT PANEL 16 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2703944500 617 FELT (SIDE PANEL LEFT) 10 0 Meer info
2820525826 631 USER S MANUAL (DE) 6 1 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2820525827 703 USER S MANUAL (FR) 6 1 Meer info
2820525828 717 USER S MANUAL (FL) 6 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2878102500 802 JET PUMP FILTER ASSEMBLY 24 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2903090600 953 DOO LOCK WATER PROTECTOR 1 1 Meer info
2848510200 964 CARD PROTECTOR FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907191000 1110 HOSE L=225 mm 1 1 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2820140400 1225 FILTER HOUSING 11 0 Meer info
2820140800 1225 FILTER HOUSING 0 1 Meer info
2857870100 1226 SOCKET PROTECTIVE FOIL 4 1 Meer info
2446401001 1251 MOTOR BOARD ASSY. 31 0 Meer info
2446403000 1251 MOTOR BOARD GR. 33 0 Meer info
2446404000 1251 MOTOR BOARD GR. 34 1 Meer info
2446408000 1251 MOTOR BOARD ASSY. 32 0 Meer info
2446407000 1251 MOTOR BOARD ASSY. 33 0 Meer info
2838140200 1345 NOZZLE (CIFT JET) (MAVI BLUE) 1 2 Meer info
2901540400 1358 PUMP GASKET CONNECTION HOSE. 9 1 Meer info
2833301100 1362 PUMP CABLE HARNESS 10 1 Meer info
2500700900 1363 WELDED TUB ASSEMBLY 0 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2002374100 1405 HOSE CLAMP 2 2 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2887400300 1438 FILTER ASSEMBLY 8 1 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2814690100 1455 CABLE CLAMP 7 3 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2833810100 1470 CABINET ASSEMBLY AND BACK COVER 31 1 Meer info
9003271700 1497 PLASTIC SCREW 9 2 Meer info
2907192900 1504 HOSE L200 2 1 Meer info
2947400100 1517 Liquid Detergent Dispenser Group (Blue) 5 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 2 Meer info
2843030200 1537 FLAME BARRIER 5 0 Meer info
2858780100 1537 FLAME BARRIER 5 1 Meer info
2838090100 1550 TWÄ°N JET ELBOW 3 1 Meer info
2714803400 1555 RAST CONNECTER ADAPTER CABLE 11 1 Meer info
2408900400 1557 PUMP-GASKET CONNECTION HOSE ASSEMBLY 10 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2939800400 1569 STEAM GENERATOR ASSY 29 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2839820100 1577 WATER INLET VALVE (TRIPLE) 23 1 Meer info
2840880100 1580 Auotoclaved bypass hose 6 1 Meer info
2839570100 1585 PUMP COVER 4 1 Meer info
2839580100 1586 PUMP COVER HOLDER 4 0 Meer info
2849450100 1586 PUMP COVER HOLDER 2 1 Meer info
2468300100 1590 PANEL ASSEMBLY 5 1 Meer info
2851950200 1590 BUTTON GUIDE 4 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2833830300 1640 PRESSURE SENSOR METALFLEX 13 1 Meer info
2407200100 1641 BY PASS ASSEMBLY 7 1 Meer info
2841420100 1683 PUMP MOTOR 20 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 10 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
2703945500 1717 ISOLATION FELT (SIDE PANEL RIGHT) 9 0 Meer info
2850650100 1740 PROGRAM SELECTOR KNOB INNER PART 2 1 Meer info
2841420200 1746 PUMP MOTOR 19 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2714801700 1821 RAST CONNECTOR ADAPTER CABLE 3 1 Meer info
2714803200 1823 RAST CONNECTOR ADAPTER CABLE 9 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 3 Meer info
2907195500 1842 HOSE 5 1 Meer info
9003272500 1845 PLASTIC SCREW 1 3 Meer info
2853170100 1869 DOOR OPENING ARM 1 1 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 2 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
9003270200 8303 PLASTIC SCREW (DIAMETER 4x18) 1 6 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 1 Meer info
2002371600 8354 HOSE CLAMP (x 27.5) 1 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 1 Meer info
9003270900 8399 PLASTIC SCREW 1 3 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 3 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
2002371100 9028 HOSE CLAMP (Ø 18.2) 2 1 Meer info
Mode d'emploi (8.81 MB)
Handleiding (8.86 MB)
