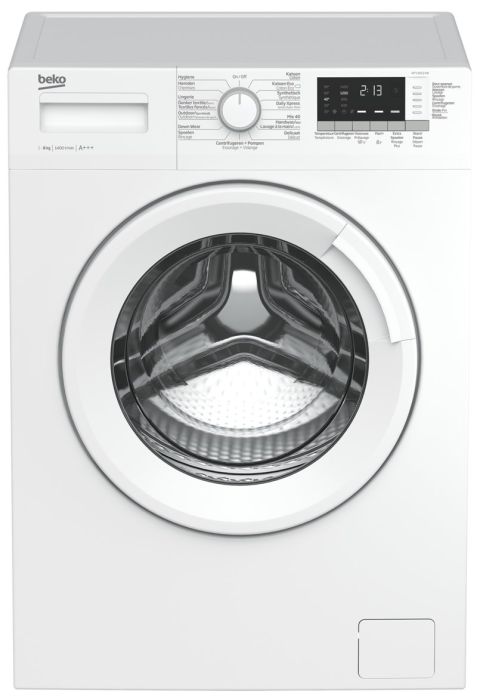

WTV8712XW WASMACHINE

Artikelnr: 114239
Referentienr: WTV8712XW
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 8 kg -19u/h 7S-DISPLAY
Meer informatie
Hoogte 84
Breedte 60
Diepte 54
Gewicht (Kg) 70
ArtRef WTV8712XW
AsogemID 114239
MPN 7149342400
Merk BEKO
Going prijs 999,99
Soort 1400 t/m
ArtEAN 8690842123504
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425100100 1 TOP FRAME ASSEMBLY 19 0 Meer info
2467800100 1 TOP FRAME ASSEMBLY 21 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2850940100 9 HANDLE BX XL 4 1 Meer info
2453800100 10 FRONT DOOR ASSEMBLY BX XL 23 0 Meer info
2496600100 10 FRONT DOOR ASSEMBLY BX XL 25 1 Meer info
2842650100 11 PORTHOLE GLASS 18 1 Meer info
2850580300 12 INNER DOOR PLX 11 1 Meer info
2847740400 13 DOOR LOCK 18 0 Meer info
2847740500 13 DOOR LOCK 15 1 Meer info
2850610100 14 BX XL HINGE 11 0 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2858570200 16 PLASTIC HINGE 10 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 4 Meer info
2801540200 25 REAR COVER CAP 1 5 Meer info
2801540300 25 REAR COVER CAP 1 0 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2820525780 43 USER S MANUAL (EN_DE) 4 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2824010100 53 SUSPENSION SPRING 5 2 Meer info
2466300300 54 DOOR HOOD-RUBBER ASSY 21 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660200 56 PULLEY 14 1 Meer info
2816750200 59 ELASTIC POLY-V BELT 12 1 Meer info
2845710200 59 ELASTIC POLY-V BELT 12 0 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 4 Meer info
2826520100 63 MOTOR 38 0 Meer info
2838520100 63 MOTOR 36 0 Meer info
2850310100 63 MOTOR 36 1 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2857090100 99 SIPHON 1 1 Meer info
2000811600 100 AIR PIPE HOSE L=590 mm 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2426000200 106 HOSE -WATER INLET SLIM-COLD 12 0 Meer info
2906760300 106 HOSE -WATER INLET -COLD 8 0 Meer info
2906860700 106 WATER INLET HOSE ASSEMBLY 10 1 Meer info
2857160100 117 TUB INLET HOSE 11 1 Meer info
2493800100 146 DETERGENT DISPENSER ASSY SNAP FIT 10 1 Meer info
2841180500 149 COUNTERWEIGHT-LOWER 16 0 Meer info
2841181100 149 COUNTERWEIGHT-LOWER 16 1 Meer info
2827981200 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2003721600 162 CONDENSATOR ANTIINTERFERENTA 13 0 Meer info
2834081200 166 MAIN CABLE HARNESS 23 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2804980200 171 NTC 8 0 Meer info
2843260460 186 MAIN BOARD 31 1 Meer info
2840940100 194 PUMP-FILTER ASSEMBLY 21 1 Meer info
2863201700 194 PUMP-FILTER ASSEMBLY 23 0 Meer info
2459209002 197 DRAWER PANEL 11 1 Meer info
2811570300 201 MODUL HOLDER (MEDIUM) 4 1 Meer info
2451903800 203 SELECTOR KNOB ASSEMBLY 12 1 Meer info
2451409001 208 PANEL BODY ASSY. 19 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2478900100 336 DETERGENT DRAWER ASSEMBLY SNAP FIT 10 1 Meer info
2857080100 336 DETERGENT DRAWER 12 1 Meer info
2850590100 339 OUTER COVER BX XL ARCP1 14 1 Meer info
2851560200 341 PULL OPEN HOOK 4 1 Meer info
2803800500 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2851420800 401 FRONT PANEL ARCP1 BX_XL 20 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703940900 617 ISOLATION FELT (SIDE WALL) 10 0 Meer info
2820525781 631 USER S MANUAL (FR_FL) 4 1 Meer info
2838910100 632 HINGE BUSHING 1 3 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2839500200 723 DC MODULE CARD HOLDER 5 1 Meer info
2836480100 737 WATER INLET VALVE 16 1 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 0 Meer info
2906920100 737 WATER INLET VALVE 16 0 Meer info
2817690101 748 DC MODULE 18 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2903090500 953 DOOR LOCK WATER PROTECTOR 1 1 Meer info
2845310300 964 CARD PROTECTOR FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2850820100 1014 ENCODER PROTECTION PART 1 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907190900 1109 HOSE L=290 mm 2 2 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2500700800 1363 WELDED TUB ASSEMBLY 41 1 Meer info
2850360100 1384 HEATER ASSEMBLY 18 0 Meer info
2863403000 1384 HEATER ASSEMBLY without NICHEL 18 0 Meer info
2882601600 1384 HEATER ASSEMBLY without NICHEL 22 1 Meer info
2451509001 1396 LIGHT GUIDE BUTTON ASSMBLY 11 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2833810100 1470 CABINET ASSEMBLY AND BACK COVER 31 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2843030200 1537 FLAME BARRIER 5 0 Meer info
2858780100 1537 FLAME BARRIER 5 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2858560300 1575 TERMINAK SHEET 1 0 Meer info
2850850100 1585 PUMP COVER ARCP1 3 1 Meer info
2850840100 1586 PUMP COVER HOLDER 2 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
2850350100 1741 INNER PART 1 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 3 Meer info
9003272500 1845 PLASTIC SCREW 1 3 Meer info
2450000100 1862 PUMPE COVER ASSEMBLY 5 1 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 2 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2857070100 1935 LIQUID DETERGENT TOOL 1 1 Meer info
2857060100 1937 DETERGENT BOX 12 1 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 0 Meer info
371202407 8331 Carbon Brush Assembly (L24MF7_39mm) 12 0 Meer info
372205506 8335 Tacho Assembly 8 0 Meer info
373500801 8336 Tachometer Cover.. 2 0 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002740200 8365 DRAIN HOSE HOLDER 1 0 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 1 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 10 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
Mode d'emploi (3.29 MB)
Handleiding (3.29 MB)
