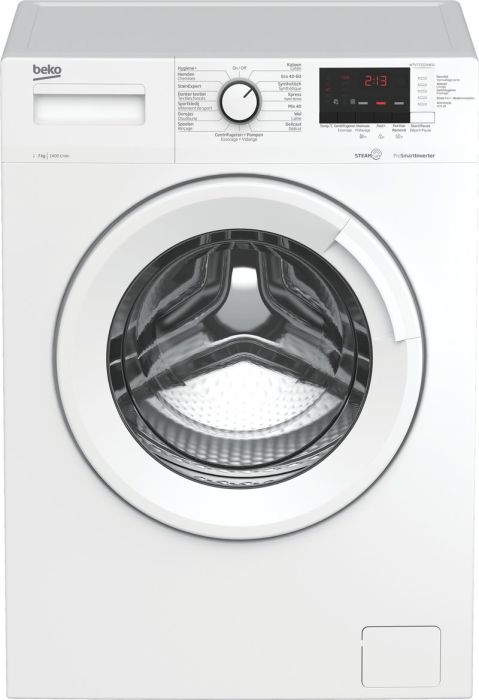

WTV77222XW11 WASMACHINE

Comfort

Artikelnr: 111025

Referentienr: WTV77222XW11

Aanbevolen verkoopprijs: € 329,99 (BTW & recupel inbegrepen)

Productomschrijving

1400 t/min. 7 kg - BLDC 15 progr

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2418500100	1	TOP FRAME ASSEMBLY	18	0	Meer info
2827610100	7	BACK COVER WHITE	17	1	Meer info
2850940100	9	HANDLE BX XL	4	1	Meer info
2453800100	10	FRONT DOOR ASSEMBLY BX XL	23	0	Meer info
2496600100	10	FRONT DOOR ASSEMBLY BX XL	25	1	Meer info
2842650100	11	PORTHOLE GLASS	18	1	Meer info
2850580300	12	INNER DOOR PLX	11	1	Meer info
2849660200	13	DOOR LOCK	20	0	Meer info
2849660500	13	DOOR LOCK	17	1	Meer info
2850610100	14	BX XL HINGE	11	0	Meer info
2835320100	16	HINGE SUPPORT BRACKET	4	1	Meer info
2858570200	16	PLASTIC HINGE	10	1	Meer info
2912701200	18	ADJUSTABLE FEET ASSEMBLY	3	0	Meer info
2737601500	20	TRANSPORT SAFETY ASSEMBLY.	4	4	Meer info
2801540200	25	REAR COVER CAP	1	5	Meer info
2801540300	25	REAR COVER CAP	1	0	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2820528493	43	USER S MANUAL (EN_DE)	0	1	Meer info
2816990200	45	UPPER COUNTER WEIGHT	13	0	Meer info
2816990700	45	UPPER COUNTER WEIGHT	13	1	Meer info
2820360100	53	SUSPENSION SPRING	5	2	Meer info
2466300300	54	DOOR HOOD-RUBBER ASSY	21	1	Meer info
2802580600	55	DOOR GASGET SPRING	2	1	Meer info
2824490200	56	PULLEY	13	1	Meer info
2852280100	59	ELASTIC POLY-V BELT	12	0	Meer info
2907260500	59	ELASTIC POLY-V BELT	12	1	Meer info
2818450100	60	ENGINE CONNECTION SCREW	2	0	Meer info
2818450500	60	ENGINE CONNECTION SCREW	2	2	Meer info
2843120300	63	MOTOR (ATLAS 32 MM)	32	1	Meer info
2852410200	65	HEATER	17	0	Meer info
2810430900	66	SHOCK ABSORBER	9	0	Meer info
2816871100	66	SHOCK ABSORBER	9	2	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	0	Meer info
2801430400	78	SHOCK ABSORBER PIN	1	2	Meer info
2898400200	80	SPECIAL BOLT.	4	6	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2835750100	99	SYPHON	2	1	Meer info
2000811700	100	AIR PIPE HOSE	3	1	Meer info
2814430100	103	HOSE CLAMP	2	0	Meer info
2814430200	103	HOSE CLAMP	2	1	Meer info
2818440200	117	TUB INLET HOSE.	8	1	Meer info
2421202100	146	Detergent dispenser assembly	12	0	Meer info
2421202900	146	Detergent dispenser assembly	11	1	Meer info
2831721300	149	COUNTERWEIGHT-LOWER	19	1	Meer info
2841180900	149	COUNTERWEIGHT-LOWER	18	0	Meer info
2724301400	162	INTERFERENCE SUPPRESSOR ASSY..	14	0	Meer info
2827981200	162	INTERFERENCE SUPPRESSOR	13	1	Meer info
2834310400	162	INTERFERENCE SUPPRESSOR	12	0	Meer info
2003721600	162	CONDENSATOR ANTIINTERFERENTA	13	0	Meer info
2834086200	166	MAIN CABLE HARNESS	24	1	Meer info
2836390200	169	POWER CORD ASSY.	12	1	Meer info
2858195430	186	MAIN BOARD ASS.	27	1	Meer info
2840940200	194	PUMP-FILTER ASSEMBLY	20	1	Meer info
2880402000	194	PUMP-FILTER ASSEMBLY(WATER COOLING)	20	0	Meer info
2459209768	197	DRAWER PANEL	17	1	Meer info
2451901400	203	SELECTOR KNOB ASSEMBLY	8	1	Meer info
2451409427	208	PANEL BODY ASSY.	23	1	Meer info
2603901100	230	CABINET BELLOWS CLAMP ASSEMBLY	3	1	Meer info
2421800100	336	Drawer Assembly	8	1	Meer info
2850590100	339	OUTER COVER BX XL ARCP1	14	1	Meer info
2851560200	341	PULL OPEN HOOK	4	1	Meer info
2803801700	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2851420800	401	FRONT PANEL ARCP1 BX_XL	20	1	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	3	Meer info
2002370600	552	HOSE CLAMP (├â╦£ 13.3)	1	1	Meer info
2000610200	553	HOSE.	10	1	Meer info
2872700100	598	FILTER ASSEMBLY	5	1	Meer info
2703942000	617	FELT (SIDE PANEL)	10	0	Meer info
2703946400	617	FELT	8	0	Meer info
2820528494	631	USER S MANUAL (FR_NL)	0	1	Meer info
2838910100	632	HINGE BUSHING	1	3	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	2	Meer info
2808740200	677	STOPPER.	2	1	Meer info
2811250100	682	M8 x 1_25 FLANGED NUT	1	1	Meer info
2811260100	719	PLUG HOLDER(NATURAL)	3	0	Meer info
2811260300	719	PLAG HOLDER	3	0	Meer info
2853580100	719	PLUG HOLDER(NATURAL)	1	1	Meer info
2836480100	737	WATER INLET VALVE	16	0	Meer info
2906850200	737	WATER INLET VALVE	15	0	Meer info
2906870200	737	WATER INLET VALVE	15	1	Meer info
2471600100	775	MECHANIC AQUASTOP	22	1	Meer info
2831320200	797	Cable Holder	1	1	Meer info
2831370100	797	CABLE HOLDER	1	1	Meer info
2834830300	820	SELF TAPPING SCREW L=16	1	3	Meer info
2832240400	827	TOP SUPPORT BRACKET	9	1	Meer info
2903090600	953	DOO LOCK WATER PROTECTOR	1	1	Meer info
2845310300	964	CARD PROTECTOR FOIL	2	1	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2829960500	1008	PULLEY FIXING SCREW	3	0	Meer info
2836970300	1096	SCREW (4x11)	1	2	Meer info
2836970500	1096	SCREW (4x11)	1	2	Meer info
2865200100	1210	TUB-FILTER HOSE ASSEMBLY COMPLETE	12	1	Meer info
2707340300	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2707340400	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2817470100	1232	SPRING HOLDER...	2	1	Meer info
2817480100	1233	SPRING HOLDER...	2	1	Meer info
2446407000	1251	MOTOR BOARD ASSY.	33	1	Meer info
2880607200	1363	WELDED TUBASSEMBLY	41	0	Meer info
2880607300	1363	WELDED TUBASSEMBLY	42	1	Meer info
2850360200	1384	HEATER ASSEMBLY	22	0	Meer info
2863403100	1384	HEATER ASSEMBLY with NICKEL	18	0	Meer info
2882601700	1384	HEATER ASSEMBLY with NICKEL	18	1	Meer info
2451509132	1396	LIGHT GUIDE BUTTON ASSMBLY	0	1	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	0	Meer info
2817050400	1442	SHOCK ABSORBER PIN	1	2	Meer info
2826440100	1459	FRONT WALL HOLDER	2	2	Meer info
2826450100	1460	FRONT WALL HOLDER PIN	2	2	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	0	Meer info
9003860800	1467	SCREW.	1	5	Meer info
2942700900	1470	CABINET ASSEMBLY AND BACK COVER	20	1	Meer info
9003271700	1497	PLASTIC SCREW	9	2	Meer info
2467100100	1518	LIQUID DETERGENT GROUP	1	1	Meer info
2830690100	1520	CABLE HOLDER	1	3	Meer info
2828820400	1528	PANEL GASKET	1	1	Meer info
2831380100	1529	CABLE HOLDER	1	1	Meer info
2826420100	1535	HOSE HOLDER	1	1	Meer info
2843030200	1537	FLAME BARRIER	5	0	Meer info
2858780100	1537	FLAME BARRIER	5	1	Meer info
2839070100	1559	GROUNDING SCREW	1	1	Meer info
2858560100	1575	TERMINAK SHEET	1	1	Meer info
2850850100	1585	PUMP COVER ARCP1	3	1	Meer info
2850840100	1586	PUMP COVER HOLDER	2	1	Meer info
2707730400	1592	PLASTIC SCREW 3x4_5	1	1	Meer info
2828170500	1640	PRESSURE SWITCH	12	0	Meer info
2833830300	1640	PRESSURE SENSOR METALFLEX	13	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	4	Meer info
2837560100	1701	PINNED CABLE CONNECTOR	2	2	Meer info
2907194400	1712	HOSE	2	2	Meer info
2852930200	1740	ENCODER PROTECTOIN PART	1	1	Meer info
2850350100	1741	INNER PART	1	1	Meer info
9003611200	1785	SHEET METAL SCREW(B4_2x11.5-TOOTHED)	1	1	Meer info
2714801700	1821	RAST CONNECTOR ADAPTER CABLE	3	1	Meer info
2443900100	1837	CUSHION SHEET ASSEMBLY	3	3	Meer info
9003272500	1845	PLASTIC SCREW	1	3	Meer info
2450000100	1862	PUMPE COVER ASSEMBLY	5	1	Meer info
2912701400	1880	ADJUSTABLE FEET ASSEMBLY	5	4	Meer info
2859590100	1951	CABLE HOLDER	1	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	3	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	0	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	1	Meer info
9003270900	8399	PLASTIC SCREW	1	1	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
2832450100	8416	SPEC├ä┬░AL PT SREW	1	10	Meer info
9001230300	8419	PLASTIC CLAMP 100 mm	1	1	Meer info
2826150100	8430	HOSE CLAMP	1	1	Meer info
2826150200	8431	HOSE CLAMP	3	0	Meer info

Documenten

Productfiche (285.13 kB)

Mode d'emploi (4.27 MB)

Handleiding (4.27 MB)
