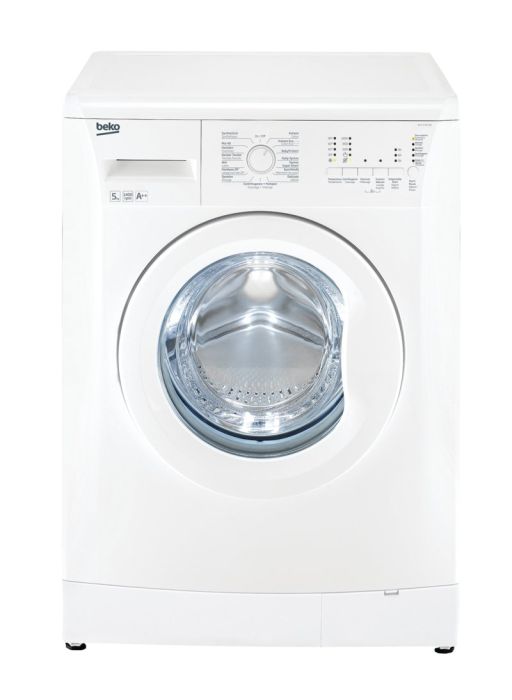

WTC5701B0 WASMACHINE

Artikelnr: 114329
Referentienr: WTC5701B0
Vergelijk

Productomschrijving

1400 t/min. 5 kg - D 45 cm 15 progr
Meer informatie
Hoogte 84
Breedte 60
Diepte 45
Gewicht (Kg) 65
Hoogte met verpakking 88
Breedte met verpakking 65
Diepte met verpakking 51.5
Gewicht VPE (Kg) 66
ArtRef WTC5701B0
AsogemID 114329
MPN 7111741900
Merk BEKO
Soort 1400 t/m
ArtEAN 8690842069963
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2857400100 1 TOP FRAME ASSEMBLY 19 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2828780100 9 HANDLE. 3 1 Meer info
2915100100 10 FRONT DOOR ASSEMBLY 22 1 Meer info
2905560100 11 PORTHOLE GLASS 15 1 Meer info
2828770100 12 INNER COVER.. 10 1 Meer info
2805310200 13 DOOR LOCK 11 0 Meer info
2805310800 13 DOOR LOCK 11 0 Meer info
2805311600 13 DOOR LOCK 10 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2905730100 14 HINGE 9 1 Meer info
2843840200 16 HINGE SUPPORT 3 1 Meer info
2912701200 18 ADJUSTABLE FEET ASSEMBLY 3 0 Meer info
2737601500 20 TRANSPORT SAFETY ASSEMBLY. 4 4 Meer info
2801540200 25 REAR COVER CAP 1 0 Meer info
2801540300 25 REAR COVER CAP 1 5 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2704110100 38 SPRING HOLDER 1 1 Meer info
2820525305 43 USER S MANUAL (EN_DE) 5 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2817040100 53 SUSPENSION SPRING 4 2 Meer info
2466300302 54 DOOR HOOD-RUBBER ASSY 20 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660100 56 PULLEY 14 1 Meer info
2816660200 56 PULLEY 14 0 Meer info
2816750200 59 ELASTIC POLY-V BELT 12 1 Meer info
2845710200 59 ELASTIC POLY-V BELT 12 0 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 4 Meer info
2834650100 63 MOTOR 39 1 Meer info
2816870800 66 SHOCK ABSORBER 8 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2835750100 99 SYPHON 2 1 Meer info
2000811700 100 AIR PIPE HOSE 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2426000200 106 HOSE -WATER INLET SLIM-COLD 12 0 Meer info
2906760300 106 HOSE -WATER INLET -COLD 8 0 Meer info
2906860700 106 WATER INLET HOSE ASSEMBLY 10 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2416702700 146 Detergent dispenser assembly 12 1 Meer info
2830820400 149 COUNTERWEIGHT-LOWER 17 0 Meer info
2830820700 149 COUNTERWEIGHT-LOWER 16 1 Meer info
2724300900 162 INTERFERENCE SUPPRESSOR ASSY.. 9 0 Meer info
2827980900 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310300 162 INTERFERENCE SUPPRESSOR 13 0 Meer info
2834081000 166 MAIN CABLE HARNESS 23 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2804980200 171 NTC 8 0 Meer info
2826950610 186 MAIN BOARD ASSY. 28 1 Meer info
2840940100 194 PUMP-FILTER ASSEMBLY 21 1 Meer info
2880401800 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2828115237 197 DETERGENT DRAWER FRONT COVER ASSY. 8 1 Meer info
2899302700 203 PROGRAM SELECTOR KNOB ASSY 5 1 Meer info
2828489245 208 PANEL BODY ASSY. 14 1 Meer info
2603901200 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2416600100 336 Drawer Assembly 9 1 Meer info
2828760100 339 OUTER DOOR 15 1 Meer info
2814360500 340 HOOK SPRING 1 1 Meer info
2813130100 341 LOCK HOOK. 3 0 Meer info
2813130300 341 LOCK HOOK. 2 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2812860400 365 KICKPLATE BODY. 9 0 Meer info
2830790100 365 KICKPLATE BODY. 10 0 Meer info
2830790400 365 KICKPLATE BODY. 8 0 Meer info
2846340400 365 KICKPLATE BODY 8 1 Meer info
2803800600 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2812413500 401 FRONT PANEL 17 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2828430100 571 REFLECTOR 2 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703942300 617 FELT (YOC 45 SIDE PANEL) 8 0 Meer info
2820525306 631 USER S MANUAL (FR_FL) 5 1 Meer info
2915790200 632 HINGE BUSHING 2 2 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2812870100 672 KICKPLATE COVER. 5 0 Meer info
2812870400 672 KICKPLATE COVER. 5 0 Meer info
2846350400 672 KICKPLATE COVER. 5 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2836480100 737 WATER INLET VALVE 16 0 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 1 Meer info
2906920100 737 WATER INLET VALVE 16 0 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2828450200 1014 TIMER KNOB SHAFT 2 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907191000 1110 HOSE L=225 mm 1 2 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 0 Meer info
2478000100 1210 TUB FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2477900100 1210 TUB FILTER HOSE ASSEMBLY BALL SYSTEM 0 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2879003000 1363 WELDED TUB ASSEMBLY 39 0 Meer info
2879003800 1363 WELDED TUB ASSEMBLY 42 1 Meer info
2850360100 1384 HEATER ASSEMBLY 18 0 Meer info
2863403000 1384 HEATER ASSEMBLY without NICHEL 18 0 Meer info
2882601600 1384 HEATER ASSEMBLY without NICHEL 22 1 Meer info
2898700200 1396 LIGHT GUIDE BUTTON ASSEMBLY 8 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2404400100 1470 CABINET ASMBL 36 1 Meer info
2707920100 1486 SPRING HOLDER RIGHT 1 1 Meer info
2830690100 1520 CABLE HOLDER 1 4 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820100 1528 PANEL GASKET 2 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2819711100 1640 PRESSURE SWITCH 12 0 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 2 Meer info
9003272500 1845 PLASTIC SCREW 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 4 Meer info
371202402 8331 Carbon Brush Assembly (BLACK_L93MF7) 9 2 Meer info
372205506 8335 Tacho Assembly 8 1 Meer info
373500801 8336 Tachometer Cover.. 2 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002740200 8365 DRAIN HOSE HOLDER 1 0 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 3 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 11 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
9003611100 8424 SHEET METAL SCREW(B4.2x9.5) 1 0 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
