Promotie
A+++B

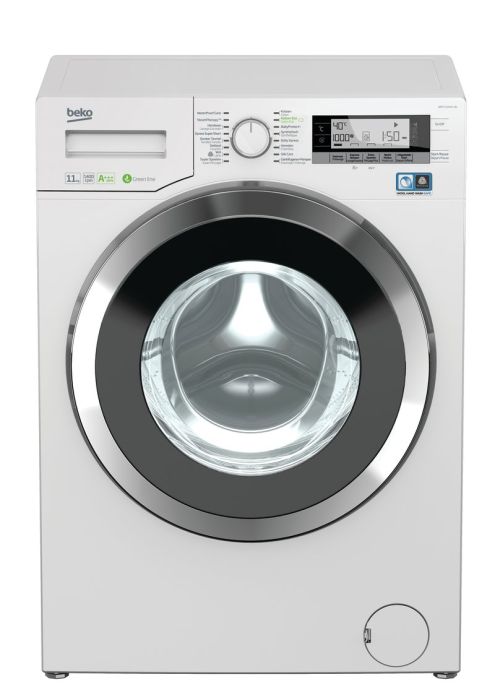

main product photo

WMY111444LB1 WASMACHINE

Artikelnr: 114427
Referentienr: WMY111444LB1
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 11 kg - polyp. 24u DISPLAY
Meer informatie
Hoogte 84
Breedte 60
Diepte 62.5
Gewicht (Kg) 84
Hoogte met verpakking 88
Breedte met verpakking 65
Diepte met verpakking 68.5
Gewicht VPE (Kg) 85
ArtRef WMY111444LB1
AsogemID 114427
MPN 7146041400
Merk BEKO
Going prijs 999,99
Soort 1400 t/m
ArtEAN 8690842994272
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425400100 1 TOP FRAME ASSEMBLY 21 0 Meer info
2479100100 1 TOP FRAME ASSEMBLY 21 1 Meer info
2841390100 7 BACK COVER 18 1 Meer info
2839780300 9 HANDLE (SIYAH) 6 1 Meer info
2429800300 10 FRONT DOOR ASSEMBLY B13XL P.BLACK_KROM 33 1 Meer info
2842650100 11 PORTHOLE GLASS 18 1 Meer info
2841580200 12 INNER COVER GRY 12 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2841350100 14 HINGE 11 1 Meer info
2848720100 14 HINGE 12 0 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 5 Meer info
2801540200 25 REAR COVER CAP 1 0 Meer info
2801540300 25 REAR COVER CAP 1 5 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 2 Meer info
2820524029 43 USER S MANUAL (FL FR) 5 1 Meer info
2837750200 45 COUNTER WEIGHT (UPPER) 13 1 Meer info
2824010100 53 SUSPENSION SPRING 5 2 Meer info
2827083900 54 DOOR HOOD-RUBBER 20 0 Meer info
2827084300 54 DOOR HOOD-RUBBER 19 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 3 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2000810400 100 AIR PIPE HOSE 2 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2902090100 134 FILTER COVER 5 0 Meer info
2902090500 134 FILTER COVER 0 1 Meer info
2421701100 146 COVER ASSEMBLY 12 1 Meer info
2837760600 149 COUNTERWEIGHT (FRONT) 20 1 Meer info
2724301400 162 INTERFERENCE SUPPRESSOR ASSY.. 14 0 Meer info
2827981200 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2003721600 162 CONDENSATOR ANTIINTERFERENTA 13 0 Meer info
2843163800 166 MAIN CABLE HARNESS 26 1 Meer info
2836390500 169 POWER CORD ASSY. 15 1 Meer info
2422301300 185 MAIN BOARD 36 1 Meer info
2420709101 197 DETERGENT DRAWER FRONT COVER ASSY. 9 1 Meer info
2422400100 203 KNOB ASSEMBLY (B13 BEST) 10 1 Meer info
2422109042 208 PANEL BODY ASSY. 15 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2421900300 336 DRAWER ASSEMBLY 11 1 Meer info
2841570500 339 OUTER COVER P.BLACK 17 1 Meer info
2708180200 340 HOOK SPRING 2 1 Meer info
2838960300 341 LOCK HOOK 3 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2800860900 342 PIN 1 1 Meer info
2819100300 373 DISCHARGE HOSE ASSEMBLY(OUTER) 8 1 Meer info
2838990700 401 FRONT PANEL 18 0 Meer info
2840682100 401 FRONT PANEL 18 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2849330100 470 SIPHON ELBOW 1 1 Meer info
2732002600 471 DISCHARGE HOSE ASSEMBLY (COMPLETE) 8 1 Meer info
2609900800 473 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2703944000 617 FELT (SIDE PANEL) 11 0 Meer info
2820524030 631 USER S MANUAL (DE_EN) 5 1 Meer info
2838910100 632 HINGE BUSHING 1 4 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2836510100 719 PLUG CONSERVATIVE 2 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2878102600 802 JET PUMP FILTER ASSEMBLY 24 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2848510100 964 CARD PROTECTOR FOIL 1 1 Meer info
2829960300 1008 PULLEY FIXING SCREW 4 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2836970200 1097 SCREW 1 1 Meer info
2907190500 1105 HOSE L=300 mm 2 1 Meer info
2907190600 1106 HOSE 2 1 Meer info
2849320700 1110 Siphonage preventing flat hose 2 1 Meer info
2403400100 1210 TUB FILTER HOSE ASSEMBLY BALL SYSTEM 12 1 Meer info
2403500100 1210 TUB FILTER HOSE ASSEMBLY COMPLETE 13 1 Meer info
2820140100 1225 FILTER HOUSING 10 0 Meer info
2820140500 1225 FILTER HOUSING 0 1 Meer info
2857870100 1226 SOCKET PROTECTIVE FOIL 4 1 Meer info
2820160200 1345 NOZZLE (JET SYSTEM)(MAVI BLUE) 1 1 Meer info
2848740100 1358 SIPHONAGE PREVENTING HOSE 7 1 Meer info
2833301100 1362 PUMP CABLE HARNESS 10 1 Meer info
2402105600 1363 WELDED TUB ASSEMBLY 43 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2002374100 1405 HOSE CLAMP 2 1 Meer info
2907192800 1410 HOSE 2 1 Meer info
2887400300 1438 FILTER ASSEMBLY 8 1 Meer info
2946503500 1445 DOOR GASKET ASS. 20 1 Meer info
2814690100 1455 CABLE CLAMP 7 3 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2834180200 1470 CABINET ASSEMBLY AND BACK COVER 30 1 Meer info
2443000200 1480 DECORATIVE DOOR 24 0 Meer info
9003271700 1497 PLASTIC SCREW 9 2 Meer info
2835560100 1508 GREASE OIL (STAMINE RL2) 32 0 Meer info
2830690100 1520 CABLE HOLDER 1 4 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2843030200 1537 FLAME BARRIER 5 0 Meer info
2858780100 1537 FLAME BARRIER 5 1 Meer info
2714801100 1555 RAST CONNECTOR ADAPTER CABLE 10 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2838470100 1560 DIRECT DRIVE MOTOR CONNECTION SHEET 18 1 Meer info
2939800500 1569 STEAM GENERATOR ASSY 29 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2839820100 1577 WATER INLET VALVE (TRIPLE) 23 1 Meer info
2839570100 1585 PUMP COVER 4 1 Meer info
2839580100 1586 PUMP COVER HOLDER 4 0 Meer info
2849450100 1586 PUMP COVER HOLDER 2 1 Meer info
2842090100 1590 SPRING SEPERATOR 3 0 Meer info
2842090200 1590 SPRING SEPERATOR 2 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2841880100 1594 DD MOTOR MOUNTING VIDS 1 16 Meer info
2844420100 1616 FOIL 3 1 Meer info
2423000100 1639 SCREW CONNECTION GR. (STATOR) 1 6 Meer info
2828170500 1640 PRESSURE SWITCH 12 0 Meer info
2833830300 1640 PRESSURE SENSOR METALFLEX 13 1 Meer info
2407200100 1641 BY PASS ASSEMBLY 7 1 Meer info
2857470100 1646 SHOCK ABSORBER 12 2 Meer info
2857470300 1646 SHOCK ABSORBER 12 1 Meer info
2838970200 1651 LEVER 3 1 Meer info
2840440100 1652 BUSHING 1 1 Meer info
2841630200 1657 HEXAGON NUT FÄ°BER 1 3 Meer info
2000813000 1664 AIR PIPE HOSE 3 1 Meer info
2419501000 1670 MAINCARD 35 1 Meer info
2846730100 1671 motor 32 1 Meer info
2846740100 1673 MOTOR 31 1 Meer info
2841420100 1683 PUMP MOTOR 20 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 8 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 1 Meer info
2703945500 1717 ISOLATION FELT (SIDE PANEL RIGHT) 9 0 Meer info
2841420200 1746 PUMP MOTOR 19 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 2 Meer info
2445100100 1826 PUMP GASKET CONNECTION HOSE GR. 8 1 Meer info
2907195500 1842 HOSE 5 1 Meer info
9003272500 1845 PLASTIC SCREW 1 3 Meer info
2443900300 1872 CUSHION SHEET ASSEMBLY 3 2 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 1 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2823380100 1942 PLASTIC CAP 1 12 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
9003270200 8303 PLASTIC SCREW (DIAMETER 4x18) 1 8 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 2 Meer info
2002371600 8354 HOSE CLAMP (x 27.5) 1 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 3 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003270900 8399 PLASTIC SCREW 1 3 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 2 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 13 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 0 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
2002371100 9028 HOSE CLAMP (Ø 18.2) 2 1 Meer info
Mode d'emploi (3.30 MB)
Handleiding (3.30 MB)
