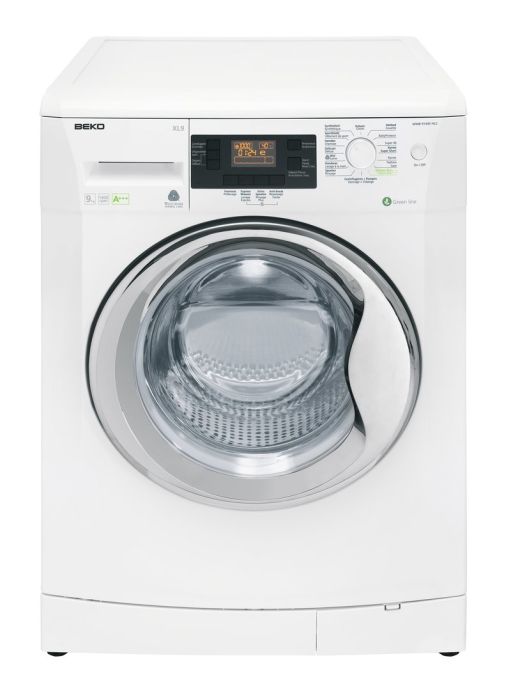

WMB91445HLC WASMACHINE

Artikelnr: 114457
Referentienr: WMB91445HLC
Vergelijk

Productomschrijving

1400 t/min. 9 kg - polyp. 24u DISPLAY
Meer informatie
Hoogte 84
Breedte 60
Diepte 59
Gewicht (Kg) 73
ArtRef WMB91445HLC
AsogemID 114457
MPN 7110843000
Merk BEKO
Soort 1400 t/m
ArtEAN 8690842859748
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2844600100 1 TOP PLATE ASS.. 18 0 Meer info
2914500100 1 TOP PLATE ASS.. 21 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2821580200 9 HANDLE. 3 1 Meer info
2879501000 10 FRONT DOOR ASSEMBLY 31 1 Meer info
2821630100 11 PORTHOLE GLASS 18 1 Meer info
2821570200 12 INNER COVER 10 1 Meer info
2805311500 13 DOOR LOCK 11 1 Meer info
2821610100 14 HINGE 11 0 Meer info
2906330100 14 HINGE XL 11 1 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 5 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 5 Meer info
2704110100 38 SPRING HOLDER 1 1 Meer info
2820523367 43 USER S MANUAL (FL_FR_DE_EN) 7 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2443500100 53 SUSPENSION SPRING 5 2 Meer info
2824010100 53 SUSPENSION SPRING 5 2 Meer info
2827083900 54 DOOR HOOD-RUBBER 20 0 Meer info
2827084300 54 DOOR HOOD-RUBBER 19 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660200 56 PULLEY 14 1 Meer info
2828730100 59 ELASTIC POLY-V BELT. 13 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2828010500 63 MOTOR 41 1 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2827040100 69 MOTOR SUPPORT 6 1 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 3 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2913600100 100 PRESSURE TUBE HOSE ASSEMBLY (COMPLETE) 6 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2701840100 132 Y TUBE 1 1 Meer info
2902090100 134 FILTER COVER 5 0 Meer info
2902090500 134 FILTER COVER 0 1 Meer info
2412700100 146 DETERGENT DIPENSER ASSEMBLY 13 0 Meer info
2412700600 146 DETERGENT DIPENSER ASSEMBLY 14 1 Meer info
2412701100 146 DETERGENT DIPENSER ASSEMBLY 14 0 Meer info
2829510600 149 COUNTERWEIGHT-LOWER 15 1 Meer info
2707040700 162 INTERFERENCE SUPPRESSOR 14 1 Meer info
2836186800 166 MAIN CABLE HARNESS. 25 1 Meer info
2836390100 169 POWER CORD ASSY. 13 1 Meer info
2801561200 170 PRESSURE SWITCH 10 1 Meer info
2827990100 180 PUSH BUTTON SWITCH 8 1 Meer info
2833840100 180 PUSH BUTTON SWÄ°CH 8 0 Meer info
2827684290 186 MAIN BOARD ASSY. 30 1 Meer info
2828119855 197 DRAWER PANEL 8 1 Meer info
2899300400 203 PROGRAM SELECTOR KNOB ASSY 10 1 Meer info
2899409401 208 PANEL ASSY 18 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2413000500 336 DRAWER ASSEMBLY 12 1 Meer info
2807570200 338 PRESSURE SWITCH HOLDER 2 1 Meer info
2821565400 339 OUTER COVER. 27 1 Meer info
2814360500 340 HOOK SPRING 1 1 Meer info
2813130300 341 LOCK HOOK. 2 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2812860400 365 KICKPLATE BODY. 9 0 Meer info
2830790100 365 KICKPLATE BODY. 10 0 Meer info
2830790400 365 KICKPLATE BODY. 8 0 Meer info
2846340400 365 KICKPLATE BODY 8 1 Meer info
2819100600 373 DISCHARGE HOSE ASSEMBLY(OUTER). 9 1 Meer info
2821373100 401 FRONT PANEL 18 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2005680400 428 WATER INLET VALVE 19 1 Meer info
2828090100 468 ON OFF BUTTON 2 1 Meer info
2809830100 481 SELECTION SWITCH 8 1 Meer info
2827190100 481 SELECTION SWITCH 7 0 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2703940700 617 FELT (SIDE) 11 0 Meer info
2821620100 632 HINGE BUSHING 2 4 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2812870100 672 KICKPLATE COVER. 5 0 Meer info
2812870400 672 KICKPLATE COVER. 5 0 Meer info
2846350400 672 KICKPLATE COVER. 5 1 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2841790100 679 INPUT IMPEDERENCE INDUCTOR GROUP 21 0 Meer info
2844290100 679 INPUT IMPEDERENCE INDUCTOR GROUP 19 1 Meer info
2889400300 679 INPUT IMPEDERENCE INDUCTOR GROUP 23 0 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2878101700 802 JET PUMP FILTER ASSEMBLY 25 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2814980200 1014 PROGRAMME KNOB INTERVAL PART 2 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907190300 1103 HOSE 2 2 Meer info
2907190500 1105 HOSE L=300 mm 2 1 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2820140400 1225 FILTER HOUSING 11 0 Meer info
2820140800 1225 FILTER HOUSING 0 1 Meer info
2820160200 1345 NOZZLE (JET SYSTEM)(MAVI BLUE) 1 1 Meer info
2820980100 1347 Y TUBE 2 1 Meer info
2848740100 1358 SIPHONAGE PREVENTING HOSE 7 1 Meer info
2833301400 1362 PUMP CABLE HARNESS 9 1 Meer info
2500703900 1363 WELDED TUB ASSY 42 1 Meer info
2863401700 1384 HEATER ASSEMBLY 18 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2863701700 1384 HEATER ASSEMBLY 19 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2002374100 1405 HOSE CLAMP 2 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2887400300 1438 FILTER ASSEMBLY 8 1 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2879400100 1444 COUNTER ASSEMBLY 11 1 Meer info
2946503500 1445 DOOR GASKET ASS. 20 1 Meer info
2814690100 1455 CABLE CLAMP 7 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2833820100 1470 CABINET ASSEMBLY AND BACK COVER 38 1 Meer info
2707920100 1486 SPRING HOLDER RIGHT 1 1 Meer info
2907193200 1507 HOSE 2 2 Meer info
2947400100 1517 Liquid Detergent Dispenser Group (Blue) 5 1 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820100 1528 PANEL GASKET 2 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2725700500 1549 INTERFERENCE SUPPERESSOR CABLE ASSY. 2 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2833830200 1640 PRESSURE SENSOR METALFLEX 11 0 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2833830500 1640 PRESSURE SENSOR METALFLEX 11 0 Meer info
2829010100 1646 SHOCK ABSORBER 10 1 Meer info
2841630200 1657 HEXAGON NUT FÄ°BER 1 1 Meer info
2840820200 1660 INPUT IMPEDANCE COIL foil 1 1 Meer info
2841420100 1683 PUMP MOTOR 20 1 Meer info
2838030100 1684 HOSE HOLDER 1 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 10 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2445100300 1826 PUMP GASKET CONNECTION HOSE GR. 8 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 3 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
9003270200 8303 PLASTIC SCREW (DIAMETER 4x18) 1 6 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 1 Meer info
2002371600 8354 HOSE CLAMP (x 27.5) 1 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 2 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 4 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 2 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 2 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 3 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003270900 8399 PLASTIC SCREW 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 1 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 12 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 0 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 3 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
