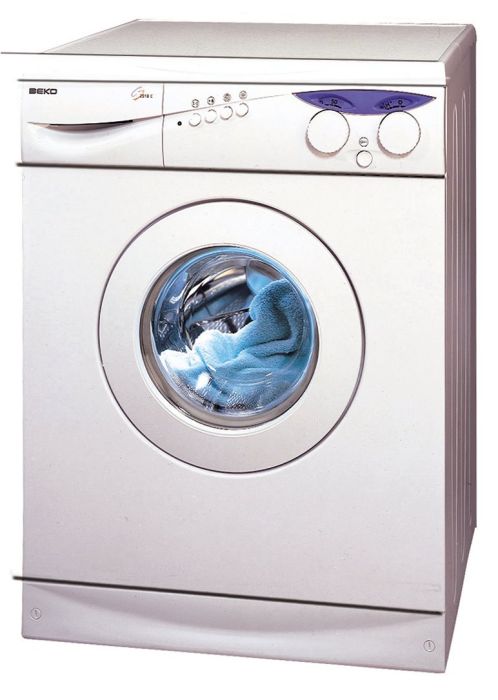

WMB7714K WASMACHINE

Artikelnr: 114939

Referentienr: WMB7714K

Productomschrijving

1400 t

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	60
Gewicht (Kg)	71
ArtRef	WMB7714K
AsogemID	114939
Merk	BEKO
Soort	1400 t/m
ArtEAN	8690842101786

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2004140800	0	DISCHARGE HOSE	4	1	Meer info
2806720200	0	NTC	7	0	Meer info
2812290100	0	RADIAL CONNECTION BOLT	1	3	Meer info
2732600200	1	TOP LID ASSEMBLY	19	1	Meer info
2731000100	6	CABINET ASSEMBLY	39	1	Meer info
2704060100	7	REAR COVER	16	1	Meer info
2801901700	10	FRONT DOOR ASSEMBLY	21	1	Meer info
2705390100	11	PORTHOLE GLASS (ASIMETRIC)	14	1	Meer info
2803510500	12	INNER COVER	12	1	Meer info
2704830100	13	SECURITY SWITCH	17	1	Meer info
2800400100	14	HINGE ASSEMBLY	10	1	Meer info
2005600200	18	ADJUSTABLE FEET ASSEMBLY	4	4	Meer info
2733500200	20	TRANSPORT SAFETY ASSEMBLY	13	3	Meer info
2801540200	25	REAR COVER CAP	1	3	Meer info
2010100100	37	PLASTIC CLAMP ASSEMBLY	4	1	Meer info
2704110100	38	SPRING HOLDER	1	3	Meer info
2607080006	43	USERS MANUAL	6	1	Meer info
2600300700	47	TUB ASSEMBLY	31	1	Meer info
2602000100	48	DRUM ASSEMBLY (COMPLETE)	33	1	Meer info
2001270200	49	TUB GASKET	8	1	Meer info
2600800200	50	TUB FRONT CAP ASSEMBLY	20	1	Meer info
2004700000	51	TUB CLAMPING ASSEMBLY	2	6	Meer info
2602820100	51	TUB CLAMP	0	0	Meer info
2703980100	52	SUSPENSION SPRING (LEFT)	6	2	Meer info
2703990100	53	SUSPENSION SPRING (RIGHT)	5	1	Meer info
2704030200	54	DOOR HOOD-RUBBER	21	1	Meer info
2600900100	55	DOOR HOOD CLAMPING ASSEMBLY	3	1	Meer info
2702800100	55	CLAMPING ASSEMBLY	0	0	Meer info
2801650100	56	PULLEY 54	15	1	Meer info
2005390100	57	PULLEY BOLT (HEX. HEAD)	3	1	Meer info
2005170200	59	ELASTIC POLY-V BELT	12	1	Meer info
110702220	60	BOLT(M8x40 Z2 DIN 933 8.8)	1	1	Meer info
2804840500	63	MOTOR	35	1	Meer info
2703370100	65	HEATER	18	1	Meer info
2705930200	66	SHOCK ABSORBER	8	0	Meer info
2803250200	66	SHOCK ABSORBER	11	2	Meer info
2600960200	69	MOTOR SUPPORT	1	2	Meer info
2604060000	73	HEATER CABLE PROTECTOR	2	1	Meer info
2801430100	78	SHOCK ABSORBER PIN	2	2	Meer info
110600120	82	BOLT (M10x40 DIN 931 8.8)	1	2	Meer info
2600890000	83	AIR PIPE HOLDER	1	1	Meer info
2001000000	84	TENSION BRACKET ASSEMBLY	4	1	Meer info
110705720	85	BOLT(M6x16 Z9 DIN 933 8.8)	1	2	Meer info
2000760000	86	TENSION PLATE	1	1	Meer info
2201450200	88	THERMOSTAT RUBBER SEAL	2	1	Meer info
2604500200	89	BEARING HOUSE ASSEMBLY	33	1	Meer info
110704020	90	BOLT.(M8x20 Z2 DIN 933 10.9)	1	3	Meer info
2706670100	90	SPECIAL BOLD	2	0	Meer info
110705920	91	BOLT(M6x25 Z2-SP DIN 933 8.8)	1	3	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2810240100	99	SIPHON	6	1	Meer info
2002800600	100	PRESSURE TUSE HOSE ASSEMBLY	6	1	Meer info
2001280200	101	PRESSURE TUBE	3	1	Meer info
2007300100	103	HOSE CLAMP ASSEMBLY	2	1	Meer info
2702800200	103	CLAMP ASSEMBLY	0	0	Meer info
2704080100	105	TUB-FILTER HOSE	16	1	Meer info
2808700300	106	WATER INLET HOSE ASSEMBLY (GREY-COLD)	13	1	Meer info
2706750100	107	CAM..	1	1	Meer info
2800990100	108	CAM FOLLOWER	4	1	Meer info
2800950100	113	FLOW DIVERTER HOUSING	3	1	Meer info
2800970100	114	SPRING	9	1	Meer info
2704050100	117	WATER INLET HOSE	13	1	Meer info
2801550100	131	WATER INLET VALVE (SINGLE)	13	1	Meer info
2804680300	138	PUMP MOTOR	18	0	Meer info
2707280100	145	MOTOR PROTECTIVE COVER	4	1	Meer info
2731900100	146	DETERGENT DISPENSER ASSEMBLY	21	1	Meer info
2600990203	149	COUNTERWEIGHT (FRONT)	14	1	Meer info
2600840000	150	HOSE HOLDER	1	1	Meer info
2724300101	162	INTERFERENCE SUPPRESSOR ASSY..	12	1	Meer info
2722201700	166	MAIN CABLE HARNESS.	22	1	Meer info
2818290100	168	TIMER	31	1	Meer info
2820901100	169	POWER CORD ASSY.	16	1	Meer info
2703280600	170	PRESSURE SWITCH	15	1	Meer info
2804980100	171	NTC	10	0	Meer info
2804980200	171	NTC	8	1	Meer info
2806720100	171	NTC	9	0	Meer info
2800150600	172	PANEL SUPPORT	9	1	Meer info
2201920500	180	PUSH BUTTON SWITCH (ON_OFF)	8	1	Meer info
2701760000	184	PRESSURE SWITCH BRACKET	10	1	Meer info
2804760211	186	SPEED CONTROL ASSY..	32	1	Meer info
2801100900	194	PUMP-FILTER ASSEMBLY	22	1	Meer info
2811100800	194	PUMP-FILTER ASSEMBLY	0	0	Meer info
2706080035	197	DETERGENT DRAWER FRONT COVER.	9	1	Meer info
2738900072	200	PANEL ASSEMBLY..	0	1	Meer info
2732700200	203	TIMER KNOB ASSEMBLY	8	1	Meer info
2732800100	204	THERMOSTAT KNOB ASSEMBLY	6	1	Meer info
2739000065	208	PANEL BODY ASSEMBLY.	14	1	Meer info
2706060019	211	INDICATOR PART..	4	1	Meer info
2706060020	212	INDICATOR PART....	4	1	Meer info
2603900400	230	CABINET BELLOWS CLAMP ASSEMBLY	4	1	Meer info
2601880000	231	RUBBER BUFFER	1	3	Meer info
2704290100	300	PUSH BUTTON SWITCH COVER	3	5	Meer info
2800800100	336	DETERGENT DRAWER ASSEMBLY	21	1	Meer info
2800560200	339	FRONT COVER	19	1	Meer info
2706790100	341	LOCK HOOK	3	1	Meer info
2800860100	342	PIN	1	1	Meer info
2801800800	345	INNER COVER ASSEMBLY	10	1	Meer info
2704310100	347	LAMP GLASS	1	1	Meer info
2800530400	365	KICKPLATE COVER	17	1	Meer info
2800540200	366	KICKPLATE COVER SCREW	4	2	Meer info
2704880100	370	STEAM DISCHARGE HOSE	5	1	Meer info
2821500600	373	DISCHARGE HOSE ASSEMBLY	7	1	Meer info
2800020200	401	FRONT PANEL	18	1	Meer info
2801350100	402	FIXER	1	2	Meer info
2802370100	411	DISCHARGE HOSE HOLDER	1	2	Meer info
2804670100	414	FRONT PANEL HOLDER	2	1	Meer info
2802940100	447	DOOR OPENING KNOB	4	1	Meer info
2704330100	449	KNOB COVER	3	2	Meer info
2704870100	472	CABLE HOLDER	1	2	Meer info
2002373100	487	HOSE CLAMP	2	1	Meer info
2735500200	491	WARNING LAMP ASSEMBLY	8	1	Meer info
2801040100	495	FRONT DOOR PUSHPIN	1	1	Meer info
2801050100	496	FRONT DOOR PUSHPIN SPRING	1	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	5	Meer info
2705570400	584	BAFFLE	6	3	Meer info
2600050000	585	BAFFLE NUT	7	3	Meer info
2825280100	586	M8 CIVATA (SPIRAL FORM)	2	3	Meer info
2705630100	597	CABLE GUIDE CUFF	3	1	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2703940800	613	FELT (FRONT PANEL BOTTOM)	9	1	Meer info
2703940700	617	FELT (SIDE)	11	2	Meer info
2601460300	623	SPECIAL BOLT	4	4	Meer info
2722000100	624	MODULE HOLDER ASSY.	5	1	Meer info
2707350100	640	SELECTION SWITCH	16	1	Meer info
2809020100	676	WIRE	2	1	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2600941300	1113	HOSE	4	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2824400200	1415	SPIDER ARM ASSEMBLY(COMPLETE)	19	1	Meer info
2890200100	1451	TERMINAL BODY ASSEMBLY	6	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	4	Meer info
111204320	8321	BOLT (A.M5x5 DIN 7985)	1	4	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	2	Meer info
371202402	8331	Carbon Brush Assembly (BLACK_L93MF7)	9	2	Meer info
372205506	8335	Tacho Assembly	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2201920100	8341	PUSH BUTTON SWITCH	6	4	Meer info
2002371600	8354	HOSE CLAMP (x 27.5)	1	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002371800	8356	HOSE CLAMP	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2003720300	8366	INTERFERENCE SUPPRESSOR	14	0	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	2	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	0	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	18	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003620200	8400	PT SCREW (4.5x14)	1	2	Meer info
9003270600	8401	PT SCREW (DIAMETER 4_5x10)	1	2	Meer info
100601220	8404	SCREW (B4.2x9.5 DIN 7981-H)	1	3	Meer info
2704720100	8409	PT SCREW (COUNTERSUNK HEAD 3.5X13)	1	1	Meer info
9001230300	8419	PLASTIC CLAMP 100 mm	1	1	Meer info
9001230200	8420	PLASTIC CLAMP	1	4	Meer info
