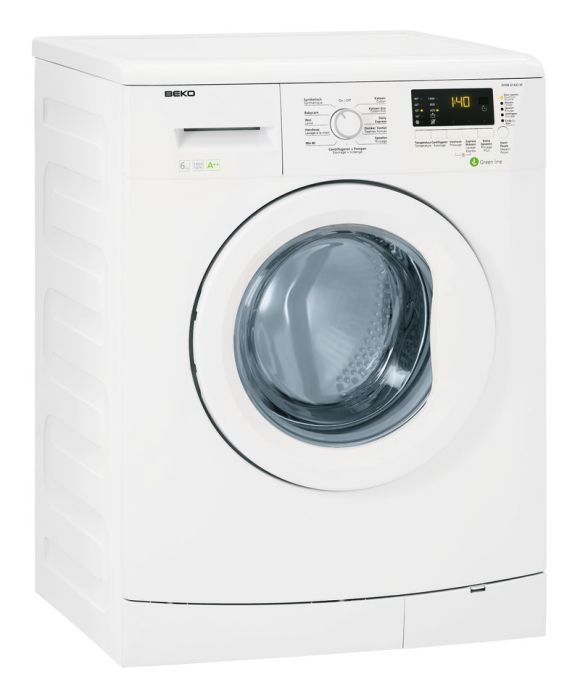

WMB61432M WASMACHINE

Artikelnr: 114541

Referentienr: WMB61432M

Productomschrijving

1400 t/min. 6 kg . 19u/h DISPLAY

Specificaties

Meer informatie
Hoogte	84
Breedte	60
Diepte	45
Gewicht (Kg)	65
ArtRef	WMB61432M
AsogemID	114541
MPN	7110941800
Merk	BEKO
Soort	1400 t/m
ArtEAN	8690769389670

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2857400100	1	TOP FRAME ASSEMBLY	19	1	Meer info
2827610100	7	BACK COVER WHITE	17	1	Meer info
2828780100	9	HANDLE.	3	1	Meer info
2915100100	10	FRONT DOOR ASSEMBLY	22	1	Meer info
2905560100	11	PORTHOLE GLASS	15	1	Meer info
2828770100	12	INNER COVER..	10	1	Meer info
2805310200	13	DOOR LOCK	11	0	Meer info
2805310800	13	DOOR LOCK	11	0	Meer info
2805311600	13	DOOR LOCK	10	1	Meer info
2805311700	13	DOOR LOCK	11	1	Meer info
2905730100	14	HINGE	9	1	Meer info
2843840200	16	HINGE SUPPORT	3	1	Meer info
2912701200	18	ADJUSTABLE FEET ASSEMBLY	3	0	Meer info
2737601500	20	TRANSPORT SAFETY ASSEMBLY.	4	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2704110100	38	SPRING HOLDER	1	1	Meer info
2820522751	43	KULLANMA KILAVUZU (EN_FR_DE_FL)	7	1	Meer info
2816990200	45	UPPER COUNTER WEIGHT	13	0	Meer info
2816990700	45	UPPER COUNTER WEIGHT	13	1	Meer info
2817040100	53	SUSPENSION SPRING	4	2	Meer info
2466300302	54	DOOR HOOD-RUBBER ASSY	20	1	Meer info
2802580600	55	DOOR GASGET SPRING	2	1	Meer info
2816660100	56	PULLEY	14	1	Meer info
2816660200	56	PULLEY	14	0	Meer info
2816750200	59	ELASTIC POLY-V BELT	12	1	Meer info
2845710200	59	ELASTIC POLY-V BELT	12	0	Meer info
2818450100	60	ENGINE CONNECTION SCREW	2	0	Meer info
2818450500	60	ENGINE CONNECTION SCREW	2	4	Meer info
2834650100	63	MOTOR	39	1	Meer info
2852410200	65	HEATER	17	0	Meer info
2816870800	66	SHOCK ABSORBER	8	2	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	0	Meer info
2801430400	78	SHOCK ABSORBER PIN	1	2	Meer info
2898400200	80	SPECIAL BOLT.	4	6	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2835750100	99	SYPHON	2	1	Meer info
2000811700	100	AIR PIPE HOSE	3	1	Meer info
2814430100	103	HOSE CLAMP	2	0	Meer info
2814430200	103	HOSE CLAMP	2	1	Meer info
2426000200	106	HOSE -WATER INLET SLIM-COLD	12	0	Meer info
2906760300	106	HOSE -WATER INLET -COLD	8	0	Meer info
2906860700	106	WATER INLET HOSE ASSEMBLY	10	1	Meer info
2818440200	117	TUB INLET HOSE.	8	1	Meer info
2416702700	146	Detergent dispenser assembly	12	1	Meer info
2830820400	149	COUNTERWEIGHT-LOWER	17	0	Meer info
2830820700	149	COUNTERWEIGHT-LOWER	16	1	Meer info
2724300900	162	INTERFERENCE SUPPRESSOR ASSY..	9	0	Meer info
2827980900	162	INTERFERENCE SUPPRESSOR	13	1	Meer info
2834310300	162	INTERFERENCE SUPPRESSOR	13	0	Meer info
2834081000	166	MAIN CABLE HARNESS	23	1	Meer info
2836390200	169	POWER CORD ASSY.	12	1	Meer info
2826921690	186	MAIN BOARD ASSY.	29	1	Meer info
2840940200	194	PUMP-FILTER ASSEMBLY	20	1	Meer info
2880402000	194	PUMP-FILTER ASSEMBLY(WATER COOLING)	20	0	Meer info
2828119667	197	DRAWER PANEL	10	1	Meer info
2899302700	203	PROGRAM SELECTOR KNOB ASSY	5	1	Meer info
2828279222	208	PANEL BODY ASSY.	15	1	Meer info
2603901200	230	CABINET BELLOWS CLAMP ASSEMBLY	3	1	Meer info
2416600100	336	Drawer Assembly	9	1	Meer info
2828760100	339	OUTER DOOR	15	1	Meer info
2814360500	340	HOOK SPRING	1	1	Meer info
2813130100	341	LOCK HOOK.	3	0	Meer info
2813130300	341	LOCK HOOK.	2	1	Meer info
2800860600	342	PIN.	1	1	Meer info
2812860400	365	KICKPLATE BODY.	9	0	Meer info
2830790100	365	KICKPLATE BODY.	10	0	Meer info
2830790400	365	KICKPLATE BODY.	8	0	Meer info
2846340400	365	KICKPLATE BODY	8	1	Meer info
2803800600	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2812413500	401	FRONT PANEL	17	1	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	3	Meer info
2002370600	552	HOSE CLAMP (├â╦£ 13.3)	1	1	Meer info
2000610200	553	HOSE.	10	1	Meer info
2828430100	571	REFLECTOR	2	1	Meer info
2872700100	598	FILTER ASSEMBLY	5	1	Meer info
2703942300	617	FELT (YOC 45 SIDE PANEL)	8	0	Meer info
2915790200	632	HINGE BUSHING	2	2	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	2	Meer info
2812870100	672	KICKPLATE COVER.	5	0	Meer info
2812870400	672	KICKPLATE COVER.	5	0	Meer info
2846350400	672	KICKPLATE COVER.	5	1	Meer info
2808740200	677	STOPPER.	2	1	Meer info
2811250100	682	M8 x 1_25 FLANGED NUT	1	1	Meer info
2811260100	719	PLUG HOLDER(NATURAL)	3	0	Meer info
2811260300	719	PLAG HOLDER	3	0	Meer info
2853580100	719	PLUG HOLDER(NATURAL)	1	1	Meer info
2836480100	737	WATER INLET VALVE	16	0	Meer info
2906850200	737	WATER INLET VALVE	15	0	Meer info
2906870200	737	WATER INLET VALVE	15	1	Meer info
2906920100	737	WATER INLET VALVE	16	0	Meer info
2831320200	797	Cable Holder	1	1	Meer info
2831370100	797	CABLE HOLDER	1	1	Meer info
2812110200	827	PANEL SUPPORT BRACKET	7	0	Meer info
2825170100	827	PANEL SUPPORT BRACKET	10	0	Meer info
2851980100	827	PANEL SPAREPART	6	1	Meer info
2903090300	953	DOOR LOCK FOIL	2	1	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2829960500	1008	PULLEY FIXING SCREW	3	0	Meer info
2828450200	1014	TIMER KNOB SHAFT	2	1	Meer info
2836970300	1096	SCREW (4x11)	1	2	Meer info
2836970500	1096	SCREW (4x11)	1	2	Meer info
2907191000	1110	HOSE L=225 mm	1	2	Meer info
2865200100	1210	TUB-FILTER HOSE ASSEMBLY COMPLETE	12	0	Meer info
2478000100	1210	TUB FILTER HOSE ASSEMBLY COMPLETE	12	1	Meer info
2477900100	1210	TUB FILTER HOSE ASSEMBLY BALL SYSTEM	0	1	Meer info
2707340300	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2707340400	1227	PUMP PROTECTIVE COVER	2	0	Meer info
2879003000	1363	WELDED TUB ASSEMBLY	39	0	Meer info
2879003800	1363	WELDED TUB ASSEMBLY	42	1	Meer info
2850360200	1384	HEATER ASSEMBLY	22	0	Meer info
2863401700	1384	HEATER ASSEMBLY	18	0	Meer info
2863403100	1384	HEATER ASSEMBLY with NICKEL	18	1	Meer info
2863701700	1384	HEATER ASSEMBLY	19	0	Meer info
2882601700	1384	HEATER ASSEMBLY with NICKEL	18	0	Meer info
2898700500	1396	LIGHT GUIDE BUTTON ASSEMBLY	10	1	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	0	Meer info
2817050400	1442	SHOCK ABSORBER PIN	1	2	Meer info
2826440100	1459	FRONT WALL HOLDER	2	2	Meer info
2826450100	1460	FRONT WALL HOLDER PIN	2	2	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	5	Meer info
2404400100	1470	CABINET ASMBL	36	1	Meer info
2707920100	1486	SPRING HOLDER RIGHT	1	1	Meer info
2830690100	1520	CABLE HOLDER	1	4	Meer info
2834480100	1521	CABLE HOLDER	1	1	Meer info
2828820100	1528	PANEL GASKET	2	1	Meer info
2831380100	1529	CABLE HOLDER	1	1	Meer info
2826420100	1535	HOSE HOLDER	1	1	Meer info
2858560100	1575	TERMINAK SHEET	1	1	Meer info
2707730400	1592	PLASTIC SCREW 3x4_5	1	1	Meer info
2819711100	1640	PRESSURE SWITCH	12	0	Meer info
2833830400	1640	PRESSURE SENSOR METALFLEX	10	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	4	Meer info
2837560100	1701	PINNED CABLE CONNECTOR	2	2	Meer info
9003611200	1785	SHEET METAL SCREW(B4_2x11.5-TOOTHED)	1	1	Meer info
2443900200	1837	CUSHION SHEET ASSEMBLY	3	2	Meer info
2912701400	1880	ADJUSTABLE FEET ASSEMBLY	5	4	Meer info
2859590100	1951	CABLE HOLDER	1	1	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	4	Meer info
371202402	8331	Carbon Brush Assembly (BLACK_L93MF7)	9	2	Meer info
372205506	8335	Tacho Assembly	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	2	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	3	Meer info
9003610700	8390	SHEET METAL SCREW (B4.2x11.5)	1	2	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	3	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	3	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
2832450100	8416	SPEC├ä┬░AL PT SREW	1	11	Meer info
9001230300	8419	PLASTIC CLAMP 100 mm	1	1	Meer info
2826150100	8430	HOSE CLAMP	1	1	Meer info
2826150200	8431	HOSE CLAMP	3	0	Meer info
