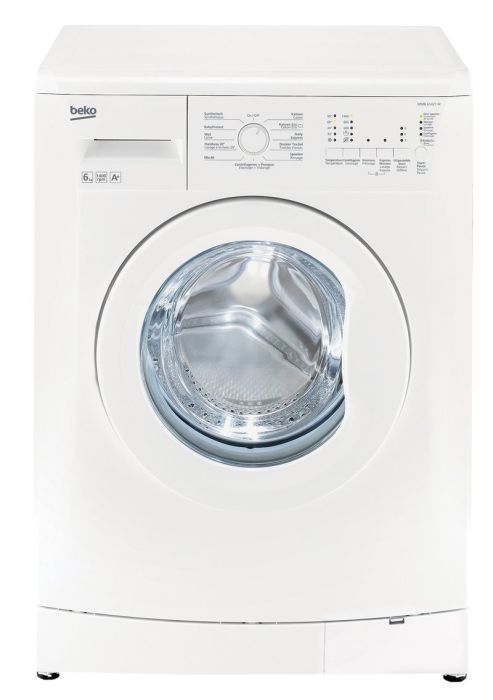

WMB61421M WASMACHINE

Artikelnr: 114580
Referentienr: WMB61421M
Vergelijk

Productomschrijving

1400 t/min. 6 kg - polyp. D 45 cm
Meer informatie
Hoogte 84
Breedte 60
Diepte 50
Gewicht (Kg) 65
ArtRef WMB61421M
AsogemID 114580
MPN 7111741500
Merk BEKO
Soort 1400 t/m
ArtEAN 8690769376519
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2938800100 1 TOP PLATE ASS.. 20 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2828780100 9 HANDLE. 3 1 Meer info
2915100100 10 FRONT DOOR ASSEMBLY 22 1 Meer info
2905560100 11 PORTHOLE GLASS 15 1 Meer info
2828770100 12 INNER COVER.. 10 1 Meer info
2805310200 13 DOOR LOCK 11 0 Meer info
2805310800 13 DOOR LOCK 11 0 Meer info
2805311600 13 DOOR LOCK 10 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2905730100 14 HINGE 9 1 Meer info
2843840200 16 HINGE SUPPORT 3 1 Meer info
2912701200 18 ADJUSTABLE FEET ASSEMBLY 3 0 Meer info
2737601500 20 TRANSPORT SAFETY ASSEMBLY. 4 4 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2704110100 38 SPRING HOLDER 1 1 Meer info
2820522238 43 KULLANMA KILAVUZU (EN_DE_FR_FL) 8 1 Meer info
2816990200 45 UPPER COUNTER WEIGHT 13 0 Meer info
2816990700 45 UPPER COUNTER WEIGHT 13 1 Meer info
2817040100 53 SUSPENSION SPRING 4 2 Meer info
2466300302 54 DOOR HOOD-RUBBER ASSY 20 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660100 56 PULLEY 14 1 Meer info
2816660200 56 PULLEY 14 0 Meer info
2816750200 59 ELASTIC POLY-V BELT 12 1 Meer info
2845710200 59 ELASTIC POLY-V BELT 12 0 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 4 Meer info
2834650100 63 MOTOR 39 0 Meer info
2837120100 63 MOTOR 38 1 Meer info
2816870800 66 SHOCK ABSORBER 8 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2835750100 99 SYPHON 2 1 Meer info
2000811700 100 AIR PIPE HOSE 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2426000200 106 HOSE -WATER INLET SLIM-COLD 12 0 Meer info
2906760300 106 HOSE -WATER INLET -COLD 8 0 Meer info
2906860700 106 WATER INLET HOSE ASSEMBLY 10 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2416702700 146 Detergent dispenser assembly 12 1 Meer info
2830820400 149 COUNTERWEIGHT-LOWER 17 0 Meer info
2830820700 149 COUNTERWEIGHT-LOWER 16 1 Meer info
2724300900 162 INTERFERENCE SUPPRESSOR ASSY.. 9 0 Meer info
2827980900 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310300 162 INTERFERENCE SUPPRESSOR 13 0 Meer info
2834081000 166 MAIN CABLE HARNESS 23 1 Meer info
2836390200 169 POWER CORD ASSY. 12 1 Meer info
2804980200 171 NTC 8 0 Meer info
2826970531 186 MAIN BOARD ASSY. 27 1 Meer info
2840940200 194 PUMP-FILTER ASSEMBLY 20 1 Meer info
2880402000 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2828119445 197 DRAWER PANEL 9 1 Meer info
2899302700 203 PROGRAM SELECTOR KNOB ASSY 5 1 Meer info
2828489107 208 PANEL BODY 14 1 Meer info
2603901200 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2416600100 336 Drawer Assembly 9 1 Meer info
2828760100 339 OUTER DOOR 15 1 Meer info
2814360500 340 HOOK SPRING 1 1 Meer info
2813130100 341 LOCK HOOK. 3 0 Meer info
2813130300 341 LOCK HOOK. 2 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2812860400 365 KICKPLATE BODY. 9 0 Meer info
2830790100 365 KICKPLATE BODY. 10 0 Meer info
2830790400 365 KICKPLATE BODY. 8 0 Meer info
2846340400 365 KICKPLATE BODY 8 1 Meer info
2803800600 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2812413500 401 FRONT PANEL 17 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2828430100 571 REFLECTOR 2 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703942300 617 FELT (YOC 45 SIDE PANEL) 8 0 Meer info
2915790200 632 HINGE BUSHING 2 2 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2812870100 672 KICKPLATE COVER. 5 0 Meer info
2812870400 672 KICKPLATE COVER. 5 0 Meer info
2846350400 672 KICKPLATE COVER. 5 1 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2836480100 737 WATER INLET VALVE 16 0 Meer info
2906850200 737 WATER INLET VALVE 15 0 Meer info
2906870200 737 WATER INLET VALVE 15 1 Meer info
2906920100 737 WATER INLET VALVE 16 0 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2812110200 827 PANEL SUPPORT BRACKET 7 0 Meer info
2825170100 827 PANEL SUPPORT BRACKET 10 0 Meer info
2851980100 827 PANEL SPAREPART 6 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2828450200 1014 TIMER KNOB SHAFT 2 1 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2907191000 1110 HOSE L=225 mm 1 2 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 0 Meer info
2478000100 1210 TUB FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2477900100 1210 TUB FILTER HOSE ASSEMBLY BALL SYSTEM 0 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2879003000 1363 WELDED TUB ASSEMBLY 39 0 Meer info
2879003800 1363 WELDED TUB ASSEMBLY 42 1 Meer info
2850360100 1384 HEATER ASSEMBLY 18 0 Meer info
2863403000 1384 HEATER ASSEMBLY without NICHEL 18 0 Meer info
2882601600 1384 HEATER ASSEMBLY without NICHEL 22 1 Meer info
2898700200 1396 LIGHT GUIDE BUTTON ASSEMBLY 8 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 5 Meer info
2404400100 1470 CABINET ASMBL 36 1 Meer info
2707920100 1486 SPRING HOLDER RIGHT 1 1 Meer info
2830690100 1520 CABLE HOLDER 1 4 Meer info
2834480100 1521 CABLE HOLDER 1 1 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2819711100 1640 PRESSURE SWITCH 12 0 Meer info
2833830400 1640 PRESSURE SENSOR METALFLEX 10 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 2 Meer info
9003272500 1845 PLASTIC SCREW 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2859590100 1951 CABLE HOLDER 1 1 Meer info
181300303 8325 M4X10 TAPTITE SCREW. 1 4 Meer info
371202402 8331 Carbon Brush Assembly (BLACK_L93MF7) 9 2 Meer info
372205506 8335 Tacho Assembly 8 1 Meer info
373500801 8336 Tachometer Cover.. 2 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002740200 8365 DRAIN HOSE HOLDER 1 0 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
9003610700 8390 SHEET METAL SCREW (B4.2x11.5) 1 2 Meer info
2705810100 8394 PT SCREW (3_5x9.5) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 3 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 11 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
9003611100 8424 SHEET METAL SCREW(B4.2x9.5) 1 0 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
