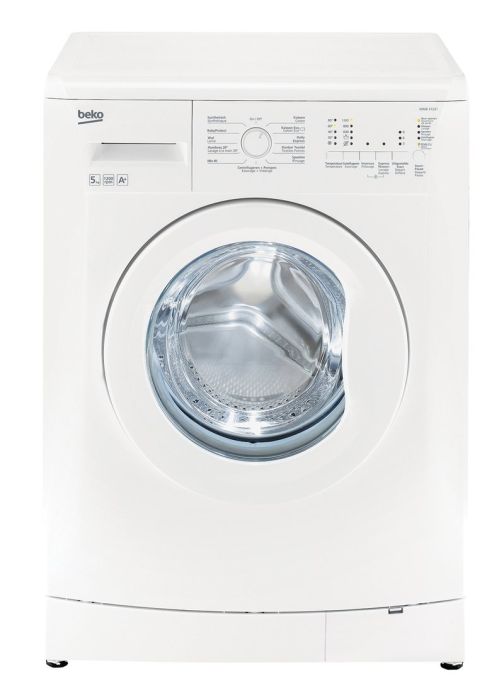

Productomschrijving
1200 t/min. 5 kg - D 45 cm
| Hoogte | 84 |
|---|---|
| Breedte | 60 |
| Diepte | 45 |
| Gewicht (Kg) | 62 |
| ArtRef | WMB51221 |
| AsogemID | 114544 |
| MPN | 7124143100 |
| Merk | BEKO |
| Soort | 1200 t/m |
| ArtEAN | 8690769389366 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2857400100 | 1 | TOP FRAME ASSEMBLY | 19 | 1 | Meer info | |||
| 2827610300 | 7 | BACK COVER | 17 | 1 | Meer info | |||
| 2828780100 | 9 | HANDLE. | 3 | 1 | Meer info | |||
| 2915100100 | 10 | FRONT DOOR ASSEMBLY | 22 | 1 | Meer info | |||
| 2905560100 | 11 | PORTHOLE GLASS | 15 | 1 | Meer info | |||
| 2828770100 | 12 | INNER COVER.. | 10 | 1 | Meer info | |||
| 2805310200 | 13 | DOOR LOCK | 11 | 0 | Meer info | |||
| 2805310800 | 13 | DOOR LOCK | 11 | 0 | Meer info | |||
| 2805311600 | 13 | DOOR LOCK | 10 | 1 | Meer info | |||
| 2805311700 | 13 | DOOR LOCK | 11 | 1 | Meer info | |||
| 2905730100 | 14 | HINGE | 9 | 1 | Meer info | |||
| 2843840200 | 16 | HINGE SUPPORT | 3 | 1 | Meer info | |||
| 2912701200 | 18 | ADJUSTABLE FEET ASSEMBLY | 3 | 0 | Meer info | |||
| 2737601500 | 20 | TRANSPORT SAFETY ASSEMBLY. | 4 | 4 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 1 | Meer info | |||
| 2704110100 | 38 | SPRING HOLDER | 1 | 1 | Meer info | |||
| 2820522750 | 43 | USER S MANUAL (EN_FL_DE_EL) | 7 | 1 | Meer info | |||
| 2816990100 | 45 | COUNTERWEIGHT (UPPER).. | 16 | 0 | Meer info | |||
| 2816990600 | 45 | UPPER COUNTER WEIGHT | 15 | 1 | Meer info | |||
| 2817040100 | 53 | SUSPENSION SPRING | 4 | 2 | Meer info | |||
| 2466300302 | 54 | DOOR HOOD-RUBBER ASSY | 20 | 1 | Meer info | |||
| 2802580600 | 55 | DOOR GASGET SPRING | 2 | 1 | Meer info | |||
| 2816660100 | 56 | PULLEY | 14 | 1 | Meer info | |||
| 2816660200 | 56 | PULLEY | 14 | 0 | Meer info | |||
| 2816750100 | 59 | ELASTIC POLY-V BELT | 10 | 1 | Meer info | |||
| 2845710100 | 59 | ELASTIC POLY-V BELT | 11 | 0 | Meer info | |||
| 2818450100 | 60 | ENGINE CONNECTION SCREW | 2 | 0 | Meer info | |||
| 2818450500 | 60 | ENGINE CONNECTION SCREW | 2 | 2 | Meer info | |||
| 2818570100 | 63 | MOTOR | 33 | 0 | Meer info | |||
| 2837970100 | 63 | MOTOR | 33 | 1 | Meer info | |||
| 2844990100 | 63 | MOTOR | 34 | 0 | Meer info | |||
| 2816870800 | 66 | SHOCK ABSORBER | 8 | 2 | Meer info | |||
| 2810430800 | 67 | SHOCK ABSORBER | 8 | 0 | Meer info | |||
| 2801430300 | 78 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2801430400 | 78 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2898400200 | 80 | SPECIAL BOLT. | 4 | 6 | Meer info | |||
| 2704480100 | 93 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2835750100 | 99 | SYPHON | 2 | 1 | Meer info | |||
| 2000811700 | 100 | AIR PIPE HOSE | 3 | 1 | Meer info | |||
| 2814430100 | 103 | HOSE CLAMP | 2 | 0 | Meer info | |||
| 2814430200 | 103 | HOSE CLAMP | 2 | 1 | Meer info | |||
| 2426000200 | 106 | HOSE -WATER INLET SLIM-COLD | 12 | 0 | Meer info | |||
| 2906760300 | 106 | HOSE -WATER INLET -COLD | 8 | 0 | Meer info | |||
| 2906860700 | 106 | WATER INLET HOSE ASSEMBLY | 10 | 1 | Meer info | |||
| 2818440200 | 117 | TUB INLET HOSE. | 8 | 1 | Meer info | |||
| 2416702700 | 146 | Detergent dispenser assembly | 12 | 1 | Meer info | |||
| 2817010200 | 149 | COUNTERWEIGHT (FRONT) | 15 | 0 | Meer info | |||
| 2830820200 | 149 | COUNTERWEIGHT-LOWER | 16 | 0 | Meer info | |||
| 2830820600 | 149 | COUNTERWEIGHT-LOWER | 14 | 1 | Meer info | |||
| 2724300800 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 13 | 0 | Meer info | |||
| 2827980700 | 162 | INTERFERENCE SUPPRESSOR | 12 | 1 | Meer info | |||
| 2834310100 | 162 | INTERFERENCE SUPPRESSOR | 15 | 0 | Meer info | |||
| 2003721300 | 162 | CONDENSATOR ANTIINTERFERENTA | 12 | 0 | Meer info | |||
| 2834081000 | 166 | MAIN CABLE HARNESS | 23 | 1 | Meer info | |||
| 2836390200 | 169 | POWER CORD ASSY. | 12 | 1 | Meer info | |||
| 2804980200 | 171 | NTC | 8 | 0 | Meer info | |||
| 2826971160 | 186 | MAIN BOARD ASSY. | 27 | 1 | Meer info | |||
| 2840940200 | 194 | PUMP-FILTER ASSEMBLY | 20 | 1 | Meer info | |||
| 2880402000 | 194 | PUMP-FILTER ASSEMBLY(WATER COOLING) | 20 | 0 | Meer info | |||
| 2828119665 | 197 | DRAWER PANEL | 10 | 1 | Meer info | |||
| 2899302700 | 203 | PROGRAM SELECTOR KNOB ASSY | 5 | 1 | Meer info | |||
| 2828489149 | 208 | PANEL BODY | 14 | 1 | Meer info | |||
| 2603901200 | 230 | CABINET BELLOWS CLAMP ASSEMBLY | 3 | 1 | Meer info | |||
| 2416600100 | 336 | Drawer Assembly | 9 | 1 | Meer info | |||
| 2828760100 | 339 | OUTER DOOR | 15 | 1 | Meer info | |||
| 2814360500 | 340 | HOOK SPRING | 1 | 1 | Meer info | |||
| 2813130100 | 341 | LOCK HOOK. | 3 | 0 | Meer info | |||
| 2813130300 | 341 | LOCK HOOK. | 2 | 1 | Meer info | |||
| 2800860600 | 342 | PIN. | 1 | 1 | Meer info | |||
| 2812860400 | 365 | KICKPLATE BODY. | 9 | 0 | Meer info | |||
| 2830790100 | 365 | KICKPLATE BODY. | 10 | 0 | Meer info | |||
| 2830790400 | 365 | KICKPLATE BODY. | 8 | 0 | Meer info | |||
| 2846340400 | 365 | KICKPLATE BODY | 8 | 1 | Meer info | |||
| 2803800600 | 373 | DISCHARGE HOSE ASSEMBLY | 8 | 1 | Meer info | |||
| 2812413500 | 401 | FRONT PANEL | 17 | 1 | Meer info | |||
| 2811230100 | 411 | DISCHARGE HOSE HOLDER | 2 | 3 | Meer info | |||
| 2002370600 | 552 | HOSE CLAMP (Ø 13.3) | 1 | 1 | Meer info | |||
| 2000610200 | 553 | HOSE. | 10 | 1 | Meer info | |||
| 2828430100 | 571 | REFLECTOR | 2 | 1 | Meer info | |||
| 2872700100 | 598 | FILTER ASSEMBLY | 5 | 1 | Meer info | |||
| 2915790200 | 632 | HINGE BUSHING | 2 | 2 | Meer info | |||
| 9003860200 | 658 | SHEET METAL SCREW(SELF WASHER) | 1 | 2 | Meer info | |||
| 2812870100 | 672 | KICKPLATE COVER. | 5 | 0 | Meer info | |||
| 2812870400 | 672 | KICKPLATE COVER. | 5 | 0 | Meer info | |||
| 2846350400 | 672 | KICKPLATE COVER. | 5 | 1 | Meer info | |||
| 2808740200 | 677 | STOPPER. | 2 | 1 | Meer info | |||
| 2811250100 | 682 | M8 x 1_25 FLANGED NUT | 1 | 1 | Meer info | |||
| 2811260100 | 719 | PLUG HOLDER(NATURAL) | 3 | 0 | Meer info | |||
| 2811260300 | 719 | PLAG HOLDER | 3 | 0 | Meer info | |||
| 2853580100 | 719 | PLUG HOLDER(NATURAL) | 1 | 1 | Meer info | |||
| 2836480100 | 737 | WATER INLET VALVE | 16 | 0 | Meer info | |||
| 2906850200 | 737 | WATER INLET VALVE | 15 | 0 | Meer info | |||
| 2906870200 | 737 | WATER INLET VALVE | 15 | 1 | Meer info | |||
| 2906920100 | 737 | WATER INLET VALVE | 16 | 0 | Meer info | |||
| 2831320200 | 797 | Cable Holder | 1 | 1 | Meer info | |||
| 2831370100 | 797 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2812110200 | 827 | PANEL SUPPORT BRACKET | 7 | 0 | Meer info | |||
| 2825170100 | 827 | PANEL SUPPORT BRACKET | 10 | 0 | Meer info | |||
| 2851980100 | 827 | PANEL SPAREPART | 6 | 1 | Meer info | |||
| 2903090300 | 953 | DOOR LOCK FOIL | 2 | 1 | Meer info | |||
| 2829960200 | 1008 | PULLEY FIXING SCREW | 3 | 1 | Meer info | |||
| 2829960500 | 1008 | PULLEY FIXING SCREW | 3 | 0 | Meer info | |||
| 2828450200 | 1014 | TIMER KNOB SHAFT | 2 | 1 | Meer info | |||
| 2836970300 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2836970500 | 1096 | SCREW (4x11) | 1 | 2 | Meer info | |||
| 2907191000 | 1110 | HOSE L=225 mm | 1 | 2 | Meer info | |||
| 2865200100 | 1210 | TUB-FILTER HOSE ASSEMBLY COMPLETE | 12 | 0 | Meer info | |||
| 2478000100 | 1210 | TUB FILTER HOSE ASSEMBLY COMPLETE | 12 | 1 | Meer info | |||
| 2477900100 | 1210 | TUB FILTER HOSE ASSEMBLY BALL SYSTEM | 0 | 1 | Meer info | |||
| 2707340300 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 2707340400 | 1227 | PUMP PROTECTIVE COVER | 2 | 0 | Meer info | |||
| 2879000200 | 1363 | WELDED TUB ASSEMBLY (C12) | 33 | 1 | Meer info | |||
| 2850360100 | 1384 | HEATER ASSEMBLY | 18 | 0 | Meer info | |||
| 2863403000 | 1384 | HEATER ASSEMBLY without NICHEL | 18 | 0 | Meer info | |||
| 2882601600 | 1384 | HEATER ASSEMBLY without NICHEL | 22 | 1 | Meer info | |||
| 2898700200 | 1396 | LIGHT GUIDE BUTTON ASSEMBLY | 8 | 1 | Meer info | |||
| 2820820100 | 1406 | CHASSIS FLAP | 2 | 2 | Meer info | |||
| 2817050300 | 1442 | SHOCK ABSORBER PIN | 1 | 0 | Meer info | |||
| 2817050400 | 1442 | SHOCK ABSORBER PIN | 1 | 2 | Meer info | |||
| 2826440100 | 1459 | FRONT WALL HOLDER | 2 | 2 | Meer info | |||
| 2826450100 | 1460 | FRONT WALL HOLDER PIN | 2 | 2 | Meer info | |||
| 9003860400 | 1467 | SHEET METAL SCREW 4.2x6.5 | 1 | 5 | Meer info | |||
| 2404400300 | 1470 | CABINET ASMBL | 36 | 1 | Meer info | |||
| 2707920100 | 1486 | SPRING HOLDER RIGHT | 1 | 1 | Meer info | |||
| 2830690100 | 1520 | CABLE HOLDER | 1 | 4 | Meer info | |||
| 2834480100 | 1521 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2828820100 | 1528 | PANEL GASKET | 2 | 1 | Meer info | |||
| 2831380100 | 1529 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2826420100 | 1535 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2858560100 | 1575 | TERMINAK SHEET | 1 | 1 | Meer info | |||
| 2707730400 | 1592 | PLASTIC SCREW 3x4_5 | 1 | 1 | Meer info | |||
| 2819711100 | 1640 | PRESSURE SWITCH | 12 | 0 | Meer info | |||
| 2833830400 | 1640 | PRESSURE SENSOR METALFLEX | 10 | 1 | Meer info | |||
| 2002374300 | 1686 | HOSE CLAMP (├â┬© 1.8) | 2 | 4 | Meer info | |||
| 2837560100 | 1701 | PINNED CABLE CONNECTOR | 2 | 2 | Meer info | |||
| 9003611200 | 1785 | SHEET METAL SCREW(B4_2x11.5-TOOTHED) | 1 | 1 | Meer info | |||
| 9003272500 | 1845 | PLASTIC SCREW | 1 | 1 | Meer info | |||
| 2912701400 | 1880 | ADJUSTABLE FEET ASSEMBLY | 5 | 4 | Meer info | |||
| 2859590100 | 1951 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 181300303 | 8325 | M4X10 TAPTITE SCREW. | 1 | 0 | Meer info | |||
| 371201202 | 8331 | Carbon Brush Assembly (BLACK_L93MF7) | 12 | 0 | Meer info | |||
| 372205506 | 8335 | Tacho Assembly | 8 | 0 | Meer info | |||
| 373500801 | 8336 | Tachometer Cover.. | 2 | 0 | Meer info | |||
| 2002371700 | 8355 | HOSE CLAMP (x 28,7) | 1 | 1 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2002740200 | 8365 | DRAIN HOSE HOLDER | 1 | 0 | Meer info | |||
| 2828040300 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 1 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 3 | Meer info | |||
| 9003610700 | 8390 | SHEET METAL SCREW (B4.2x11.5) | 1 | 2 | Meer info | |||
| 2705810100 | 8394 | PT SCREW (3_5x9.5) | 1 | 3 | Meer info | |||
| 111201020 | 8396 | BOLT (AM5x10 DIN 7985 4.8-H) | 1 | 2 | Meer info | |||
| 9003610500 | 8397 | SHEET METAL SCREW(B4_2x9_5-TOOTHED) | 1 | 3 | Meer info | |||
| 9003610900 | 8397 | SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED | 1 | 3 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 2 | Meer info | |||
| 2831790100 | 8412 | SPECIAL SHEET SREW | 2 | 0 | Meer info | |||
| 2832450100 | 8416 | SPECÄ°AL PT SREW | 1 | 11 | Meer info | |||
| 9001230300 | 8419 | PLASTIC CLAMP 100 mm | 1 | 1 | Meer info | |||
| 9003611100 | 8424 | SHEET METAL SCREW(B4.2x9.5) | 1 | 0 | Meer info | |||
| 2826150100 | 8430 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2826150200 | 8431 | HOSE CLAMP | 3 | 0 | Meer info |
