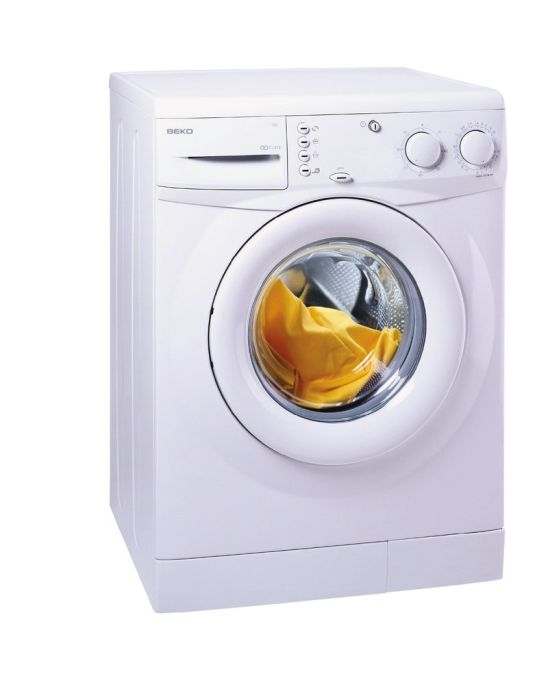

WM2552K WASMACHINE

Artikelnr: 114926

Referentienr: WM2552K

Productomschrijving

1200 t

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	54
Gewicht (Kg)	68
ArtRef	WM2552K
AsogemID	114926
Merk	BEKO
Soort	1200 t/m
ArtEAN	8690769108189

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2812290100	0	RADIAL CONNECTION BOLT	1	3	Meer info
2826700100	1	TOP PLATE ASSY.	20	1	Meer info
2827610100	7	BACK COVER WHITE	17	1	Meer info
2835100900	10	FRONT DOOR ASSEMBLY	26	1	Meer info
2807280100	11	PORTHOLE GLASS	18	1	Meer info
2808820100	12	INNER COVER	16	1	Meer info
2704830300	13	SECURITY SWITCH.	17	1	Meer info
2849700100	14	HINGE ASSEMBLY	18	1	Meer info
2912700100	18	ADJUSTABLE FEET ASSEMBLY	2	2	Meer info
2737601600	20	TRANSPORT SAFETY ASSEMBLY	4	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	4	Meer info
2704110100	38	SPRING HOLDER	1	2	Meer info
2809680009	43	USERS MANUAL	6	1	Meer info
2808030100	45	COUNTERWEIGHT (UPPER	12	1	Meer info
2808120100	46	COUNTER (UPPER) BRACKET	2	2	Meer info
2723100200	48	DRUM ASSEMBLY (COMPLETE)	33	1	Meer info
2806840300	49	TUB GASKET	6	1	Meer info
2807790100	53	SUSPENSION SPRING	4	2	Meer info
2804860100	54	DOOR HOOD-RUBBER	19	1	Meer info
2802580300	55	DOOR HOOD CLAMP(SPRING)	4	1	Meer info
2808010100	56	PULLEY	15	1	Meer info
2808010200	56	PULLEY	13	0	Meer info
2816150100	56	PULLEY	15	0	Meer info
2005170300	59	ELASTIC POLY-V BELT	10	0	Meer info
2005170400	59	ELASTIC POLY-V BELT	12	1	Meer info
2807270100	60	MOTOR CONNECTION NUT	1	4	Meer info
2845600200	63	MOTOR	38	1	Meer info
2703371600	65	HEATER.	17	0	Meer info
2816871400	66	SHOCK ABSORBER	9	2	Meer info
2812750100	72	HEATER SUPPORT	4	1	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	2	Meer info
2820600100	80	SPECIAL BOLT	5	0	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2809540100	99	SIPHON	3	1	Meer info
2000811500	100	HOSE	10	1	Meer info
2800830100	101	PRESSURE TUBE	3	1	Meer info
2007300200	103	HOSE CLAMP ASSEMBLY	2	0	Meer info
2814430100	103	HOSE CLAMP	2	1	Meer info
2808060100	105	TUB-FILTER HOSE	12	1	Meer info
2426000200	106	HOSE -WATER INLET SLIM-COLD	12	0	Meer info
2906760300	106	HOSE -WATER INLET -COLD	8	0	Meer info
2906860700	106	WATER INLET HOSE ASSEMBLY	10	1	Meer info
2800990100	108	CAM FOLLOWER	4	1	Meer info
2800950100	113	FLOW DIVERTER HOUSING	3	1	Meer info
2800970100	114	SPRING	9	1	Meer info
2806020100	117	TUB INLET HOSE.	12	1	Meer info
2801550100	131	WATER INLET VALVE (SINGLE)	13	1	Meer info
2838300100	146	DETERGENT DISPENSER ASSEMBLY	21	1	Meer info
2809740100	149	COUNTERWEIGHT (FRONT)	13	1	Meer info
2724300101	162	INTERFERENCE SUPPRESSOR ASSY..	12	0	Meer info
2724300601	162	INTERFERENCE SUPPRESSOR ASSY..	12	1	Meer info
2827980200	162	INTERFERENCE SUPPRESSOR	12	1	Meer info
2827980400	162	INTERFERENCE SUPPRESSOR	12	0	Meer info
2713801700	166	MAIN CABLE HARNESS...	0	1	Meer info
2818290100	168	TIMER	31	1	Meer info
2820901100	169	POWER CORD ASSY.	16	1	Meer info
2801560800	170	PRESSURE SWITCH	12	1	Meer info
2809260100	172	PANEL SUPPORT	8	1	Meer info
2808530300	178	PUSH BUTTON SWITCH.	8	4	Meer info
2818310475	186	MAIN BOARD ASSY.	32	1	Meer info
2801101000	194	PUMP-FILTER ASSEMBLY	22	1	Meer info
2806470008	197	DETERGENT DRAWER FRONT COVER	9	1	Meer info
2830100013	200	PANEL ASSEMBLY	16	1	Meer info
2808480015	201	KNOB COVER	4	1	Meer info
2823000200	203	KNOB MECHANISM ASSEMBLY P.C	4	1	Meer info
2823100100	204	KNOB MECHANISM ASSEMBLY BIG	10	1	Meer info
2806460012	208	PANEL BODY	14	1	Meer info
2603900900	230	CAB├ä┬░NET BELLOWS CLAMP ASSEMBLY	2	1	Meer info
2800800500	336	DETERGENT DRAWER ASSEMBLY	19	1	Meer info
2808790100	339	OUTER COVER	16	1	Meer info
2707190100	341	LOCK HOOK	4	1	Meer info
2808480001	346	KNOB COVER	4	1	Meer info
2806620100	365	KICKPLATE COVER (WHITE)	8	0	Meer info
2806621100	365	KICKPLATE COVER (WHITE)	10	0	Meer info
2830350100	365	KICKPLATE BODY (WHITE)	8	0	Meer info
2830350500	365	KICK PLATE BODY ( ABS WHITE)	9	1	Meer info
2830350700	365	KICKPLATE COVER (WHITE)	9	0	Meer info
2002373000	367	HOSE CLAMP	1	2	Meer info
2806040100	370	STEAM DISCHARGE HOSE.	7	1	Meer info
2821500100	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2822601000	377	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2822601900	378	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2822600100	382	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2707120600	401	FRONT PANEL	18	1	Meer info
2834050100	402	BEAD GROOVE	9	2	Meer info
2819730100	403	FIXED FOOT RUBBER	2	2	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	2	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
2822602800	436	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2823400100	447	DOOR OPENING BUTTON ASSY	5	1	Meer info
2822800100	468	WITH LIGHT ON-OFF BUTTON ASSEMBLY	7	1	Meer info
2704870100	472	CABLE HOLDER	1	0	Meer info
2812220100	472	CABLE HOLDER	2	1	Meer info
2823800100	491	LAMP ASSEMBLY	4	1	Meer info
2002370600	552	HOSE CLAMP (├â╦£ 13.3)	1	1	Meer info
2000610200	553	HOSE.	10	1	Meer info
2704590100	581	CABLE PROTECTED	2	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	5	Meer info
2705570400	584	BAFFLE	6	3	Meer info
2600050000	585	BAFFLE NUT	7	3	Meer info
2825280100	586	M8 CIVATA (SPIRAL FORM)	2	3	Meer info
2705630100	597	CABLE GUIDE CUFF	3	1	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2703940900	617	ISOLATION FELT (SIDE WALL)	10	0	Meer info
2838100100	624	MODULE HOLDER ASSY.	4	1	Meer info
2808880100	632	HINGE BUSHING	1	2	Meer info
2707350200	640	SELECTION SWITCH	8	1	Meer info
2811590100	642	TUB SCREW..	1	17	Meer info
2812130100	664	RUBBER CUSHION	2	2	Meer info
9003890100	666	WASHER.	2	2	Meer info
2808860100	668	HINGE HOLDER	8	1	Meer info
2810920100	672	KICKPLATE COVER..	6	0	Meer info
2810920800	672	KICKPLATE COVER (WHITE)	5	0	Meer info
2830590100	672	KICKPLATE COVER	6	0	Meer info
2830590400	672	KICKPLATE COVER	6	1	Meer info
2830590700	672	KICKPLATE COVER (WHITE)	6	0	Meer info
2809020100	676	WIRE	2	1	Meer info
2808740200	677	STOPPER.	2	1	Meer info
2807840100	681	UPPER COUNTER WEIGHT BOLT	4	2	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2811250100	682	M8 x 1_25 FLANGED NUT	1	2	Meer info
2807770100	683	FIXING WASHER	2	2	Meer info
2807920100	687	TUB (FRONT)	28	1	Meer info
2825500100	688	TUB ASSEMBLY (REAR)	33	1	Meer info
2809080100	689	PROGRAMME CARD HOLDER	4	1	Meer info
2809070014	694	QUICK REFERENCE CARD.	5	1	Meer info
2809070015	697	QUICK REFERENCE CARD.	5	1	Meer info
2809070016	704	QUICK REFERENCE CARD.	5	1	Meer info
2810560100	712	FIXING WASHER	1	2	Meer info
2810230100	713	FRONT COUNTERWEIGHT SCREW	2	4	Meer info
2809870500	722	MOTOR PROTECTIVE COVER	5	1	Meer info
2804110100	781	COUNTER WEIGTH COMPRESSION SPRING	2	4	Meer info
2903090200	953	DOOR LOCK WATER PROTECTOR	2	1	Meer info
2829960100	1008	PULLEY FIXING SCREW	3	0	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2600940700	1107	HOSE	2	1	Meer info
2739900600	1238	LOCK WIRE GR.	14	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2812130400	1354	RUBBER CUSHION	2	1	Meer info
2808540300	1372	PUSH BUTTON SWITCH.	9	1	Meer info
2863401700	1384	HEATER ASSEMBLY	18	0	Meer info
2863403000	1384	HEATER ASSEMBLY without NICHEL	18	1	Meer info
2863701600	1384	HEATER HARNESS....	18	0	Meer info
2863701700	1384	HEATER ASSEMBLY	19	0	Meer info
2882601700	1384	HEATER ASSEMBLY with NICKEL	18	0	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2834600100	1415	SPIDER ARM ASSEMBLY(COMPLETE)	22	1	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	2	Meer info
2890200100	1451	TERMINAL BODY ASSEMBLY	6	1	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	5	Meer info
2896100100	1470	CABINET ASSY. AND BACK COVER White	36	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
111204320	8321	BOLT (A.M5x5 DIN 7985)	1	2	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	4	Meer info
371202402	8331	Carbon Brush Assembly (BLACK_L93MF7)	9	2	Meer info
372205506	8335	Tacho Assembly	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	1	Meer info
2002372600	8361	HOSE CLAMP (x 49.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2003720300	8366	INTERFERENCE SUPPRESSOR	14	0	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	14	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	8	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	9	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	6	Meer info
9003270900	8399	PLASTIC SCREW	1	4	Meer info
9003860300	8403	SHEET METAL SCREW	1	2	Meer info
9003860100	8405	SCREW.	1	1	Meer info
2704720100	8409	PT SCREW (COUNTERSUNK HEAD 3.5X13)	1	1	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
2811240100	8426	CABLE HOLDER	2	2	Meer info
2826150100	8430	HOSE CLAMP	1	0	Meer info
