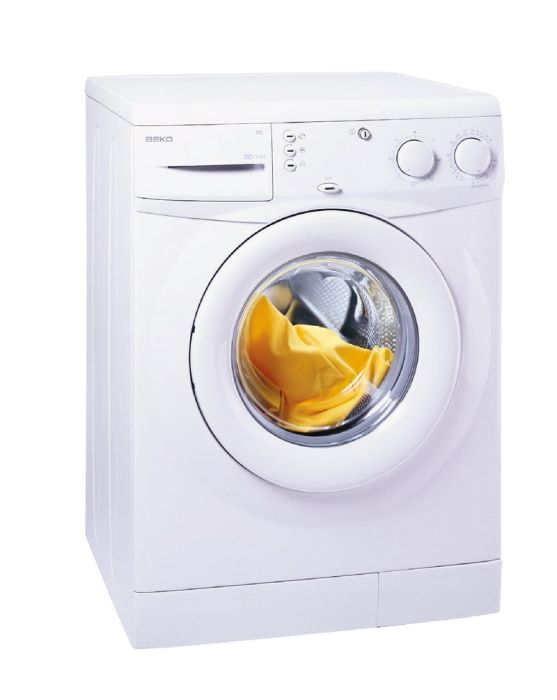

WM2510J WASMACHINE

Artikelnr: 114925

Referentienr: WM2510J

Productomschrijving

1000 t

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	54
Gewicht (Kg)	61
ArtRef	WM2510J
AsogemID	114925
Merk	BEKO
Soort	1000 t/m
ArtEAN	8690769181489

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1710350100	0	EPS_BLOCK	0	0	Meer info
2805020500	0	TUB FRONT CAP	14	1	Meer info
2806720200	0	NTC	7	0	Meer info
9730100	0	EPS(0_7-1_0mm)-WH-S-HB	8	0	Meer info
2826700100	1	TOP PLATE ASSY.	20	1	Meer info
2827610100	7	BACK COVER WHITE	17	1	Meer info
2835100900	10	FRONT DOOR ASSEMBLY	26	1	Meer info
2807280100	11	PORTHOLE GLASS	18	1	Meer info
2808820100	12	INNER COVER	16	1	Meer info
2704830300	13	SECURITY SWITCH.	17	1	Meer info
2849700100	14	HINGE ASSEMBLY	18	1	Meer info
2912700500	18	ADJUSTABLE FEET ASSEMBLY	4	4	Meer info
2737601400	20	TRANSPORT SAFETY ASSEMBLY	5	3	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	1	Meer info
2010100100	37	PLASTIC CLAMP ASSEMBLY	4	1	Meer info
2704110100	38	SPRING HOLDER	1	1	Meer info
2807080129	43	USERS MANUAL	6	1	Meer info
2805010100	45	COUNTERWEIGHT (UPPER)	14	1	Meer info
2804200500	47	TUB ASSEMBLY (COMPLETE)	33	1	Meer info
2812700300	48	DRUM ASSEMBLY (COMPLETE)	32	1	Meer info
2801760100	49	TUB GASKET	6	1	Meer info
2803610100	51	TUB CLIPS	1	16	Meer info
2805680300	53	SUSPENSION SPRING	4	2	Meer info
2804860100	54	DOOR HOOD-RUBBER	19	1	Meer info
2802580300	55	DOOR HOOD CLAMP(SPRING)	4	1	Meer info
2801650100	56	PULLEY 54	15	1	Meer info
2005170300	59	ELASTIC POLY-V BELT	10	0	Meer info
2809040100	59	ELASTIC POLY-V BELT (J4)	10	0	Meer info
2810970100	59	ELASTIC POLY-V BELT.	11	1	Meer info
2808150100	60	SPECIAL BOLT.	4	1	Meer info
2806850500	63	MOTOR	36	1	Meer info
2816871200	66	SHOCK ABSORBER	15	2	Meer info
2821190100	68	COUNTERWEIGHT-LOWER	12	1	Meer info
2702950100	69	MOTOR SUPPORT	1	2	Meer info
2801660101	72	HEATER SUPPORT	4	1	Meer info
2801430300	78	SHOCK ABSORBER PIN	1	2	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2809540100	99	SIPHON	3	1	Meer info
2000810600	100	HOSE	5	1	Meer info
2800830100	101	PRESSURE TUBE	3	1	Meer info
2814430100	103	HOSE CLAMP	2	1	Meer info
2800870100	105	TUB-FILTER HOSE	9	1	Meer info
2426000200	106	HOSE -WATER INLET SLIM-COLD	12	0	Meer info
2906760300	106	HOSE -WATER INLET -COLD	8	0	Meer info
2906860700	106	WATER INLET HOSE ASSEMBLY	10	1	Meer info
2800990100	108	CAM FOLLOWER	4	1	Meer info
2800950100	113	FLOW DIVERTER HOUSING	3	1	Meer info
2800970100	114	SPRING	9	1	Meer info
2800880100	117	TUB INLET HOSE	10	1	Meer info
2801550100	131	WATER INLET VALVE (SINGLE)	13	1	Meer info
2838300100	146	DETERGENT DISPENSER ASSEMBLY	21	1	Meer info
2724300101	162	INTERFERENCE SUPPRESSOR ASSY..	12	0	Meer info
2724300601	162	INTERFERENCE SUPPRESSOR ASSY..	12	1	Meer info
2827980200	162	INTERFERENCE SUPPRESSOR	12	1	Meer info
2827980400	162	INTERFERENCE SUPPRESSOR	12	0	Meer info
2828001100	166	MAIN CABLE HARNESS	21	1	Meer info
2817970200	168	TIMER.	32	1	Meer info
2820901400	169	POWER CORD ASSY.	15	1	Meer info
2801560400	170	PRESSURE SWITCH	13	1	Meer info
2801560900	170	RESSURE SWITCH	15	0	Meer info
2804980200	171	NTC	8	0	Meer info
2809260100	172	PANEL SUPPORT	8	1	Meer info
2808530300	178	PUSH BUTTON SWITCH.	8	3	Meer info
2801101000	194	PUMP-FILTER ASSEMBLY	22	1	Meer info
2806470005	197	DETERGENT DRAWER FRONT COVER	9	1	Meer info
2830100010	200	PANEL ASSEMBLY BOEKO WM 2510 J DAN	16	1	Meer info
2808480003	201	KNOB COVER..	4	1	Meer info
2823000100	203	KNOB MECHANISM ASSEMBLY P.C	10	1	Meer info
2823100100	204	KNOB MECHANISM ASSEMBLY BIG	10	1	Meer info
2806460010	208	PANEL BODY.	14	1	Meer info
2603900900	230	CAB├ä┬░NET BELLOWS CLAMP ASSEMBLY	2	1	Meer info
2800800500	336	DETERGENT DRAWER ASSEMBLY	19	1	Meer info
2807570200	338	PRESSURE SWITCH HOLDER	2	1	Meer info
2808790100	339	OUTER COVER	16	1	Meer info
2707190100	341	LOCK HOOK	4	1	Meer info
2808480001	346	KNOB COVER	4	1	Meer info
2806620100	365	KICKPLATE COVER (WHITE)	8	0	Meer info
2806621100	365	KICKPLATE COVER (WHITE)	10	0	Meer info
2830350100	365	KICKPLATE BODY (WHITE)	8	0	Meer info
2830350500	365	KICK PLATE BODY ( ABS WHITE)	9	1	Meer info
2830350700	365	KICKPLATE COVER (WHITE)	9	0	Meer info
2002373000	367	HOSE CLAMP	1	1	Meer info
2800890100	370	STEAM DISCHARGE HOSE	9	1	Meer info
2821500100	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2822601000	377	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2822601900	378	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2822600100	382	WITH LIGHT FUNCTION BUTTON ASSEMBLY	4	1	Meer info
2707120600	401	FRONT PANEL	18	1	Meer info
2834050100	402	BEAD GROOVE	9	2	Meer info
2811230100	411	DISCHARGE HOSE HOLDER	2	6	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
2823400100	447	DOOR OPENING BUTTON ASSY	5	1	Meer info
2822800100	468	WITH LIGHT ON-OFF BUTTON ASSEMBLY	7	1	Meer info
2704870100	472	CABLE HOLDER	1	0	Meer info
2812220100	472	CABLE HOLDER	2	1	Meer info
2823800100	491	LAMP ASSEMBLY	4	1	Meer info
2002370600	552	HOSE CLAMP (├â╦£ 13.3)	1	1	Meer info
2000610200	553	HOSE.	10	1	Meer info
2704590100	581	CABLE PROTECTED	2	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	5	Meer info
2705630100	597	CABLE GUIDE CUFF	3	1	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2808880100	632	HINGE BUSHING	1	2	Meer info
2808860100	668	HINGE HOLDER	8	1	Meer info
2810920100	672	KICKPLATE COVER..	6	0	Meer info
2810920800	672	KICKPLATE COVER (WHITE)	5	0	Meer info
2830590100	672	KICKPLATE COVER	6	0	Meer info
2830590400	672	KICKPLATE COVER	6	1	Meer info
2830590700	672	KICKPLATE COVER (WHITE)	6	0	Meer info
2809020100	676	WIRE	2	1	Meer info
2808740200	677	STOPPER.	2	1	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2809080100	689	PROGRAMME CARD HOLDER	4	1	Meer info
2809070004	694	QUICK REFERENCE CARD	4	1	Meer info
2809070012	697	QUICK REFERENCE CARD	4	1	Meer info
2809070013	704	QUICK REFERENCE CARD	4	1	Meer info
2707360200	787	SELECTION SWITCH	8	1	Meer info
2903090200	953	DOOR LOCK WATER PROTECTOR	2	1	Meer info
2829960100	1008	PULLEY FIXING SCREW	3	0	Meer info
2829960200	1008	PULLEY FIXING SCREW	3	1	Meer info
2600940700	1107	HOSE	2	1	Meer info
2720500100	1203	SPECIAL BOLT.	3	3	Meer info
2720500300	1229	SPECIAL BOLT	3	2	Meer info
2739900600	1238	LOCK WIRE GR.	14	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2808540300	1372	PUSH BUTTON SWITCH.	9	1	Meer info
2863400500	1384	HEATER ASSEMBLY	17	0	Meer info
2863700500	1384	HEATER ASSEMBLY	0	0	Meer info
2882600500	1384	HEATER ASSEMBLY	16	1	Meer info
2820820100	1406	CHASSIS FLAP	2	2	Meer info
2817050300	1442	SHOCK ABSORBER PIN	1	2	Meer info
2890200300	1451	TERMINAL BODY ASSEMBLY	8	1	Meer info
9003860400	1467	SHEET METAL SCREW 4.2x6.5	1	5	Meer info
2896100500	1470	CABINET ASSEMBLY AND BACK COVER	35	1	Meer info
2707920100	1486	SPRING HOLDER RIGHT	1	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
111204320	8321	BOLT (A.M5x5 DIN 7985)	1	2	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	4	Meer info
371201205	8331	Carbon Brush Assembly (BLACK_RED_L13MF7)	12	2	Meer info
372205505	8335	TACHO COIL WITH METAL SHELL	8	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002372600	8361	HOSE CLAMP (x 49.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2003720300	8366	INTERFERENCE SUPPRESSOR	14	0	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	12	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	7	Meer info
111201020	8396	BOLT (AM5x10 DIN 7985 4.8-H)	1	2	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	3	Meer info
9003610900	8397	SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED	1	9	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	6	Meer info
9003270900	8399	PLASTIC SCREW	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	2	Meer info
100601220	8404	SCREW (B4.2x9.5 DIN 7981-H)	1	1	Meer info
9003860100	8405	SCREW.	1	1	Meer info
2704720100	8409	PT SCREW (COUNTERSUNK HEAD 3.5X13)	1	1	Meer info
2831790100	8412	SPECIAL SHEET SREW	2	0	Meer info
9001230200	8420	PLASTIC CLAMP	1	1	Meer info
2811240100	8426	CABLE HOLDER	2	1	Meer info
2826150100	8430	HOSE CLAMP	1	0	Meer info
