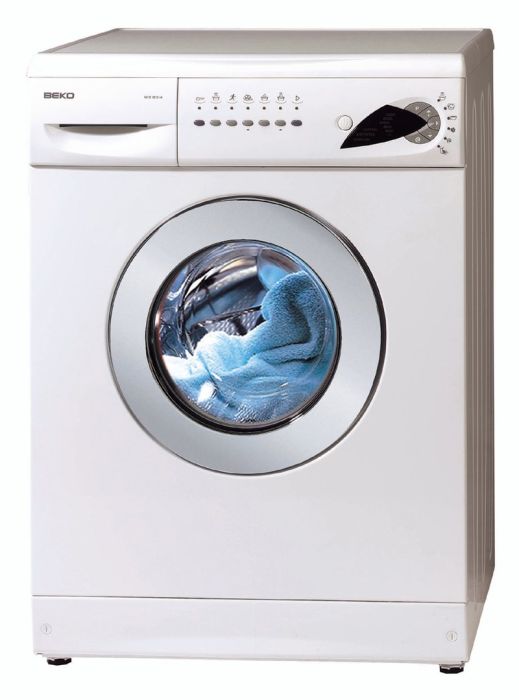

WB8014 WASMACHINE

Artikelnr: 114948

Referentienr: WB8014

Productomschrijving

1400 t

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	60
Gewicht (Kg)	72
ArtRef	WB8014
AsogemID	114948
Merk	BEKO
Soort	1400 t/m
ArtEAN	8690842215827

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
111200820	0	BOLT(AM4x6 DIN7985 8.8-H)	1	2	Meer info
2004140800	0	DISCHARGE HOSE	4	1	Meer info
2812290100	0	RADIAL CONNECTION BOLT	1	3	Meer info
2732600100	1	TOP LID ASSEMBLY	21	1	Meer info
2731000100	6	CABINET ASSEMBLY	39	1	Meer info
2704060100	7	REAR COVER	16	1	Meer info
2801902100	10	FRONT DOOR ASSEMBLY	29	1	Meer info
2705390100	11	PORTHOLE GLASS (ASIMETRIC)	14	1	Meer info
2803510200	12	INNER COVER	10	1	Meer info
2705770100	13	ELECTRONIC SECURITY SWITCH.	20	1	Meer info
2800400100	14	HINGE ASSEMBLY	10	1	Meer info
2705470100	17	DOOR OPENING ARM	1	1	Meer info
2005600200	18	ADJUSTABLE FEET ASSEMBLY	4	4	Meer info
2733500200	20	TRANSPORT SAFETY ASSEMBLY	13	3	Meer info
2801540200	25	REAR COVER CAP	1	3	Meer info
2704110100	38	SPRING HOLDER	1	3	Meer info
2705192700	43	USERS MANUAL	8	1	Meer info
2600300500	47	TUB ASSEMBLY	31	1	Meer info
2602000100	48	DRUM ASSEMBLY (COMPLETE)	33	1	Meer info
2001270200	49	TUB GASKET	8	1	Meer info
2600800200	50	TUB FRONT CAP ASSEMBLY	20	1	Meer info
2004700000	51	TUB CLAMPING ASSEMBLY	2	6	Meer info
2602820100	51	TUB CLAMP	0	0	Meer info
2703980100	52	SUSPENSION SPRING (LEFT)	6	2	Meer info
2703990100	53	SUSPENSION SPRING (RIGHT)	5	1	Meer info
2704030200	54	DOOR HOOD-RUBBER	21	1	Meer info
2600900100	55	DOOR HOOD CLAMPING ASSEMBLY	3	1	Meer info
2702800100	55	CLAMPING ASSEMBLY	0	0	Meer info
2801650100	56	PULLEY 54	15	1	Meer info
2005390100	57	PULLEY BOLT (HEX. HEAD)	3	1	Meer info
2005170200	59	ELASTIC POLY-V BELT	12	1	Meer info
110702220	60	BOLT(M8x40 Z2 DIN 933 8.8)	1	1	Meer info
2701120200	63	MOTOR	38	1	Meer info
2703370100	65	HEATER	18	1	Meer info
2705930200	66	SHOCK ABSORBER	8	0	Meer info
2803250200	66	SHOCK ABSORBER	11	2	Meer info
2600960200	69	MOTOR SUPPORT	1	2	Meer info
2604060000	73	HEATER CABLE PROTECTOR	2	1	Meer info
2801430100	78	SHOCK ABSORBER PIN	2	2	Meer info
110600120	82	BOLT (M10x40 DIN 931 8.8)	1	2	Meer info
2600890000	83	AIR PIPE HOLDER	1	1	Meer info
2001000000	84	TENSION BRACKET ASSEMBLY	4	1	Meer info
110705720	85	BOLT(M6x16 Z9 DIN 933 8.8)	1	2	Meer info
2000760000	86	TENSION PLATE	1	1	Meer info
2201450200	88	THERMOSTAT RUBBER SEAL	2	1	Meer info
2604500200	89	BEARING HOUSE ASSEMBLY	33	1	Meer info
110704020	90	BOLT.(M8x20 Z2 DIN 933 10.9)	1	3	Meer info
2706670100	90	SPECIAL BOLD	2	0	Meer info
110705920	91	BOLT(M6x25 Z2-SP DIN 933 8.8)	1	3	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2810240100	99	SIPHON	6	1	Meer info
2002800600	100	PRESSURE TUSE HOSE ASSEMBLY	6	1	Meer info
2001280200	101	PRESSURE TUBE	3	1	Meer info
2007300100	103	HOSE CLAMP ASSEMBLY	2	1	Meer info
2702800200	103	CLAMP ASSEMBLY	0	0	Meer info
2704080100	105	TUB-FILTER HOSE	16	1	Meer info
2808700300	106	WATER INLET HOSE ASSEMBLY (GREY-COLD)	13	1	Meer info
2704050100	117	WATER INLET HOSE	13	1	Meer info
2707280200	145	MOTOR PROTECTIVE COVER.	3	1	Meer info
2736700100	146	DETERGENT DISPENSER ASSEMBLY	16	1	Meer info
2600990203	149	COUNTERWEIGHT (FRONT)	14	1	Meer info
2600840000	150	HOSE HOLDER	1	1	Meer info
2724300101	162	INTERFERENCE SUPPRESSOR ASSY..	12	1	Meer info
2809300100	166	MAIN CABLE HARNESS	25	1	Meer info
2705780100	168	ELECTRONIC TIMER (5800 E)	42	1	Meer info
2820901100	169	POWER CORD ASSY.	16	1	Meer info
2601411000	170	PRESSURE SWITCH	7	0	Meer info
2705221000	170	PRESSURE SWITCH	15	1	Meer info
2804980100	171	NTC	10	1	Meer info
2800150400	172	PANEL SUPPORT	9	1	Meer info
2201920500	180	PUSH BUTTON SWITCH (ON_OFF)	8	1	Meer info
2201650000	181	CARD HOLDER	1	9	Meer info
2002440300	187	CONTACTOR	20	1	Meer info
2801100900	194	PUMP-FILTER ASSEMBLY	22	1	Meer info
2704520003	197	DETERGENT DRAWER FRONT COVER	9	1	Meer info
2737100004	200	PANEL ASSEMBLY (COMPLETE)	34	1	Meer info
2737200004	208	PANEL ASSEMBLY	21	1	Meer info
2603900400	230	CABINET BELLOWS CLAMP ASSEMBLY	4	1	Meer info
2601880000	231	RUBBER BUFFER	1	3	Meer info
2705230100	319	FUNCTION BUTTON	3	5	Meer info
2800800100	336	DETERGENT DRAWER ASSEMBLY	21	1	Meer info
2800560400	339	FRONT COVER	26	1	Meer info
2804890100	341	LOCK HOOK.	4	1	Meer info
2800860100	342	PIN	1	1	Meer info
2801800400	345	INNER COVER ASSEMBLY	15	1	Meer info
2800450300	365	KICKPLATE COVER	16	1	Meer info
2800460200	366	KICKPLATE COVER SCREW	4	2	Meer info
2704880100	370	STEAM DISCHARGE HOSE	5	1	Meer info
2821500600	373	DISCHARGE HOSE ASSEMBLY	7	1	Meer info
2800020300	401	FRONT PANEL	18	1	Meer info
2801350100	402	FIXER	1	4	Meer info
2802370100	411	DISCHARGE HOSE HOLDER	1	2	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
2005680200	428	WATER INLET VALVE	19	1	Meer info
2705250100	468	ON_OFF BUTTON	4	1	Meer info
2704870100	472	CABLE HOLDER	1	2	Meer info
2002373100	487	HOSE CLAMP	2	1	Meer info
2801040100	495	FRONT DOOR PUSHPIN	1	1	Meer info
2801050100	496	FRONT DOOR PUSHPIN SPRING	1	1	Meer info
9001590400	526	CABLE CLAMP	1	3	Meer info
2704690100	565	LED GLASS	1	13	Meer info
2704540003	566	BUTTON 1	2	1	Meer info
2704550001	567	BUTTON 2	1	1	Meer info
2704560001	568	BUTTON 3	1	1	Meer info
2704570001	569	BUTTON 4	1	1	Meer info
2704580004	570	BUTTON 5	1	1	Meer info
2704680100	571	REFLECTOR	1	1	Meer info
2705240100	572	FUNCTION REFLECTOR	3	1	Meer info
2704610200	573	DISPLAY BOARD	26	1	Meer info
2704620100	574	OPTION BOARD	22	1	Meer info
2704650100	575	FLAT CABLE (DISPLAY-OPTION)	8	1	Meer info
2704640100	576	FLAT CABLE (PC-DISPLAY)	11	1	Meer info
2705710100	577	BUTTON SPRING	1	5	Meer info
2705720100	578	FUNCTION BUTTON SPRING	1	7	Meer info
2706460100	581	CABLE PROTECTED	1	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	5	Meer info
2705570400	584	BAFFLE	6	3	Meer info
2600050000	585	BAFFLE NUT	7	3	Meer info
2825280100	586	M8 CIVATA (SPIRAL FORM)	2	3	Meer info
2735700100	590	COMPONENT FIXING ASSY.	11	1	Meer info
2738300100	591	VALVE CABLE HARNESS	8	1	Meer info
2705980100	596	FIXING PLATE (SIDE)	2	2	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2703940800	613	FELT (FRONT PANEL BOTTOM)	9	1	Meer info
2703940400	615	FELT (FRONT PANEL RIGHT)	9	1	Meer info
2703940700	617	FELT (SIDE)	11	2	Meer info
2703940500	618	FELT (FRONT PANEL LEFT)	8	1	Meer info
2703940600	619	FELT (FRONT PANEL TOP)	7	1	Meer info
2705230200	621	FUNCTION BUTTON	4	2	Meer info
2601460300	623	SPECIAL BOLT	4	4	Meer info
2705193000	631	USERS MANUAL.....	8	1	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2738600100	716	FRONT PANEM ASSEMBLY	23	1	Meer info
2600940500	1105	HOSE	2	2	Meer info
2600941500	1115	HOSE	2	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2824400200	1415	SPIDER ARM ASSEMBLY(COMPLETE)	19	1	Meer info
2890200100	1451	TERMINAL BODY ASSEMBLY	6	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	6	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	4	Meer info
111204320	8321	BOLT (A.M5x5 DIN 7985)	1	2	Meer info
181300305	8326	Screw	2	2	Meer info
371201201	8331	Carbon Brush Assembly (BLACK_L94MF7)	9	2	Meer info
2002371600	8354	HOSE CLAMP (x 27.5)	1	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002371800	8356	HOSE CLAMP	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2003720300	8366	INTERFERENCE SUPPRESSOR	14	0	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	2	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
2705810100	8394	PT SCREW (3_5x9.5)	1	7	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	0	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	25	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	4	Meer info
9003620200	8400	PT SCREW (4.5x14)	1	2	Meer info
9003270600	8401	PT SCREW (DIAMETER 4_5x10)	1	2	Meer info
9003660100	8408	BOLT (M4x5)	1	2	Meer info
9001590200	8410	CABLE CLAMP	1	2	Meer info
9001590100	8410	CABLE CLAMP	1	4	Meer info
9001230200	8420	PLASTIC CLAMP	1	4	Meer info
