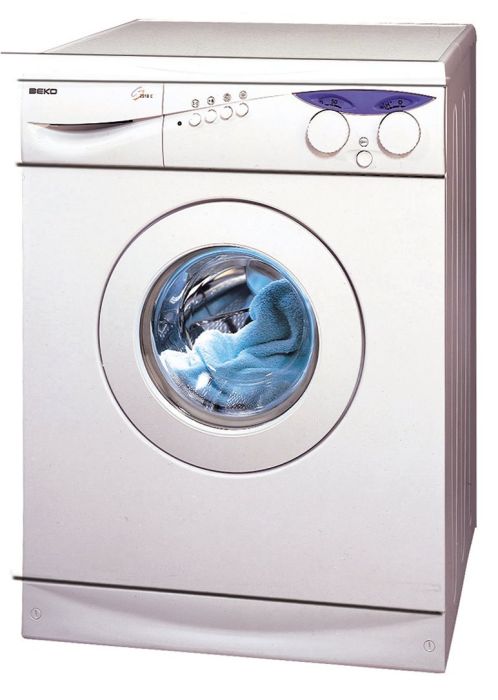

WB7010M WASMACHINE

Artikelnr: 114983

Referentienr: WB7010M

Productomschrijving

1000 t

Meer informatie
Hoogte	85
Breedte	60
Diepte	60
Gewicht (Kg)	71
ArtRef	WB7010M
AsogemID	114983
Merk	BEKO
Soort	1000 t/m
ArtEAN	8690842214417

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2004140800	0	DISCHARGE HOSE	4	1	Meer info
2732600200	1	TOP LID ASSEMBLY	19	1	Meer info
2731000100	6	CABINET ASSEMBLY	39	1	Meer info
2704060100	7	REAR COVER	16	1	Meer info
2801901000	10	FRONT DOOR ASSEMBLY	24	1	Meer info
2705390100	11	PORTHOLE GLASS (ASIMETRIC)	14	1	Meer info
2803510500	12	INNER COVER	12	1	Meer info
2704830100	13	SECURITY SWITCH	17	1	Meer info
2800400100	14	HINGE ASSEMBLY	10	1	Meer info
2005600200	18	ADJUSTABLE FEET ASSEMBLY	4	4	Meer info
2737600100	20	TRANSPORT SAFETY ASSEMBLY	5	3	Meer info
2801540200	25	REAR COVER CAP	1	3	Meer info
2010100100	37	PLASTIC CLAMP ASSEMBLY	4	2	Meer info
2704110100	38	SPRING HOLDER	1	3	Meer info
2705190400	43	USERS MANUAL	10	1	Meer info
2706860100	45	COUNTERWEIGHT (UPPER)	14	1	Meer info
2701600000	46	COUNTERWEIGHT BRACKET ASSEMBLY	1	5	Meer info
2838500200	47	TUB ASSEMBLY	37	1	Meer info
2609400100	48	DRUM ASSEMBLY (COMPLETE)	0	1	Meer info
2001270200	49	TUB GASKET	8	1	Meer info
2700340000	50	TUB FRONT CAP	15	1	Meer info
2705580100	51	WIRE CLIPS	2	0	Meer info
2803610100	51	TUB CLIPS	1	12	Meer info
2705040100	52	SUSPENSION SPRING (LEFT)	9	2	Meer info
2705050100	53	SUSPENSION SPRING (RIGHT)	9	1	Meer info
2704030200	54	DOOR HOOD-RUBBER	21	1	Meer info
2802580200	55	DOOR HOOD CLAMP(SPRING)	0	1	Meer info
2801650100	56	PULLEY 54	15	1	Meer info
2005390100	57	PULLEY BOLT (HEX. HEAD)	3	1	Meer info
2005170200	59	ELASTIC POLY-V BELT	12	1	Meer info
2005520200	60	BOLT	2	0	Meer info
2808150100	60	SPECIAL BOLT.	4	1	Meer info
2702920300	63	MOTOR	36	0	Meer info
2802010201	63	MOTOR	34	1	Meer info
2703370100	65	HEATER	18	1	Meer info
2001210700	66	SHOCK ABSORBER	10	0	Meer info
2705930200	66	SHOCK ABSORBER	8	0	Meer info
2803250200	66	SHOCK ABSORBER	11	1	Meer info
2803250300	66	SHOCK ABSORBER	11	1	Meer info
2700990100	68	COUNTERWEIGHT-LOWER	15	1	Meer info
2702950100	69	MOTOR SUPPORT	1	2	Meer info
2600090000	72	HEATER BRACKET	3	1	Meer info
2000340000	74	WASHER	1	2	Meer info
2000790000	75	O-RING WM1212 WM1512	1	2	Meer info
9001390000	76	BOLT	1	2	Meer info
2701250000	77	SHOCK ABSORBER RING	1	4	Meer info
2801430100	78	SHOCK ABSORBER PIN	2	2	Meer info
2701800000	79	SHOCK ABSORBER BRACKET ASSEMBLY	5	2	Meer info
2601460200	80	SPECIAL BOLT	4	3	Meer info
110600820	82	BOLT(M10x50 DIN 933 Z2 8.8)	3	2	Meer info
2601460400	87	SPECIAL BOLT	4	2	Meer info
2704480100	93	HOSE HOLDER	1	1	Meer info
2810240100	99	SIPHON	6	1	Meer info
2002800700	100	PRESSURE TUBE HOSE ASSEMBLY	4	1	Meer info
2001280200	101	PRESSURE TUBE	3	1	Meer info
2007300200	103	HOSE CLAMP ASSEMBLY	2	1	Meer info
2702800300	103	CLAMPING ASSEMBLY	0	0	Meer info
2704090100	105	TUB-FILTER HOSE	13	1	Meer info
2808700300	106	WATER INLET HOSE ASSEMBLY (GREY-COLD)	13	1	Meer info
2704890100	107	CAM	3	1	Meer info
2800990100	108	CAM FOLLOWER	4	1	Meer info
2800950100	113	FLOW DIVERTER HOUSING	3	1	Meer info
2800970100	114	SPRING	9	1	Meer info
2704040100	117	TUB INLET HOSE	11	1	Meer info
2002372700	118	HOSE CLAMP	2	1	Meer info
120600320	121	NUT (M5 DIN 934)	1	2	Meer info
2801550100	131	WATER INLET VALVE (SINGLE)	13	1	Meer info
2731900100	146	DETERGENT DISPENSER ASSEMBLY	21	1	Meer info
2707010100	162	INTERFERENCE SUPPRESSOR	12	0	Meer info
2736200101	166	MAIN CABLE HARNESS	20	1	Meer info
2704760300	168	TIMER	34	1	Meer info
2820901100	169	POWER CORD ASSY.	16	1	Meer info
2703280200	170	PRESSURE SWITCH	25	1	Meer info
2704860200	171	THERMOSTAT	22	1	Meer info
2800150200	172	PANEL SUPPORT	0	1	Meer info
2201920500	180	PUSH BUTTON SWITCH (ON_OFF)	8	1	Meer info
2701760000	184	PRESSURE SWITCH BRACKET	10	1	Meer info
2801100800	194	PUMP-FILTER ASSEMBLY	22	0	Meer info
2801100900	194	PUMP-FILTER ASSEMBLY	22	1	Meer info
2704261031	197	DETERGENT DRAWER FRONT COVER	9	1	Meer info
2732301000	200	PANEL ASSEMBLY (COMPLETE).	17	1	Meer info
2732700100	203	TIMER KNOB ASSEMBLY.	5	1	Meer info
2732800100	204	THERMOSTAT KNOB ASSEMBLY	6	1	Meer info
2732501001	208	PANEL BODY ASSEMBLY	17	1	Meer info
2705060234	211	INDICATOR PART	3	1	Meer info
2705060235	212	INDICATOR PART	0	1	Meer info
2603900400	230	CABINET BELLOWS CLAMP ASSEMBLY	4	1	Meer info
2704290100	300	PUSH BUTTON SWITCH COVER	3	4	Meer info
2800800100	336	DETERGENT DRAWER ASSEMBLY	21	1	Meer info
2800560200	339	FRONT COVER	19	1	Meer info
2704470100	341	LOCK HOOK	5	1	Meer info
2800860100	342	PIN	1	1	Meer info
2801800500	345	INNER COVER ASSEMBLY	17	1	Meer info
2704310100	347	LAMP GLASS	1	1	Meer info
2800530400	365	KICKPLATE COVER	17	1	Meer info
2800540200	366	KICKPLATE COVER SCREW	4	2	Meer info
2704880100	370	STEAM DISCHARGE HOSE	5	1	Meer info
2821500300	373	DISCHARGE HOSE ASSEMBLY	8	1	Meer info
2803950100	388	THERMOSTAT RUBBER SEAL	8	1	Meer info
2800021000	401	FRONT PANEL	18	1	Meer info
2801350100	402	FIXER	1	2	Meer info
2802370100	411	DISCHARGE HOSE HOLDER	1	2	Meer info
2804670100	414	FRONT PANEL HOLDER	2	2	Meer info
9001250000	433	WASHER	1	2	Meer info
2802940100	447	DOOR OPENING KNOB	4	1	Meer info
2704330100	449	KNOB COVER	3	2	Meer info
2704870100	472	CABLE HOLDER	1	2	Meer info
2808220100	480	THERMOSTAT KNOB ADAPTOR	3	1	Meer info
2002373100	487	HOSE CLAMP	2	1	Meer info
2735500200	491	WARNING LAMP ASSEMBLY	8	1	Meer info
2801040100	495	FRONT DOOR PUSHPIN	1	1	Meer info
2801050100	496	FRONT DOOR PUSHPIN SPRING	1	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	5	Meer info
2705630100	597	CABLE GUIDE CUFF	3	1	Meer info
2810900100	598	FILTER ASSEMBLY	5	1	Meer info
2002370500	605	HOSE CLAMP	1	1	Meer info
2809020100	676	WIRE	2	1	Meer info
101301407	682	NUT M8 DIN934.	1	1	Meer info
2600941300	1113	HOSE	4	1	Meer info
130500920	1284	SERRATED LOCK WASHER (A8.4 DIN 6798)	1	1	Meer info
2890200100	1451	TERMINAL BODY ASSEMBLY	6	1	Meer info
2002374300	1686	HOSE CLAMP (├â┬© 1.8)	2	2	Meer info
2201920200	8304	PUSH BUTTON SWITCH	12	1	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
111204320	8321	BOLT (A.M5x5 DIN 7985)	1	4	Meer info
181300303	8325	M4X10 TAPTITE SCREW.	1	2	Meer info
371201201	8331	Carbon Brush Assembly (BLACK_L94MF7)	9	2	Meer info
371202601	8335	Tachocoil with metal shell_10.0687.04.00	8	0	Meer info
372205501	8335	TACHO COIL WITH METAL SHELL	5	1	Meer info
373500801	8336	Tachometer Cover..	2	1	Meer info
2201920100	8341	PUSH BUTTON SWITCH	6	2	Meer info
2002371600	8354	HOSE CLAMP (x 27.5)	1	1	Meer info
2002371700	8355	HOSE CLAMP (x 28,7)	1	1	Meer info
2002371800	8356	HOSE CLAMP	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	1	Meer info
2002740200	8365	DRAIN HOSE HOLDER	1	0	Meer info
2828040300	8365	DRAIN HOSE HOLDER	2	1	Meer info
2003720400	8367	INTERFERENCE SUPPRESSOR	14	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	2	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
9003610500	8397	SHEET METAL SCREW(B4_2x9_5-TOOTHED)	1	0	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	18	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003620200	8400	PT SCREW (4.5x14)	1	2	Meer info
9003270600	8401	PT SCREW (DIAMETER 4_5x10)	1	2	Meer info
100601220	8404	SCREW (B4.2x9.5 DIN 7981-H)	1	1	Meer info
9003660100	8408	BOLT (M4x5)	1	2	Meer info
2704720100	8409	PT SCREW (COUNTERSUNK HEAD 3.5X13)	1	1	Meer info
9001590100	8410	CABLE CLAMP	1	2	Meer info
9001230200	8420	PLASTIC CLAMP	1	6	Meer info
