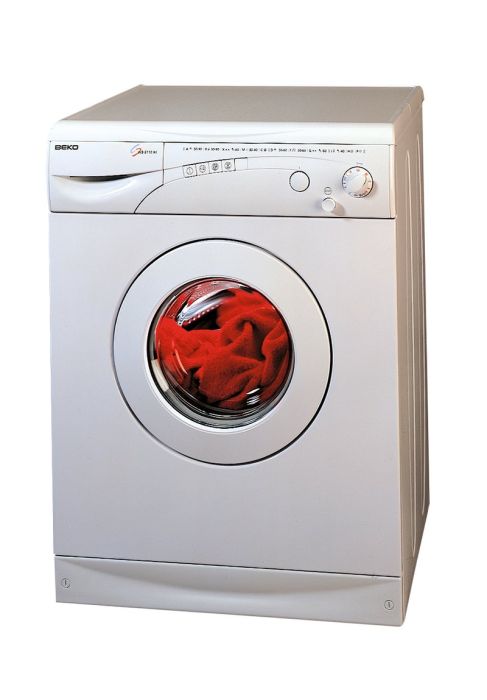

Productomschrijving
1000 t
| Hoogte | 85 |
|---|---|
| Breedte | 60 |
| Diepte | 54 |
| Gewicht (Kg) | 60 |
| ArtRef | WB6310XE |
| AsogemID | 114944 |
| Merk | BEKO |
| Soort | 1000 t/m |
| ArtEAN | 8690842229435 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2811200300 | 1 | TOP PLATE ASSY. | 20 | 1 | Meer info | |||
| 2810100700 | 6 | CABINET ASSEMBLY | 37 | 1 | Meer info | |||
| 2800120200 | 7 | REAR COVER | 16 | 1 | Meer info | |||
| 2801900300 | 10 | FRONT DOOR ASSEMBLY | 26 | 1 | Meer info | |||
| 2800620100 | 11 | PORTHOLE GLASS | 17 | 1 | Meer info | |||
| 2803510100 | 12 | INNER COVER | 10 | 1 | Meer info | |||
| 2704830100 | 13 | SECURITY SWITCH | 17 | 1 | Meer info | |||
| 2800400100 | 14 | HINGE ASSEMBLY | 10 | 1 | Meer info | |||
| 2005600200 | 18 | ADJUSTABLE FEET ASSEMBLY | 4 | 2 | Meer info | |||
| 2737600700 | 20 | TRANSPORT SAFETY ASSEMBLY | 5 | 3 | Meer info | |||
| 2801540200 | 25 | REAR COVER CAP | 1 | 5 | Meer info | |||
| 2801410100 | 38 | SPRING HOLDER | 1 | 2 | Meer info | |||
| 2803685300 | 43 | USERS MANUAL BEKO WB 6310 XE (BEL) | 10 | 1 | Meer info | |||
| 2805010100 | 45 | COUNTERWEIGHT (UPPER) | 14 | 1 | Meer info | |||
| 2804200500 | 47 | TUB ASSEMBLY (COMPLETE) | 33 | 1 | Meer info | |||
| 2804500400 | 48 | DRUM ASSEMBLY (COMPLETE) | 31 | 1 | Meer info | |||
| 2801760100 | 49 | TUB GASKET | 6 | 1 | Meer info | |||
| 2800630300 | 50 | TUB FRONT CAP | 15 | 1 | Meer info | |||
| 2803610100 | 51 | TUB CLIPS | 1 | 13 | Meer info | |||
| 2805680300 | 53 | SUSPENSION SPRING | 4 | 2 | Meer info | |||
| 2800840100 | 54 | DOOR HOOD-RUBBER | 17 | 0 | Meer info | |||
| 2807710100 | 54 | DOOR HOOD-RUBBER | 17 | 1 | Meer info | |||
| 2802580100 | 55 | DOOR HOOD CLAMP(SPRING) | 4 | 1 | Meer info | |||
| 2801650100 | 56 | PULLEY 54 | 15 | 1 | Meer info | |||
| 2005390100 | 57 | PULLEY BOLT (HEX. HEAD) | 3 | 1 | Meer info | |||
| 2005170300 | 59 | ELASTIC POLY-V BELT | 10 | 0 | Meer info | |||
| 2809040100 | 59 | ELASTIC POLY-V BELT (J4) | 10 | 1 | Meer info | |||
| 2810970100 | 59 | ELASTIC POLY-V BELT. | 11 | 0 | Meer info | |||
| 2808150100 | 60 | SPECIAL BOLT. | 4 | 1 | Meer info | |||
| 2802010600 | 63 | MOTOR (YOC 600_800 D_D) | 34 | 1 | Meer info | |||
| 2703370500 | 65 | HEATER | 17 | 1 | Meer info | |||
| 2703370600 | 65 | HEATER | 18 | 0 | Meer info | |||
| 2706770100 | 66 | SHOCK ABSORBER | 10 | 0 | Meer info | |||
| 2803250100 | 66 | SHOCK ABSORBER | 11 | 0 | Meer info | |||
| 2800750100 | 68 | COUNTERWEIGHT-LOWER | 13 | 1 | Meer info | |||
| 2803290100 | 68 | COUNTERWEIGHT-LOWER. | 13 | 0 | Meer info | |||
| 2702950100 | 69 | MOTOR SUPPORT | 1 | 2 | Meer info | |||
| 2801660101 | 72 | HEATER SUPPORT | 4 | 1 | Meer info | |||
| 2801430100 | 78 | SHOCK ABSORBER PIN | 2 | 4 | Meer info | |||
| 2704480100 | 93 | HOSE HOLDER | 1 | 1 | Meer info | |||
| 2810240100 | 99 | SIPHON | 6 | 1 | Meer info | |||
| 2000810600 | 100 | HOSE | 5 | 1 | Meer info | |||
| 2800830100 | 101 | PRESSURE TUBE | 3 | 1 | Meer info | |||
| 2814430100 | 103 | HOSE CLAMP | 2 | 1 | Meer info | |||
| 2800870100 | 105 | TUB-FILTER HOSE | 9 | 1 | Meer info | |||
| 2808700300 | 106 | WATER INLET HOSE ASSEMBLY (GREY-COLD) | 13 | 1 | Meer info | |||
| 2800990100 | 108 | CAM FOLLOWER | 4 | 1 | Meer info | |||
| 2800950100 | 113 | FLOW DIVERTER HOUSING | 3 | 1 | Meer info | |||
| 2800970100 | 114 | SPRING | 9 | 1 | Meer info | |||
| 2800880100 | 117 | TUB INLET HOSE | 10 | 1 | Meer info | |||
| 2801550100 | 131 | WATER INLET VALVE (SINGLE) | 13 | 1 | Meer info | |||
| 2804680300 | 138 | PUMP MOTOR | 18 | 0 | Meer info | |||
| 2800900100 | 146 | DETERGENT DISPENSER ASSEMBLY | 22 | 0 | Meer info | |||
| 2838300100 | 146 | DETERGENT DISPENSER ASSEMBLY | 21 | 1 | Meer info | |||
| 2724300101 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 0 | Meer info | |||
| 2724300601 | 162 | INTERFERENCE SUPPRESSOR ASSY.. | 12 | 1 | Meer info | |||
| 2827980200 | 162 | INTERFERENCE SUPPRESSOR | 12 | 1 | Meer info | |||
| 2827980400 | 162 | INTERFERENCE SUPPRESSOR | 12 | 0 | Meer info | |||
| 2830600401 | 166 | MAIN CABLE HARNESS | 0 | 1 | Meer info | |||
| 2800490200 | 168 | TIMER | 32 | 1 | Meer info | |||
| 2820901100 | 169 | POWER CORD ASSY. | 16 | 1 | Meer info | |||
| 2801560100 | 170 | PRESSURE SWITCH | 12 | 1 | Meer info | |||
| 2801730200 | 171 | THERMOSTAT | 21 | 1 | Meer info | |||
| 2801730300 | 171 | THERMOSTAT | 18 | 0 | Meer info | |||
| 2800150500 | 172 | PANEL SUPPORT | 8 | 1 | Meer info | |||
| 2201920500 | 180 | PUSH BUTTON SWITCH (ON_OFF) | 8 | 1 | Meer info | |||
| 2807350400 | 186 | SPEED CONTROLLER MODULE (500_1000 RPM) | 23 | 1 | Meer info | |||
| 2801100900 | 194 | PUMP-FILTER ASSEMBLY | 22 | 1 | Meer info | |||
| 2811100800 | 194 | PUMP-FILTER ASSEMBLY | 0 | 0 | Meer info | |||
| 2803990023 | 197 | DETERGENT DRAWER FRONT COVER | 12 | 1 | Meer info | |||
| 2806500036 | 200 | PANEL ASSEMBLY (COMPLETE) | 17 | 1 | Meer info | |||
| 2807400100 | 203 | TIMER KNOB ASSEMBLY | 5 | 1 | Meer info | |||
| 2810300006 | 204 | THERMOSTAT KNOB ASSEMBLY | 8 | 1 | Meer info | |||
| 2803980017 | 208 | PANEL BODY | 14 | 1 | Meer info | |||
| 2804010002 | 211 | INDICATOR PART | 6 | 1 | Meer info | |||
| 2603900400 | 230 | CABINET BELLOWS CLAMP ASSEMBLY | 4 | 1 | Meer info | |||
| 2800800100 | 336 | DETERGENT DRAWER ASSEMBLY | 21 | 1 | Meer info | |||
| 2807570200 | 338 | PRESSURE SWITCH HOLDER | 2 | 1 | Meer info | |||
| 2800560200 | 339 | FRONT COVER | 19 | 1 | Meer info | |||
| 2704470100 | 341 | LOCK HOOK | 5 | 1 | Meer info | |||
| 2800860100 | 342 | PIN | 1 | 1 | Meer info | |||
| 2801800300 | 345 | INNER COVER ASSEMBLY | 17 | 1 | Meer info | |||
| 2802760100 | 346 | KNOB COVER | 4 | 1 | Meer info | |||
| 2800580100 | 347 | LAMP GLASS | 1 | 1 | Meer info | |||
| 2800740100 | 364 | LAMP GLASS HOUSING | 4 | 1 | Meer info | |||
| 2800530400 | 365 | KICKPLATE COVER | 17 | 1 | Meer info | |||
| 2800540200 | 366 | KICKPLATE COVER SCREW | 4 | 2 | Meer info | |||
| 2002373000 | 367 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2800890100 | 370 | STEAM DISCHARGE HOSE | 9 | 1 | Meer info | |||
| 2821500100 | 373 | DISCHARGE HOSE ASSEMBLY | 8 | 1 | Meer info | |||
| 2804030003 | 377 | PUSH BUTTON SWITCH COVER (1_2 LOAD) | 0 | 1 | Meer info | |||
| 2804050002 | 378 | PUSH BUTTON SWITCH COVER | 0 | 1 | Meer info | |||
| 2802320400 | 381 | BLANKING PLATE | 2 | 1 | Meer info | |||
| 2804040001 | 382 | PUSH BUTTON SWITCH COVER (ON_OFF) | 3 | 1 | Meer info | |||
| 2801720100 | 388 | THERMOSTAT RUBBER SEAL | 1 | 0 | Meer info | |||
| 2803950100 | 388 | THERMOSTAT RUBBER SEAL | 8 | 1 | Meer info | |||
| 2800021000 | 401 | FRONT PANEL | 18 | 1 | Meer info | |||
| 2801350100 | 402 | FIXER | 1 | 2 | Meer info | |||
| 2800290100 | 403 | FIXED FOOT RUBBER | 1 | 2 | Meer info | |||
| 2811230100 | 411 | DISCHARGE HOSE HOLDER | 2 | 2 | Meer info | |||
| 2804670100 | 414 | FRONT PANEL HOLDER | 2 | 2 | Meer info | |||
| 2804060003 | 436 | PUSH BUTTON SWITCH COVER | 0 | 1 | Meer info | |||
| 2802940100 | 447 | DOOR OPENING KNOB | 4 | 1 | Meer info | |||
| 2704870100 | 472 | CABLE HOLDER | 1 | 2 | Meer info | |||
| 2802920100 | 480 | THERMOSTAT KNOB ADAPTOR | 2 | 1 | Meer info | |||
| 2801040100 | 495 | FRONT DOOR PUSHPIN | 1 | 1 | Meer info | |||
| 2801050100 | 496 | FRONT DOOR PUSHPIN SPRING | 1 | 1 | Meer info | |||
| 2705870100 | 583 | SELF LOCKING CABLE HOLDER | 1 | 5 | Meer info | |||
| 2705630100 | 597 | CABLE GUIDE CUFF | 3 | 1 | Meer info | |||
| 2810900100 | 598 | FILTER ASSEMBLY | 5 | 1 | Meer info | |||
| 2002370500 | 605 | HOSE CLAMP | 1 | 1 | Meer info | |||
| 2804620100 | 624 | MODULE HOLDER | 4 | 1 | Meer info | |||
| 2809020100 | 676 | WIRE | 2 | 1 | Meer info | |||
| 101301407 | 682 | NUT M8 DIN934. | 1 | 1 | Meer info | |||
| 2600940700 | 1107 | HOSE | 2 | 1 | Meer info | |||
| 2720500100 | 1203 | SPECIAL BOLT. | 3 | 3 | Meer info | |||
| 2720500300 | 1229 | SPECIAL BOLT | 3 | 2 | Meer info | |||
| 130500920 | 1284 | SERRATED LOCK WASHER (A8.4 DIN 6798) | 1 | 1 | Meer info | |||
| 2890200100 | 1451 | TERMINAL BODY ASSEMBLY | 6 | 1 | Meer info | |||
| 2810430100 | 1646 | SHOCK ABSORBER | 10 | 2 | Meer info | |||
| 2002374300 | 1686 | HOSE CLAMP (├â┬© 1.8) | 2 | 2 | Meer info | |||
| 2201920200 | 8304 | PUSH BUTTON SWITCH | 12 | 2 | Meer info | |||
| 2201920300 | 8305 | PUSH BUTTON SWITCH | 6 | 1 | Meer info | |||
| 100601520 | 8320 | SHEET METAL SCREW (B4.2X13 DIN 7981-H) | 1 | 2 | Meer info | |||
| 111204320 | 8321 | BOLT (A.M5x5 DIN 7985) | 1 | 4 | Meer info | |||
| 181300303 | 8325 | M4X10 TAPTITE SCREW. | 1 | 2 | Meer info | |||
| 371201205 | 8331 | Carbon Brush Assembly (BLACK_RED_L13MF7) | 12 | 2 | Meer info | |||
| 372205505 | 8335 | TACHO COIL WITH METAL SHELL | 8 | 1 | Meer info | |||
| 373500801 | 8336 | Tachometer Cover.. | 2 | 1 | Meer info | |||
| 2002371700 | 8355 | HOSE CLAMP (x 28,7) | 1 | 1 | Meer info | |||
| 2002372100 | 8357 | HOSE CLAMP.(Ø 34_1) | 1 | 1 | Meer info | |||
| 2002372400 | 8359 | HOSE CLAMP (Ø 38.8) | 1 | 1 | Meer info | |||
| 2002372600 | 8361 | HOSE CLAMP (x 49.8) | 1 | 1 | Meer info | |||
| 2002740200 | 8365 | DRAIN HOSE HOLDER | 1 | 0 | Meer info | |||
| 2828040300 | 8365 | DRAIN HOSE HOLDER | 2 | 1 | Meer info | |||
| 2003720300 | 8366 | INTERFERENCE SUPPRESSOR | 14 | 0 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 3 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 5 | Meer info | |||
| 9003610500 | 8397 | SHEET METAL SCREW(B4_2x9_5-TOOTHED) | 1 | 0 | Meer info | |||
| 9003610100 | 8397 | SHEET METAL SCREW(B4_2x9_5-perforated) | 1 | 19 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 2 | Meer info | |||
| 9003620200 | 8400 | PT SCREW (4.5x14) | 1 | 2 | Meer info | |||
| 9003270600 | 8401 | PT SCREW (DIAMETER 4_5x10) | 1 | 2 | Meer info | |||
| 100601220 | 8404 | SCREW (B4.2x9.5 DIN 7981-H) | 1 | 1 | Meer info | |||
| 9003660100 | 8408 | BOLT (M4x5) | 1 | 2 | Meer info | |||
| 2704720100 | 8409 | PT SCREW (COUNTERSUNK HEAD 3.5X13) | 1 | 1 | Meer info | |||
| 9001230200 | 8420 | PLASTIC CLAMP | 1 | 1 | Meer info | |||
| 2826150100 | 8430 | HOSE CLAMP | 1 | 0 | Meer info |
