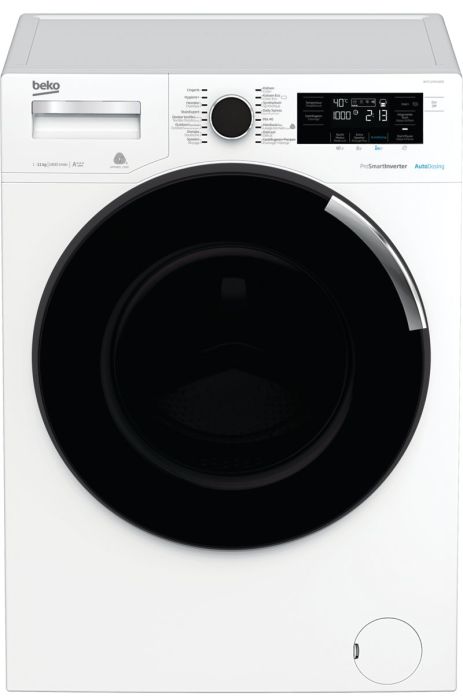

main product photo

WTE11744XDOS WASMACHINE Autodose

Comfort
Artikelnr: 115771
Referentienr: WTE11744XDOS
Aanbevolen verkoopprijs: € 679,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

1400 t/min. 11 kg - D 62,5 cm 16 progr
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425400100 1 TOP FRAME ASSEMBLY 21 0 Meer info
2479100100 1 TOP FRAME ASSEMBLY 21 1 Meer info
2841390100 7 BACK COVER 18 1 Meer info
2448800100 10 FRONT DOOR ASSEMBLY PREMIUM 21 0 Meer info
2498800100 10 FRONT DOOR ASSEMBLY PREMIUM 31 1 Meer info
2849660200 13 DOOR LOCK 20 0 Meer info
2849660500 13 DOOR LOCK 17 1 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2315810200 18 ADJUSTABLE FEET ASSEMBLY 7 4 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737601600 20 TRANSPORT SAFETY ASSEMBLY 4 5 Meer info
2801540200 25 REAR COVER CAP 1 5 Meer info
2801540300 25 REAR COVER CAP 1 0 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2820526758 43 USER S MANUAL (EN) 5 1 Meer info
2709330200 45 COUNTER WEIGHT (UPPER) 15 1 Meer info
2837750300 45 COUNTER WEIGHT (UPPER) 17 0 Meer info
2824010400 53 SUSPENSION SPRING 6 2 Meer info
2827085100 54 DOOR HOOD-RUBBER 21 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2816660600 56 PULLEY 15 1 Meer info
2827160100 59 ELASTIC POLY-V BELT. 12 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2841940400 63 Atlas MOTOR 31 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 3 Meer info
2898400200 80 SPECIAL BOLT. 4 6 Meer info
2704480100 93 HOSE HOLDER 1 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2818440200 117 TUB INLET HOSE. 8 1 Meer info
2837760800 149 COUNTERWEIGHT (FRONT) 16 1 Meer info
2827981400 162 INTERFERENCE SUPPRESSOR 15 1 Meer info
2853085400 166 MAIN CABLE HARNESS 26 1 Meer info
2836390500 169 POWER CORD ASSY. 15 1 Meer info
2452401440 186 MAIN BOARD 34 1 Meer info
2840940200 194 PUMP-FILTER ASSEMBLY 20 1 Meer info
2880402000 194 PUMP-FILTER ASSEMBLY(WATER COOLING) 20 0 Meer info
2449809104 197 DETERGENT DRAWER FRONT COVER ASSY. 14 1 Meer info
2448900100 203 PROGRAM KNOB ASSEMBLY 18 1 Meer info
2422109277 208 PANEL BODY ASSY. 16 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2803803100 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2838992900 401 FRONT PANEL(B13 XL USA) 19 0 Meer info
2840682500 401 FRONT PANEL 16 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 3 Meer info
2002370600 552 HOSE CLAMP (Ø 13.3) 1 1 Meer info
2000610200 553 HOSE. 10 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2820526759 631 USER S MANUAL (DE) 5 1 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 2 Meer info
2808740200 677 STOPPER. 2 1 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2820526760 703 USER S MANUAL (FR) 5 1 Meer info
2820526761 717 USER S MANUAL (FL) 5 1 Meer info
2836510100 719 PLUG CONSERVATIVE 2 1 Meer info
2841020100 737 WATER INLET VALVE (DOUBLE) 22 0 Meer info
2907270100 737 WATER INLET VALVE (DOUBLE) 21 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 1 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2848510200 964 CARD PROTECTOR FOIL 2 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2403400100 1210 TUB FILTER HOSE ASSEMBLY BALL SYSTEM 12 1 Meer info
2403500100 1210 TUB FILTER HOSE ASSEMBLY COMPLETE 13 1 Meer info
2707340300 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2707340400 1227 PUMP PROTECTIVE COVER 2 0 Meer info
2439401001 1251 MAIN BOARD ASSY. (UL APPROVED) 33 1 Meer info
2402106700 1363 WELDED TUB ASSEMBLY 43 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2834180200 1470 CABINET ASSEMBLY AND BACK COVER 30 1 Meer info
9003271700 1497 PLASTIC SCREW 9 2 Meer info
2835560100 1508 GREASE OIL (STAMINE RL2) 32 0 Meer info
2830690100 1520 CABLE HOLDER 1 4 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2826420100 1535 HOSE HOLDER 1 1 Meer info
2843030200 1537 FLAME BARRIER 5 0 Meer info
2858780100 1537 FLAME BARRIER 5 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2858560100 1575 TERMINAK SHEET 1 1 Meer info
2839570100 1585 PUMP COVER 4 1 Meer info
2839580100 1586 PUMP COVER HOLDER 4 0 Meer info
2849450100 1586 PUMP COVER HOLDER 2 1 Meer info
2468300100 1590 PANEL ASSEMBLY 5 1 Meer info
2851950200 1590 BUTTON GUIDE 4 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2844420100 1616 FOIL 3 1 Meer info
2828170500 1640 PRESSURE SWITCH 12 0 Meer info
2833830300 1640 PRESSURE SENSOR METALFLEX 13 1 Meer info
2857470100 1646 SHOCK ABSORBER 12 2 Meer info
2857470300 1646 SHOCK ABSORBER 12 1 Meer info
2841630200 1657 HEXAGON NUT FÄ°BER 1 3 Meer info
2000813000 1664 AIR PIPE HOSE 3 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
2703945500 1717 ISOLATION FELT (SIDE PANEL RIGHT) 9 0 Meer info
2703945300 1719 FELT (SIDE PANEL LEFT) 10 0 Meer info
2843070100 1734 Discharging pin 2 2 Meer info
2853519003 1736 SOFTENER CAP 7 1 Meer info
2853499003 1737 LIQUID DETERGENT CAP 7 1 Meer info
2850650100 1740 PROGRAM SELECTOR KNOB INNER PART 2 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2714803200 1823 RAST CONNECTOR ADAPTER CABLE 9 1 Meer info
2849430100 1829 STOPPER 1 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 2 Meer info
9003272500 1845 PLASTIC SCREW 1 1 Meer info
9003272800 1845 PLASTIC SCREW (4x10) 1 2 Meer info
2853170100 1869 DOOR OPENING ARM 1 1 Meer info
2465800300 1870 DETERGENT DRAWER GR. SB1 20 1 Meer info
2465600100 1871 DETERGENT BOX GR. SB1 31 1 Meer info
2443900300 1872 CUSHION SHEET ASSEMBLY 3 1 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 1 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 0 Meer info
2823380100 1942 PLASTIC CAP 1 12 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 1 Meer info
9003270900 8399 PLASTIC SCREW 1 1 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 0 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
