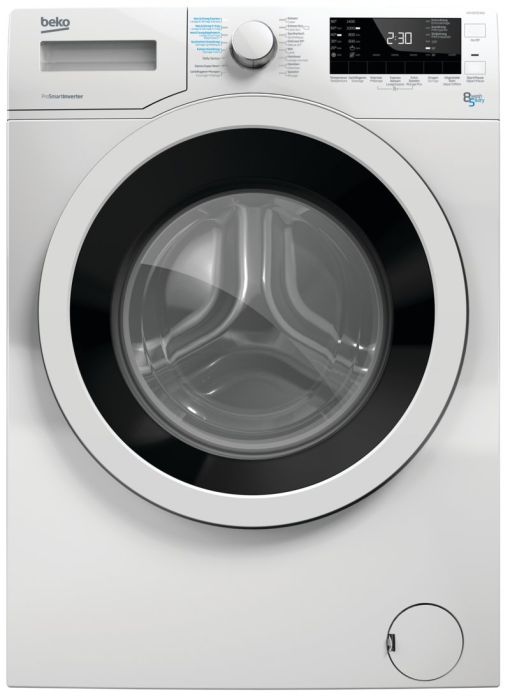

HTV8733XS0 WAS- DROOG COMBINATIE

Active
Artikelnr: 114325
Referentienr: HTV8733XS0
Aanbevolen verkoopprijs: € 679,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8/5 kg 1400t/m
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2425100100 1 TOP FRAME ASSEMBLY 19 0 Meer info
2467800100 1 TOP FRAME ASSEMBLY 21 1 Meer info
2827610100 7 BACK COVER WHITE 17 1 Meer info
2839780300 9 HANDLE (SIYAH) 6 1 Meer info
2434701100 10 FRONT DOOR ASSEMBLY 32 1 Meer info
2842650200 11 FRONTDOOR GLASS 16 1 Meer info
2841580200 12 INNER COVER GRY 12 1 Meer info
2805311700 13 DOOR LOCK 11 1 Meer info
2841350100 14 HINGE 11 1 Meer info
2848720100 14 HINGE 12 0 Meer info
2835320100 16 HINGE SUPPORT BRACKET 4 1 Meer info
2912700500 18 ADJUSTABLE FEET ASSEMBLY 4 0 Meer info
2737602000 20 TRANSPORT SAFETY ASSEMBLY (W&D) 5 4 Meer info
2801540200 25 REAR COVER CAP 1 5 Meer info
2801540300 25 REAR COVER CAP 1 0 Meer info
2824340300 25 REAR COVER CAP 1 1 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 1 Meer info
2820524961 43 USER S MANUAL (EN) 6 1 Meer info
2824010800 53 SUSPENSION SPRING 5 2 Meer info
2856910200 54 DOOR HOOD RUBBER 24 1 Meer info
2802580600 55 DOOR GASGET SPRING 2 1 Meer info
2824490200 56 PULLEY 13 1 Meer info
2852280100 59 ELASTIC POLY-V BELT 12 0 Meer info
2907260500 59 ELASTIC POLY-V BELT 12 1 Meer info
2818450100 60 ENGINE CONNECTION SCREW 2 0 Meer info
2818450500 60 ENGINE CONNECTION SCREW 2 2 Meer info
2843120300 63 MOTOR (ATLAS 32 MM) 32 1 Meer info
2852410200 65 HEATER 17 0 Meer info
2816871100 66 SHOCK ABSORBER 9 2 Meer info
2801430300 78 SHOCK ABSORBER PIN 1 0 Meer info
2801430400 78 SHOCK ABSORBER PIN 1 2 Meer info
2898400200 80 SPECIAL BOLT. 4 7 Meer info
2857090100 99 SIPHON 1 1 Meer info
2000811600 100 AIR PIPE HOSE L=590 mm 3 1 Meer info
2814430100 103 HOSE CLAMP 2 0 Meer info
2814430200 103 HOSE CLAMP 2 1 Meer info
2478800100 146 DETERGENT DISPENSER ASSY SNAP FIT PREMIX 16 1 Meer info
2847280100 149 Front counterweight 19 1 Meer info
2724301400 162 INTERFERENCE SUPPRESSOR ASSY.. 14 0 Meer info
2827981200 162 INTERFERENCE SUPPRESSOR 13 1 Meer info
2834310400 162 INTERFERENCE SUPPRESSOR 12 0 Meer info
2003721600 162 CONDENSATOR ANTIINTERFERENTA 13 0 Meer info
2847391300 166 MAIN CABLE HARNESS 30 1 Meer info
2836390500 169 POWER CORD ASSY. 15 1 Meer info
2437301061 186 MAIN BOARD 29 1 Meer info
2840940100 194 PUMP-FILTER ASSEMBLY 21 1 Meer info
2863201700 194 PUMP-FILTER ASSEMBLY 23 0 Meer info
2420709350 197 DETERGENT DRAWER FRONT COVER ASSY. 8 1 Meer info
2422402500 203 KNOB ASSEMBLY (B13 BEST) 11 1 Meer info
2436709010 208 PANEL BODY ASSY. 18 1 Meer info
2603901100 230 CABINET BELLOWS CLAMP ASSEMBLY 3 1 Meer info
2478900100 336 DETERGENT DRAWER ASSEMBLY SNAP FIT 10 1 Meer info
2857080100 336 DETERGENT DRAWER 12 1 Meer info
2708260500 339 OUTER COVER 17 1 Meer info
2708180200 340 HOOK SPRING 2 1 Meer info
2838960100 341 LOCK HOOK. 3 1 Meer info
2800860600 342 PIN. 1 1 Meer info
2800860900 342 PIN 1 1 Meer info
2803804000 373 DISCHARGE HOSE ASSEMBLY 8 1 Meer info
2838990700 401 FRONT PANEL 18 0 Meer info
2840682100 401 FRONT PANEL 18 1 Meer info
2811230100 411 DISCHARGE HOSE HOLDER 2 2 Meer info
2005680800 428 WATER INLET VALVE (TRIPLE) 18 1 Meer info
2872700100 598 FILTER ASSEMBLY 5 1 Meer info
2703946200 617 ISOLATION FELT (E500 LEFT SIDE WALL) 8 0 Meer info
2820524962 631 USER S MANUAL (FR) 5 1 Meer info
2838910100 632 HINGE BUSHING 1 4 Meer info
2811250100 682 M8 x 1_25 FLANGED NUT 1 1 Meer info
2820524963 703 USER S MANUAL (FL) 5 1 Meer info
2820524964 717 USER S MANUAL (DE) 5 1 Meer info
2811260100 719 PLUG HOLDER(NATURAL) 3 0 Meer info
2811260300 719 PLAG HOLDER 3 0 Meer info
2853580100 719 PLUG HOLDER(NATURAL) 1 1 Meer info
2703941200 724 ISOLATION FELT (SIDE WALL) 7 0 Meer info
2854620100 724 ISOLATION FELT (SIDE WALL) 3 1 Meer info
2471600100 775 MECHANIC AQUASTOP 22 1 Meer info
2831320200 797 Cable Holder 1 2 Meer info
2831370100 797 CABLE HOLDER 1 1 Meer info
2834830300 820 SELF TAPPING SCREW L=16 1 3 Meer info
2832240400 827 TOP SUPPORT BRACKET 9 1 Meer info
2002371300 830 HOSE CLAMP.. 2 1 Meer info
2903090300 953 DOOR LOCK FOIL 2 1 Meer info
2848510100 964 CARD PROTECTOR FOIL 1 1 Meer info
2829960200 1008 PULLEY FIXING SCREW 3 1 Meer info
2829960500 1008 PULLEY FIXING SCREW 3 0 Meer info
2836970300 1096 SCREW (4x11) 1 2 Meer info
2836970500 1096 SCREW (4x11) 1 2 Meer info
2836970200 1097 SCREW 1 1 Meer info
2865200100 1210 TUB-FILTER HOSE ASSEMBLY COMPLETE 12 1 Meer info
2446401001 1251 MOTOR BOARD ASSY. 31 0 Meer info
2446403000 1251 MOTOR BOARD GR. 33 0 Meer info
2446404000 1251 MOTOR BOARD GR. 34 1 Meer info
2446408000 1251 MOTOR BOARD ASSY. 32 0 Meer info
2446407000 1251 MOTOR BOARD ASSY. 33 0 Meer info
2435301800 1363 WELDED TUB ASSEMBLY 43 1 Meer info
2850360200 1384 HEATER ASSEMBLY 22 0 Meer info
2863403100 1384 HEATER ASSEMBLY with NICKEL 18 0 Meer info
2882601700 1384 HEATER ASSEMBLY with NICKEL 18 1 Meer info
2820820100 1406 CHASSIS FLAP 2 2 Meer info
2817050300 1442 SHOCK ABSORBER PIN 1 0 Meer info
2817050400 1442 SHOCK ABSORBER PIN 1 2 Meer info
2971900200 1457 NTC (EPCOS_12K) 9 0 Meer info
2826440100 1459 FRONT WALL HOLDER 2 2 Meer info
2826450100 1460 FRONT WALL HOLDER PIN 2 2 Meer info
9001230100 1462 PLASTIC CLAMP 1 1 Meer info
9003860400 1467 SHEET METAL SCREW 4.2x6.5 1 0 Meer info
9003860800 1467 SCREW. 1 5 Meer info
2832991200 1470 CABINET AND BACK COVER E500 WD White 32 1 Meer info
9003271700 1497 PLASTIC SCREW 9 2 Meer info
2835560100 1508 GREASE OIL (STAMINE RL2) 32 0 Meer info
2830690100 1520 CABLE HOLDER 1 3 Meer info
2828820400 1528 PANEL GASKET 1 1 Meer info
2831380100 1529 CABLE HOLDER 1 1 Meer info
2839070100 1559 GROUNDING SCREW 1 1 Meer info
2838870100 1570 THERMAL CUTOUT 10 2 Meer info
2836470200 1575 GROUND STEEL SHEET 2 1 Meer info
2836470300 1575 GROUND STEEL SHEET 2 0 Meer info
2839570100 1585 PUMP COVER 4 1 Meer info
2839580100 1586 PUMP COVER HOLDER 4 0 Meer info
2849450100 1586 PUMP COVER HOLDER 2 1 Meer info
2708270400 1591 PROTECTIVE COVER 13 1 Meer info
2707730400 1592 PLASTIC SCREW 3x4_5 1 1 Meer info
2841880100 1594 DD MOTOR MOUNTING VIDS 1 4 Meer info
2837010100 1613 NTC SEAL 3 1 Meer info
2844420200 1616 FOÄ°L 3 1 Meer info
2837350100 1621 THERMOSTAT SEAL 2 2 Meer info
2837850100 1628 ALUMINUM SCREW(SELF THREAD) 1 13 Meer info
2828170500 1640 PRESSURE SWITCH 12 0 Meer info
2833830300 1640 PRESSURE SENSOR METALFLEX 13 1 Meer info
2838970200 1651 LEVER 3 1 Meer info
2840440100 1652 BUSHING 1 1 Meer info
2848480100 1661 Display Board-White 30 1 Meer info
2002374300 1686 HOSE CLAMP (├â┬© 1.8) 2 4 Meer info
2439500100 1697 KONDANSER HOSE ASSY. 12 1 Meer info
2846690100 1699 tub inlet hose 17 1 Meer info
2907160100 1700 THERMAL PROTECTOR 8 0 Meer info
2837560100 1701 PINNED CABLE CONNECTOR 2 2 Meer info
2434000300 1714 HEATER CHANNEL GROUP 36 1 Meer info
2433800100 1715 CONDENSER GROUP 17 1 Meer info
2703945500 1717 ISOLATION FELT (SIDE PANEL RIGHT) 9 0 Meer info
2845970200 1724 CABLE HOLDER WIRE 8 1 Meer info
2847050200 1726 Side counterweight 15 1 Meer info
2847060200 1727 UPPER COUNTER WEIGHT E500 WD 17 1 Meer info
2845640100 1729 DRAIN HOSE HOLDER 1 1 Meer info
2847570100 1730 drain hose part transitional 1 1 Meer info
2845930100 1731 HEATER ASSEMBLY 20 1 Meer info
2845930400 1731 HEATER ASSEMBLY 21 0 Meer info
2971900100 1741 NTC 10 1 Meer info
9003611200 1785 SHEET METAL SCREW(B4_2x11.5-TOOTHED) 1 1 Meer info
2845550100 1824 CONDENSER GASKET 8 1 Meer info
2845560100 1825 CONDENSER GASKET TOP 8 1 Meer info
2443900200 1837 CUSHION SHEET ASSEMBLY 3 3 Meer info
9003272500 1845 PLASTIC SCREW 1 3 Meer info
2850540100 1846 PLASTIC CLAMP WITH PLUG 1 1 Meer info
2855230100 1855 HOSE CLAMP 2 1 Meer info
2848250100 1873 TOP FRAME FIXING PART LEFT 1 1 Meer info
2847840100 1874 TOP FRAME FIXING PART RIGHT 1 1 Meer info
2912701400 1880 ADJUSTABLE FEET ASSEMBLY 5 4 Meer info
2843610700 1900 HOSE CLAMP 1 1 Meer info
2907196000 1904 HOSE L=295 mm 3 2 Meer info
2857070100 1935 LIQUID DETERGENT TOOL 1 1 Meer info
2002371700 8355 HOSE CLAMP (x 28,7) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2828040300 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 3 Meer info
111201020 8396 BOLT (AM5x10 DIN 7985 4.8-H) 1 2 Meer info
9003610500 8397 SHEET METAL SCREW(B4_2x9_5-TOOTHED) 1 3 Meer info
9003610900 8397 SHEET METAL SCREW (B4.2x9.5 K=8 TOOTHED 1 0 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 6 Meer info
9003270900 8399 PLASTIC SCREW 1 2 Meer info
9003860300 8403 SHEET METAL SCREW 1 2 Meer info
2831790100 8412 SPECIAL SHEET SREW 2 0 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 4 Meer info
2832450100 8416 SPECÄ°AL PT SREW 1 13 Meer info
9001230300 8419 PLASTIC CLAMP 100 mm 1 3 Meer info
9003611100 8424 SHEET METAL SCREW(B4.2x9.5) 1 1 Meer info
2826150100 8430 HOSE CLAMP 1 1 Meer info
2826150200 8431 HOSE CLAMP 3 0 Meer info
