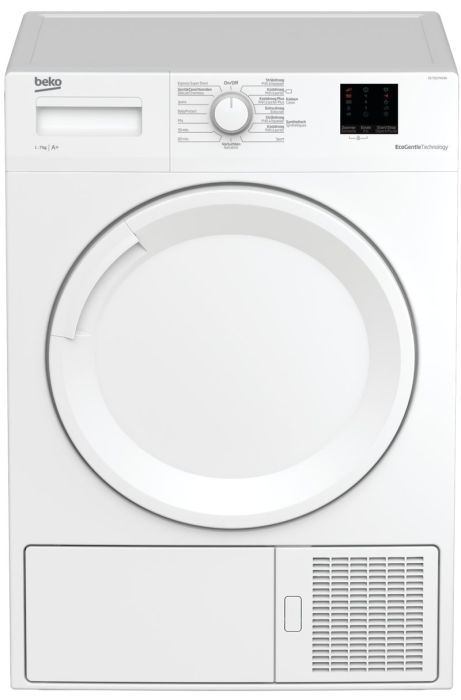

DS73300MM WARMTEPOMPWASDROGER

Artikelnr: 114217

Referentienr: DS73300MM

Aanbevolen verkoopprijs: € 489,99 (BTW & recupel inbegrepen)

Productomschrijving

7 kg Warmtepomp SENSOR

Specificaties

Meer informatie
Hoogte (cm)	85,00
Energieklasse	A+
Hoogte	84.6
Breedte	59.7
Diepte	56.8
Gewicht (Kg)	42.5
Kleur	Wit
Jaarlijks verbruik (kWh)	276
Hoogte met verpakking	88
Breedte met verpakking	65
Diepte met verpakking	58.5
Gewicht VPE (Kg)	44
ArtRef	DS73300MM
AsogemID	114217
MPN	7188231380
Merk	BEKO
Going prijs	489,99
Soort	Warmtepomp wasdroger
ArtEAN	8690842254536

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4809560200	0	FAN BLADE(NF-CCW-100MM_3.17I)	6	1	Meer info
2988800100	1	TOP PLATE GR.	19	1	Meer info
2988801700	1	TOP PLATE GR.	19	0	Meer info
2975630100	10	FRONT DOOR ASSY.	22	1	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	3	Meer info
2960312095	43	USERS MANUAL (EU LANGUAGES)	6	1	Meer info
2985420500	48	DRUM ASSEMBLY	31	1	Meer info
2962470100	59	ELASTIC POLY-V BELT. 7PH 1956	14	1	Meer info
2971420200	63	Dryer Motor Group WELLING	30	1	Meer info
2968590200	63	Dryer Motor WELLING	30	1	Meer info
2976633000	166	MAIN CABLE ASSEMBLY (BLACK_BOX_ORION)	23	1	Meer info
2970445100	169	POWER SUPPLY CORD	15	0	Meer info
2970445500	169	POWER SUPPLY CORD	14	0	Meer info
2970447000	169	POWER SUPPLY CORD	13	0	Meer info
2975790302	186	ELECTRONIC_BOARD(MONO)	37	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2977319002	197	DRAWER PANEL ASS.	9	1	Meer info
2977269068	200	PANEL ASSEMBLY	19	1	Meer info
2976141700	203	SELECTOR KNOB GR.	5	1	Meer info
2977259068	208	PANEL BODY.	16	1	Meer info
2979730100	341	LOCK HOOK	1	1	Meer info
265900012	374	OVEN LAMP 15 W-230 V	6	1	Meer info
2975060100	401	FRONT PANEL (BX-ABX-PLX)	20	1	Meer info
2966280100	510	KICK PLATE BUTTON	2	1	Meer info
2962350200	577	PUSH BUTTON SPRING	1	1	Meer info
2960312096	631	USERS MANUAL (EU LANGUAGES)	6	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
2807962900	653	CAPACITOR (BICAI 9 uF).	10	1	Meer info
2807963000	653	CAPACITOR (BICAI 15 uF).	12	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	4	Meer info
2975530200	750	PCB HOLDER	9	1	Meer info
2964630100	798	EVAPORATOR FILTER CASSETTE LOCK	1	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2978090100	817	COM_COOLING_SPG_FAN	19	0	Meer info
2978090200	817	COM_COOLING_KELI_FAN_MOTOR	22	0	Meer info
2978090300	817	COM_COOLING_KELI_FAN_2.8_TERMINAL	16	1	Meer info
2968410200	822	KICK PLATE-LEFT	10	1	Meer info
2976670100	826	NARROW BACK COVER	13	1	Meer info
2978860100	826	NARROW BACK COVER w BITUMMEN	14	1	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2951900100	834	DRUM BEARNG ASS.	11	1	Meer info
2968040100	843	WATER TANK	14	1	Meer info
2961290200	844	DISCHARGING FUNNEL	2	1	Meer info
2968390100	845	KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT	8	1	Meer info
2974540100	846	AIR GUIDING PART SNAPPER	1	3	Meer info
2979840100	847	PLASTIC CHASIS ASSY	24	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	1	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330100	861	FRONT SELING FELT	13	0	Meer info
2963330400	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2977500200	877	PROCESS FAN (SIRIUS_HP_NONSINTER)	11	1	Meer info
2951060600	888	MICRO SWITCH	7	0	Meer info
2951060700	888	MICRO_SWITCH	8	0	Meer info
2951061000	888	MICRO_SWITCH	7	0	Meer info
2951260100	897	POMP WATER TANK HOSE.	5	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2977430800	916	FILTER DRAWER ASSY	14	1	Meer info
2961961100	932	SIDE PANEL	19	2	Meer info
4246980100	970	4_20 PY HB ZN SCREW.	1	3	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2973920100	991	COMPRESSOR BRACKET RUBBER FEET	3	3	Meer info
2807962300	1003	CAPACITOR (ARCOTRONICS 15 uF)	13	1	Meer info
2962510600	1005	CONDENS PUMP	21	1	Meer info
2962510800	1005	CONDENS PUMP	18	0	Meer info
2995200200	1028	LG COMPRESSOR SHEET ASSY.	8	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973903300	1046	REAR PANEL ASSY	23	1	Meer info
2964840200	1064	EVAPORATOR FILTER SPONGE	6	2	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
2969500300	1209	LOCK BODY ASS_(SPRING_WIRE_DIA_1_4)	8	1	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	4	Meer info
2962770300	1244	POMP COVER	7	1	Meer info
2979290100	1244	POMP COVER	7	0	Meer info
2971703502	1246	CABLE ASSEMBLY	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2976623800	1249	CABLE ASSEMBLY	8	1	Meer info
2979790700	1256	SHAFT-FRONT BEARING ASSY	19	1	Meer info
2973380600	1259	TALL FILTER CASSETTE ASSY.	12	1	Meer info
2964660100	1260	PUMP FLOAT	1	1	Meer info
2977320100	1269	SHADED_POLE_FAN	9	1	Meer info
2979830300	1279	SENSOR COVER ASSY	9	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2962590100	1290	DOOR GASKET	8	1	Meer info
2963120400	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	2	Meer info
2968060100	1303	WATER TANK CASE	13	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	2	Meer info
2977339014	1396	BUTTON ASSEMBLY	6	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	4	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2964980100	1432	COMPRESSION SPRING	4	1	Meer info
2983410100	1440	PLASTIC FOOD ASSY (2K)	1	4	Meer info
2963090300	1454	AIR GUIDING GASKET	8	1	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261000	1460	POMP WATER TANK HOSE.	6	1	Meer info
2967010900	1461	DRUM LIFTER	6	2	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	1	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2977180100	1472	Button GUIDE	4	1	Meer info
2962390100	1473	LOCK MOUTH	1	1	Meer info
2975050100	1484	SIDE SUPPORT BRACKET RIGHT (54cm)	7	1	Meer info
2966540200	1485	SIDE SUPPORT BRACKET (54cm)	4	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2968370100	1489	UP HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2968380100	1490	DOWN HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2962340100	1491	SPRING BACK BUTTON	1	1	Meer info
2968070100	1492	TANK GUIDE CAP	5	0	Meer info
2982920100	1492	TANK GUIDE CAP	3	1	Meer info
2979910100	1510	HEAT EXCHANGER COVER(VEGA)GR	14	1	Meer info
2980250100	1514	CHASSIS CHANNEL COVER	1	1	Meer info
2970710200	1515	TERM├ä┬░NAL(AMP)	1	1	Meer info
2965090100	1522	KICK PLATE BUTTON SPRING	1	1	Meer info
2975540200	1568	PCB HOLDER COVER	9	1	Meer info
2951261400	1569	POMP WATER TANK HOSE.	3	1	Meer info
2990604700	1572	DRYER MODULE	45	1	Meer info
2964970300	1573	TUBE INSULATION SPONGE(EVA-COND_50MM)	3	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2971110100	2015	DAMPING FOAM	2	2	Meer info
2984003808	2018	CABLE ASSEMBLY	3	1	Meer info
2975193804	2099	CABLE ASSEMBLY	8	1	Meer info
2975193900	2100	CABLE ASSEMBLY	8	1	Meer info
2975210100	2101	GROUNDING CLAMP	1	1	Meer info
2975120100	2102	SOCKET COVER BLACKBOX	4	1	Meer info
2974960100	2103	BLACKBOX_SMALLER	6	1	Meer info
2953742700	2106	SINGLE ADHESINE EPDM FOAM	1	1	Meer info
2953742600	2107	SINGLE ADHESINE EPDM FOAM	5	1	Meer info
2975520100	2112	PROGRAMME KNOB LOCK PART	1	1	Meer info
2976490200	2115	SOCKET BOX	2	1	Meer info
2975194000	2118	CABLE ASSEMBLY	4	1	Meer info
2975194100	2119	CABLE ASSEMBLY	5	1	Meer info
1883880600	4210	EMC FILTER	12	0	Meer info
1883880500	4210	EMC FILTER	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	15	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	2	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	16	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	28	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	9	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	4	Meer info
130600420	8414	WASHER_A_6_4x1_5_DIN_9021	1	3	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	6	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	4	Meer info
2979380100	8436	CABLE HOLDER	1	1	Meer info
2979380500	8436	CABLE HOLDER	1	1	Meer info
2979890100	8438	SUPPORTER(VEGA)GR	8	1	Meer info

Documenten

Productfiche
