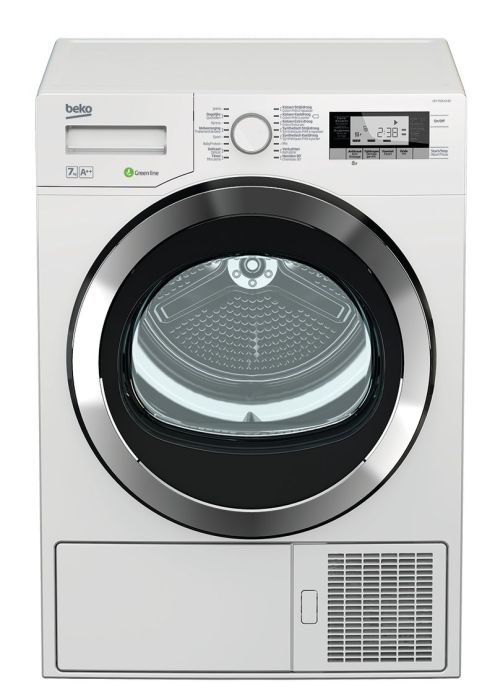

DPY7505GXB2 WARMTEPOMPWASDROGER

Artikelnr: 114386

Referentienr: DPY7505GXB2

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

7 kg Warmtepomp SENSOR DISPLAY 24u uitstel

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2988700100	1	TOP PLATE GR.	20	1	Meer info
2993001400	10	DOOR GROUP	29	1	Meer info
2968510200	14	HINGE_B13(IRREVERSIBLE)	12	1	Meer info
2973500100	18	ADJUSTABLE PLASTIC FOOT ASSY.	2	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	5	Meer info
2960310920	43	USERS MANUAL (EU LANGUAGES)	6	1	Meer info
2985420300	48	DRUM ASSEMBLY	32	1	Meer info
2962470100	59	ELASTIC POLY-V BELT. 7PH 1956	14	1	Meer info
2963140400	63	DRYER MOTOR	35	1	Meer info
2984100800	166	MAIN CABLE ASSEMBLY	22	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2966862101	186	ELECTRONIC PCB ASSY.	30	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2993609003	197	DRAWER PANEL ASS.	10	1	Meer info
2993409009	200	PANEL ASSEMBLY	18	1	Meer info
2993201400	203	PROGRAM KNOB ASSY(B13-ARC745_ARC1_ARC1)	8	1	Meer info
2993509009	208	PANEL BODY.	16	1	Meer info
2966020100	338	CABLE CHANNEL	3	2	Meer info
2979730300	341	LOCK HOOK	18	1	Meer info
2967552400	401	FRONT PANEL (B2013)	31	1	Meer info
2966280100	510	KICK PLATE BUTTON	2	1	Meer info
2962350200	577	PUSH BUTTON SPRING	1	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	1	Meer info
2967020500	584	DRUM LIFTER	7	2	Meer info
2960310921	631	USERS MANUAL (EU LANGUAGES)	6	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	1	Meer info
2966090100	750	PCB HOLDER	8	1	Meer info
2964630100	798	EVAPORATOR FILTER CASSETTE LOCK	1	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2952070400	817	COMPRESSOR COOL FAN	22	1	Meer info
2968410200	822	KICK PLATE-LEFT	10	1	Meer info
2976670100	826	NARROW BACK COVER	13	1	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2951900100	834	DRUM BEARNG ASS.	11	1	Meer info
2960190100	842	CABLE HOLDER	2	2	Meer info
2968030100	843	WATER TANK	15	1	Meer info
2961290200	844	DISCHARGING FUNNEL	2	1	Meer info
2968390100	845	KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT	8	1	Meer info
2974860400	846	EASY FIX AIR GUIDING LOCKING HANDLE	7	1	Meer info
2978100100	847	PLASTIC CHASIS ASSY.	31	1	Meer info
2982230300	847	PLASTIC CHASIS ASSY (HP_SEMI_LIGHT)	25	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	1	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330400	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2966110100	873	PCB HOLDER COVER	8	1	Meer info
2977500200	877	PROCESS FAN (SIRIUS_HP_NONSINTER)	11	1	Meer info
2951061000	888	MICRO_SWITCH	7	1	Meer info
2951260100	897	POMP WATER TANK HOSE.	5	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2975230500	916	EASY FIX FILTER DRAWER ASSY HP	20	1	Meer info
2961961000	932	SIDE PANEL	20	2	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2964760100	990	COMPRESSOR TERMINAL COVER..	5	1	Meer info
2964750100	991	COMPRESSOR RUBBER FEET.	4	3	Meer info
2964780200	1001	COMPRESSOR OVERALL PROTECTOR	15	1	Meer info
2807962400	1003	CAPACITOR (ARCOTRONICS 20 uF)	13	1	Meer info
2962510600	1005	CONDENS PUMP	21	1	Meer info
2962510800	1005	CONDENS PUMP	18	0	Meer info
2977400100	1028	COMPRESSOR BASE PLATE ASSEMBLY (RECHI)	9	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973902400	1046	REAR PANEL ASSY	25	1	Meer info
2964840100	1064	EVAPORATOR FILTER SPONGE	6	3	Meer info
492204404	1077	PULLEY ASSY FOR SERVICE-ARES	19	1	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	6	Meer info
2962770300	1244	POMP COVER	7	1	Meer info
2979290100	1244	POMP COVER	7	0	Meer info
2971703502	1246	CABLE ASSEMBLY	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2973102600	1256	SHAFT-FRONT BEARING ASSY	20	1	Meer info
2982200400	1259	ASYMMETRIC FILTER CASSETTE ASSY.	12	1	Meer info
2964660100	1260	PUMP FLOAT	1	1	Meer info
2968170100	1268	PROGRAMME LIGHT GUIDE (B13-BEST)	4	1	Meer info
2964950100	1269	FAN COVER	8	1	Meer info
2968580300	1278	MIKROSWITCH PIN	1	1	Meer info
2982600300	1279	SENSOR CARRIER ASSY. COMPLETE	10	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2965590400	1290	DOOR GASKET	8	1	Meer info
2963120400	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	2	Meer info
2964990100	1300	RUBBER_GASKET	3	1	Meer info
2968050100	1303	WATER TANK CASE	13	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	5	Meer info
9002900200	1390	COUNTERSUNK HEAD SCREW (PT-4X14)	1	3	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2964980100	1432	COMPRESSION SPRING	4	1	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	4	Meer info
2953741500	1453	SINGLE ADHESINE EPDM FOAM	4	1	Meer info
2963090300	1454	AIR GUIDING GASKET	8	1	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261000	1460	POMP WATER TANK HOSE.	6	1	Meer info
9001230500	1462	PLASTIC CLAMP	2	6	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	1	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2977180100	1472	Button GUIDE	4	1	Meer info
2968540100	1473	LOCK HAUSING	2	1	Meer info
2966770100	1484	SIDE SUPPORT BRACKET RIGHT (60cm)	7	1	Meer info
2966140100	1485	SIDE SUPPORT BRACKET (60cm)	5	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2968370100	1489	UP HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2968380100	1490	DOWN HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2962340100	1491	SPRING BACK BUTTON	1	1	Meer info
2982920100	1492	TANK GUIDE CAP	3	1	Meer info
2964790100	1508	COMPRESSOR OVERLOAD PROTECTOR SPRING	3	1	Meer info
2964810100	1509	TERMINAL COVER GASKET	4	1	Meer info
2981220100	1510	HEAT EXCHANGER COVER GR	12	1	Meer info
2964640200	1513	LOCKING HANDLE COVER	1	3	Meer info
2964610100	1514	CHANNEL COVER	7	1	Meer info
471400501	1515	GROUNDING TERMINAL (MESA)	1	2	Meer info
2965090100	1522	KICK PLATE BUTTON SPRING	1	1	Meer info
2953760500	1523	SINGLE ADHES_NE PE FOAM.	3	1	Meer info
2968460400	1530	INNER DOOR_(ARC722_PIANO_BLACK)	16	1	Meer info
2964940100	1531	DOOR_GASKET	10	1	Meer info
2964240300	1532	DOOR GLASS	23	1	Meer info
2968470100	1533	INNER INLAY_(ARC722_PIANO_BLACK)	13	1	Meer info
2968450100	1534	TRANSPARENT_DOOR_COVER	18	1	Meer info
2968445200	1535	OUTER DOOR	18	1	Meer info
2967110300	1540	POWER LED (230V)	19	1	Meer info
2984003901	1541	CABLE ASSEMBLY	8	1	Meer info
2966030100	1542	Card Holder	4	1	Meer info
2984004000	1546	CABLE ASSEMBLY	4	1	Meer info
2967570100	1553	NTC CABLE HOLDER	3	1	Meer info
2993700601	1563	DISPLAY_CARD_ASSEMBLY_BEST_(ANAKIN)	31	1	Meer info
2968180100	1567	PCB HOLDER	9	1	Meer info
2968190100	1568	PCB HOLDER COVER	18	1	Meer info
2951261400	1569	POMP WATER TANK HOSE.	3	1	Meer info
2990600200	1572	DRYER MODULE	49	1	Meer info
2964970100	1573	TUBE INSULATION SPONGE(EVA-COND)	2	4	Meer info
2991900100	1591	LOCK HAUSING	6	1	Meer info
2981580100	1596	SEALED_MICROSWITCH_ASSY	11	1	Meer info
2968480400	1597	HINGE HOLDER_(ARC722_PIANO_BLACK)	9	1	Meer info
2969260300	1598	HOOK HOLDER_(ARC722_PIANO_BLACK)	8	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2970180100	2006	HINGE SUPPORT BRACKET	11	1	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2981830100	2105	MICROSWITCH EDPM FOAM	1	1	Meer info
2953742600	2107	SINGLE ADHESINE EPDM FOAM	5	1	Meer info
2974330100	2112	PROGRAMME KNOB LOCKING PART (B13_NEW)	1	1	Meer info
2974870200	4210	INTERFERENCE FILTER	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	41	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	23	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	30	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	9	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	4	Meer info
130600420	8414	WASHER_A_6_4x1_5_DIN_9021	1	3	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	3	Meer info
2963340200	8418	NUT M5 DIN6923	3	1	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	6	Meer info
