Promotie
A++
main product photo

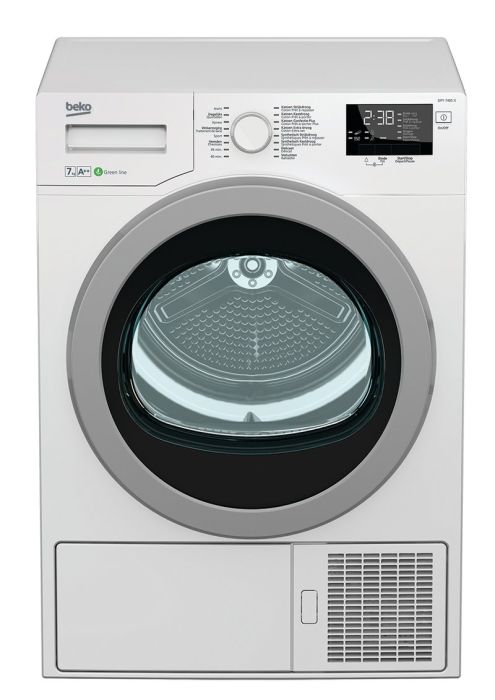

DPY7405GXB2 WARMTEPOMPWASDROGER

Artikelnr: 114441
Referentienr: DPY7405GXB2
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

7 kg Warmtepomp SENSOR DISPLAY 24u uitstel
Meer informatie
Hoogte 84.6
Breedte 59.5
Diepte 60.9
Gewicht (Kg) 51.5
Jaarlijks verbruik (kWh) 206
ArtRef DPY7405GXB2
AsogemID 114441
MPN 7188286930
Merk BEKO
Going prijs 999,99
Soort Warmtepomp wasdroger
ArtEAN 8690842999918
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
2988700100 1 TOP PLATE GR. 20 1 Meer info
2973570300 10 DOOR GROUP 31 1 Meer info
2968510200 14 HINGE_B13(IRREVERSIBLE) 12 1 Meer info
2973500100 18 ADJUSTABLE PLASTIC FOOT ASSY. 2 4 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 4 Meer info
2960310922 43 USERS MANUAL (EU LANGUAGES) 6 1 Meer info
2985420300 48 DRUM ASSEMBLY 32 1 Meer info
2962470100 59 ELASTIC POLY-V BELT. 7PH 1956 14 1 Meer info
2963140400 63 DRYER MOTOR 35 1 Meer info
2994601800 166 MAIN CABLE ASSEMBLY (GOOD) 23 1 Meer info
2970444800 169 POWER SUPPLY CORD 15 0 Meer info
2970445300 169 POWER SUPPLY CORD 15 0 Meer info
2970446900 169 POWER SUPPLY CORD 15 0 Meer info
2969830602 186 ELECTRONIC PCB ASSY. 29 1 Meer info
491500303 189 POLY-V 285 H 4 MA BELT 10 1 Meer info
2993609003 197 DRAWER PANEL ASS. 10 1 Meer info
2995409007 200 PANEL ASSEMBLY 19 1 Meer info
2993201600 203 SELECTOR KNOB GR. 6 1 Meer info
2995309007 208 PANEL BODY. 17 1 Meer info
2979730300 341 LOCK HOOK 18 1 Meer info
265900012 374 OVEN LAMP 15 W-230 V 6 1 Meer info
2967552400 401 FRONT PANEL (B2013) 31 1 Meer info
2969820200 481 ENCODER_CARD 18 1 Meer info
2966280100 510 KICK PLATE BUTTON 2 1 Meer info
2962350200 577 PUSH BUTTON SPRING 1 1 Meer info
2705870100 583 SELF LOCKING CABLE HOLDER 1 1 Meer info
2967020500 584 DRUM LIFTER 7 2 Meer info
2960310923 631 USERS MANUAL (EU LANGUAGES) 6 1 Meer info
2962160100 632 HINGE BUSHING 1 4 Meer info
2807960400 653 CAPACITOR (ARCOTRONICS 8 uF) 11 1 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 1 Meer info
2969040100 750 PCB HOLDER 12 1 Meer info
2964630100 798 EVAPORATOR FILTER CASSETTE LOCK 1 1 Meer info
2973800100 804 REAR DRUM TIGHTNESS PLATE ASSY 17 0 Meer info
2973800700 804 REAR DRUM TIGHTNESS PLATE ASSY 16 0 Meer info
2973801100 804 REAR DRUM TIGHTNESS PLATE ASSY 15 1 Meer info
2952070400 817 COMPRESSOR COOL FAN 22 1 Meer info
2968410200 822 KICK PLATE-LEFT 10 1 Meer info
2976670100 826 NARROW BACK COVER 13 1 Meer info
2966130100 827 FRONT PANEL SUPPORT BRACKET 7 1 Meer info
2951900100 834 DRUM BEARNG ASS. 11 1 Meer info
2960190100 842 CABLE HOLDER 2 2 Meer info
2968030100 843 WATER TANK 15 1 Meer info
2961290200 844 DISCHARGING FUNNEL 2 1 Meer info
2968390100 845 KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT 8 1 Meer info
2974860400 846 EASY FIX AIR GUIDING LOCKING HANDLE 7 1 Meer info
2978100100 847 PLASTIC CHASIS ASSY. 31 1 Meer info
2982230300 847 PLASTIC CHASIS ASSY (HP_SEMI_LIGHT) 25 1 Meer info
2974940100 856 HINGE PIN HOLDER (PLASTIC) 1 1 Meer info
2963150100 857 SPRING 4 1 Meer info
2963330500 861 FRONT SELING FELT 13 1 Meer info
2962650100 865 LAMP COVER 4 1 Meer info
2969030100 873 PCB HOLDER COVER 10 1 Meer info
2977500200 877 PROCESS FAN (SIRIUS_HP_NONSINTER) 11 1 Meer info
2951060600 888 MICRO SWITCH 7 1 Meer info
2951260100 897 POMP WATER TANK HOSE. 5 1 Meer info
2961190200 906 SPECÄ°AL WASHER (8,1*17*1,5) 1 1 Meer info
2975230500 916 EASY FIX FILTER DRAWER ASSY HP 20 1 Meer info
2961961000 932 SIDE PANEL 20 2 Meer info
2954700400 985 Micro Switch Ass. 10 1 Meer info
2973930100 990 COMPRESSOR TERMINAL COVER 5 1 Meer info
2973920100 991 COMPRESSOR BRACKET RUBBER FEET 3 3 Meer info
2964780400 1001 COMPRESSOR OVERALL PROTECTOR 11 1 Meer info
2807962300 1003 CAPACITOR (ARCOTRONICS 15 uF) 13 1 Meer info
2962510600 1005 CONDENS PUMP 21 1 Meer info
2962510800 1005 CONDENS PUMP 18 0 Meer info
2995200200 1028 LG COMPRESSOR SHEET ASSY. 8 1 Meer info
133000001 1044 WASHER 12x18x1 DIN 988.. 1 2 Meer info
160200200 1045 ZEEGER 9x1 DIN 6799 DRCS68 2 1 Meer info
2973902400 1046 REAR PANEL ASSY 25 1 Meer info
2964840100 1064 EVAPORATOR FILTER SPONGE 6 3 Meer info
492204404 1077 PULLEY ASSY FOR SERVICE-ARES 19 1 Meer info
2963110100 1087 HOSE AND CABLE HOLDER 1 2 Meer info
9003271500 1214 PLASTIC SCREW (diameter 4x12) INOX 2 6 Meer info
2962770300 1244 POMP COVER 7 1 Meer info
2979290100 1244 POMP COVER 7 0 Meer info
2971703502 1246 CABLE ASSEMBLY 5 1 Meer info
2960910300 1248 SILICONE GASKET 1 1 Meer info
2980703800 1249 CABLE ASSEMBLY 7 1 Meer info
2973102300 1256 SHAFT-FRONT BEARING ASSY 20 1 Meer info
2973380400 1259 TALL FILTER CASSETTE ASSY. 11 1 Meer info
2964660100 1260 PUMP FLOAT 1 1 Meer info
2968170100 1268 PROGRAMME LIGHT GUIDE (B13-BEST) 4 1 Meer info
2964950100 1269 FAN COVER 8 1 Meer info
2968580300 1278 MIKROSWITCH PIN 1 1 Meer info
2982600300 1279 SENSOR CARRIER ASSY. COMPLETE 10 1 Meer info
2960150100 1287 RUBBER STOPPER 2 1 Meer info
2965590400 1290 DOOR GASKET 8 1 Meer info
2963120400 1295 MOTOR BRACKET CLAMP (PLASTIC) 3 2 Meer info
2964990100 1300 RUBBER_GASKET 3 1 Meer info
2968050100 1303 WATER TANK CASE 13 1 Meer info
2705810300 1313 PT SCREW (3_5x8) 2 4 Meer info
9002900200 1390 COUNTERSUNK HEAD SCREW (PT-4X14) 1 3 Meer info
2951780300 1398 DELTA PT VIDA 50x26 WN 5454 HB 1 6 Meer info
2962950100 1399 NTC GASKET 1 1 Meer info
2963210100 1401 MOTOR SHAFT SEAL 7 1 Meer info
2705810400 1417 PT SCREW (3_5x14) 1 2 Meer info
2964980100 1432 COMPRESSION SPRING 4 1 Meer info
2961690100 1440 ADJUSTABLE PLASTIC FOOT 1 4 Meer info
2953741500 1453 SINGLE ADHESINE EPDM FOAM 4 1 Meer info
2963090300 1454 AIR GUIDING GASKET 8 1 Meer info
2975650100 1455 SIDE WALL PIN 1 6 Meer info
2971900200 1457 NTC (EPCOS_12K) 9 0 Meer info
2971900300 1457 NTC 10 1 Meer info
2971900500 1457 NTC 8 0 Meer info
2974680200 1459 WHEEL (RUBBER) 11 1 Meer info
2987300200 1459 WHEEL (RUBBER) 11 1 Meer info
2951261000 1460 POMP WATER TANK HOSE. 6 1 Meer info
9001230500 1462 PLASTIC CLAMP 2 4 Meer info
9003272000 1466 PLASTIC SCREW (DIAMETER 4x10) INOX 1 1 Meer info
2953741100 1471 SINGLE ADHESINE EPDM FOAM. 1 1 Meer info
2977180100 1472 Button GUIDE 4 1 Meer info
2968540100 1473 LOCK HAUSING 2 1 Meer info
2966770100 1484 SIDE SUPPORT BRACKET RIGHT (60cm) 7 1 Meer info
2966140100 1485 SIDE SUPPORT BRACKET (60cm) 5 1 Meer info
2974470100 1486 SHAFT DRUM COVER 1 0 Meer info
2974470700 1486 SHAFT DRUM COVER SHC ALS 3 0 Meer info
2974470300 1486 SHAFT DRUM COVER 1 0 Meer info
2968370100 1489 UP HINGE GUIDE_B13-HOEM-BLG15 1 1 Meer info
2968380100 1490 DOWN HINGE GUIDE_B13-HOEM-BLG15 1 1 Meer info
2962340100 1491 SPRING BACK BUTTON 1 1 Meer info
2982920100 1492 TANK GUIDE CAP 3 1 Meer info
2973940100 1509 COMPRESSOR TERMINAL COVER GASKET 3 1 Meer info
2981220100 1510 HEAT EXCHANGER COVER GR 12 1 Meer info
2964640200 1513 LOCKING HANDLE COVER 1 3 Meer info
2964610100 1514 CHANNEL COVER 7 1 Meer info
2970710200 1515 TERMÄ°NAL(AMP) 1 1 Meer info
2965090100 1522 KICK PLATE BUTTON SPRING 1 1 Meer info
2953760500 1523 SINGLE ADHES_NE PE FOAM. 3 1 Meer info
2968460400 1530 INNER DOOR_(ARC722_PIANO_BLACK) 16 1 Meer info
2964940100 1531 DOOR_GASKET 10 1 Meer info
2970550100 1532 ASSYMETRIC DOOR GLASS 19 1 Meer info
2968470100 1533 INNER INLAY_(ARC722_PIANO_BLACK) 13 1 Meer info
2968450100 1534 TRANSPARENT_DOOR_COVER 18 1 Meer info
2968445000 1535 OUTER DOOR 18 1 Meer info
2994503900 1541 CABLE ASSEMBLY 7 1 Meer info
2951261400 1569 POMP WATER TANK HOSE. 3 1 Meer info
2990601700 1572 DRYER MODULE 47 1 Meer info
2964970100 1573 TUBE INSULATION SPONGE(EVA-COND) 2 4 Meer info
2966990100 1587 RACEWAY 5 1 Meer info
2991900100 1591 LOCK HAUSING 6 1 Meer info
2981580200 1596 SEALED_MICROSWITCH_ASSY 11 1 Meer info
2968480400 1597 HINGE HOLDER_(ARC722_PIANO_BLACK) 9 1 Meer info
2969260300 1598 HOOK HOLDER_(ARC722_PIANO_BLACK) 8 1 Meer info
2971900100 1741 NTC 10 0 Meer info
2970180100 2006 HINGE SUPPORT BRACKET 11 1 Meer info
2970540100 2013 POWER PLUG HOLDER 2 1 Meer info
2971110200 2016 DAMPING FOAM 1 1 Meer info
2984003807 2018 CABLE ASSEMBLY 4 1 Meer info
2981830100 2105 MICROSWITCH EDPM FOAM 1 1 Meer info
2953742600 2107 SINGLE ADHESINE EPDM FOAM 5 1 Meer info
2974330100 2112 PROGRAMME KNOB LOCKING PART (B13_NEW) 1 1 Meer info
2974870200 4210 INTERFERENCE FILTER 10 1 Meer info
130500120 8314 SERRATED LOCK WASHER (A4.3 DIN 6798) 1 2 Meer info
100601520 8320 SHEET METAL SCREW (B4.2X13 DIN 7981-H) 1 2 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 41 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 1 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 22 Meer info
9003610300 8392 sheet metal screw(B4_2x9_5-perforated) 1 2 Meer info
9003610100 8397 SHEET METAL SCREW(B4_2x9_5-perforated) 1 30 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003860300 8403 SHEET METAL SCREW 1 9 Meer info
120800120 8413 FIBERED_NUT_M6X1_DIN_985 1 4 Meer info
130600420 8414 WASHER_A_6_4x1_5_DIN_9021 1 3 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 3 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 2 Meer info
2963340400 8427 NUT M5 DIN6923 3 1 Meer info
2971870100 8428 MX10 RYSB PERFORATED SCREW 1 2 Meer info
2951780400 8434 DELTA PT SCREW 1 6 Meer info
Mode d'emploi (3.45 MB)
Handleiding (3.43 MB)
