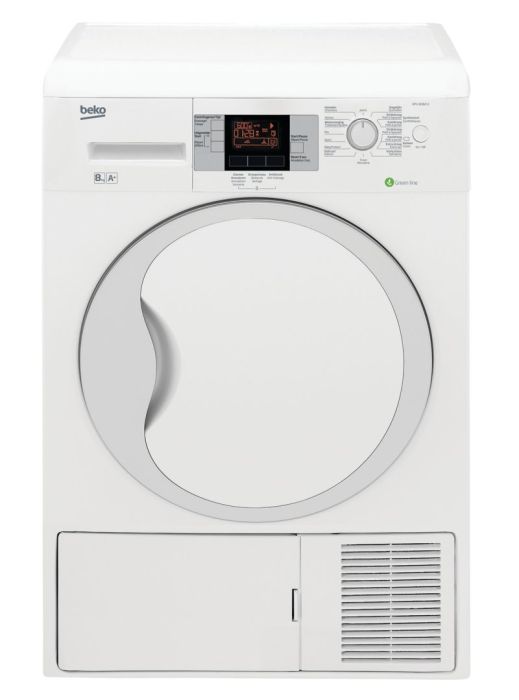

DPU8360X WARMTEPOMPWASDROGER

Artikelnr: 114571

Referentienr: DPU8360X

Productomschrijving

8 kg Warmtepomp SENSOR DISPLAY 24u uitstel

Specificaties

Meer informatie
Hoogte	84.6
Breedte	59.5
Diepte	59.8
Gewicht (Kg)	49
ArtRef	DPU8360X
AsogemID	114571
MPN	7188285900
Merk	BEKO
Soort	Warmtepomp wasdroger
ArtEAN	8690769380745

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2974500100	1	TOP PLATE	22	1	Meer info
2976601200	10	FRONT DOOR ASSEMBLY	40	1	Meer info
2962120100	12	INNER DOOR_(ARES_ARC1_WITHOUT_SWITCH)	14	1	Meer info
2962170200	14	HINGE	10	1	Meer info
2973500100	18	ADJUSTABLE PLASTIC FOOT ASSY.	2	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	9	Meer info
2960310541	43	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2985420300	48	DRUM ASSEMBLY	32	1	Meer info
2962470100	59	ELASTIC POLY-V BELT. 7PH 1956	14	1	Meer info
2963140600	63	DRYER MOTOR..	32	1	Meer info
2978002300	166	MAIN CABLE ASSEMBLY	23	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2964170100	180	PUSH BUTTON SWITCH (ON_OFF)	8	1	Meer info
2970041903	186	ELECTRONIC PCB ASSY.	30	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2963749047	197	DRAWER PANEL ASS.	9	1	Meer info
2975309060	200	PANEL ASSEMBLY	22	1	Meer info
2976701900	203	PROGRAMME KNOB BUTTOM_ASSY	5	1	Meer info
2976501200	339	OUTER RING DOOR ASSY	24	1	Meer info
2962150100	341	LOCK HOOK	1	1	Meer info
265900012	374	OVEN LAMP 15 W-230 V	6	1	Meer info
2963580100	401	FRONT PANEL	31	1	Meer info
2963710100	468	ON OFF BUTTON (TIP02+ARC 734 MAVI)	1	1	Meer info
2827190400	481	SELECTION SWITCH	7	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	1	Meer info
2967020500	584	DRUM LIFTER	7	2	Meer info
2960310542	631	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807961400	653	CAPACITOR (ARCOTRONICS 9 uF)	11	1	Meer info
2964460100	750	PCB_HOLDER	9	1	Meer info
2964630100	798	EVAPORATOR FILTER CASSETTE LOCK	1	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2952070400	817	COMPRESSOR COOL FAN	22	1	Meer info
2965520100	822	KICK PLATE - LEFT	12	1	Meer info
2976670100	826	NARROW BACK COVER	13	1	Meer info
2962020100	827	UPPER BEAM	0	1	Meer info
2951900100	834	DRUM BEARNG ASS.	11	1	Meer info
2960190100	842	CABLE HOLDER	2	3	Meer info
2962440100	843	WATER TANK (UP_8KG)	16	1	Meer info
2961290200	844	DISCHARGING FUNNEL	2	1	Meer info
2963530100	845	KICK PLATE - RIGHT	10	1	Meer info
2974540100	846	AIR GUIDING PART SNAPPER	1	3	Meer info
2978100100	847	PLASTIC CHASIS ASSY.	31	1	Meer info
2982230300	847	PLASTIC CHASIS ASSY (HP_SEMI_LIGHT)	25	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	2	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330400	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2962930200	877	PROCESS FAN	8	1	Meer info
2951060600	888	MICRO SWITCH	7	0	Meer info
2951060700	888	MICRO_SWITCH	8	0	Meer info
2951061000	888	MICRO_SWITCH	7	0	Meer info
2951260100	897	POMP WATER TANK HOSE.	5	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2977430600	916	FILTER DRAWER ASSY	20	1	Meer info
2961961000	932	SIDE PANEL	20	2	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2970140100	990	COMPRESSOR TERMINAL COVER	7	1	Meer info
2969920100	991	COMPRESSOR BRACKET RUBBER FEET	4	3	Meer info
2807962500	1003	CAPACITOR (ARCOTRONICS 25 uF)	16	1	Meer info
2962510600	1005	CONDENS PUMP	21	1	Meer info
2962510800	1005	CONDENS PUMP	18	0	Meer info
2995200100	1028	LG COMPRESSOR SHEET ASSY.	8	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973902400	1046	REAR PANEL ASSY	25	1	Meer info
2964840100	1064	EVAPORATOR FILTER SPONGE	6	2	Meer info
492204404	1077	PULLEY ASSY FOR SERVICE-ARES	19	1	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
2969500300	1209	LOCK BODY ASS_(SPRING_WIRE_DIA_1_4)	8	1	Meer info
2962770300	1244	POMP COVER	7	1	Meer info
2979290100	1244	POMP COVER	7	0	Meer info
2971703502	1246	CABLE ASSEMBLY	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2977904200	1249	CABLE ASSEMBLY	5	1	Meer info
2973100100	1256	SHAFT-FRONT BEARING ASSY	21	1	Meer info
2972300100	1259	FILTRE CASETTE ASSY	13	1	Meer info
2964660100	1260	PUMP FLOAT	1	1	Meer info
2964950200	1269	FAN COVER	8	1	Meer info
2968300300	1279	BEARING SENSOR COVER ASSEMBLY	8	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2962590100	1290	DOOR GASKET	8	1	Meer info
2963120100	1295	MOTOR BRACKET CLAMP (PLASTIC)	2	2	Meer info
2964990200	1300	RUBBER_GASKET	3	1	Meer info
2962450100	1303	TANK GUIDE (TOP_60CM)	12	1	Meer info
2961390200	1306	TANK GUIDE BARRIER	6	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	3	Meer info
2965200700	1377	MAIN CABLE ASSEMBLY	8	1	Meer info
9002900200	1390	COUNTERSUNK HEAD SCREW (PT-4X14)	1	3	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2964980100	1432	COMPRESSION SPRING	4	1	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	4	Meer info
2953741500	1453	SINGLE ADHESINE EPDM FOAM	4	1	Meer info
2963090300	1454	AIR GUIDING GASKET	8	1	Meer info
2962810100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261000	1460	POMP WATER TANK HOSE.	6	1	Meer info
9001230500	1462	PLASTIC CLAMP	2	6	Meer info
2951261100	1465	POMP WATER TANK HOSE.	6	1	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	5	Meer info
100700120	1469	SCREW (B4.2*9.5 DIN 7982-H)	1	3	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2962390100	1473	LOCK MOUTH	1	1	Meer info
2961990100	1484	SIDE SUPPORT (RIGHT 60CM)	7	1	Meer info
2962010100	1485	Side support left 60CM	4	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2962290100	1489	DOWN HINGE GUIDE	1	1	Meer info
2962310100	1490	UP HINGE GUIDE	1	1	Meer info
2962460100	1492	TANK GUIDE CAP	7	1	Meer info
2964010100	1495	PANEL FLAMABILITY PART	4	1	Meer info
2970150100	1509	TERMINAL COVER GASKET	8	1	Meer info
2981220100	1510	HEAT EXCHANGER COVER GR	12	1	Meer info
2964610100	1514	CHANNEL COVER	7	1	Meer info
2970710200	1515	TERM├ä┬░NAL(AMP)	1	1	Meer info
2953760500	1523	SINGLE ADHES_NE PE FOAM.	3	1	Meer info
2966930100	1540	SMART LAMP	16	1	Meer info
2966040100	1542	CARD HOLDER (SMART-LAMP)	4	1	Meer info
2990601300	1572	DRYER MODULE	46	1	Meer info
2964970100	1573	TUBE INSULATION SPONGE(EVA-COND)	2	4	Meer info
2966990100	1587	RACEWAY	5	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2971110200	2016	DAMPING FOAM	1	1	Meer info
2984003806	2018	CABLE ASSEMBLY	3	1	Meer info
2953742600	2107	SINGLE ADHESINE EPDM FOAM	5	1	Meer info
2974870200	4210	INTERFERENCE FILTER	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	18	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	15	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	25	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	3	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	30	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	4	Meer info
9003860300	8403	SHEET METAL SCREW	1	9	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	5	Meer info
130600420	8414	WASHER_A_6_4x1_5_DIN_9021	1	3	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	3	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2951580400	8422	COUNTERSUNK HEAD PT SCREW (4.5x12)	1	2	Meer info
2963340400	8427	NUT M5 DIN6923	3	1	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	6	Meer info
