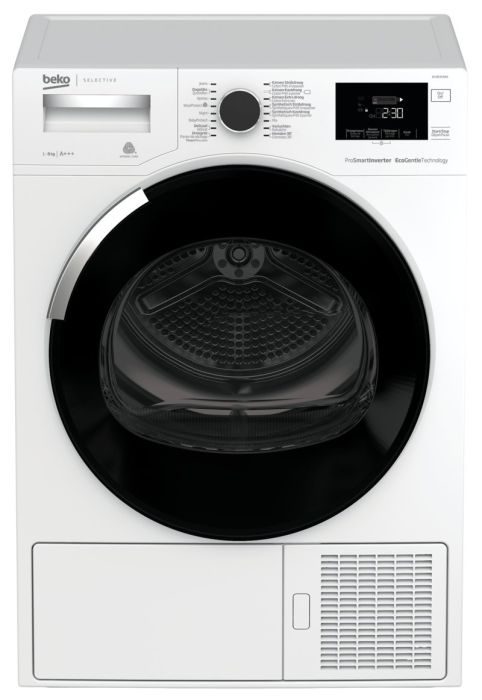

DH8535RX0 WARMTEPOMPWASDROGER

Selective

Artikelnr: 115880

Referentienr: DH8535RX0

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

8 kg Warmtepomp SENSOR DISPLAY 24u uitstel

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
4809560200	0	FAN BLADE(NF-CCW-100MM_3.17I)	6	1	Meer info
2988701000	1	TOP PLATE GR.	26	1	Meer info
2974745100	9	HANDLE_OUTSIDE	11	1	Meer info
2977020800	10	FRONT DOOR ASSY.	34	1	Meer info
2968510200	14	HINGE_B13(IRREVERSIBLE)	12	1	Meer info
2973500100	18	ADJUSTABLE PLASTIC FOOT ASSY.	2	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	9	Meer info
2960311913	43	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2985422700	48	DRUM ASSEMBLY	31	1	Meer info
2962470100	59	ELASTIC POLY-V BELT. 7PH 1956	14	1	Meer info
2997100400	63	Dryer Motor Gr	33	1	Meer info
2972722800	166	MAIN CABLE ASSEMBLY (JABBA)	24	1	Meer info
2970445100	169	POWER SUPPLY CORD	15	0	Meer info
2970445500	169	POWER SUPPLY CORD	14	0	Meer info
2970447000	169	POWER SUPPLY CORD	13	0	Meer info
2976735202	186	ELECTRONIC PCB ASSY.	0	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2977599019	197	DRAWER PANEL ASS.	13	1	Meer info
2977619009	200	PANEL ASSEMBLY	22	1	Meer info
2977560100	203	SELECTOR KNOB GR.	17	1	Meer info
2976959012	208	PANEL BODY.	21	1	Meer info
2966020200	338	CABLE CHANNEL	4	2	Meer info
2968680100	340	SPRING HOOK	2	1	Meer info
2968815100	341	METAL LOCK HOOK	6	1	Meer info
2967552400	401	FRONT PANEL (B2013)	31	1	Meer info
2966280100	510	KICK PLATE BUTTON	2	1	Meer info
2962350200	577	PUSH BUTTON SPRING	1	1	Meer info
2705870100	583	SELF LOCKING CABLE HOLDER	1	1	Meer info
2967020500	584	DRUM LIFTER	7	2	Meer info
2976530200	599	ELECTRONIC CARD ASSEMBLY	32	1	Meer info
2960311914	631	USERS MANUAL (EU LANGUAGES)	8	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	1	Meer info
2970830100	750	PCB HOLDER	9	1	Meer info
2973800300	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801400	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801200	804	REAR DRUM TIGHTNESS PLATE ASSY	16	1	Meer info
2978090100	817	COM_COOLING_SPG_FAN	19	0	Meer info
2978090200	817	COM_COOLING_KELI_FAN_MOTOR	22	0	Meer info
2978090300	817	COM_COOLING_KELI_FAN_2.8_TERMINAL	16	1	Meer info
2968410200	822	KICK PLATE-LEFT	10	1	Meer info
2978860300	826	NARROW BACK COVER W INSULATION	16	1	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2951900100	834	DRUM BEARNG ASS.	11	1	Meer info
2968030100	843	WATER TANK	15	1	Meer info
2961290200	844	DISCHARGING FUNNEL	2	1	Meer info
2968390100	845	KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT	8	1	Meer info
2974540100	846	AIR GUIDING PART SNAPPER	1	3	Meer info
2982230100	847	PLASTIC CHASIS ASSY (HP_LIGHT)	24	1	Meer info
2978100300	847	PLASTIC CHASIS ASSY	25	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	1	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330500	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2975290100	873	PCB HOLDER COVER(B13-BETTER)	8	1	Meer info
2977500200	877	PROCESS FAN (SIRIUS_HP_NONSINTER)	11	1	Meer info
2951061000	888	MICRO_SWITCH	7	1	Meer info
2951260100	897	POMP WATER TANK HOSE.	5	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2985320200	916	FILTER DRAWER ASSY (LIGHT)	11	1	Meer info
2961961000	932	SIDE PANEL	20	2	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2807962300	1003	CAPACITOR (ARCOTRONICS 15 uF)	13	1	Meer info
2962510600	1005	CONDENS PUMP	21	1	Meer info
2962510800	1005	CONDENS PUMP	18	0	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973904100	1046	REAR PANEL ASSY	24	1	Meer info
492204404	1077	PULLEY ASSY FOR SERVICE-ARES	19	1	Meer info
2982820100	1087	HOSE AND CABLE HOLDER OPPOSITE DIRECTION	1	2	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	6	Meer info
2962770300	1244	POMP COVER	7	1	Meer info
2979290100	1244	POMP COVER	7	0	Meer info
2988003801	1246	CABLE ASSEMBLY (SENSOR CABLE)	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2973102600	1256	SHAFT-FRONT BEARING ASSY	20	1	Meer info
2975680300	1259	COMBINED_FILTER_IN_ASSEMBLY	12	1	Meer info
2964660100	1260	PUMP FLOAT	1	1	Meer info
2968170100	1268	PROGRAMME LIGHT GUIDE (B13-BEST)	4	1	Meer info
2977320100	1269	SHADED_POLE_FAN	9	1	Meer info
2968795100	1278	METAL MIKROSWITCH PIN	5	1	Meer info
2982600300	1279	SENSOR CARRIER ASSY. COMPLETE	10	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2965590400	1290	DOOR GASKET	8	1	Meer info
2963120400	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	2	Meer info
2968050100	1303	WATER TANK CASE	13	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	4	Meer info
9002900200	1390	COUNTERSUNK HEAD SCREW (PT-4X14)	1	3	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210200	1401	MOTOR SHAFT SEAL	1	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	4	Meer info
2953741500	1453	SINGLE ADHESINE EPDM FOAM	4	1	Meer info
2963090300	1454	AIR GUIDING GASKET	8	1	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261000	1460	POMP WATER TANK HOSE.	6	1	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	1	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2977180100	1472	Button GUIDE	4	1	Meer info
2968540100	1473	LOCK HAUSING	2	1	Meer info
2966770100	1484	SIDE SUPPORT BRACKET RIGHT (60cm)	7	1	Meer info
2966140100	1485	SIDE SUPPORT BRACKET (60cm)	5	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2968370100	1489	UP HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2968380100	1490	DOWN HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2962340100	1491	SPRING BACK BUTTON	1	1	Meer info
2982920100	1492	TANK GUIDE CAP	3	1	Meer info
2964610100	1514	CHANNEL COVER	7	1	Meer info
2965090100	1522	KICK PLATE BUTTON SPRING	1	1	Meer info
2953760500	1523	SINGLE ADHES_NE PE FOAM.	3	1	Meer info
2974770100	1530	INNER COVER	15	1	Meer info
2964940100	1531	DOOR_GASKET	10	1	Meer info
2970550100	1532	ASSYMETRIC DOOR GLASS	19	1	Meer info
2974750200	1533	INNER INLAY	13	1	Meer info
2975740100	1534	OUTER DOOR RING	29	1	Meer info
2967110300	1540	POWER LED (230V)	19	1	Meer info
2966030100	1542	Card Holder	4	1	Meer info
2984004000	1546	CABLE ASSEMBLY	4	1	Meer info
2951261400	1569	POMP WATER TANK HOSE.	3	1	Meer info
2990607400	1572	DRYER MODULE	50	1	Meer info
2964970100	1573	TUBE INSULATION SPONGE(EVA-COND)	2	2	Meer info
2966990200	1587	CABLE TRAY	7	1	Meer info
2991900100	1591	LOCK HAUSING	6	1	Meer info
2981580100	1596	SEALED_MICROSWITCH_ASSY	11	1	Meer info
2974790100	1597	HINGE HOLDER	8	1	Meer info
2974780100	1598	HOOK HOLDER	7	1	Meer info
2975710400	1608	COMBINED FILTER OUTER PART GR.	11	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2974810100	2006	HINGE SUPPORT BRACKET	6	1	Meer info
2971339002	2010	ON/OFF BUTTON	3	1	Meer info
2975310100	2011	SPRING GUIDE	1	1	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2971110200	2016	DAMPING FOAM	1	1	Meer info
2975260100	2023	PCB HOLDER (VEKTOR)	7	1	Meer info
2975250100	2024	PCB HOLDER COVER (ATLAS)	7	1	Meer info
2994505020	2025	CABLE ASSEMBLY	11	1	Meer info
2981830100	2105	MICROSWITCH EDPM FOAM	1	1	Meer info
2953742600	2107	SINGLE ADHESINE EPDM FOAM	5	1	Meer info
5738890100	2111	FEERIT	7	2	Meer info
2974910100	2112	PROGRAMME_KNOB_LOCKING_PART	1	1	Meer info
2974760200	2113	INNER COVER	12	1	Meer info
2982370200	2170	Cleaning Brush	5	1	Meer info
2974870400	4210	INTERFERENCE FILTER	11	1	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	27	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	1	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	11	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	32	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	9	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	1	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	2	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
9001230300	8419	PLASTIC CLAMP 100 mm	1	1	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	6	Meer info
