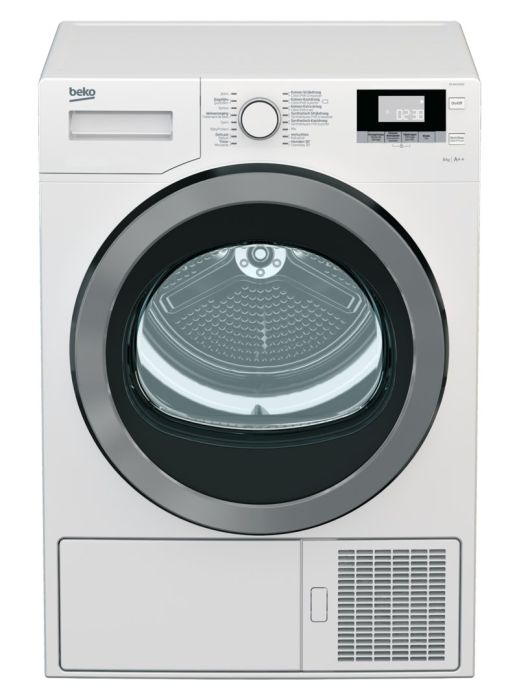

DE8434RX0 WARMTEPOMPWASDROGER

Artikelnr: 114338

Referentienr: DE8434RX0

Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)

Productomschrijving

8 kg Warmtepomp SENSOR DISPLAY 24u uitstel

Specificaties

Meer informatie
Hoogte	84.6
Breedte	59.5
Diepte	60.90
Gewicht (Kg)	51
ArtRef	DE8434RX0
AsogemID	114338
MPN	7188288060
Merk	BEKO
Going prijs	999,99
Soort	Warmtepomp wasdroger
ArtEAN	8690842034664

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
2988700700	1	TOP PLATE GR.	21	1	Meer info
2973570300	10	DOOR GROUP	31	1	Meer info
2968510200	14	HINGE_B13(IRREVERSIBLE)	12	1	Meer info
2973500100	18	ADJUSTABLE PLASTIC FOOT ASSY.	2	4	Meer info
9001230800	33	PLASTIC CLAMP 152 mm	1	6	Meer info
2960311146	43	USERS MANUAL (EU LANGUAGES)	5	1	Meer info
2985420300	48	DRUM ASSEMBLY	32	1	Meer info
2962470100	59	ELASTIC POLY-V BELT. 7PH 1956	14	1	Meer info
2963140400	63	DRYER MOTOR	35	1	Meer info
2972720400	166	MAIN CABLE ASSEMBLY (JABBA)	22	1	Meer info
2970444800	169	POWER SUPPLY CORD	15	0	Meer info
2970445300	169	POWER SUPPLY CORD	15	0	Meer info
2970446900	169	POWER SUPPLY CORD	15	0	Meer info
2971664601	186	ELECTRONIC PCB ASSY.	34	1	Meer info
491500303	189	POLY-V 285 H 4 MA BELT	10	1	Meer info
2993609030	197	DRAWER PANEL ASS.	10	1	Meer info
2972759002	200	PANEL ASSEMBLY	21	1	Meer info
2993202000	203	SELECTOR KNOB GR.	8	1	Meer info
2972749002	208	PANEL BODY.	20	1	Meer info
2979730300	341	LOCK HOOK	18	1	Meer info
265900012	374	OVEN LAMP 15 W-230 V	6	1	Meer info
2967552400	401	FRONT PANEL (B2013)	31	1	Meer info
2966280100	510	KICK PLATE BUTTON	2	1	Meer info
2962350200	577	PUSH BUTTON SPRING	1	1	Meer info
2967020500	584	DRUM LIFTER	7	2	Meer info
2960311147	631	USERS MANUAL (EU LANGUAGES)	5	1	Meer info
2962160100	632	HINGE BUSHING	1	4	Meer info
2807960400	653	CAPACITOR (ARCOTRONICS 8 uF)	11	2	Meer info
2807963000	653	CAPACITOR (BICAI 15 uF).	12	1	Meer info
2807963100	653	CAPACITOR (BICAI 8 uF).	10	1	Meer info
9003860200	658	SHEET METAL SCREW(SELF WASHER)	1	4	Meer info
2970830100	750	PCB HOLDER	9	1	Meer info
2964630100	798	EVAPORATOR FILTER CASSETTE LOCK	1	1	Meer info
2973800100	804	REAR DRUM TIGHTNESS PLATE ASSY	17	0	Meer info
2973800700	804	REAR DRUM TIGHTNESS PLATE ASSY	16	0	Meer info
2973801100	804	REAR DRUM TIGHTNESS PLATE ASSY	15	1	Meer info
2952070400	817	COMPRESSOR COOL FAN	22	1	Meer info
2968410200	822	KICK PLATE-LEFT	10	1	Meer info
2976670100	826	NARROW BACK COVER	13	1	Meer info
2966130100	827	FRONT PANEL SUPPORT BRACKET	7	1	Meer info
2951900100	834	DRUM BEARNG ASS.	11	1	Meer info
2960190100	842	CABLE HOLDER	2	2	Meer info
2968030100	843	WATER TANK	15	1	Meer info
2961290200	844	DISCHARGING FUNNEL	2	1	Meer info
2968390100	845	KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT	8	1	Meer info
2974860100	846	EASY FIX AIR GUIDING LOCKING HANDLE	7	1	Meer info
2978100100	847	PLASTIC CHASIS ASSY.	31	1	Meer info
2982230300	847	PLASTIC CHASIS ASSY (HP_SEMI_LIGHT)	25	1	Meer info
2974940100	856	HINGE PIN HOLDER (PLASTIC)	1	1	Meer info
2963150100	857	SPRING	4	1	Meer info
2963330100	861	FRONT SELING FELT	13	1	Meer info
2962650100	865	LAMP COVER	4	1	Meer info
2971390100	873	PCB HOLDER COVER(B13-BETTER)	8	1	Meer info
2977500200	877	PROCESS FAN (SIRIUS_HP_NONSINTER)	11	1	Meer info
2951061000	888	MICRO_SWITCH	7	1	Meer info
2951260100	897	POMP WATER TANK HOSE.	5	1	Meer info
2961190200	906	SPEC├ä┬░AL WASHER (8,1171,5)	1	1	Meer info
2975240100	916	EASY FIX FILTR DRAWER ASSY OMLD SPNG	19	1	Meer info
2961961000	932	SIDE PANEL	20	2	Meer info
2954700400	985	Micro Switch Ass.	10	1	Meer info
2973930100	990	COMPRESSOR TERMINAL COVER	5	1	Meer info
2973920100	991	COMPRESSOR BRACKET RUBBER FEET	3	3	Meer info
2964780500	1001	COMPRESSOR OVERALL PROTECTOR	11	1	Meer info
2807962300	1003	CAPACITOR (ARCOTRONICS 15 uF)	13	2	Meer info
2962510600	1005	CONDENS PUMP	21	1	Meer info
2962510800	1005	CONDENS PUMP	18	0	Meer info
2995200200	1028	LG COMPRESSOR SHEET ASSY.	8	1	Meer info
133000001	1044	WASHER 12x18x1 DIN 988..	1	2	Meer info
160200200	1045	ZEEGER 9x1 DIN 6799 DRCS68	2	1	Meer info
2973901800	1046	REAR PANEL ASSY	24	1	Meer info
2973350100	1064	EVAPORATOR FILTER CASSETTE GR WITH SPONG	8	2	Meer info
492204404	1077	PULLEY ASSY FOR SERVICE-ARES	19	1	Meer info
2963110100	1087	HOSE AND CABLE HOLDER	1	2	Meer info
9003271500	1214	PLASTIC SCREW (diameter 4x12) INOX	2	6	Meer info
2962770300	1244	POMP COVER	7	1	Meer info
2979290100	1244	POMP COVER	7	0	Meer info
2988003801	1246	CABLE ASSEMBLY (SENSOR CABLE)	5	1	Meer info
2960910300	1248	SILICONE GASKET	1	1	Meer info
2980703800	1249	CABLE ASSEMBLY	7	1	Meer info
2973100700	1256	SHAFT-FRONT BEARING ASSY	19	1	Meer info
2973380200	1259	TALL FILTER CASSETTE ASSY.	13	1	Meer info
2964660100	1260	PUMP FLOAT	1	1	Meer info
2968170100	1268	PROGRAMME LIGHT GUIDE (B13-BEST)	4	1	Meer info
2964950200	1269	FAN COVER	8	1	Meer info
2968580300	1278	MIKROSWITCH PIN	1	1	Meer info
2982600100	1279	SENSOR CARRIER ASSY.	13	1	Meer info
2960150100	1287	RUBBER STOPPER	2	1	Meer info
2965590400	1290	DOOR GASKET	8	1	Meer info
2963120400	1295	MOTOR BRACKET CLAMP (PLASTIC)	3	2	Meer info
2964990100	1300	RUBBER_GASKET	3	1	Meer info
2968050100	1303	WATER TANK CASE	13	1	Meer info
2705810300	1313	PT SCREW (3_5x8)	2	4	Meer info
9002900200	1390	COUNTERSUNK HEAD SCREW (PT-4X14)	1	3	Meer info
2974199002	1396	BUTTON ASSEMBLY	12	1	Meer info
2951780300	1398	DELTA PT VIDA 50x26 WN 5454 HB	1	6	Meer info
2962950100	1399	NTC GASKET	1	1	Meer info
2963210100	1401	MOTOR SHAFT SEAL	7	1	Meer info
2705810400	1417	PT SCREW (3_5x14)	1	2	Meer info
2964980100	1432	COMPRESSION SPRING	4	1	Meer info
2961690100	1440	ADJUSTABLE PLASTIC FOOT	1	4	Meer info
2953741500	1453	SINGLE ADHESINE EPDM FOAM	4	1	Meer info
2963090300	1454	AIR GUIDING GASKET	8	1	Meer info
2975650100	1455	SIDE WALL PIN	1	6	Meer info
2971900200	1457	NTC (EPCOS_12K)	9	0	Meer info
2971900300	1457	NTC	10	1	Meer info
2971900500	1457	NTC	8	0	Meer info
2974680200	1459	WHEEL (RUBBER)	11	1	Meer info
2987300200	1459	WHEEL (RUBBER)	11	1	Meer info
2951261000	1460	POMP WATER TANK HOSE.	6	1	Meer info
9001230500	1462	PLASTIC CLAMP	2	4	Meer info
9003272000	1466	PLASTIC SCREW (DIAMETER 4x10) INOX	1	1	Meer info
2953741100	1471	SINGLE ADHESINE EPDM FOAM.	1	1	Meer info
2977180100	1472	Button GUIDE	4	1	Meer info
2968540100	1473	LOCK HAUSING	2	1	Meer info
2974950100	1484	SIDE SUPPORT BRACKET RIGHT (60cm)	7	1	Meer info
2966140100	1485	SIDE SUPPORT BRACKET (60cm)	5	1	Meer info
2974470100	1486	SHAFT DRUM COVER	1	0	Meer info
2974470700	1486	SHAFT DRUM COVER SHC ALS	3	0	Meer info
2974470300	1486	SHAFT DRUM COVER	1	0	Meer info
2968370100	1489	UP HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2968380100	1490	DOWN HINGE GUIDE_B13-HOEM-BLG15	1	1	Meer info
2962340100	1491	SPRING BACK BUTTON	1	1	Meer info
2982920100	1492	TANK GUIDE CAP	3	1	Meer info
2973940100	1509	COMPRESSOR TERMINAL COVER GASKET	3	1	Meer info
2981220100	1510	HEAT EXCHANGER COVER GR	12	1	Meer info
2964640200	1513	LOCKING HANDLE COVER	1	3	Meer info
2964610100	1514	CHANNEL COVER	7	1	Meer info
2970710200	1515	TERM├ä┬░NAL(AMP)	1	1	Meer info
2965090100	1522	KICK PLATE BUTTON SPRING	1	1	Meer info
2953760500	1523	SINGLE ADHES_NE PE FOAM.	3	1	Meer info
2968460400	1530	INNER DOOR_(ARC722_PIANO_BLACK)	16	1	Meer info
2964940100	1531	DOOR_GASKET	10	1	Meer info
2970550100	1532	ASSYMETRIC DOOR GLASS	19	1	Meer info
2968470100	1533	INNER INLAY_(ARC722_PIANO_BLACK)	13	1	Meer info
2968450100	1534	TRANSPARENT_DOOR_COVER	18	1	Meer info
2968445000	1535	OUTER DOOR	18	1	Meer info
2951261400	1569	POMP WATER TANK HOSE.	3	1	Meer info
2990601900	1572	DRYER MODULE	45	1	Meer info
2964970100	1573	TUBE INSULATION SPONGE(EVA-COND)	2	4	Meer info
2966990100	1587	RACEWAY	5	1	Meer info
2991900100	1591	LOCK HAUSING	6	1	Meer info
2981580100	1596	SEALED_MICROSWITCH_ASSY	11	1	Meer info
2968480400	1597	HINGE HOLDER_(ARC722_PIANO_BLACK)	9	1	Meer info
2969260300	1598	HOOK HOLDER_(ARC722_PIANO_BLACK)	8	1	Meer info
2971900100	1741	NTC	10	0	Meer info
2970180100	2006	HINGE SUPPORT BRACKET	11	1	Meer info
2971320100	2011	BUTTON GUIDE B13-BETTER	4	1	Meer info
2970540100	2013	POWER PLUG HOLDER	2	1	Meer info
2971110200	2016	DAMPING FOAM	1	1	Meer info
2984003807	2018	CABLE ASSEMBLY	4	1	Meer info
2975193802	2099	CABLE ASSEMBLY	10	1	Meer info
2975193900	2100	CABLE ASSEMBLY	8	1	Meer info
2975210100	2101	GROUNDING CLAMP	1	1	Meer info
2975120100	2102	SOCKET COVER BLACKBOX	4	1	Meer info
2974960100	2103	BLACKBOX_SMALLER	6	1	Meer info
2981830100	2105	MICROSWITCH EDPM FOAM	1	1	Meer info
2953742700	2106	SINGLE ADHESINE EPDM FOAM	1	1	Meer info
2953742600	2107	SINGLE ADHESINE EPDM FOAM	5	1	Meer info
2974330100	2112	PROGRAMME KNOB LOCKING PART (B13_NEW)	1	1	Meer info
2975194000	2118	CABLE ASSEMBLY	4	1	Meer info
2975194100	2119	CABLE ASSEMBLY	5	1	Meer info
2963390300	4210	INTERFERENCE FILTER	13	1	Meer info
2974870200	4210	INTERFERENCE FILTER	10	1	Meer info
130500120	8314	SERRATED LOCK WASHER (A4.3 DIN 6798)	1	2	Meer info
100601520	8320	SHEET METAL SCREW (B4.2X13 DIN 7981-H)	1	2	Meer info
2960220100	8375	M4X10 TAPTITE SCREW	2	1	Meer info
9003270100	8384	PLASTIC SCREW (4_14)	1	41	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	1	Meer info
9003270500	8386	PLASTIC SCREW (4_12)	1	23	Meer info
9003610300	8392	sheet metal screw(B4_2x9_5-perforated)	1	2	Meer info
9003610100	8397	SHEET METAL SCREW(B4_2x9_5-perforated)	1	30	Meer info
9003670100	8398	SCREW FOR PLASTIC -4.5x12	1	2	Meer info
9003860300	8403	SHEET METAL SCREW	1	9	Meer info
120800120	8413	FIBERED_NUT_M6X1_DIN_985	1	4	Meer info
130600420	8414	WASHER_A_6_4x1_5_DIN_9021	1	3	Meer info
2826510200	8415	DOWEL PLASTIC CLAMP	1	3	Meer info
2963340100	8419	WASHERED NUT (M6x1)	1	2	Meer info
2963340400	8427	NUT M5 DIN6923	3	1	Meer info
2971870100	8428	MX10 RYSB PERFORATED SCREW	1	2	Meer info
2951780400	8434	DELTA PT SCREW	1	6	Meer info
2979380100	8436	CABLE HOLDER	1	1	Meer info
2979380500	8436	CABLE HOLDER	1	1	Meer info
