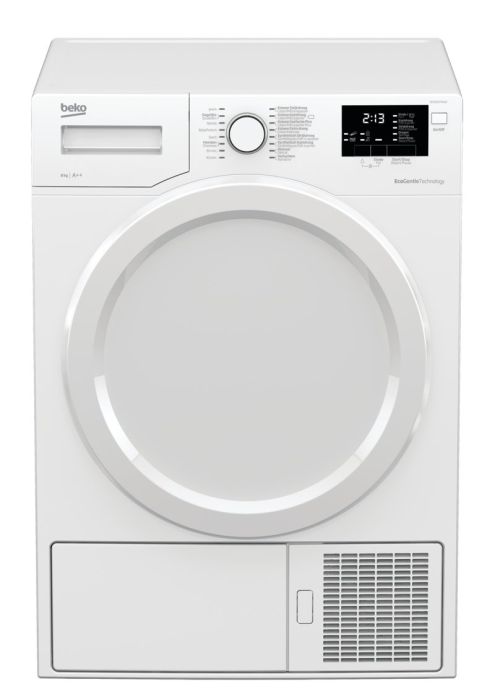

DE8433PA0W WARMTEPOMPWASDROGER

Artikelnr: 114192
Referentienr: DE8433PA0W
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

8 kg SENSOR Display
Meer informatie
Hoogte 84.6
Breedte 59.5
Diepte 60.9
Gewicht (Kg) 48.5
Jaarlijks verbruik (kWh) 230
Hoogte met verpakking 88.5
Breedte met verpakking 65
Diepte met verpakking 66.5
Gewicht VPE (Kg) 50
ArtRef DE8433PA0W
AsogemID 114192
MPN 7188285310
Merk BEKO
Going prijs 999,99
Soort Warmtepomp wasdroger
ArtEAN 8690842130762
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4809560200 0 FAN BLADE(NF-CCW-100MM_3.17I) 6 1 Meer info
2988700100 1 TOP PLATE GR. 20 1 Meer info
2995600100 10 FRONT DOOR ASSY. 22 1 Meer info
2969080100 12 INNER DOOR 16 1 Meer info
2977950100 14 HINGE 10 1 Meer info
2973500100 18 ADJUSTABLE PLASTIC FOOT ASSY. 2 4 Meer info
9001230800 33 PLASTIC CLAMP 152 mm 1 7 Meer info
2960311507 43 USERS MANUAL (EU LANGUAGES) 7 1 Meer info
2985422800 48 DRUM ASSEMBLY 29 1 Meer info
2962470100 59 ELASTIC POLY-V BELT. 7PH 1956 14 1 Meer info
2963141400 63 DRYER MOTOR 33 1 Meer info
2975183500 166 MAIN CABLE ASSEMBLY (BLACK_BOX_ORION) 23 1 Meer info
2970445100 169 POWER SUPPLY CORD 15 0 Meer info
2970445500 169 POWER SUPPLY CORD 14 0 Meer info
2970447000 169 POWER SUPPLY CORD 13 0 Meer info
2969832303 186 ELECTRONIC PCB ASSY. 30 1 Meer info
491500303 189 POLY-V 285 H 4 MA BELT 10 1 Meer info
2993609062 197 DRAWER PANEL ASS. 10 1 Meer info
2995409130 200 PANEL ASSEMBLY 21 1 Meer info
2993201600 203 SELECTOR KNOB GR. 6 1 Meer info
2995309129 208 PANEL BODY. 17 1 Meer info
2969090100 339 OUTER DOOR 16 1 Meer info
2962150100 341 LOCK HOOK 1 1 Meer info
2967551900 401 FRONT PANEL (B2013) 32 1 Meer info
2969820100 481 ENCODER_CARD 17 1 Meer info
2966280100 510 KICK PLATE BUTTON 2 1 Meer info
2962350200 577 PUSH BUTTON SPRING 1 1 Meer info
2967020500 584 DRUM LIFTER 7 2 Meer info
2960311508 631 USERS MANUAL (EU LANGUAGES) 6 1 Meer info
2962160100 632 HINGE BUSHING 1 4 Meer info
2807960400 653 CAPACITOR (ARCOTRONICS 8 uF) 11 1 Meer info
2807963000 653 CAPACITOR (BICAI 15 uF). 12 1 Meer info
2807963100 653 CAPACITOR (BICAI 8 uF). 10 1 Meer info
9003860200 658 SHEET METAL SCREW(SELF WASHER) 1 4 Meer info
2969040100 750 PCB HOLDER 12 1 Meer info
2964630100 798 EVAPORATOR FILTER CASSETTE LOCK 1 1 Meer info
2973800100 804 REAR DRUM TIGHTNESS PLATE ASSY 17 0 Meer info
2973800700 804 REAR DRUM TIGHTNESS PLATE ASSY 16 0 Meer info
2973801100 804 REAR DRUM TIGHTNESS PLATE ASSY 15 1 Meer info
2978090100 817 COM_COOLING_SPG_FAN 19 0 Meer info
2978090200 817 COM_COOLING_KELI_FAN_MOTOR 22 0 Meer info
2978090300 817 COM_COOLING_KELI_FAN_2.8_TERMINAL 16 1 Meer info
2968410200 822 KICK PLATE-LEFT 10 1 Meer info
2976670100 826 NARROW BACK COVER 13 1 Meer info
2966130100 827 FRONT PANEL SUPPORT BRACKET 7 1 Meer info
2951900100 834 DRUM BEARNG ASS. 11 1 Meer info
2960190100 842 CABLE HOLDER 2 2 Meer info
2968030100 843 WATER TANK 15 1 Meer info
2961290200 844 DISCHARGING FUNNEL 2 1 Meer info
2968390100 845 KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT 8 1 Meer info
2974540100 846 AIR GUIDING PART SNAPPER 1 3 Meer info
2978100100 847 PLASTIC CHASIS ASSY. 31 1 Meer info
2982230300 847 PLASTIC CHASIS ASSY (HP_SEMI_LIGHT) 25 1 Meer info
2974940100 856 HINGE PIN HOLDER (PLASTIC) 1 1 Meer info
2963150100 857 SPRING 4 1 Meer info
2963330400 861 FRONT SELING FELT 13 1 Meer info
2969030100 873 PCB HOLDER COVER 10 1 Meer info
2977500200 877 PROCESS FAN (SIRIUS_HP_NONSINTER) 11 1 Meer info
2951060600 888 MICRO SWITCH 7 0 Meer info
2951060700 888 MICRO_SWITCH 8 0 Meer info
2951061000 888 MICRO_SWITCH 7 0 Meer info
2951260100 897 POMP WATER TANK HOSE. 5 1 Meer info
2961190200 906 SPECÄ°AL WASHER (8,1*17*1,5) 1 1 Meer info
2977430800 916 FILTER DRAWER ASSY 14 1 Meer info
2961961000 932 SIDE PANEL 20 2 Meer info
2951580200 970 PT SCREW (6x30) 2 2 Meer info
2954700400 985 Micro Switch Ass. 10 1 Meer info
2973920100 991 COMPRESSOR BRACKET RUBBER FEET 3 3 Meer info
2807962300 1003 CAPACITOR (ARCOTRONICS 15 uF) 13 1 Meer info
2962510600 1005 CONDENS PUMP 21 1 Meer info
2962510800 1005 CONDENS PUMP 18 0 Meer info
2995200200 1028 LG COMPRESSOR SHEET ASSY. 8 1 Meer info
133000001 1044 WASHER 12x18x1 DIN 988.. 1 2 Meer info
160200200 1045 ZEEGER 9x1 DIN 6799 DRCS68 2 1 Meer info
2973901800 1046 REAR PANEL ASSY 24 1 Meer info
2964840200 1064 EVAPORATOR FILTER SPONGE 6 2 Meer info
492204404 1077 PULLEY ASSY FOR SERVICE-ARES 19 1 Meer info
2963110100 1087 HOSE AND CABLE HOLDER 1 2 Meer info
2969500300 1209 LOCK BODY ASS_(SPRING_WIRE_DIA_1_4) 8 1 Meer info
9003271500 1214 PLASTIC SCREW (diameter 4x12) INOX 2 6 Meer info
2962770300 1244 POMP COVER 7 1 Meer info
2979290100 1244 POMP COVER 7 0 Meer info
2971703502 1246 CABLE ASSEMBLY 5 1 Meer info
2973102000 1256 SHAFT-FRONT BEARING ASSY 19 1 Meer info
2973380400 1259 TALL FILTER CASSETTE ASSY. 11 1 Meer info
2964660100 1260 PUMP FLOAT 1 1 Meer info
2968170100 1268 PROGRAMME LIGHT GUIDE (B13-BEST) 4 1 Meer info
2977320100 1269 SHADED_POLE_FAN 9 1 Meer info
2982600300 1279 SENSOR CARRIER ASSY. COMPLETE 10 1 Meer info
2960150100 1287 RUBBER STOPPER 2 1 Meer info
2962590100 1290 DOOR GASKET 8 1 Meer info
2963120400 1295 MOTOR BRACKET CLAMP (PLASTIC) 3 2 Meer info
2968050100 1303 WATER TANK CASE 13 1 Meer info
2705810300 1313 PT SCREW (3_5x8) 2 4 Meer info
9002900200 1390 COUNTERSUNK HEAD SCREW (PT-4X14) 1 3 Meer info
2951780300 1398 DELTA PT VIDA 50x26 WN 5454 HB 1 6 Meer info
2962950100 1399 NTC GASKET 1 1 Meer info
2963210100 1401 MOTOR SHAFT SEAL 7 1 Meer info
2705810400 1417 PT SCREW (3_5x14) 1 2 Meer info
2964980100 1432 COMPRESSION SPRING 4 1 Meer info
2961690100 1440 ADJUSTABLE PLASTIC FOOT 1 4 Meer info
2953741500 1453 SINGLE ADHESINE EPDM FOAM 4 1 Meer info
2963090300 1454 AIR GUIDING GASKET 8 1 Meer info
2975650100 1455 SIDE WALL PIN 1 6 Meer info
2971900200 1457 NTC (EPCOS_12K) 9 0 Meer info
2971900300 1457 NTC 10 1 Meer info
2971900500 1457 NTC 8 0 Meer info
2974680200 1459 WHEEL (RUBBER) 11 1 Meer info
2987300200 1459 WHEEL (RUBBER) 11 1 Meer info
2951261000 1460 POMP WATER TANK HOSE. 6 1 Meer info
9001230500 1462 PLASTIC CLAMP 2 1 Meer info
2953741100 1471 SINGLE ADHESINE EPDM FOAM. 1 1 Meer info
2977180100 1472 Button GUIDE 4 1 Meer info
2962390100 1473 LOCK MOUTH 1 1 Meer info
2974950100 1484 SIDE SUPPORT BRACKET RIGHT (60cm) 7 1 Meer info
2966140100 1485 SIDE SUPPORT BRACKET (60cm) 5 1 Meer info
2974470100 1486 SHAFT DRUM COVER 1 0 Meer info
2974470700 1486 SHAFT DRUM COVER SHC ALS 3 0 Meer info
2974470300 1486 SHAFT DRUM COVER 1 0 Meer info
2968370100 1489 UP HINGE GUIDE_B13-HOEM-BLG15 1 1 Meer info
2968380100 1490 DOWN HINGE GUIDE_B13-HOEM-BLG15 1 1 Meer info
2962340100 1491 SPRING BACK BUTTON 1 1 Meer info
2982920100 1492 TANK GUIDE CAP 3 1 Meer info
2981220100 1510 HEAT EXCHANGER COVER GR 12 1 Meer info
2964610100 1514 CHANNEL COVER 7 1 Meer info
2965090100 1522 KICK PLATE BUTTON SPRING 1 1 Meer info
2953760500 1523 SINGLE ADHES_NE PE FOAM. 3 1 Meer info
2994503900 1541 CABLE ASSEMBLY 7 1 Meer info
2951261400 1569 POMP WATER TANK HOSE. 3 1 Meer info
2990603600 1572 DRYER MODULE 44 1 Meer info
2964970100 1573 TUBE INSULATION SPONGE(EVA-COND) 2 4 Meer info
2984003810 1595 CABLE ASSEMBLY 2 1 Meer info
2971900100 1741 NTC 10 0 Meer info
2971110200 2016 DAMPING FOAM 1 1 Meer info
2975193802 2099 CABLE ASSEMBLY 10 1 Meer info
2975193900 2100 CABLE ASSEMBLY 8 1 Meer info
2975210100 2101 GROUNDING CLAMP 1 1 Meer info
2975120100 2102 SOCKET COVER BLACKBOX 4 1 Meer info
2974960100 2103 BLACKBOX_SMALLER 6 1 Meer info
2953742700 2106 SINGLE ADHESINE EPDM FOAM 1 1 Meer info
2953742600 2107 SINGLE ADHESINE EPDM FOAM 5 1 Meer info
2974330100 2112 PROGRAMME KNOB LOCKING PART (B13_NEW) 1 1 Meer info
2975194000 2118 CABLE ASSEMBLY 4 1 Meer info
2975194100 2119 CABLE ASSEMBLY 5 1 Meer info
1883880400 4210 EMC FILTER 8 1 Meer info
130500120 8314 SERRATED LOCK WASHER (A4.3 DIN 6798) 1 1 Meer info
100601520 8320 SHEET METAL SCREW (B4.2X13 DIN 7981-H) 1 2 Meer info
2960220100 8375 M4X10 TAPTITE SCREW 2 1 Meer info
9003270100 8384 PLASTIC SCREW (4_14) 1 15 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 8 Meer info
9003270500 8386 PLASTIC SCREW (4_12) 1 20 Meer info
9003610300 8392 sheet metal screw(B4_2x9_5-perforated) 1 2 Meer info
9003610100 8397 SHEET METAL SCREW(B4_2x9_5-perforated) 1 28 Meer info
9003670100 8398 SCREW FOR PLASTIC -4.5x12 1 2 Meer info
9003860300 8403 SHEET METAL SCREW 1 9 Meer info
120800120 8413 FIBERED_NUT_M6X1_DIN_985 1 4 Meer info
130600420 8414 WASHER_A_6_4x1_5_DIN_9021 1 3 Meer info
2826510200 8415 DOWEL PLASTIC CLAMP 1 3 Meer info
2963340100 8419 WASHERED NUT (M6x1) 1 2 Meer info
2971870100 8428 MX10 RYSB PERFORATED SCREW 1 2 Meer info
2951780400 8434 DELTA PT SCREW 1 4 Meer info
2979380100 8436 CABLE HOLDER 1 1 Meer info
2979380500 8436 CABLE HOLDER 1 1 Meer info
Mode d'emploi (4.34 MB)
Handleiding (4.34 MB)
