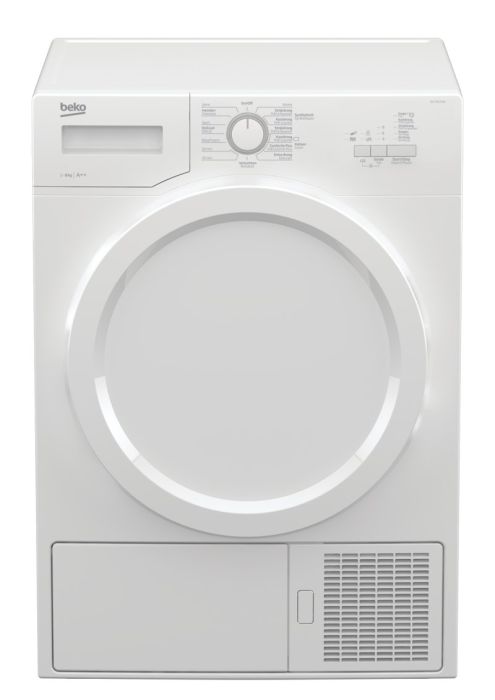

DE8431PA0 WARMTEPOMPWASDROGER
Artikelnr:
114202
Referentienr:
DE8431PA0
Aanbevolen verkoopprijs:
€ 999,99
(BTW & recupel inbegrepen)
Productomschrijving
8 kg SENSOR LED
| Hoogte | 84.6 |
|---|---|
| Breedte | 59.5 |
| Diepte | 60.9 |
| Gewicht (Kg) | 48.5 |
| Jaarlijks verbruik (kWh) | 230 |
| Hoogte met verpakking | 88.5 |
| Breedte met verpakking | 65 |
| Diepte met verpakking | 66.5 |
| Gewicht VPE (Kg) | 50 |
| ArtRef | DE8431PA0 |
| AsogemID | 114202 |
| MPN | 7188285260 |
| Merk | BEKO |
| Going prijs | 999,99 |
| Soort | Warmtepomp wasdroger |
| ArtEAN | 8690842107306 |
EXPLODED VIEWS
ONDERDELEN
| Onderdeelnr | Nr | Omschrijving | Prijscode | Aantal | Alternatief onderdeel | |||
|---|---|---|---|---|---|---|---|---|
| 2973010100 | 0 | START PAUSE BUTTON | 4 | 1 | Meer info | |||
| 2973020100 | 0 | FUNCTION BUTTON | 4 | 1 | Meer info | |||
| 2973030100 | 0 | FUNCTION BUTTON | 4 | 1 | Meer info | |||
| 4809560200 | 0 | FAN BLADE(NF-CCW-100MM_3.17I) | 6 | 1 | Meer info | |||
| 2988700100 | 1 | TOP PLATE GR. | 20 | 1 | Meer info | |||
| 2995600100 | 10 | FRONT DOOR ASSY. | 22 | 1 | Meer info | |||
| 2969080100 | 12 | INNER DOOR | 16 | 1 | Meer info | |||
| 2977950100 | 14 | HINGE | 10 | 1 | Meer info | |||
| 2973500100 | 18 | ADJUSTABLE PLASTIC FOOT ASSY. | 2 | 4 | Meer info | |||
| 9001230800 | 33 | PLASTIC CLAMP 152 mm | 1 | 7 | Meer info | |||
| 2960311463 | 43 | USERS MANUAL (EU LANGUAGES) | 10 | 1 | Meer info | |||
| 2985422800 | 48 | DRUM ASSEMBLY | 29 | 1 | Meer info | |||
| 2962470100 | 59 | ELASTIC POLY-V BELT. 7PH 1956 | 14 | 1 | Meer info | |||
| 2963141400 | 63 | DRYER MOTOR | 33 | 1 | Meer info | |||
| 2975183500 | 166 | MAIN CABLE ASSEMBLY (BLACK_BOX_ORION) | 23 | 1 | Meer info | |||
| 2970445100 | 169 | POWER SUPPLY CORD | 15 | 0 | Meer info | |||
| 2970445500 | 169 | POWER SUPPLY CORD | 14 | 0 | Meer info | |||
| 2970447000 | 169 | POWER SUPPLY CORD | 13 | 0 | Meer info | |||
| 2969832401 | 186 | ELECTRONIC PCB ASSY. | 31 | 1 | Meer info | |||
| 491500303 | 189 | POLY-V 285 H 4 MA BELT | 10 | 1 | Meer info | |||
| 2993609062 | 197 | DRAWER PANEL ASS. | 10 | 1 | Meer info | |||
| 2995809020 | 200 | PANEL ASSEMBLY | 18 | 1 | Meer info | |||
| 2996000200 | 203 | PROGRAMME KNOB ASSY.(B13_B7S) | 10 | 1 | Meer info | |||
| 2995709019 | 208 | PANEL BODY. | 15 | 1 | Meer info | |||
| 2969090100 | 339 | OUTER DOOR | 16 | 1 | Meer info | |||
| 2962150100 | 341 | LOCK HOOK | 1 | 1 | Meer info | |||
| 2967551900 | 401 | FRONT PANEL (B2013) | 32 | 1 | Meer info | |||
| 2966280100 | 510 | KICK PLATE BUTTON | 2 | 1 | Meer info | |||
| 2962350200 | 577 | PUSH BUTTON SPRING | 1 | 1 | Meer info | |||
| 2967020500 | 584 | DRUM LIFTER | 7 | 2 | Meer info | |||
| 2960311464 | 631 | USERS MANUAL (EU LANGUAGES) | 10 | 1 | Meer info | |||
| 2962160100 | 632 | HINGE BUSHING | 1 | 4 | Meer info | |||
| 2807960400 | 653 | CAPACITOR (ARCOTRONICS 8 uF) | 11 | 1 | Meer info | |||
| 2807963000 | 653 | CAPACITOR (BICAI 15 uF). | 12 | 1 | Meer info | |||
| 2807963100 | 653 | CAPACITOR (BICAI 8 uF). | 10 | 1 | Meer info | |||
| 9003860200 | 658 | SHEET METAL SCREW(SELF WASHER) | 1 | 4 | Meer info | |||
| 2969040100 | 750 | PCB HOLDER | 12 | 1 | Meer info | |||
| 2964630100 | 798 | EVAPORATOR FILTER CASSETTE LOCK | 1 | 1 | Meer info | |||
| 2973800100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 17 | 0 | Meer info | |||
| 2973800700 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 16 | 0 | Meer info | |||
| 2973801100 | 804 | REAR DRUM TIGHTNESS PLATE ASSY | 15 | 1 | Meer info | |||
| 2978090100 | 817 | COM_COOLING_SPG_FAN | 19 | 0 | Meer info | |||
| 2978090200 | 817 | COM_COOLING_KELI_FAN_MOTOR | 22 | 0 | Meer info | |||
| 2978090300 | 817 | COM_COOLING_KELI_FAN_2.8_TERMINAL | 16 | 1 | Meer info | |||
| 2968410200 | 822 | KICK PLATE-LEFT | 10 | 1 | Meer info | |||
| 2976670100 | 826 | NARROW BACK COVER | 13 | 1 | Meer info | |||
| 2966130100 | 827 | FRONT PANEL SUPPORT BRACKET | 7 | 1 | Meer info | |||
| 2951900100 | 834 | DRUM BEARNG ASS. | 11 | 1 | Meer info | |||
| 2960190100 | 842 | CABLE HOLDER | 2 | 2 | Meer info | |||
| 2968030100 | 843 | WATER TANK | 15 | 1 | Meer info | |||
| 2961290200 | 844 | DISCHARGING FUNNEL | 2 | 1 | Meer info | |||
| 2968390100 | 845 | KICK PLATE - RIGHT(BEKO_2013_ARC P1 WHIT | 8 | 1 | Meer info | |||
| 2974540100 | 846 | AIR GUIDING PART SNAPPER | 1 | 3 | Meer info | |||
| 2978100100 | 847 | PLASTIC CHASIS ASSY. | 31 | 1 | Meer info | |||
| 2982230300 | 847 | PLASTIC CHASIS ASSY (HP_SEMI_LIGHT) | 25 | 1 | Meer info | |||
| 2974940100 | 856 | HINGE PIN HOLDER (PLASTIC) | 1 | 1 | Meer info | |||
| 2963150100 | 857 | SPRING | 4 | 1 | Meer info | |||
| 2963330400 | 861 | FRONT SELING FELT | 13 | 1 | Meer info | |||
| 2969330100 | 873 | PCB HOLDER COVER | 10 | 1 | Meer info | |||
| 2977500200 | 877 | PROCESS FAN (SIRIUS_HP_NONSINTER) | 11 | 1 | Meer info | |||
| 2951060600 | 888 | MICRO SWITCH | 7 | 0 | Meer info | |||
| 2951060700 | 888 | MICRO_SWITCH | 8 | 0 | Meer info | |||
| 2951061000 | 888 | MICRO_SWITCH | 7 | 0 | Meer info | |||
| 2951260100 | 897 | POMP WATER TANK HOSE. | 5 | 1 | Meer info | |||
| 2961190200 | 906 | SPECÄ°AL WASHER (8,1*17*1,5) | 1 | 1 | Meer info | |||
| 2977430800 | 916 | FILTER DRAWER ASSY | 14 | 1 | Meer info | |||
| 2961961000 | 932 | SIDE PANEL | 20 | 2 | Meer info | |||
| 2951580200 | 970 | PT SCREW (6x30) | 2 | 2 | Meer info | |||
| 2954700400 | 985 | Micro Switch Ass. | 10 | 1 | Meer info | |||
| 2973920100 | 991 | COMPRESSOR BRACKET RUBBER FEET | 3 | 3 | Meer info | |||
| 2807962300 | 1003 | CAPACITOR (ARCOTRONICS 15 uF) | 13 | 1 | Meer info | |||
| 2962510600 | 1005 | CONDENS PUMP | 21 | 1 | Meer info | |||
| 2962510800 | 1005 | CONDENS PUMP | 18 | 0 | Meer info | |||
| 2995200200 | 1028 | LG COMPRESSOR SHEET ASSY. | 8 | 1 | Meer info | |||
| 133000001 | 1044 | WASHER 12x18x1 DIN 988.. | 1 | 2 | Meer info | |||
| 160200200 | 1045 | ZEEGER 9x1 DIN 6799 DRCS68 | 2 | 1 | Meer info | |||
| 2973901800 | 1046 | REAR PANEL ASSY | 24 | 1 | Meer info | |||
| 2964840200 | 1064 | EVAPORATOR FILTER SPONGE | 6 | 2 | Meer info | |||
| 492204404 | 1077 | PULLEY ASSY FOR SERVICE-ARES | 19 | 1 | Meer info | |||
| 2963110100 | 1087 | HOSE AND CABLE HOLDER | 1 | 2 | Meer info | |||
| 2969500300 | 1209 | LOCK BODY ASS_(SPRING_WIRE_DIA_1_4) | 8 | 1 | Meer info | |||
| 9003271500 | 1214 | PLASTIC SCREW (diameter 4x12) INOX | 2 | 6 | Meer info | |||
| 2962770300 | 1244 | POMP COVER | 7 | 1 | Meer info | |||
| 2979290100 | 1244 | POMP COVER | 7 | 0 | Meer info | |||
| 2971703502 | 1246 | CABLE ASSEMBLY | 5 | 1 | Meer info | |||
| 2973102000 | 1256 | SHAFT-FRONT BEARING ASSY | 19 | 1 | Meer info | |||
| 2982200400 | 1259 | ASYMMETRIC FILTER CASSETTE ASSY. | 12 | 1 | Meer info | |||
| 2964660100 | 1260 | PUMP FLOAT | 1 | 1 | Meer info | |||
| 2977320100 | 1269 | SHADED_POLE_FAN | 9 | 1 | Meer info | |||
| 2982600300 | 1279 | SENSOR CARRIER ASSY. COMPLETE | 10 | 1 | Meer info | |||
| 2960150100 | 1287 | RUBBER STOPPER | 2 | 1 | Meer info | |||
| 2962590100 | 1290 | DOOR GASKET | 8 | 1 | Meer info | |||
| 2963120400 | 1295 | MOTOR BRACKET CLAMP (PLASTIC) | 3 | 2 | Meer info | |||
| 2968050100 | 1303 | WATER TANK CASE | 13 | 1 | Meer info | |||
| 2705810300 | 1313 | PT SCREW (3_5x8) | 2 | 4 | Meer info | |||
| 9002900200 | 1390 | COUNTERSUNK HEAD SCREW (PT-4X14) | 1 | 3 | Meer info | |||
| 2951780300 | 1398 | DELTA PT VIDA 50x26 WN 5454 HB | 1 | 6 | Meer info | |||
| 2962950100 | 1399 | NTC GASKET | 1 | 1 | Meer info | |||
| 2963210100 | 1401 | MOTOR SHAFT SEAL | 7 | 1 | Meer info | |||
| 2705810400 | 1417 | PT SCREW (3_5x14) | 1 | 2 | Meer info | |||
| 2964980100 | 1432 | COMPRESSION SPRING | 4 | 1 | Meer info | |||
| 2961690100 | 1440 | ADJUSTABLE PLASTIC FOOT | 1 | 4 | Meer info | |||
| 2953741500 | 1453 | SINGLE ADHESINE EPDM FOAM | 4 | 1 | Meer info | |||
| 2963090300 | 1454 | AIR GUIDING GASKET | 8 | 1 | Meer info | |||
| 2975650100 | 1455 | SIDE WALL PIN | 1 | 6 | Meer info | |||
| 2971900200 | 1457 | NTC (EPCOS_12K) | 9 | 0 | Meer info | |||
| 2971900300 | 1457 | NTC | 10 | 1 | Meer info | |||
| 2971900500 | 1457 | NTC | 8 | 0 | Meer info | |||
| 2974680200 | 1459 | WHEEL (RUBBER) | 11 | 1 | Meer info | |||
| 2987300200 | 1459 | WHEEL (RUBBER) | 11 | 1 | Meer info | |||
| 2951261000 | 1460 | POMP WATER TANK HOSE. | 6 | 1 | Meer info | |||
| 9001230500 | 1462 | PLASTIC CLAMP | 2 | 4 | Meer info | |||
| 2953741100 | 1471 | SINGLE ADHESINE EPDM FOAM. | 1 | 1 | Meer info | |||
| 2977180100 | 1472 | Button GUIDE | 4 | 1 | Meer info | |||
| 2962390100 | 1473 | LOCK MOUTH | 1 | 1 | Meer info | |||
| 2974950100 | 1484 | SIDE SUPPORT BRACKET RIGHT (60cm) | 7 | 1 | Meer info | |||
| 2966140100 | 1485 | SIDE SUPPORT BRACKET (60cm) | 5 | 1 | Meer info | |||
| 2974470100 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2974470700 | 1486 | SHAFT DRUM COVER SHC ALS | 3 | 0 | Meer info | |||
| 2974470300 | 1486 | SHAFT DRUM COVER | 1 | 0 | Meer info | |||
| 2968370100 | 1489 | UP HINGE GUIDE_B13-HOEM-BLG15 | 1 | 1 | Meer info | |||
| 2968380100 | 1490 | DOWN HINGE GUIDE_B13-HOEM-BLG15 | 1 | 1 | Meer info | |||
| 2962340100 | 1491 | SPRING BACK BUTTON | 1 | 1 | Meer info | |||
| 2982920100 | 1492 | TANK GUIDE CAP | 3 | 1 | Meer info | |||
| 2981220100 | 1510 | HEAT EXCHANGER COVER GR | 12 | 1 | Meer info | |||
| 2964610100 | 1514 | CHANNEL COVER | 7 | 1 | Meer info | |||
| 2965090100 | 1522 | KICK PLATE BUTTON SPRING | 1 | 1 | Meer info | |||
| 2953760500 | 1523 | SINGLE ADHES_NE PE FOAM. | 3 | 1 | Meer info | |||
| 2951261400 | 1569 | POMP WATER TANK HOSE. | 3 | 1 | Meer info | |||
| 2990603600 | 1572 | DRYER MODULE | 44 | 1 | Meer info | |||
| 2964970100 | 1573 | TUBE INSULATION SPONGE(EVA-COND) | 2 | 4 | Meer info | |||
| 2984003810 | 1595 | CABLE ASSEMBLY | 2 | 1 | Meer info | |||
| 2971900100 | 1741 | NTC | 10 | 0 | Meer info | |||
| 2969020100 | 2011 | LIGHT GUIDE SET | 6 | 1 | Meer info | |||
| 2971110200 | 2016 | DAMPING FOAM | 1 | 1 | Meer info | |||
| 2975193802 | 2099 | CABLE ASSEMBLY | 10 | 1 | Meer info | |||
| 2975193900 | 2100 | CABLE ASSEMBLY | 8 | 1 | Meer info | |||
| 2975210100 | 2101 | GROUNDING CLAMP | 1 | 1 | Meer info | |||
| 2975120100 | 2102 | SOCKET COVER BLACKBOX | 4 | 1 | Meer info | |||
| 2974960100 | 2103 | BLACKBOX_SMALLER | 6 | 1 | Meer info | |||
| 2953742700 | 2106 | SINGLE ADHESINE EPDM FOAM | 1 | 1 | Meer info | |||
| 2953742600 | 2107 | SINGLE ADHESINE EPDM FOAM | 5 | 1 | Meer info | |||
| 2975194000 | 2118 | CABLE ASSEMBLY | 4 | 1 | Meer info | |||
| 2975194100 | 2119 | CABLE ASSEMBLY | 5 | 1 | Meer info | |||
| 2963390300 | 4210 | INTERFERENCE FILTER | 13 | 1 | Meer info | |||
| 130500120 | 8314 | SERRATED LOCK WASHER (A4.3 DIN 6798) | 1 | 1 | Meer info | |||
| 100601520 | 8320 | SHEET METAL SCREW (B4.2X13 DIN 7981-H) | 1 | 2 | Meer info | |||
| 2960220100 | 8375 | M4X10 TAPTITE SCREW | 2 | 1 | Meer info | |||
| 9003270100 | 8384 | PLASTIC SCREW (4_14) | 1 | 15 | Meer info | |||
| 9003270400 | 8385 | PLASTIC SCREW (4_10) | 1 | 8 | Meer info | |||
| 9003270500 | 8386 | PLASTIC SCREW (4_12) | 1 | 20 | Meer info | |||
| 9003610300 | 8392 | sheet metal screw(B4_2x9_5-perforated) | 1 | 2 | Meer info | |||
| 9003610100 | 8397 | SHEET METAL SCREW(B4_2x9_5-perforated) | 1 | 28 | Meer info | |||
| 9003670100 | 8398 | SCREW FOR PLASTIC -4.5x12 | 1 | 2 | Meer info | |||
| 9003860300 | 8403 | SHEET METAL SCREW | 1 | 9 | Meer info | |||
| 120800120 | 8413 | FIBERED_NUT_M6X1_DIN_985 | 1 | 4 | Meer info | |||
| 130600420 | 8414 | WASHER_A_6_4x1_5_DIN_9021 | 1 | 3 | Meer info | |||
| 2826510200 | 8415 | DOWEL PLASTIC CLAMP | 1 | 3 | Meer info | |||
| 2963340100 | 8419 | WASHERED NUT (M6x1) | 1 | 2 | Meer info | |||
| 2971870100 | 8428 | MX10 RYSB PERFORATED SCREW | 1 | 2 | Meer info | |||
| 2951780400 | 8434 | DELTA PT SCREW | 1 | 4 | Meer info | |||
| 2979380100 | 8436 | CABLE HOLDER | 1 | 1 | Meer info | |||
| 2979380500 | 8436 | CABLE HOLDER | 1 | 1 | Meer info |
