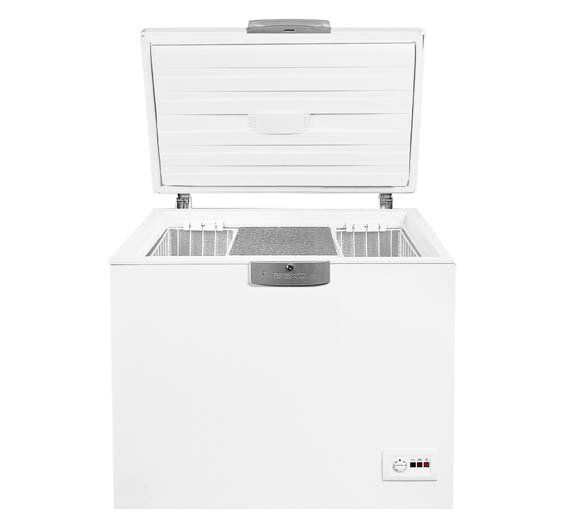

HSA32520 VRIESKOFFER SUPER ISOLATIE

Artikelnr: 114668
Referentienr: HSA32520
Aanbevolen verkoopprijs: € 379,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

****298L 68X110X72.5 CM
Meer informatie
Verpakkingseenheid 1
Jaarlijks verbruik (kWh) 285
ArtRef HSA32520
AsogemID 114668
MPN 7509420043
Merk BEKO
Going prijs 379,99
Soort Diepvrieskoffer/-kist
ArtEAN 5944008911973
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4913131200 30 COMPRESSOR_PZ75E1B (220-240 V) 32 1 Meer info
4361198400 30 COMPRESSOR JIAXIPERA TG 1112_YL 38 0 Meer info
4913130900 30 COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a 32 0 Meer info
4913130400 30 COMPRESSOR_PZ75H1X_220-240 V_R600a 36 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
5731440500 39 COMBO_PTC_RELAY_GMCC_PZ75E1B 15 0 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4930970800 39 COMBO UNIT_PZ99H1C_PZ75E1B_GMCC_AL 15 1 Meer info
4930970600 39 ELECTRICAL ACCESSORIES GMCC PZ75H1C AL 18 0 Meer info
5930870300 39 COMBO UNIT 10LPC GMCC 18 0 Meer info
4930970400 39 COMBO UNIT GMCC 19 0 Meer info
4502020004 93 3-WAYS DRYER (CAP TUBE FI 1.9mm) 9 0 Meer info
4652880100 216 Charging tube II 100mm Restrans 0 1 Meer info
4537200100 342 ICE SCRAPER 4 1 Meer info
4035890300 404 INTERIOR LAMP (15W) 8 1 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 2 Meer info
4626310200 495 CF COMPRESSOR SUPPORT TYPE 02 16 1 Meer info
4502040100 592 SWITCH SOCKET CODE 11 12 1 Meer info
4549350200 811 CONDENSER 0 1 Meer info
4548250100 812 CONDENSER HOLDER_CHEST FREEZER 2 3 Meer info
4549720100 814 FRONT FOOT STEEL / CHEST FREEZER 8 2 Meer info
4548260100 815 CABLE PROTECTION PART_CHEST FREEZER 3 1 Meer info
4610290100 816 AIR GRILL CF II 18 1 Meer info
4549590200 817 WATER DRAIN PIPE COVER WO HOLES C.F 2 1 Meer info
4549380100 818 SEPARATOR HOL (C_B CLASS)_CHEST FREEZER 5 2 Meer info
4652020100 822 LOCKING MECHANISM CF 12 1 Meer info
4549371200 823 LOCK HOUSING BEKO RAL7039 5 1 Meer info
4549330600 824 LOCK HOUSING BUNG BEKO RAL7039 1 2 Meer info
4548390100 828 WATER TRAY (C_B CLASS)_CHEST FREEZER 14 1 Meer info
4547960100 829 LAMP BOX COVER_CHEST FREEZER_NATURAL 6 1 Meer info
4550061000 830 PRINTED TH KNOB BEKO ARC P1 ELECTRONIC 4 1 Meer info
4549640100 832 LIGHT GUIDE GREEN (BEKO) CHEST FREEZER 1 1 Meer info
4549640200 833 LIGHT GUIDE RED (BEKO) CHEST FREEZER 1 1 Meer info
4502050600 835 SIGNALING LAMP _RED 5 2 Meer info
4502050500 836 SIGNALING LAMP _GREEN 7 1 Meer info
4550070100 848 HOUSING THERMOSTAT PRINTED P431_ARCP1 0 1 Meer info
4630880400 893 COMPRESSOR SUPORT TYPE02 AS JIAXIPERA 21 1 Meer info
4565350100 1299 WIRE BASKET (NORMAL ISULATED CF) 17 2 Meer info
4564830600 1863 BEKO HANDLE CF RAL7039 8 1 Meer info
4564840600 1864 SCREW ORNAMENT BEKO HANDLE RAL7039 1 2 Meer info
4233640100 1865 SCREW M4_10 ZINC COATED 1 2 Meer info
4628800100 2105 TH. BOX ASSEMBLY BEKO ARC P1 (LAMP-JIAX) 27 1 Meer info
4628150100 2109 ELECTRONIC THERMOSTAT E54 23 1 Meer info
4628240100 2125 TH BOX FF LIGHT GUIDE BEKO 1 1 Meer info
4645400100 2133 HINGE CF WITH SPRING (ATASAN) 16 2 Meer info
4645420100 2135 CF HINGE SUPERIOR COVER (ATASAN) ARC P1 4 2 Meer info
4645430100 2136 CF HINGE INF COVER (ATASAN) ARC P1 3 2 Meer info
4632490100 2316 PROTECTION THERMOSTAT BOX ASSEMBLY 11 1 Meer info
4622786600 2476 EQUIPPED SUPPLY CORD PZ 75H1C 2.15m 19 0 Meer info
4622787200 2476 EQUIPPED SUPPLY CORD EU PZ 75 E1B 2.08 m 18 1 Meer info
4622788900 2476 EQ SUPPLY CORD EU TG1112YL(AL) 1.9m 19 0 Meer info
4622784300 2476 EQUIPPED SUPPLY CORD_PZ75H1X_2.08m 18 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4529640101 3235 CONDENSER SPACER. 1 2 Meer info
4663890300 3474 EQ DOOR SL-IN WL BEKO C300 JX_DO SILVER 33 1 Meer info
4529250101 6042 ROLL - CO24 4 2 Meer info
4654980100 6054 BOLT WITH HEAD 6X35 1 2 Meer info
4626350100 8538 COMPRESSOR FIXING PART 1 1 Meer info
Mode d'emploi (897.81 kB)
Handleiding (897.81 kB)
