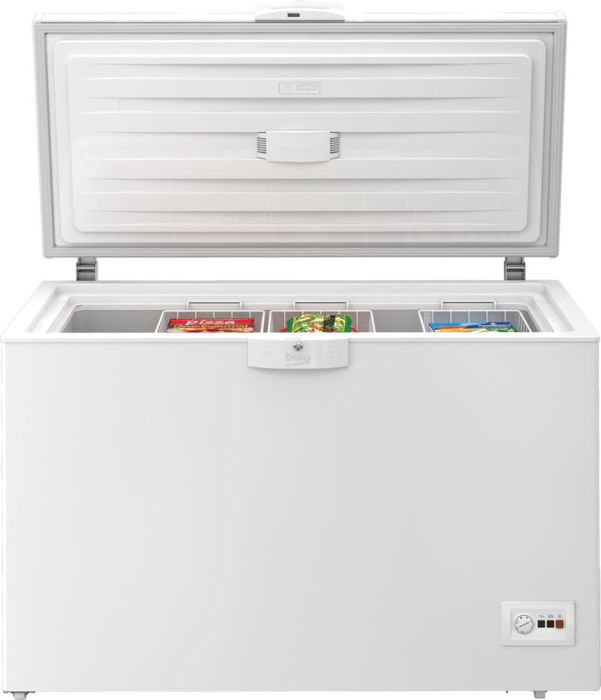

HSA29540N VRIESKOFFER SUPER ISOLATIE

Performance
Artikelnr: 111135
Referentienr: HSA29540N
Aanbevolen verkoopprijs: € 479,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

****288L - 86 x 129 x 67.5 CM
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
4913131200 30 COMPRESSOR_PZ75E1B (220-240 V) 32 1 Meer info
4361198400 30 COMPRESSOR JIAXIPERA TG 1112_YL 38 0 Meer info
4913130900 30 COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a 32 0 Meer info
4361194800 30 COMPRESSOR JIAXIPERA TG 1112 Y_AL 37 0 Meer info
4913130100 30 COMPRESSOR_GMCC_PZ75H1C_220-240 V_R600a 33 0 Meer info
5739010100 31 TERMINAL COVER PZ GMCC 11 1 Meer info
5731440500 39 COMBO_PTC_RELAY_GMCC_PZ75E1B 15 0 Meer info
4346040285 39 COMBO UNIT(JIAXPERA) 15 0 Meer info
4930970800 39 COMBO UNIT_PZ99H1C_PZ75E1B_GMCC_AL 15 1 Meer info
4930970600 39 ELECTRICAL ACCESSORIES GMCC PZ75H1C AL 18 0 Meer info
4930970100 39 COMBO UNIT(JIAXPERA) 23 0 Meer info
4346040185 39 COMBO UNIT(JIAXPERA) 14 0 Meer info
4502020004 93 3-WAYS DRYER (CAP TUBE FI 1.9mm) 9 0 Meer info
4652880200 216 Charging tube II New 100 mm Drept 0 1 Meer info
4528400200 216 CHARGING TUBE II 6 0 Meer info
4537200100 342 ICE SCRAPER 4 1 Meer info
4035890300 404 INTERIOR LAMP (15W) 8 1 Meer info
4528340100 416 SERVICE TUBE III (NEW) 6 0 Meer info
4542690100 463 CONDENSER FIXING PART-I _ DIFFUSION 4 2 Meer info
4626310200 495 CF COMPRESSOR SUPPORT TYPE 02 16 1 Meer info
4502040100 592 SWITCH SOCKET CODE 11 12 1 Meer info
4548250100 812 CONDENSER HOLDER_CHEST FREEZER 2 3 Meer info
4549720100 814 FRONT FOOT STEEL / CHEST FREEZER 8 2 Meer info
4548260100 815 CABLE PROTECTION PART_CHEST FREEZER 3 1 Meer info
4610290100 816 AIR GRILL CF II 18 1 Meer info
4549590200 817 WATER DRAIN PIPE COVER WO HOLES C.F 2 1 Meer info
4549380200 818 SEPARATOR HOL (A CLASS) /CHEST FREEZER 4 2 Meer info
4652020100 822 LOCKING MECHANISM CF 12 1 Meer info
4549370500 823 LOCK HOUSING NEW BEKO CF WHITE 8 1 Meer info
4549330100 824 LOCK HOUSING BUNG BEKO/WHITE/FREEZER 1 2 Meer info
4547960100 829 LAMP BOX COVER_CHEST FREEZER_NATURAL 6 1 Meer info
4550061000 830 PRINTED TH KNOB BEKO ARC P1 ELECTRONIC 4 1 Meer info
4549640100 832 LIGHT GUIDE GREEN (BEKO) CHEST FREEZER 1 1 Meer info
4549640200 833 LIGHT GUIDE RED (BEKO) CHEST FREEZER 1 1 Meer info
4502050600 835 SIGNALING LAMP _RED 5 2 Meer info
4502050500 836 SIGNALING LAMP _GREEN 7 1 Meer info
4549350400 843 CONDENSER 0 1 Meer info
4550070100 848 HOUSING THERMOSTAT PRINTED P431_ARCP1 0 1 Meer info
4549460100 852 WATER TRAY (A+ CLASS)_CHEST FREEZER 13 1 Meer info
4630880400 893 COMPRESSOR SUPORT TYPE02 AS JIAXIPERA 21 1 Meer info
4565360100 1300 WIRE BASKET (SUPER ISULATED CF) 17 3 Meer info
4564830100 1863 BEKO HANDLE CF NEW ARC P1 10 1 Meer info
4564840100 1864 SCREW ORNAMENT BEKO HANDLE/ARC P1 1 2 Meer info
4233640100 1865 SCREW M4_10 ZINC COATED 1 2 Meer info
4628800100 2105 TH. BOX ASSEMBLY BEKO ARC P1 (LAMP-JIAX) 27 1 Meer info
4628150100 2109 ELECTRONIC THERMOSTAT E54 23 1 Meer info
4628240100 2125 TH BOX FF LIGHT GUIDE BEKO 1 1 Meer info
4645400100 2133 HINGE CF WITH SPRING (ATASAN) 16 2 Meer info
4645420100 2135 CF HINGE SUPERIOR COVER (ATASAN) ARC P1 4 2 Meer info
4645430100 2136 CF HINGE INF COVER (ATASAN) ARC P1 3 2 Meer info
4632490100 2316 PROTECTION THERMOSTAT BOX ASSEMBLY 11 1 Meer info
4622786600 2476 EQUIPPED SUPPLY CORD PZ 75H1C 2.15m 19 0 Meer info
4622787200 2476 EQUIPPED SUPPLY CORD EU PZ 75 E1B 2.08 m 18 1 Meer info
4622788900 2476 EQ SUPPLY CORD EU TG1112YL(AL) 1.9m 19 0 Meer info
4622785000 2476 EQUIPPED SUPPLY CORD_TG1112Y (AL)_2m 19 0 Meer info
4622782700 2476 EQUIPPED SUPPLY CORD PZ 75H1C 2.08m 18 0 Meer info
4502020001 3070 2-WAYS DRYER 10 1 Meer info
4529640101 3235 CONDENSER SPACER. 1 2 Meer info
4661650300 3462 PU DOOR WL WH C270 SLOT-IN ARC P1 JX_DO 33 1 Meer info
4664010400 3486 EQ DOOR BEKO SLOT-IN C270 JX_DO WHITE 34 1 Meer info
4529250101 6042 ROLL - CO24 4 2 Meer info
4654980100 6054 BOLT WITH HEAD 6X35 1 2 Meer info
4626350100 8538 COMPRESSOR FIXING PART 1 1 Meer info
Productfiche (861.45 kB)
