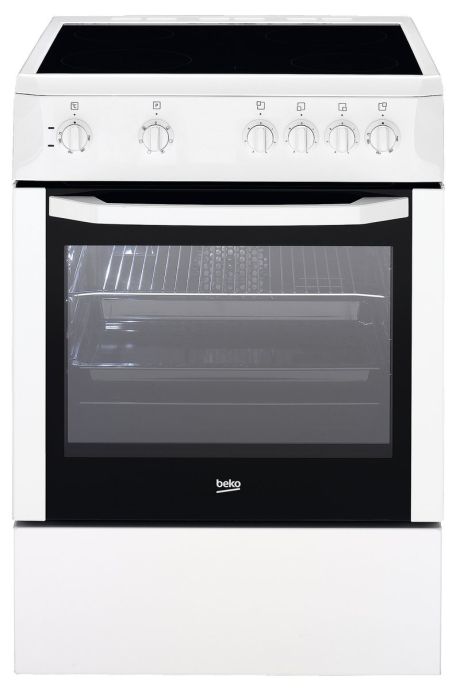

main product photo

CSS67000GW VITROKERAMISCH FORNUIS

Artikelnr: 115266
Referentienr: CSS67000GW
Vergelijk

Productomschrijving

4 infra-rood conventionele oven
Meer informatie
Gewicht (Kg) 62
ArtRef CSS67000GW
AsogemID 115266
MPN 7785988628
Merk BEKO
Soort Fornuis vitrokeramisch
ArtEAN 8690842365140
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
412930090 0 CAVITY SIDE HINGE HOUSING 4 1 Meer info
412930089 0 CAVITY SIDE HINGE HOUSING 4 1 Meer info
4410300037 6 CERAN FRAME BURNER PLATE GROUP WHITE 38 1 Meer info
218315016 9 DECORATIVE CONTROL PANEL. 12 1 Meer info
215300003 11 OVEN REAR WALL. 16 1 Meer info
218300010 12 SIDE WALL -WHITE -60X60 16 2 Meer info
250300010 14 OVEN FOOT GROUP 1 4 Meer info
215300061 15 60X60 FS 14 1 Meer info
266920003 19 TERMINAL BLOCK. 10 1 Meer info
266920004 19 TERMINAL BLOCK. 11 1 Meer info
219441008 20 OVEN BODY 26 1 Meer info
291300010 21 GLASS WOOL_PERIPHERAL 16 1 Meer info
291300011 22 GLASS WOOL_ REAR_60ANK_15MM 9 1 Meer info
215300015 23 TURBO MOTOR CONNECTION SHEET 9 1 Meer info
210301844 24 ELECTRICAL FLUE GROUP 8 1 Meer info
240440236 27 GRILL SHELF 15 1 Meer info
219440101 28 BLACK ENAMELED ST TRAY(W_462xD_365xH_39) 15 1 Meer info
419900057 28 BAKING TRAY 15 1 Meer info
255440101 29 MAIN OVEN _O_ SEAL 12 1 Meer info
289300001 36 COUNTER WEIGHT_RIGHT.. 9 1 Meer info
215300014 39 OVEN BODY BOTTOM PROTECTION SHEET 12 1 Meer info
218440102 44 DOOR BOTTOM COVER SHEET 8 1 Meer info
210440167 45 60_60 FRONT DOOR HINGE_SHORTER TYPE_ 12 2 Meer info
258300159 47 HANDLE-WHITE-BTB1-417-BEKO 12 1 Meer info
218300001 48 BOTTOM DOOR SHEET- WHITE 12 1 Meer info
242300001 66 HOT PLATE SPRING 3 12 Meer info
242100036 89 THERMOSTAT CLIPS. 1 1 Meer info
163100005 92 HOTPLATE COMMUTATOR 46.27266.500 12 4 Meer info
263900055 93 4 POSITION OVEN COMMUTATOR 14 1 Meer info
262900061 106 OVEN HEATING ELEMENT-230 16 1 Meer info
262900064 107 GRILL HEATING ELEMENT_(1100+1100)W_230V 19 1 Meer info
215440109 108 HEATING ELEMENT HOLDER SHEET 12 1 Meer info
260305019 118 SERVICE CABLE GROUP. 21 1 Meer info
260375005 118 SERVICE CABLE GR. 19 1 Meer info
226900005 119 3 PHASE SYSTEM WIRING DIAGRAM 3 1 Meer info
171100083 150 M4X6 HANDLE TO PIN CONNECTION SCREW 1 2 Meer info
250315077 246 THERMOSTAT KNOB 5 1 Meer info
263100015 263 EGO THERMOSTAT 551705303_280 HUAYI 285 C 16 1 Meer info
155955703 286 HANDLE SEAL 1 2 Meer info
218300003 368 SIDE PROFILE-BLACK-LEFT 8 1 Meer info
218300004 369 SIDE PROFILE -BLACK-RIGHT 9 1 Meer info
265900012 374 OVEN LAMP 15 W-230 V 6 1 Meer info
265900026 374 OVEN LAMP 7 0 Meer info
265100022 375 OVEN LAMP GROUP 12 1 Meer info
250100101 444 SWITCH PLASTIC COVER 3 4 Meer info
250920069 460 CABLE TIE-BIG_M TYPE_A20 1 3 Meer info
162926058 467 RADIANT HOTPLATE (Q140_1200W) 240V. 21 2 Meer info
162926060 468 RADIANT HOTPLATE (Q180-1700W)240 V 22 2 Meer info
165930011 475 SINGNAL LAMP_YELLOW 6 1 Meer info
165930003 476 SINGNAL LAMP_RED. 5 1 Meer info
4480300003 533 CHAIN GROUP 8 1 Meer info
263410017 557 BODY BIMETAL THERMOSTAT ABNORMAL CONDITI 9 1 Meer info
218440178 584 CONDENSATION SHEET-BLACK 6 1 Meer info
250315081 635 COMMUTATOR KNOB 5 1 Meer info
250315075 663 HOB COMMUTATOR KNOB 5 4 Meer info
250440102 883 DOOR GR SIDE HINGE PLASTIC HOUSING_LEFT 3 1 Meer info
250440103 883 DOOR GR SIDE HINGE PLASTIC HOUSING_RIGHT 3 1 Meer info
210301030 884 FRONT DOOR OUTER AND INNER GROUP 26 1 Meer info
234300008 885 HANDLE REFERANCE PIM GR 3 2 Meer info
250300120 886 PROFILE AIR CONDITION SIDE DECOR _ BLACK 16 2 Meer info
210440105 902 THERMOSTAT BULB CLIP 5 1 Meer info
215300225 912 OVEN REAR SUPPORT_72CM 6 2 Meer info
255440103 916 FRONT DOOR STOPPER SEAL_50X50_BLACK 1 2 Meer info
255440116 916 FRONT DOOR STOPER PLASTIC 1 2 Meer info
218300009 938 SIDE DECOR PROFILE 8 2 Meer info
215300077 944 REAR CONNECTION SHEET 5 2 Meer info
250300055 945 BACA ADAPTOR PLASTIGI _ELEKTRIKLI_60X60 5 1 Meer info
258300066 946 SIDE DECOR DOOR -LEFT_WHITE 14 1 Meer info
258300067 947 SIDE DECOR DOOR -RIGHT_WHITE 14 1 Meer info
250300022 948 PANEL BOTTOM PLASTIC 9 1 Meer info
210301304 982 FLAPE COVER HINGE GROUP_LEFT_65LT 7 1 Meer info
210301305 983 FLAPE COVER HINGE GROUP_RIGHT-65LT 7 1 Meer info
215440258 1027 BI METAL HIT PROTECTION SHEET 2 1 Meer info
258300038 1127 RED SIGNAL LAMP HOLDER PLASTIC GR. 5 1 Meer info
258300040 1127 YELLOW SIGNAL LAMP HOLDER PLASTIC GR 5 1 Meer info
217300231 1888 BURNER PLATE FRONT FIXING SPRING 1 2 Meer info
Mode d'emploi (2.50 MB)
Handleiding (2.32 MB)
