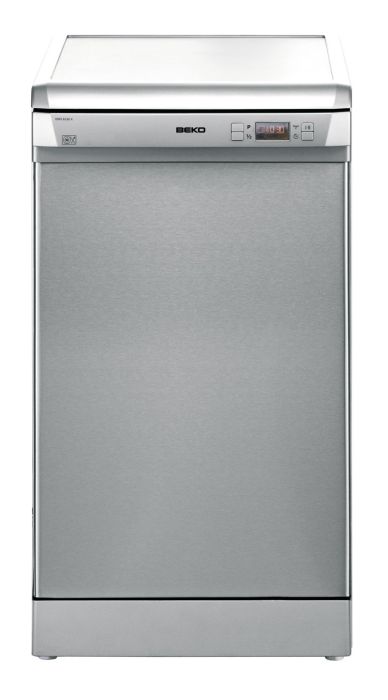

DSFS6530X VAATWASMACHINE INOX

Artikelnr: 114522

Referentienr: DSFS6530X

Productomschrijving

5 progr. inox 45 cm (10 couv)

Meer informatie
Breedte	44.8
Diepte	57
Gewicht (Kg)	40.5
Verpakkingseenheid	1
Jaarlijks verbruik (kWh)	259
ArtRef	DSFS6530X
AsogemID	114522
MPN	7651833945
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690769388581

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1887550100	11	FREE STANDING FOOT SUPPORT LEFT	5	1	Meer info
1887550200	12	FREE STANDING FOOT SUPPORT RIGHT	5	1	Meer info
1881790100	13	FOOT SUPPORT PART	4	2	Meer info
1743320192	40	BOTTOM TRAY-45 cm	11	1	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	4	Meer info
1800864700	119	HOSE BETWEEN FAN AND SUMP	2	1	Meer info
1759490512	220	SIDE PANEL-LEFT	17	1	Meer info
1759490612	221	SIDE PANEL-RIGHT	17	1	Meer info
1743270100	240	REAR BOTTOM SUPPORT	8	1	Meer info
1766750400	300	TOP PLATE GROUP	22	1	Meer info
1882350300	301	TOP PLATE SUPPORT PART	2	1	Meer info
2003030000	335	SEAL	1	1	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1743240100	403	HINGE ARM SUPPORT	4	1	Meer info
1743980100	440	HINGE SPRING	4	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	2	Meer info
1881050100	471	HINGE ROPE GROUP L=440(GREY)	4	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1733080408	500	45CM_STANDART_KICK_PLATE	14	1	Meer info
1743250600	530	KICK PLATE SHEET	8	1	Meer info
1743750200	610	BALANCE WEIGHT	10	1	Meer info
1743930300	650	INNER TUB ISOLATION	11	1	Meer info
1743950100	652	KICK PLATE INSULATION	3	1	Meer info
1884750200	653	DOOR LOCK COTTON FLEECE	1	1	Meer info
1766630600	1030	OUTER DOOR	25	1	Meer info
1737370200	1200	INNER DOOR BITUMEN GRD	21	1	Meer info
1743230100	1201	LOWER SUPPORT - FRONT	9	1	Meer info
1743940100	1230	DOOR INSULATION	8	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1749190200	1910	DOOR SEALING GASKET- L=1625	10	1	Meer info
1882470200	1920	DOOR SEALING GASKET - BOTTOM	4	1	Meer info
1750601400	2000	STRUCTURE GROUP	32	1	Meer info
1749050500	2001	TOP CORNER BRACKET - LEFT	1	1	Meer info
1749050600	2002	TOP CORNER BRACKET - RIGHT	1	1	Meer info
1890580500	2411	45 cm shelf-7016	3	4	Meer info
1799101900	2414	UPPER BASKET GROUP	24	1	Meer info
1751750900	2416	HEIGH ADJ. MECHANISM GR-LEFT-PURPLE	9	1	Meer info
1751751000	2417	HEIGH ADJ. MECHANISM GR-RIGHT-PURPLE	9	1	Meer info
1763400317	2420	LOWER BASKET EU2 GROUP 45CM	25	1	Meer info
1763680100	2421	LOWER BASKET WHEEL GROUP 45CM	4	8	Meer info
1763470100	2424	45CM PLATE HOLDER-BACK 1-7016	9	1	Meer info
1763480100	2424	45CM PLATE HOLDER BACK 2-7016	9	1	Meer info
1781870200	2425	L.BASKET SHORT FOLDING PART 742/PURPLE	2	2	Meer info
1758910200	2427	LOWER BASKET CLIPS-7037	1	2	Meer info
1756391800	2429	LOWER BASKET HANDLE	4	1	Meer info
1744500400	2430	CUTLERY BASKET GROUP	10	1	Meer info
1744520200	2437	SEPARATOR-7037	8	1	Meer info
1781890100	2521	GRD LOWER BASKET SHORT CLIPS-RIGHT	1	2	Meer info
1781890200	2522	GRD LOWER BASKET SHORT CLIPS-LEFT	1	2	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	4	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1780281500	3010	PANEL GROUP	16	1	Meer info
1755580100	3014	SLIM BEKO PANEL MM DISPLAY GASKET	2	1	Meer info
1753720404	3320	BEKO SLIM ON OFF BUTTON STROKE 2.5mm	4	1	Meer info
1766680404	3321	DECORATIVE PART	5	1	Meer info
1766780300	3322	SLIM BEKO DISPLAY GR.	12	1	Meer info
1737450400	3324	DISPLAY BUTTON	6	1	Meer info
1740701900	4000	MOTOR_SPRAY PUMP	31	0	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1743280100	4002	MOTOR BRACKET GROUP	3	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1740600200	4004	MOTOR BRACKET GROUP	10	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1757460100	4210	INTERFERENCE FILTER	12	1	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	1	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719970100	4504	SOLO PUMP INLET HOSE - 2	4	2	Meer info
1765421300	4800	Mini Marti Cable Harness	19	1	Meer info
1756160300	4810	CABLE HARNESS	18	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	2	Meer info
1750010300	5050	MAIN BOARD	22	1	Meer info
1755740100	5051	CARD HOLDER-FRONT	5	1	Meer info
1755750100	5052	CARD HOLDER-BACK	5	1	Meer info
1766690404	5053	SLIM BEKO PANEL DISPLAY BUTTON	4	1	Meer info
1749580100	5056	TURBIDITY FRAME_2K	4	1	Meer info
1898900400	5058	TURBIDITY CARD AND LED HOLDER GR-WHITE	11	1	Meer info
1755800099	5060	DISPLAY CARD GROUP	24	1	Meer info
1766670200	5061	CARD HOLDER	4	1	Meer info
1766660100	5062	DISPLAY GLASS	8	1	Meer info
1766700404	5079	BEKO SLIM PANEL MM DISPLAY BUTTON 45 CM	4	1	Meer info
1766710404	5080	BEKO SLIM PANEL MM DISPLAY BUTTON 45 CM	4	1	Meer info
1766720404	5081	DISPLAY BUTTON	3	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950300	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1754220109	6201	SLIM ON OFF SWITCH HOLDER 2-714	5	1	Meer info
1732090100	6210	ROLD ON OFF SWITCH 2.5 mm	9	1	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1760940100	6315	COUNTER PCB_4	7	2	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1718601700	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1719000700	6800	DETERGENT DISPENSER GROUP -RAL 7037	22	0	Meer info
1712730100	6801	DETERGENT DISPENSER GASKET	5	0	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1712710100	6811	RINSE AID GASKET	8	0	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1805100700	7010	WATER INLET HOSE	11	1	Meer info
1883740200	7011	DRAIN HOSE HOLDER 7037	2	2	Meer info
1768300100	7100	WATER SOFTENER GROUP	18	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600700	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1800864400	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1744400200	7211	LOWER SPRAY ARM GROUP-7037	7	1	Meer info
1745300400	7220	UPPER SPRAY ARM GROUP 7037-7016	8	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1737930200	7232	NOZZLE HOLDER FOR TOP SPRAY ARM-7037	2	1	Meer info
1737960200	7234	TOP SPRAY ARM CAP-7037	2	1	Meer info
1738001600	7260	WATER SUPPLY TUBE-7037	12	1	Meer info
1749490200	7261	UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET	3	1	Meer info
1737950200	7332	TOP SPRAY ARM FEED BODY-7037	2	1	Meer info
1741504000	7510	SUMP GR	12	1	Meer info
1889860200	7514	CORNER PADDING GR-FRONT	9	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1745190100	7516	PACKAGE COVER - BOTTOM	7	1	Meer info
1788430100	7517	PACKAGE COVER - UPPER	6	1	Meer info
1745010200	7518	PACKAGE STRAFOR - BOTTOM	11	1	Meer info
1743650100	7550	HOSE BETWEEN SUMP AND HEATER	8	2	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1786610200	7610	METAL FILTER HALF	13	1	Meer info
1740900800	7611	FILTER SUPPORT GROUP	3	1	Meer info
1796080500	7620	MICRO FILTER GROUP_3 NO RING	7	1	Meer info
1740230400	7630	COARSE FILTER-PURPLE	2	1	Meer info
1796090700	7640	FILTER GROUP 3 NO RING	9	1	Meer info
1740160300	7810	DRAIN HOSE	8	1	Meer info
1743640100	7831	HOSE	7	1	Meer info
1800632400	7834	HOSE (VALVE-COUNTER)	7	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800862600	7839	HOSE BETWEEN WATER SOFT AND REJEN. UNIT	3	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	6	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	2	Meer info
1800710000	8351	HOSE FILTER D3422	6	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	1	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	2	Meer info
2002372400	8359	HOSE CLAMP (├â╦£ 38.8)	1	2	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	4	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	2	Meer info
1883170100	9022	MAIN PLUG HOLDER	1	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	5	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	16	Meer info
1883460700	9114	SCREW ├â╦£ 3.9 L=11 (INNER-OUTER DOOR)	5	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	24	Meer info
1889330100	9116	SCREW FOR REAR BOTTOM SUPPORT	1	2	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1831780000	9213	WASHER	1	2	Meer info
1882280600	9640	NOISE ISOLATION FOR TUB-7037	3	1	Meer info
1882281100	9640	NOISE ISOLATION FOR TUB	1	1	Meer info
1755880100	9649	CARD HOLDER ALUMINUN FOIL	5	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1886750200	9937	SCREW	1	2	Meer info
1718990200	9992	DETERGENT DISPENCER CAB HAR HOLD 7037	1	1	Meer info
