main product photo

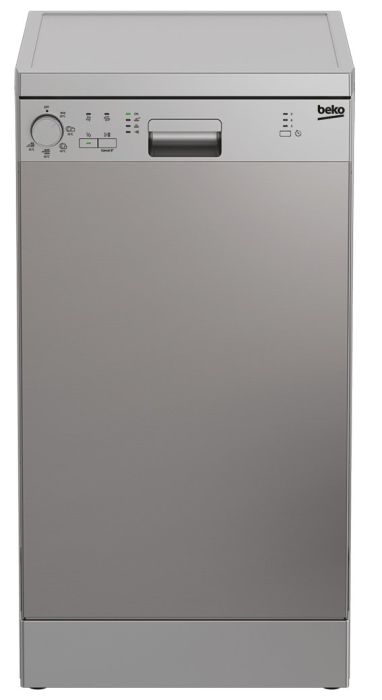

DFS05011X VAATWASMACHINE INOX

Artikelnr: 114303
Referentienr: DFS05011X
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

45 cm inox 5 progr. 13L 49 DBA
Meer informatie
Hoogte 85
Breedte 44.8
Diepte 60
Gewicht (Kg) 39.5
Verpakkingseenheid 1
ArtRef DFS05011X
AsogemID 114303
MPN 7622583955
Merk BEKO
Going prijs 999,99
Soort Vaatwasser
ArtEAN 8690842018459
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1887550100 11 FREE STANDING FOOT SUPPORT LEFT 5 1 Meer info
1887550200 12 FREE STANDING FOOT SUPPORT RIGHT 5 1 Meer info
1881790100 13 FOOT SUPPORT PART 4 2 Meer info
1743320192 40 BOTTOM TRAY-45 cm 11 1 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 4 Meer info
1800864700 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1759490512 220 SIDE PANEL-LEFT 17 1 Meer info
1759490612 221 SIDE PANEL-RIGHT 17 1 Meer info
1743270100 240 REAR BOTTOM SUPPORT 8 1 Meer info
1781460300 300 GRD TOP PLATE GR 45cm 21 1 Meer info
1882350300 301 TOP PLATE SUPPORT PART 2 1 Meer info
2003030000 335 SEAL 1 1 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1743240100 403 HINGE ARM SUPPORT 4 1 Meer info
1743980100 440 HINGE SPRING 4 2 Meer info
1881040300 470 HINGE WHEEL-RED 1 2 Meer info
1881050100 471 HINGE ROPE GROUP L=440(GREY) 4 2 Meer info
1881090100 472 HINGE SPRING HOLDER-LEFT 3 1 Meer info
1881090200 473 HINGE SPRING HOLDER-RIGHT 4 1 Meer info
1769040307 500 BEKO kick plate 45cm 15 1 Meer info
1743250600 530 KICK PLATE SHEET 8 1 Meer info
1743750200 610 BALANCE WEIGHT 10 1 Meer info
1743930300 650 INNER TUB ISOLATION 11 1 Meer info
1743950100 652 KICK PLATE INSULATION 3 1 Meer info
1884750200 653 DOOR LOCK COTTON FLEECE 1 1 Meer info
1886840100 655 INNER TUB ISOLATION-LEFT 8 1 Meer info
1882420200 656 KICK PLATE FOAM 10 1 Meer info
1769010300 1030 BEKO OUTER DOOR 45CM 22 1 Meer info
1737370200 1200 INNER DOOR BITUMEN GRD 21 1 Meer info
1743230100 1201 LOWER SUPPORT - FRONT 9 1 Meer info
1743940100 1230 DOOR INSULATION 8 1 Meer info
1510600300 1300 SELFRESETING LOCK GROUP 6 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190200 1910 DOOR SEALING GASKET- L=1625 10 1 Meer info
1882470200 1920 DOOR SEALING GASKET - BOTTOM 4 1 Meer info
1750601900 2000 STRUCTURE GROUP 34 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1768940200 2411 BEKO TOP BASKET SHELF EU1 45CM-7016 4 4 Meer info
1885800600 2413 UPPER BASKET WHEEL GROUP 4 8 Meer info
1799101100 2414 UPPER BASKET GROUP 24 1 Meer info
1763401700 2420 LOWER BASKET EU2 GROUP 45CM 23 1 Meer info
1763680100 2421 LOWER BASKET WHEEL GROUP 45CM 4 8 Meer info
1763470100 2424 45CM PLATE HOLDER-BACK 1-7016 9 1 Meer info
1763480100 2424 45CM PLATE HOLDER BACK 2-7016 9 1 Meer info
1781870200 2425 L.BASKET SHORT FOLDING PART 742/PURPLE 2 2 Meer info
1758910200 2427 LOWER BASKET CLIPS-7037 1 2 Meer info
1782100900 2430 CUTLERY BASKET GROUP 45CM PURPLE HANDLE 12 1 Meer info
1782120100 2437 GRD CUTLERY BASKET SEPERATOR 2 2 Meer info
1781890100 2521 GRD LOWER BASKET SHORT CLIPS-RIGHT 1 2 Meer info
1781890200 2522 GRD LOWER BASKET SHORT CLIPS-LEFT 1 2 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 2 Meer info
1887460200 2612 RAIL CAP-7037 1 2 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1753290004 3010 PANEL GROUP 17 1 Meer info
1769700400 3310 BEKO GOOD PROGRAM BUTTON GROUP 5 1 Meer info
1769660407 3321 Beko good start stop tusu 4 1 Meer info
1769670407 3322 BEKO GOOD FUNCTION BUTTON 4 1 Meer info
1769730100 3512 Beko good function buttom glass 1 1 Meer info
1769680100 3514 BEKO GOOD FUNCTION GLASS 3 1 Meer info
1740701900 4000 MOTOR_SPRAY PUMP 31 0 Meer info
1880390100 4001 MOTOR FIXING CAP D3731 D3421 2 1 Meer info
1743280100 4002 MOTOR BRACKET GROUP 3 1 Meer info
1881440200 4003 DAMPENING RUBBER TPV 3 1 Meer info
1740600200 4004 MOTOR BRACKET GROUP 10 1 Meer info
1883790200 4200 CAPACITOR 10 1 Meer info
1757160100 4210 Iskra noise filter 10 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1719970100 4504 SOLO PUMP INLET HOSE - 2 4 1 Meer info
1765461100 4800 A4 CABLE HARNESS 45cm 21 1 Meer info
1745540300 4801 PROGRAM DELAY CABLE GROUP 11 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1784094220 5050 ELECTRONIC CARD A436501 21 1 Meer info
1769650200 5051 BEKO GOOD CARD HOLDER FRONT PART 4 1 Meer info
1899620100 5060 TIME DELAY CARD 8 1 Meer info
1746311300 5061 A3 DISPLAY CARD HOLDER 4 1 Meer info
1764390200 5061 HITIT A4 CARD HOLDER BACK PART 4 1 Meer info
1769690407 5064 BEKO GOOD TIME DELAY BUTTON 4 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1764950300 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1734600200 6211 STAGE SELECT BUTTON GROUP 3 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 2 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1805100700 7010 WATER INLET HOSE 11 1 Meer info
1883740200 7011 DRAIN HOSE HOLDER 7037 2 2 Meer info
1768300100 7100 WATER SOFTENER GROUP 18 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600200 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800864400 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1744400200 7211 LOWER SPRAY ARM GROUP-7037 7 1 Meer info
1745300400 7220 UPPER SPRAY ARM GROUP 7037-7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737960200 7234 TOP SPRAY ARM CAP-7037 2 1 Meer info
1738001600 7260 WATER SUPPLY TUBE-7037 12 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1737950200 7332 TOP SPRAY ARM FEED BODY-7037 2 1 Meer info
1741503400 7510 SUMP GR 14 1 Meer info
1889860200 7514 CORNER PADDING GR-FRONT 9 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1745190100 7516 PACKAGE COVER - BOTTOM 7 1 Meer info
1788430100 7517 PACKAGE COVER - UPPER 6 1 Meer info
1745010200 7518 PACKAGE STRAFOR - BOTTOM 11 1 Meer info
1743650100 7550 HOSE BETWEEN SUMP AND HEATER 8 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1757830100 7611 HALF FILTER SUPPORT 45CM 6 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230400 7630 COARSE FILTER-PURPLE 2 1 Meer info
1796090700 7640 FILTER GROUP 3 NO RING 9 1 Meer info
1740160300 7810 DRAIN HOSE 8 1 Meer info
1743640100 7831 HOSE 7 1 Meer info
1800632400 7834 HOSE (VALVE-COUNTER) 7 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800862600 7839 HOSE BETWEEN WATER SOFT AND REJEN. UNIT 3 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 6 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
1800710000 8351 HOSE FILTER D3422 6 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 1 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 2 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 4 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 16 Meer info
1883460700 9114 SCREW Ø 3.9 L=11 (INNER-OUTER DOOR) 5 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 24 Meer info
1889330100 9116 SCREW FOR REAR BOTTOM SUPPORT 1 2 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1882290200 9154 SCREW CAP-SIDE PANELS-GREY 1 2 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1831780000 9213 WASHER 1 2 Meer info
1882280600 9640 NOISE ISOLATION FOR TUB-7037 3 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1886750200 9937 SCREW 1 2 Meer info
1883490100 9981 BOLT M4X8 1 2 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
