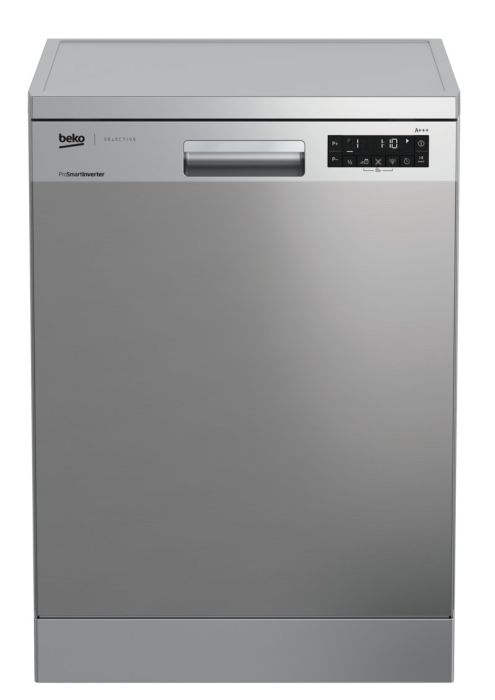

main product photo

DFN29330X VAATWASMACHINE INOX

Selective
Artikelnr: 114346
Referentienr: DFN29330X
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

Self clean 9 progr. inox 10L - 44 DBA
Meer informatie
Hoogte 85
Breedte 59.8
Diepte 60
Gewicht (Kg) 46.5
Verpakkingseenheid 1
ArtRef DFN29330X
AsogemID 114346
MPN 7633253942
Merk BEKO
Going prijs 999,99
Soort Vaatwasser
ProductLine Selective
ArtEAN 8690842025648
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1510130100 0 2 way valve 17 1 Meer info
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 2 Meer info
1763190106 220 SIDE PANEL FS LONG FORM 60CM 18 1 Meer info
1763190206 221 SIDE PANEL FS LONG FORM 60CM 18 1 Meer info
1515041400 300 TOP PLATE GROUP 23 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1888190200 403 HINGE ARM SUPPORT 4 1 Meer info
1783160100 440 ANGORA HINGE SPRING 5 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050300 471 HINGE ROPE GROUP L=333-PURPLE 4 2 Meer info
1769030311 500 BEKO 39DB KICK PLATE 60CM 15 1 Meer info
1783070200 530 ANGORA FS KICK PLATE STEEL 8 1 Meer info
1783170100 610 ANGORA BALANCE WEIGHT 9 1 Meer info
1744930100 649 REAR FRAME COTTON FLEECE 16 1 Meer info
1783830200 655 ANGORA INNER TUB ISOLATION LEFT 11 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1783950100 660 ANGORA KICK PLATE ISOLATION 12 1 Meer info
1769000300 1030 BEKO OUTER DOOR 60CM-A.FINGER 24 1 Meer info
1746970100 1034 HANDLE AUXILARY PART 1 1 Meer info
1737380300 1200 INNER DOOR BITUMEN GRD 23 1 Meer info
1783050100 1201 ANGORA FRONT LOWER SUPPORT SHEET 8 1 Meer info
1882410100 1230 DOOR INSULATION 11 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760970100 1311 DOOR LOCK HOOK SUPPORT 3 1 Meer info
1783500200 1725 ANGORA FLAP FUNNEL GROUP 16 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1759402000 2000 ANGORA STRUCTURE GROUP 33 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783710100 2004 ANGORA FS BOTTOM TRAY GR 17 1 Meer info
1783710400 2004 ANGORA FS BOTTOM TRAY GR 20 0 Meer info
1752970300 2408 TRAY HOLDER 1 2 Meer info
1752970400 2409 TRAY HOLDER 1 2 Meer info
1769310100 2411 BEKO TOP BASKET SHELF TPV GROUP 5 4 Meer info
1751305200 2414 UPPER RACK GR. RAL 7037 26 1 Meer info
1751440800 2417 UPPER BASKET MECHANISM-RIGHT-PURPLE 9 1 Meer info
1766810005 2420 LOWER RACK GR. 27 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1513590101 2423 LOWER BASKET PLATE HOLDER BACK LEFT1 6 1 Meer info
1513610101 2424 LOWER BASKET PLATE HOLDER BACK RIGHT1 6 1 Meer info
1769250600 2428 LOWER BASKET HANDLE/INOX-PURPLE 12 1 Meer info
1781501100 2430 GRD SLIDING CUTLERY BASKET GROUP 14 1 Meer info
1781520100 2437 GRD 60CM CUTLERY BASKET SEPERATOR 4 2 Meer info
1769230500 2438 LOWER BASKET HANDLE BACK PART/PURPLE 2 1 Meer info
1768830500 2439 Top basket handle back part-PURPLE 3 1 Meer info
1769350500 2440 BEKO TOP BASKET HANDLE-INOX/PURPLE 12 1 Meer info
1513620101 2447 LOWER BASKET PLATE HOLDER BACK LEFT2 6 1 Meer info
1513670101 2450 LOWER BASKET PLATE HOLDER BACK RIGHT2 6 1 Meer info
1759090200 2517 UPPER BASKET CLIPS-RAL 7037 2 5 Meer info
1751370200 2518 FOLDING PART CLIPS-RIGHT-RAL 7037 2 1 Meer info
1752700100 2609 GRD BALL BEARING ROLLER GROUP 7037 9 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940300 2613 SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1751322400 2715 UPPER BASKET SUPPORT WIRE 10 1 Meer info
1751342400 2716 UPPER BASKET SUPPORT WIRE 9 1 Meer info
1751440700 2716 UPPER BASKET MECHANISM-LEFT-PURPLE 9 1 Meer info
1781790200 2719 MULTISTAGE FOLDING PART-PURPLE 3 1 Meer info
1754130123 3010 PANEL GROUP 17 1 Meer info
1783910300 4000 ANGORA QUADRO CIRCULATION PUMP GROUP 34 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1783090100 4001 ANGORA QUADRO MOTOR HANGING BRACKET 4 1 Meer info
1757430100 4006 AWECO ADAPTOR PART 4 1 Meer info
1757460100 4210 INTERFERENCE FILTER 12 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1757960100 4505 6 WAY VALVE HAPED HOSE 7 1 Meer info
1753870301 4800 GRUNDIG CABLE HARNESS 23 1 Meer info
1745691300 4801 CABLE HARNESS 6 1 Meer info
1745690400 4802 CABLE HARNESS 8 1 Meer info
1751590200 4901 MAIN PLUG-CABLE PROTECTION GR 0 1 Meer info
1769360100 5012 BEKO BETTER BUTTON GASKET 5 1 Meer info
1739150161 5050 ELECTRONIC CARD D114907_YT 30 1 Meer info
1769410200 5051 BEKO D1 CARD HOLDER SPACER PART 6 1 Meer info
1769420200 5052 CARD HOLDER BACK PART 5 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1756300100 5073 UPPER TRAY RAIL HOLDER-7037 3 2 Meer info
1756310100 5074 CONNECTING WASHER 2 4 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1761250100 5750 REGENERATION VALVE 12 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1761260100 6160 SALT INDICATOR SWITCH 12 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1744950100 6506 INNER TUB ISOLATION-UPPER 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 2 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1782500100 7100 GRD SOFTENER GROUP BITRON 21 1 Meer info
1760190100 7101 O-RING WATER SOFTENER AIR BREAKER 2009 3 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1760200400 7160 AIR BREAKER_COUNTER GR 16 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 3 Meer info
1882620700 7162 air funnel cup 1 3 Meer info
1746100400 7211 LOWER SPRAY ARM GROUP 7016 8 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1800865900 7229 HOSE (REGENERATION UNIT) 3 1 Meer info
1756530100 7232 CEILING SPRAY ARM FEED PIPE 4 1 Meer info
1756370100 7234 CEILING SPRAY GROUP 5 1 Meer info
1756330300 7260 WATER SUPPLY TUBE GROUP 13 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1786400900 7510 MULTI WAY VALVE AND SUMP GROUP 21 1 Meer info
1889860200 7514 CORNER PADDING GR-FRONT 9 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1788060400 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1786790200 7611 HALF FILTER SUPPORT ZONE 6 1 Meer info
1786500200 7612 6 WAY VALVE GROUP 16 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1767000700 7630 COARSE FILTER GROUP 6 1 Meer info
1796091700 7640 FILTER GROUP3 COMPLETE MFT NO RING 10 1 Meer info
1740160900 7810 DRAIN HOSE 4 1 Meer info
1740161500 7810 DRAIN HOSE 8 1 Meer info
1752000100 7815 DRAIN HOSE-L=440MM 7 1 Meer info
1752000400 7815 DRAIN HOSE-L=2085MM 9 1 Meer info
1757450100 7831 HOSE PUMP HEATER D3422 8 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800865800 7839 HOSE 2 1 Meer info
1800866900 7845 HOSE 3 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1783300200 8000 ANGORA FAN GROUP 17 1 Meer info
1783330100 8003 Fan Outlet Part-Angora 3 1 Meer info
1766500100 8004 FAN FUNNEL GR 16 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 3 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 2 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 2 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1761990100 8365 HÄ°TÄ°T DISCHARGE HOSE HOLDER 2 0 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9001231200 8382 PLASTIC CLAMP. 298 mm 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 7 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1732850200 9013 HOSE CLAMPS WIT SCREW Ø43 TROPICAL 2 1 Meer info
1757470200 9019 SUMP CLAMP SCREW TYPE 2 1 Meer info
1783180100 9022 ANGORA NETWORK CABLE HOLDER COVER 2 1 Meer info
2002371000 9027 HOSE CLAMP (DIA 17.3) 1 2 Meer info
2002371100 9028 HOSE CLAMP (Ø 18.2) 2 2 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 5 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 12 Meer info
1883460700 9114 SCREW Ø 3.9 L=11 (INNER-OUTER DOOR) 5 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 6 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1882290200 9154 SCREW CAP-SIDE PANELS-GREY 1 2 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 12 Meer info
1803431300 9203 SCREW (TOP TABLE) 1 2 Meer info
1831780000 9213 WASHER 1 4 Meer info
1800681600 9523 O-RING 2 4 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1880270200 9641 NOISE ISOLATION-7037 4 2 Meer info
1513630100 9659 FOLDABLE PART LONG 1 4 Meer info
1513640200 9660 CLIPS LONG 1 4 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1748780400 9941 TOP LIGHTING GROUP COATING 21 1 Meer info
1756210101 9943 UPPER TRAY FRAME WIRE 7037 10 1 Meer info
1756260100 9944 UPPER TRAY DRAWER HOLDER-LEFT 7037 4 1 Meer info
1756250100 9945 UPPER TRAY DRAWER HOLDER-RIGHT 7037 4 1 Meer info
1756270101 9946 CEILING RAIL 7037 10 2 Meer info
1756240101 9947 UPPER TRAY HOLDER-7037 13 1 Meer info
1756280100 9948 UPPER TRAY RAIL CAP-RIGHT RAL 7037 2 1 Meer info
1756290100 9949 UPPER TRAY RAIL CAP-LEFT RAL7037 2 1 Meer info
1756220600 9950 UPPER TRAY GROUP-PURPLE 17 1 Meer info
1733830200 9952 KICK PLATE ISOLATION 4 1 Meer info
1783540100 9966 ANGORA DRAIN HOSE LOCK 2 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1766900200 9979 MINI PROPELLER GROUP 6 1 Meer info
1883490100 9981 BOLT M4X8 1 2 Meer info
1786700100 9991 ZONE WASH GROUP-7016-PURPLE 9 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
1780319300 9993 PRINTED KEY GROUP 15 1 Meer info
Mode d'emploi (15.22 MB)
Handleiding (15.43 MB)
