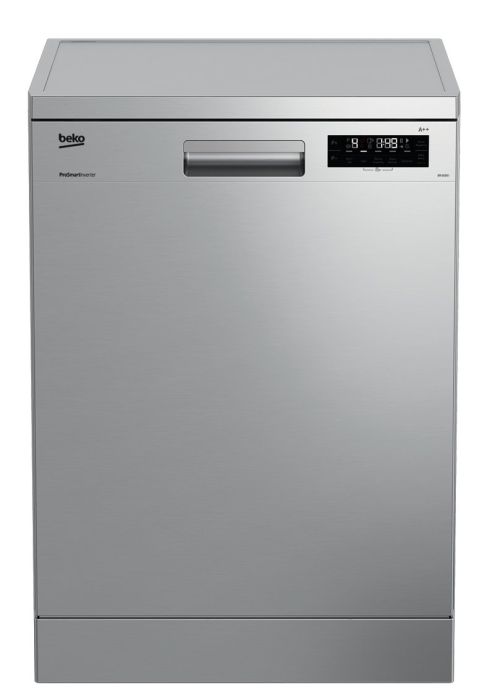

DFN28320X VAATWASMACHINE INOX

Artikelnr: 114301
Referentienr: DFN28320X
Aanbevolen verkoopprijs: € 999,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

Steamgloss 8 progr. inox 10L - 44 DBA
Meer informatie
Hoogte 85
Breedte 59.8
Diepte 57
Gewicht (Kg) 44
Verpakkingseenheid 1
ArtRef DFN28320X
AsogemID 114301
MPN 7610783942
Merk BEKO
Going prijs 999,99
Soort Vaatwasser
ArtEAN 8690842021657
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 2 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1763190106 220 SIDE PANEL FS LONG FORM 60CM 18 1 Meer info
1763190206 221 SIDE PANEL FS LONG FORM 60CM 18 1 Meer info
1515041400 300 TOP PLATE GROUP 23 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1888190200 403 HINGE ARM SUPPORT 4 1 Meer info
1783160100 440 ANGORA HINGE SPRING 5 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050300 471 HINGE ROPE GROUP L=333-PURPLE 4 2 Meer info
1769030311 500 BEKO 39DB KICK PLATE 60CM 15 1 Meer info
1783070200 530 ANGORA FS KICK PLATE STEEL 8 1 Meer info
1783170100 610 ANGORA BALANCE WEIGHT 9 1 Meer info
1744930100 649 REAR FRAME COTTON FLEECE 16 1 Meer info
1882430900 650 INNER TUB INSULATION 11 1 Meer info
1783830200 655 ANGORA INNER TUB ISOLATION LEFT 11 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1783950100 660 ANGORA KICK PLATE ISOLATION 12 1 Meer info
1769000300 1030 BEKO OUTER DOOR 60CM-A.FINGER 24 1 Meer info
1746970100 1034 HANDLE AUXILARY PART 1 1 Meer info
1737380300 1200 INNER DOOR BITUMEN GRD 23 1 Meer info
1783050100 1201 ANGORA FRONT LOWER SUPPORT SHEET 8 1 Meer info
1882410100 1230 DOOR INSULATION 11 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760970100 1311 DOOR LOCK HOOK SUPPORT 3 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1759400400 2000 ANGORA STRUCTURE GROUP 34 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783710100 2004 ANGORA FS BOTTOM TRAY GR 17 1 Meer info
1783710400 2004 ANGORA FS BOTTOM TRAY GR 20 0 Meer info
1752970300 2408 TRAY HOLDER 1 2 Meer info
1752970400 2409 TRAY HOLDER 1 2 Meer info
1768800200 2411 BEKO TOP BASKET SHELF GROUP EU2-7016 4 4 Meer info
1769200100 2412 MULTI PURPOSE SHELF SUPPORT GROUP BEKO 4 1 Meer info
1769200300 2412 MULTI PURPOSE SHELF SUPPORT GROUP BEKO 4 1 Meer info
1751305100 2414 UPPER RACK GR. RAL 7037 25 1 Meer info
1751440800 2417 UPPER BASKET MECHANISM-RIGHT-PURPLE 9 1 Meer info
1766810021 2420 LOWER BASKET GROUP 24 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1758980600 2422 MULTI PURPOSE SELF WIRE-7037 14 1 Meer info
1513590101 2423 LOWER BASKET PLATE HOLDER BACK LEFT1 6 1 Meer info
1513610101 2424 LOWER BASKET PLATE HOLDER BACK RIGHT1 6 1 Meer info
1753460200 2428 LOWER BASKET HANDLE FRONT PART-7016 3 1 Meer info
1753470200 2429 LOWER BASKET HANDLE BACK PART-7016 3 1 Meer info
1781501000 2430 SLIDING CUTLERY BASKET GR-PURPLE HANDLE 14 1 Meer info
1781520100 2437 GRD 60CM CUTLERY BASKET SEPERATOR 4 2 Meer info
1753440102 2438 BEKO TOP BASKET HANDLE FRONT PART-7016 3 1 Meer info
1753450200 2439 BEKO TOP BASKET HANDLE BACK PART-7016 3 1 Meer info
1513620101 2447 LOWER BASKET PLATE HOLDER BACK LEFT2 6 1 Meer info
1513670101 2450 LOWER BASKET PLATE HOLDER BACK RIGHT2 6 1 Meer info
1759090200 2517 UPPER BASKET CLIPS-RAL 7037 2 5 Meer info
1751370200 2518 FOLDING PART CLIPS-RIGHT-RAL 7037 2 1 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1751322400 2715 UPPER BASKET SUPPORT WIRE 10 1 Meer info
1751342400 2716 UPPER BASKET SUPPORT WIRE 9 1 Meer info
1751440700 2716 UPPER BASKET MECHANISM-LEFT-PURPLE 9 1 Meer info
1781790200 2719 MULTISTAGE FOLDING PART-PURPLE 3 1 Meer info
1754130100 3010 PANEL GROUP 17 1 Meer info
1783900400 4000 ANGORA QUADRO CIRCULATION PUMP GROUP 31 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1783090100 4001 ANGORA QUADRO MOTOR HANGING BRACKET 4 1 Meer info
1757460100 4210 INTERFERENCE FILTER 12 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1761610100 4504 PUMP INLET HOSE 5 1 Meer info
1753870401 4800 GRUNDIG CABLE HARNESS 23 1 Meer info
1751590200 4901 MAIN PLUG-CABLE PROTECTION GR 0 1 Meer info
1769360100 5012 BEKO BETTER BUTTON GASKET 5 1 Meer info
1739150481 5050 ELECTRONIC CARD D114822_YT 30 1 Meer info
1769410200 5051 BEKO D1 CARD HOLDER SPACER PART 6 1 Meer info
1769420200 5052 CARD HOLDER BACK PART 5 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1761250100 5750 REGENERATION VALVE 12 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1761260100 6160 SALT INDICATOR SWITCH 12 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1782500100 7100 GRD SOFTENER GROUP BITRON 21 1 Meer info
1760190100 7101 O-RING WATER SOFTENER AIR BREAKER 2009 3 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1760200200 7160 AIR BREAKER_COUNTER GR 15 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737940200 7234 TOP SPRAY ARM NOZZLE-7037 3 1 Meer info
1738001700 7260 WATER SUPPLY TUBE-7037 11 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860200 7514 CORNER PADDING GR-FRONT 9 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1788060400 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1786790100 7611 HALF FILTER SUPPORT GR 6 1 Meer info
1760400100 7612 THREE WAY VALVE 18 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230300 7630 COARSE FILTER-7016 8 1 Meer info
1796092100 7640 FILTER GROUP COMPLETE 3 NO RING 9 1 Meer info
1740161400 7810 DRAIN HOSE 8 1 Meer info
1761620100 7831 PUMP OUTLET HOSE 7 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800865800 7839 HOSE 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1783300100 8000 ANGORA FAN GROUP 17 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 2 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 2 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1761990100 8365 HÄ°TÄ°T DISCHARGE HOSE HOLDER 2 0 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 6 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1757470200 9019 SUMP CLAMP SCREW TYPE 2 1 Meer info
1783180100 9022 ANGORA NETWORK CABLE HOLDER COVER 2 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 4 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 8 Meer info
1883460700 9114 SCREW Ø 3.9 L=11 (INNER-OUTER DOOR) 5 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 6 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1882290200 9154 SCREW CAP-SIDE PANELS-GREY 1 2 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 11 Meer info
1803431300 9203 SCREW (TOP TABLE) 1 2 Meer info
1831780000 9213 WASHER 1 4 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1880270200 9641 NOISE ISOLATION-7037 4 2 Meer info
1513630100 9659 FOLDABLE PART LONG 1 4 Meer info
1513640200 9660 CLIPS LONG 1 4 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1748780400 9941 TOP LIGHTING GROUP COATING 21 1 Meer info
1733830200 9952 KICK PLATE ISOLATION 4 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1883490100 9981 BOLT M4X8 1 2 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
1780309700 9993 PRINTED KEY GROUP 15 1 Meer info
