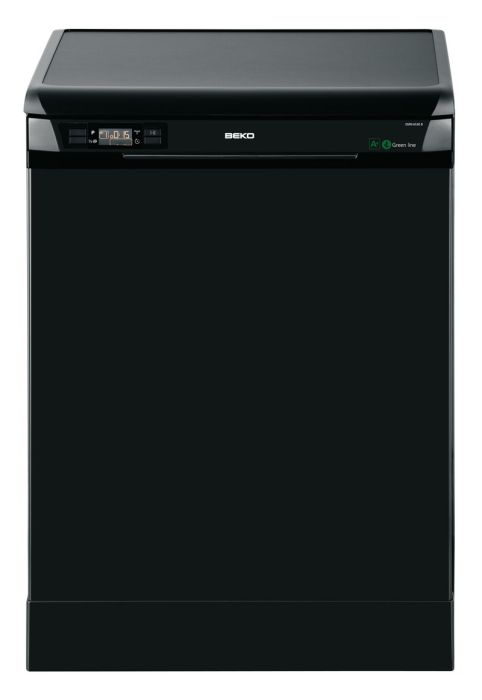

DSFN6530B VAATWASMACHINE elektronisch

Artikelnr: 114568

Referentienr: DSFN6530B

Productomschrijving

SLIM PANNEL 5 progr. Zwart

Specificaties

Meer informatie
Breedte	59.8
Diepte	57
Gewicht (Kg)	46
Verpakkingseenheid	1
ArtRef	DSFN6530B
AsogemID	114568
MPN	7651933942
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690769388574

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1881790100	13	FOOT SUPPORT PART	4	2	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	4	Meer info
1739340100	112	PLASTIC FOOT GR LOCK	2	2	Meer info
1800865700	119	HOSE BETWEEN FAN AND SUMP	3	1	Meer info
1759490502	220	SIDE PANEL-LEFT	15	1	Meer info
1759490602	221	SIDE PANEL-RIGHT	15	1	Meer info
1880012000	240	REAR BOTTOM SUPPORT	10	1	Meer info
1742001500	300	TOP PLATE GROUP	24	1	Meer info
1882350300	301	TOP PLATE SUPPORT PART	2	1	Meer info
2003030000	335	SEAL	1	1	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881020100	440	HINGE SPRING	4	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	4	Meer info
1881050100	471	HINGE ROPE GROUP L=440(GREY)	4	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1733820200	500	KICK PLATE	12	1	Meer info
1739350100	530	FOOT GROUP-PLASTIC	13	1	Meer info
1731440100	610	BALANCE WEIGHT	9	1	Meer info
1882430900	650	INNER TUB INSULATION	11	1	Meer info
1740530100	652	KICK PLATE BLOCK FABRIC	10	2	Meer info
1884750100	653	DOOR LOCK COTTON FLEECE	2	1	Meer info
1886840100	655	INNER TUB ISOLATION-LEFT	8	1	Meer info
1886810100	659	DOOR INSULATION	9	1	Meer info
1750210102	1030	OUTER DOOR-BLACK	18	1	Meer info
1749500200	1200	INNER DOOR GR	23	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882410100	1230	DOOR INSULATION	11	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1749190100	1910	DOOR SEALING GASKET- L=1775	10	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1749002800	2000	STRUCTURE GROUP	33	1	Meer info
1749050500	2001	TOP CORNER BRACKET - LEFT	1	1	Meer info
1749050600	2002	TOP CORNER BRACKET - RIGHT	1	1	Meer info
1751400500	2411	SHELF GROUP-RAL 7016	5	4	Meer info
1751301600	2414	UPPER RACK GR. RAL 7037	25	1	Meer info
1751440800	2417	UPPER BASKET MECHANISM-RIGHT-PURPLE	9	1	Meer info
1759002715	2420	LOWER BASKET GROUP	24	1	Meer info
1742960100	2421	lower basket stoper plastic whell gr.	1	2	Meer info
1782020100	2421	GRD LOWER BASKET WHEEL GROUP	4	6	Meer info
1759020200	2423	PLATE HOLDER-LEFT	8	2	Meer info
1759030200	2424	PLATE HOLDER-RIGHT	9	2	Meer info
1758930300	2425	LOWER BASKET FOLDING PART-LEFT-BACK-7037	4	1	Meer info
1758940300	2426	LOWER BASKET FOLDING PART	4	1	Meer info
1756391800	2429	LOWER BASKET HANDLE	4	1	Meer info
1751500400	2430	CUTLERY BASKET GROUP	12	1	Meer info
1751520400	2434	CUTLERY BASKET HANDLE	4	1	Meer info
1751530200	2437	CUTLERY BASKET SEPARATOR-7037	8	2	Meer info
1758920200	2444	LOWER BASKET CLIPS-RAL 7037	1	4	Meer info
1759090200	2517	UPPER BASKET CLIPS-RAL 7037	2	5	Meer info
1751370200	2518	FOLDING PART CLIPS-RIGHT-RAL 7037	2	1	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	4	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1751322400	2715	UPPER BASKET SUPPORT WIRE	10	1	Meer info
1751342400	2716	UPPER BASKET SUPPORT WIRE	9	1	Meer info
1751440700	2716	UPPER BASKET MECHANISM-LEFT-PURPLE	9	1	Meer info
1781790200	2719	MULTISTAGE FOLDING PART-PURPLE	3	1	Meer info
1780160500	3010	PANEL GROUP	18	1	Meer info
1755580100	3014	SLIM BEKO PANEL MM DISPLAY GASKET	2	1	Meer info
1753720200	3320	BEKO SLIM ON OFF BUTTON STROKE 2.5mm	2	1	Meer info
1757850306	3322	DISPLAY BUTTON	4	1	Meer info
1757860306	3323	DISPLAY BUTTON	4	1	Meer info
1737440600	3324	DISPLAY BUTTON	5	1	Meer info
1757880306	3325	DISPLAY BUTTON	4	1	Meer info
1740701700	4000	MOTOR_SPRAY PUMP	31	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1740150100	4002	MOTOR BRACKET GROUP	4	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1740600100	4004	MOTOR BRACKET GROUP	7	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1883790400	4200	CAPACITOR	9	0	Meer info
1757460100	4210	INTERFERENCE FILTER	12	1	Meer info
1740300300	4300	DRAIN PUMP GROUP	18	0	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719990100	4504	PUMP INLET HOSE	4	1	Meer info
1765620300	4800	YENI MART CABLE HARNESS	23	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1755700800	5050	MAIN BOARD	23	1	Meer info
1758030200	5051	SLIM PANEL MM MAIN BOARD HOLDER FRONT	5	1	Meer info
1758020200	5052	B3 DISPLAY KART HOLDER BACK PART	4	1	Meer info
1780146200	5053	SLIM DISPLAY FILM PRINTED	8	1	Meer info
1749580100	5056	TURBIDITY FRAME_2K	4	1	Meer info
1898900400	5058	TURBIDITY CARD AND LED HOLDER GR-WHITE	11	1	Meer info
1755800139	5060	DISPLAY CARD GROUP	25	1	Meer info
1755570200	5061	DISPLAY CARD HOLDER	4	1	Meer info
1755560100	5062	DISPLAY GLASS	6	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1886740200	5710	WATER INLET VALVE	13	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1754220206	6201	SLIM ON OFF SWITCH HOLDER 2-BLACK	4	1	Meer info
1732090100	6210	ROLD ON OFF SWITCH 2.5 mm	9	1	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731980300	6330	NEW DOOR SWITCH	7	1	Meer info
1718601700	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1719000700	6800	DETERGENT DISPENSER GROUP -RAL 7037	22	0	Meer info
1712730100	6801	DETERGENT DISPENSER GASKET	5	0	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1712710100	6811	RINSE AID GASKET	8	0	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1805100700	7010	WATER INLET HOSE	11	1	Meer info
1883740200	7011	DRAIN HOSE HOLDER 7037	2	2	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600500	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100300	7211	LOWER SPRAY ARM GROUP	6	1	Meer info
1746200600	7220	UPPER SPRAY ARM GROUP 7016	8	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1737930200	7232	NOZZLE HOLDER FOR TOP SPRAY ARM-7037	2	1	Meer info
1737940200	7234	TOP SPRAY ARM NOZZLE-7037	3	1	Meer info
1738001700	7260	WATER SUPPLY TUBE-7037	11	1	Meer info
1749490200	7261	UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET	3	1	Meer info
1741503700	7510	SUMP GROUP	11	1	Meer info
1889860200	7514	CORNER PADDING GR-FRONT	9	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1788060100	7517	UPPER PACKAGE COVER	7	1	Meer info
1890080200	7518	PACKAGE STRAFOR - BOTTOM	12	1	Meer info
1740110100	7550	HOSE BETWEEN SUMP AND HEATER	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1740400100	7610	METAL FILTER GROUP (Rv.0.8-1.75)	14	1	Meer info
1740900600	7611	FILTER SUPPORT GROUP-RAL 7037	4	1	Meer info
1740220700	7620	MICRO FILTER GROUP-7037	10	1	Meer info
1740230400	7630	COARSE FILTER-PURPLE	2	1	Meer info
1740800700	7640	FILTER GROUP	8	1	Meer info
1740160300	7810	DRAIN HOSE	8	1	Meer info
1740130100	7831	HOSE (SUMP OUTLET)	6	1	Meer info
1800631600	7834	HOSE (VALVE-COUNTER)	2	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1738080300	7849	HOSE	8	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	4	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	1	Meer info
1800710000	8351	HOSE FILTER D3422	6	1	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372200	8358	HOSE CLAMP (├© 35.6)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	3	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	2	Meer info
1883170100	9022	MAIN PLUG HOLDER	1	1	Meer info
2002371000	9027	HOSE CLAMP (DIA 17.3)	1	1	Meer info
2002371100	9028	HOSE CLAMP (├â╦£ 18.2)	2	2	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	5	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	12	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	20	Meer info
1889330100	9116	SCREW FOR REAR BOTTOM SUPPORT	1	2	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290400	9154	SCREW CAP-SIDE PANELS-BLACK	5	2	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	2	Meer info
1831780000	9213	WASHER	1	4	Meer info
1882280200	9640	NOISE ISOLATION FOR TUB RAL 7037.	4	1	Meer info
1882281100	9640	NOISE ISOLATION FOR TUB	1	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1886750200	9937	SCREW	1	6	Meer info
1733830200	9952	KICK PLATE ISOLATION	4	1	Meer info
1883490100	9981	BOLT M4X8	1	2	Meer info
1718990200	9992	DETERGENT DISPENCER CAB HAR HOLD 7037	1	1	Meer info
