main product photo

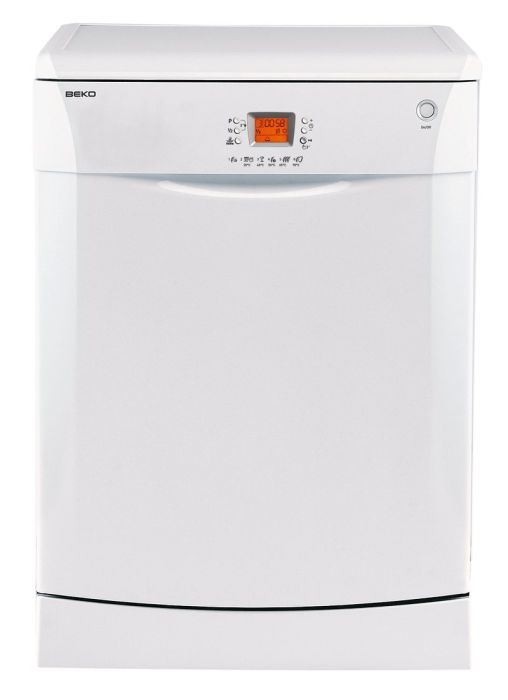

DFN6837 VAATWASMACHINE elektronisch

Artikelnr: 115109
Referentienr: DFN6837
Vergelijk

Productomschrijving

FASTEST DW Electronic 8 progr. 1/2-24 u delay
Meer informatie
Breedte 59.8
Diepte 57
Gewicht (Kg) 52
Verpakkingseenheid 1
ArtRef DFN6837
AsogemID 115109
MPN 7679783942
Merk BEKO
Soort Vaatwasser
ArtEAN 8690842315916
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1881790100 13 FOOT SUPPORT PART 4 2 Meer info
1880080292 40 BOTTOM TRAY 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 4 Meer info
1739340100 112 PLASTIC FOOT GR LOCK 2 2 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1759490501 220 SIDE PANEL-LEFT 15 1 Meer info
1759490601 221 SIDE PANEL-RIGHT 15 1 Meer info
1880012100 240 REAR BOTTOM SUPPORT 9 1 Meer info
1742000200 300 TOP PLATE GROUP 21 1 Meer info
1882350300 301 TOP PLATE SUPPORT PART 2 1 Meer info
2003030000 335 SEAL 1 2 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1888190100 403 HINGE ARM SUPPORT 3 1 Meer info
1881060100 440 HINGE SPRING D3421 D3731 4 2 Meer info
1881040300 470 HINGE WHEEL-RED 1 4 Meer info
1881050100 471 HINGE ROPE GROUP L=440(GREY) 4 2 Meer info
1881090100 472 HINGE SPRING HOLDER-LEFT 3 1 Meer info
1881090200 473 HINGE SPRING HOLDER-RIGHT 4 1 Meer info
1738170100 500 KICK PLATE 11 1 Meer info
1739350100 530 FOOT GROUP-PLASTIC 13 1 Meer info
1731440200 610 BALANCE WEIGHT 9 1 Meer info
1882430900 650 INNER TUB INSULATION 11 1 Meer info
1740530100 652 KICK PLATE BLOCK FABRIC 10 2 Meer info
1884750100 653 DOOR LOCK COTTON FLEECE 2 1 Meer info
1886840100 655 INNER TUB ISOLATION-LEFT 8 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1742010101 1030 OUTER DOOR 16 1 Meer info
1749500300 1200 INNER DOOR GR 27 1 Meer info
1880020100 1201 LOWER SUPPORT- FRONT 8 1 Meer info
1882410100 1230 DOOR INSULATION 11 1 Meer info
1750900400 1300 DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM 7 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1749002900 2000 STRUCTURE GROUP 33 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1740810300 2411 SHELF GROUP - ADJUSTABLE 4 4 Meer info
1799500700 2414 UPPER RACK GR. 23 1 Meer info
1895301200 2415 UPPER BASKET MECHANISM MAIN FRAME 10 2 Meer info
1894900300 2416 UPPER BASKET MECHANISM HOLDER-7037 10 1 Meer info
1894900400 2417 UPPER BASKET MECHANISM HOLDER-7037 10 1 Meer info
1799301800 2420 LOWER RACK GR... 21 1 Meer info
1885900800 2421 LOWER BASKET WHEEL GROUP-7037 1 8 Meer info
1733320300 2423 PLATE HOLDER-LEFT 9 2 Meer info
1733330300 2424 PLATE HOLDER-RIGHT 9 2 Meer info
1733360200 2425 LOWER BASKET FOLDING PART 2 2 Meer info
1733370200 2426 LOWER BASKET FOLDING PART 2 2 Meer info
1733380200 2427 CLIPS-RAL7037 1 4 Meer info
1881560400 2428 LOWER BASKET HANDLE 1 1 Meer info
1881590400 2429 LOWER BASKET HANDLE 1 1 Meer info
1899900800 2430 CUTLERY BASKET GROUP 15 1 Meer info
1899920200 2431 CUTLERY BASKET-7037 10 1 Meer info
1899910200 2432 CUTLERY BASKET ACCESORIES RAL 7037 10 2 Meer info
1899930200 2434 CUTLERY BASKET LATCH RAL 7037 3 1 Meer info
1899940300 2435 CUTLERY BASKET LATCH 1 2 Meer info
1899880200 2436 SEPARATOR - ACCESSORIES 2 2 Meer info
1899890200 2437 CUTLERY BASKET SEPARATOR-7037 5 1 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1746161971 3010 PANEL GROUP 19 1 Meer info
1742040100 3320 ON OFF BUTTON 1 1 Meer info
1742051100 3322 ON OFF BUTTON DECORATIVE PART 6 1 Meer info
1748330500 3322 LCD DECORATIVE PART 10 1 Meer info
1740701800 4000 MOTOR_SPRAY PUMP 31 1 Meer info
1880390100 4001 MOTOR FIXING CAP D3731 D3421 2 1 Meer info
1740150100 4002 MOTOR BRACKET GROUP 4 1 Meer info
1881440200 4003 DAMPENING RUBBER TPV 3 1 Meer info
1740600100 4004 MOTOR BRACKET GROUP 7 1 Meer info
1883790200 4200 CAPACITOR 10 1 Meer info
1883790400 4200 CAPACITOR 9 0 Meer info
1886870100 4210 INTERFERENCE FILTER 8 1 Meer info
1740300300 4300 DRAIN PUMP GROUP 18 0 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 0 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 1 Meer info
1719970100 4504 SOLO PUMP INLET HOSE - 2 4 1 Meer info
1739920100 4800 CABLE HARNESS GROUP 23 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1899391505 5050 ELECTRONIC CARD MRT50 30 1 Meer info
1748340200 5051 CARD HOLDER-FRONT 9 1 Meer info
1748240400 5052 CARD HOLDER-BACK 6 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900301 5058 TURBIDITY CARD AND LED HOLDER GR-BLACK 11 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1764950100 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1768000100 6160 SALT INDICATOR SWITCH 8 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1833120100 6210 SINGLE SWITCH D3731 D3421 9 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731970101 6330 DOOR SWITCH 12 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1805100700 7010 WATER INLET HOSE 11 1 Meer info
1883740200 7011 DRAIN HOSE HOLDER 7037 2 2 Meer info
1764900100 7100 WATER_SOFTENER_ASSY_2012 20 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600500 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800862100 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1737930200 7232 NOZZLE HOLDER FOR TOP SPRAY ARM-7037 2 1 Meer info
1737940200 7234 TOP SPRAY ARM NOZZLE-7037 3 1 Meer info
1738001700 7260 WATER SUPPLY TUBE-7037 11 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741502600 7510 SUMP GROUP 11 1 Meer info
1889860700 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1788060100 7517 UPPER PACKAGE COVER 7 1 Meer info
1890080200 7518 PACKAGE STRAFOR - BOTTOM 12 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1740400100 7610 METAL FILTER GROUP (Rv.0.8-1.75) 14 1 Meer info
1740900600 7611 FILTER SUPPORT GROUP-RAL 7037 4 1 Meer info
1882640701 7612 THREE WAY VALVE(MID-END) 25 1 Meer info
1740220700 7620 MICRO FILTER GROUP-7037 10 1 Meer info
1740230200 7630 COARSE FILTER-7037 8 1 Meer info
1740800500 7640 FILTER GROUP-7037 8 1 Meer info
1740160300 7810 DRAIN HOSE 8 1 Meer info
1740170100 7831 HOSE (SUMP OUTLET) 10 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800866600 7839 HOSE. 4 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1719440200 8000 FAN MOTOR GROUP 18 1 Meer info
1719580200 8003 FAN OUTLET PIPE 3 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 5 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 2 Meer info
1800710000 8351 HOSE FILTER D3422 6 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 2 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 1 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 5 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 16 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 24 Meer info
1889330100 9116 SCREW FOR REAR BOTTOM SUPPORT 1 2 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1803430100 9203 SCREW (4x14) 1 8 Meer info
1831780000 9213 WASHER 1 4 Meer info
1882150100 9520 O-RING (FLOW DIVERTER) 1 2 Meer info
1882280200 9640 NOISE ISOLATION FOR TUB RAL 7037. 4 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1886750200 9937 SCREW 1 6 Meer info
1738470200 9985 INTERFERENCE FILTER COVER SMALL 1 1 Meer info
1738480200 9985 INTERFERENCE FILTER FRONT COVER 1 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
