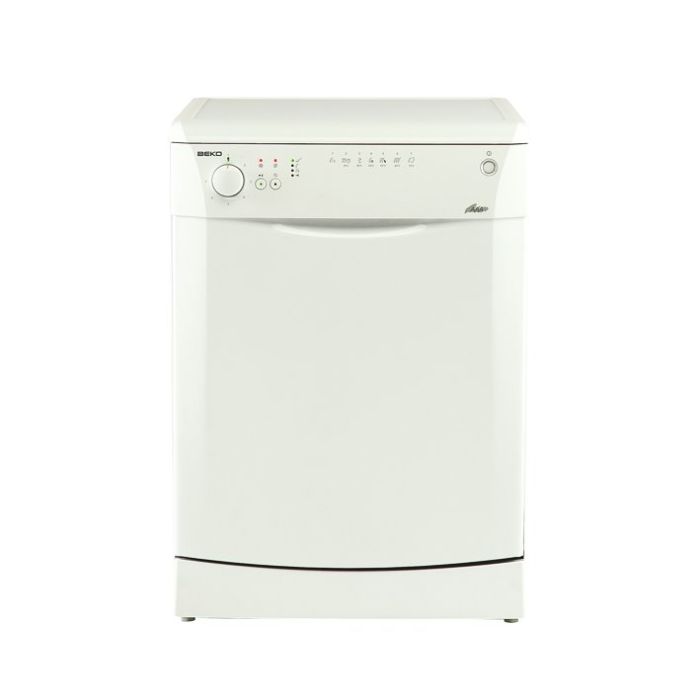

DFN3730 VAATWASMACHINE elektronisch

Artikelnr: 114890

Referentienr: DFN3730

Productomschrijving

Electronic 7 progr. 1

Specificaties

Meer informatie
Hoogte	85
Breedte	59.8
Diepte	57
Gewicht (Kg)	52
Verpakkingseenheid	1
ArtRef	DFN3730
AsogemID	114890
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690842632082

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1881790100	13	FOOT SUPPORT PART	4	2	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
2906860200	106	WATER INLET HOSE ASSEMBLY L=1550	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	4	Meer info
1739340100	112	PLASTIC FOOT GR LOCK	2	2	Meer info
1800863200	119	HOSE BETWEEN FAN AND SUMP	2	1	Meer info
1759490501	220	SIDE PANEL-LEFT	15	1	Meer info
1759490601	221	SIDE PANEL-RIGHT	15	1	Meer info
1880012100	240	REAR BOTTOM SUPPORT	9	1	Meer info
1742000200	300	TOP PLATE GROUP	21	1	Meer info
1882350300	301	TOP PLATE SUPPORT PART	2	1	Meer info
2003030000	335	SEAL	1	1	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881020100	440	HINGE SPRING	4	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	4	Meer info
1881050100	471	HINGE ROPE GROUP L=440(GREY)	4	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1738170100	500	KICK PLATE	11	1	Meer info
1739350100	530	FOOT GROUP-PLASTIC	13	1	Meer info
1731440200	610	BALANCE WEIGHT	9	1	Meer info
1882430900	650	INNER TUB INSULATION	11	1	Meer info
1740290300	652	KICK PLATE INSULATION	4	1	Meer info
1884750100	653	DOOR LOCK COTTON FLEECE	2	1	Meer info
1742010101	1030	OUTER DOOR	16	1	Meer info
1737380200	1200	INNER DOOR BITUMEN GRD	22	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882410100	1230	DOOR INSULATION	11	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1749190100	1910	DOOR SEALING GASKET- L=1775	10	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1749002800	2000	STRUCTURE GROUP	33	1	Meer info
1749050500	2001	TOP CORNER BRACKET - LEFT	1	1	Meer info
1749050600	2002	TOP CORNER BRACKET - RIGHT	1	1	Meer info
1740810300	2411	SHELF GROUP - ADJUSTABLE	4	4	Meer info
1799500700	2414	UPPER RACK GR.	23	1	Meer info
1895301200	2415	UPPER BASKET MECHANISM MAIN FRAME	10	2	Meer info
1894900300	2416	UPPER BASKET MECHANISM HOLDER-7037	10	1	Meer info
1894900400	2417	UPPER BASKET MECHANISM HOLDER-7037	10	1	Meer info
1799301800	2420	LOWER RACK GR...	21	1	Meer info
1885900800	2421	LOWER BASKET WHEEL GROUP-7037	1	8	Meer info
1733320300	2423	PLATE HOLDER-LEFT	9	2	Meer info
1733330300	2424	PLATE HOLDER-RIGHT	9	2	Meer info
1733360200	2425	LOWER BASKET FOLDING PART	2	2	Meer info
1733370200	2426	LOWER BASKET FOLDING PART	2	2	Meer info
1733380200	2427	CLIPS-RAL7037	1	4	Meer info
1881560400	2428	LOWER BASKET HANDLE	1	1	Meer info
1881590400	2429	LOWER BASKET HANDLE	1	1	Meer info
1899900800	2430	CUTLERY BASKET GROUP	15	1	Meer info
1899920200	2431	CUTLERY BASKET-7037	10	1	Meer info
1899910200	2432	CUTLERY BASKET ACCESORIES RAL 7037	10	2	Meer info
1899930200	2434	CUTLERY BASKET LATCH RAL 7037	3	1	Meer info
1899940300	2435	CUTLERY BASKET LATCH	1	2	Meer info
1899880200	2436	SEPARATOR - ACCESSORIES	2	2	Meer info
1899890200	2437	CUTLERY BASKET SEPARATOR-7037	5	1	Meer info
1752600400	2609	RAIL WHEEL GROUP-RAL7037	2	4	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1732840100	2611	RAIL CAP- FRONT&BACK -RAL7037	2	4	Meer info
1748940200	2613	RAIL WHEEL SCREW	1	8	Meer info
1749910100	2615	RAIL WHEEL HOLDER	2	4	Meer info
1742401745	3010	PANEL GROUP	12	1	Meer info
1743100100	3310	KNOB GROUP	7	1	Meer info
1742040100	3320	ON OFF BUTTON	1	1	Meer info
1742140100	3321	DIFFUSION A1_A2 BUTTON	1	2	Meer info
1742051100	3322	ON OFF BUTTON DECORATIVE PART	6	1	Meer info
1742170100	3510	PROGRAM FOLLOW UP GLASS	6	1	Meer info
1742160100	3511	SALT INDICATOR-RINSE AID GLASS	1	2	Meer info
1742150100	3512	BUTTON GLASS	2	2	Meer info
1742320100	3513	POWER GLASS	1	1	Meer info
1740701700	4000	MOTOR_SPRAY PUMP	31	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1740150100	4002	MOTOR BRACKET GROUP	4	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1740600100	4004	MOTOR BRACKET GROUP	7	1	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1883790400	4200	CAPACITOR	9	0	Meer info
1886870100	4210	INTERFERENCE FILTER	8	1	Meer info
1740300300	4300	DRAIN PUMP GROUP	18	0	Meer info
1740301000	4300	DRAIN PUMP GROUP	18	0	Meer info
1748200100	4300	ALUMINIUM WRAPPED DISCHARGE ENGINE	17	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888130300	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719990100	4504	PUMP INLET HOSE	4	1	Meer info
1739660200	4800	CABLE HARNESS GROUP	18	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1889740105	5050	ELECTRONIC CARD A130	24	1	Meer info
1742070200	5051	CARD HOLDER-FRONT	6	1	Meer info
1886530400	5052	CARD HOLDER	5	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1886740200	5710	WATER INLET VALVE	13	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1731040100	6210	ON OFF SWITCH -7mm	8	1	Meer info
2707590101	6211	SELECTION SWITCH	10	1	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731970101	6330	DOOR SWITCH	12	1	Meer info
1718601700	6800	DETERGENT DISPENSER GROUP	18	1	Meer info
1719000700	6800	DETERGENT DISPENSER GROUP -RAL 7037	22	0	Meer info
1712730100	6801	DETERGENT DISPENSER GASKET	5	0	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1712710100	6811	RINSE AID GASKET	8	0	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1887740400	6920	NTC GROUP	7	1	Meer info
1805100700	7010	WATER INLET HOSE	11	1	Meer info
1883740200	7011	DRAIN HOSE HOLDER 7037	2	2	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1742450100	7102	WATER SOFTENER NUT-RAL7037	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1744250100	7104	O-RING - SALT BOX- BELOW	3	2	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600500	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	2	Meer info
1882620700	7162	air funnel cup	1	2	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100300	7211	LOWER SPRAY ARM GROUP	6	1	Meer info
1746200600	7220	UPPER SPRAY ARM GROUP 7016	8	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1737930200	7232	NOZZLE HOLDER FOR TOP SPRAY ARM-7037	2	1	Meer info
1737940200	7234	TOP SPRAY ARM NOZZLE-7037	3	1	Meer info
1738001700	7260	WATER SUPPLY TUBE-7037	11	1	Meer info
1749490200	7261	UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET	3	1	Meer info
1741502800	7510	SUMP GR	10	1	Meer info
1889860700	7514	CORNER PADDING GR-FRONT	10	1	Meer info
1889870100	7515	REAR CORNER PADDING GR-BACK	8	1	Meer info
1788060100	7517	UPPER PACKAGE COVER	7	1	Meer info
1890080200	7518	PACKAGE STRAFOR - BOTTOM	12	1	Meer info
1740110100	7550	HOSE BETWEEN SUMP AND HEATER	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1740400100	7610	METAL FILTER GROUP (Rv.0.8-1.75)	14	1	Meer info
1740900600	7611	FILTER SUPPORT GROUP-RAL 7037	4	1	Meer info
1882640601	7612	THREE WAY VALVE(MID-END)..	25	1	Meer info
1740220700	7620	MICRO FILTER GROUP-7037	10	1	Meer info
1740230200	7630	COARSE FILTER-7037	8	1	Meer info
1740800500	7640	FILTER GROUP-7037	8	1	Meer info
1740160300	7810	DRAIN HOSE	8	1	Meer info
1740120100	7831	HOSE	13	1	Meer info
1800631600	7834	HOSE (VALVE-COUNTER)	2	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800866600	7839	HOSE.	4	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
1719440200	8000	FAN MOTOR GROUP	18	1	Meer info
1719580200	8003	FAN OUTLET PIPE	3	1	Meer info
1754250100	8004	FAN SUCTION TUBE - WELDED	8	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	5	Meer info
2002373200	8319	HOSE CLAMP (x 40.0)	1	2	Meer info
1800710000	8351	HOSE FILTER D3422	6	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	2	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	3	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	1	Meer info
1883170100	9022	MAIN PLUG HOLDER	1	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1889340100	9102	SCREW 4x14	1	5	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1889270100	9106	SCREW TERMINAL GROUP - REAR BRACKET	1	2	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	16	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	20	Meer info
1889330100	9116	SCREW FOR REAR BOTTOM SUPPORT	1	2	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1803430100	9203	SCREW (4x14)	1	4	Meer info
1831780000	9213	WASHER	1	4	Meer info
1882150100	9520	O-RING (FLOW DIVERTER)	1	2	Meer info
1882280200	9640	NOISE ISOLATION FOR TUB RAL 7037.	4	1	Meer info
1882281100	9640	NOISE ISOLATION FOR TUB	1	1	Meer info
1732380100	9935	SALT FUNNEL 2	3	1	Meer info
1886750200	9937	SCREW	1	6	Meer info
1738470200	9985	INTERFERENCE FILTER COVER SMALL	1	1	Meer info
1738480200	9985	INTERFERENCE FILTER FRONT COVER	1	1	Meer info
1718990200	9992	DETERGENT DISPENCER CAB HAR HOLD 7037	1	1	Meer info
