main product photo

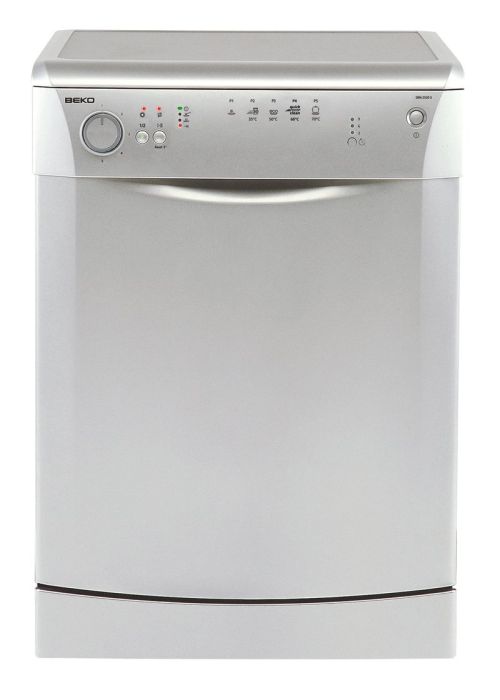

DFN2520S VAATWASMACHINE elektronisch

Artikelnr: 114913
Referentienr: DFN2520S
Vergelijk

Productomschrijving

Electronic 5 progr. 3-6-9 delay SILVER
Meer informatie
Breedte 59.8
Diepte 60
Gewicht (Kg) 52
Verpakkingseenheid 1
Jaarlijks verbruik (kWh) 293
ArtRef DFN2520S
AsogemID 114913
MPN 7670643953
Merk BEKO
Soort Vaatwasser
ArtEAN 8690842660887
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1881790100 13 FOOT SUPPORT PART 4 2 Meer info
1880080292 40 BOTTOM TRAY 10 1 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 4 Meer info
1739340100 112 PLASTIC FOOT GR LOCK 2 2 Meer info
1800863200 119 HOSE BETWEEN FAN AND SUMP 2 1 Meer info
1759490512 220 SIDE PANEL-LEFT 17 1 Meer info
1759490612 221 SIDE PANEL-RIGHT 17 1 Meer info
1880012000 240 REAR BOTTOM SUPPORT 10 1 Meer info
1742001800 300 TOP PLATE GROUP 23 1 Meer info
1882350300 301 TOP PLATE SUPPORT PART 2 1 Meer info
2003030000 335 SEAL 1 1 Meer info
1741810202 401 HINGE ARM-RIGHT 8 1 Meer info
1741810102 402 HINGE ARM-LEFT 8 1 Meer info
1888190100 403 HINGE ARM SUPPORT 3 1 Meer info
1881020100 440 HINGE SPRING 4 2 Meer info
1881040300 470 HINGE WHEEL-RED 1 4 Meer info
1881050100 471 HINGE ROPE GROUP L=440(GREY) 4 2 Meer info
1881090100 472 HINGE SPRING HOLDER-LEFT 3 1 Meer info
1881090200 473 HINGE SPRING HOLDER-RIGHT 4 1 Meer info
1738170409 500 KICK PLATE 15 1 Meer info
1739350100 530 FOOT GROUP-PLASTIC 13 1 Meer info
1731440100 610 BALANCE WEIGHT 9 1 Meer info
1882430900 650 INNER TUB INSULATION 11 1 Meer info
1740290300 652 KICK PLATE INSULATION 4 1 Meer info
1884750100 653 DOOR LOCK COTTON FLEECE 2 1 Meer info
1886840100 655 INNER TUB ISOLATION-LEFT 8 1 Meer info
1886810100 659 DOOR INSULATION 9 1 Meer info
1742010111 1030 OUTER DOOR 16 1 Meer info
1749500100 1200 INNER DOOR GR 24 1 Meer info
1880020100 1201 LOWER SUPPORT- FRONT 8 1 Meer info
1882410100 1230 DOOR INSULATION 11 1 Meer info
1750900400 1300 DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM 7 1 Meer info
1881970100 1310 DOOR LOCK HOOK 1 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1749002800 2000 STRUCTURE GROUP 33 1 Meer info
1749050500 2001 TOP CORNER BRACKET - LEFT 1 1 Meer info
1749050600 2002 TOP CORNER BRACKET - RIGHT 1 1 Meer info
1740810300 2411 SHELF GROUP - ADJUSTABLE 4 4 Meer info
1885800600 2413 UPPER BASKET WHEEL GROUP 4 8 Meer info
1799500200 2414 UPPER BASKET GROUP 22 1 Meer info
1758970705 2420 LOWER RACK GR. 23 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1759020200 2423 PLATE HOLDER-LEFT 8 2 Meer info
1759030200 2424 PLATE HOLDER-RIGHT 9 2 Meer info
1758930200 2425 LOWER BASKET FOLDING PART 4 1 Meer info
1758940200 2426 LOWER BASKET FOLDING PART 4 1 Meer info
1756390400 2429 LOWER BASKET HANDLE 4 1 Meer info
1751500200 2430 CUTLERY BASKET GROUP-SLIDING-7037 12 1 Meer info
1751530200 2437 CUTLERY BASKET SEPARATOR-7037 8 2 Meer info
1758920200 2444 LOWER BASKET CLIPS-RAL 7037 1 4 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 2 Meer info
1887460200 2612 RAIL CAP-7037 1 2 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1780188800 3010 PANEL GROUP 17 1 Meer info
1753230600 3310 KNOB GROUP 8 1 Meer info
1753770401 3320 DIFFUSION A4 ON OFF BUTTON STROKE 2.5 4 1 Meer info
1742141000 3321 DIFFUSION A1_A2 BUTTON 6 1 Meer info
1742191000 3321 BUTTON 4 1 Meer info
1742051300 3322 ON OFF BUTTON DECORATIVE PART 4 1 Meer info
1899790100 3510 PROGRAM FOLLOW UP GLASS 2 1 Meer info
1742160100 3511 SALT INDICATOR-RINSE AID GLASS 1 2 Meer info
1899750100 3512 BUTTON GLASS 2 1 Meer info
1740701700 4000 MOTOR_SPRAY PUMP 31 1 Meer info
1880390100 4001 MOTOR FIXING CAP D3731 D3421 2 1 Meer info
1740150100 4002 MOTOR BRACKET GROUP 4 1 Meer info
1881440200 4003 DAMPENING RUBBER TPV 3 1 Meer info
1740600100 4004 MOTOR BRACKET GROUP 7 1 Meer info
1883790200 4200 CAPACITOR 10 1 Meer info
1883790400 4200 CAPACITOR 9 0 Meer info
1886870100 4210 INTERFERENCE FILTER 8 1 Meer info
1740300300 4300 DRAIN PUMP GROUP 18 0 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 0 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 1 Meer info
1719990100 4504 PUMP INLET HOSE 4 1 Meer info
1765210100 4800 CABLE HARNESS GROUP 21 1 Meer info
1745540100 4801 PROGRAM DELAY CABLE GROUP 8 1 Meer info
1892101600 4901 MAIN PLUG GROUP 220-230 V smart 1 11 1 Meer info
1784000140 5050 ELECTRONIC CARD AE405_S 24 1 Meer info
1738750100 5051 CARD HOLDER 5 1 Meer info
1899740400 5052 CARD HOLDER-BACK 4 1 Meer info
1899620100 5060 TIME DELAY CARD 8 1 Meer info
1746310300 5061 DISPLAY CARD HOLDER 1 1 Meer info
1746351000 5064 DISPLAY BUTTON 1 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1764950100 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1744290100 5760 over_floating_house_3 1 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1768000100 6160 SALT INDICATOR SWITCH 8 1 Meer info
1718830100 6161 RINSE AID SWITCH 6 1 Meer info
1732090100 6210 ROLD ON OFF SWITCH 2.5 mm 9 1 Meer info
1734600100 6211 SELECTION SWITCH 3 1 Meer info
1883240100 6311 OVER FLOW SWITCH (LOW END) D3731 D3421 6 1 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1718601700 6800 DETERGENT DISPENSER GROUP 18 1 Meer info
1719000700 6800 DETERGENT DISPENSER GROUP -RAL 7037 22 0 Meer info
1712730100 6801 DETERGENT DISPENSER GASKET 5 0 Meer info
1718670100 6801 DETERGENT DISPENSER GASKET 9 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1712710100 6811 RINSE AID GASKET 8 0 Meer info
1718750100 6811 RINSE AID GASKET 3 1 Meer info
1718640100 6812 COVER SPRING 1 2 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1805100700 7010 WATER INLET HOSE 11 1 Meer info
1883740200 7011 DRAIN HOSE HOLDER 7037 2 2 Meer info
1764900100 7100 WATER_SOFTENER_ASSY_2012 20 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600500 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 2 Meer info
1882620700 7162 air funnel cup 1 2 Meer info
1800862100 7169 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 1 1 Meer info
1746100300 7211 LOWER SPRAY ARM GROUP 6 1 Meer info
1746200600 7220 UPPER SPRAY ARM GROUP 7016 8 1 Meer info
1759600100 7221 UPPER SPRAY ARM FEED PIPE -RAL 7037 8 1 Meer info
1800720800 7228 GASKET 3 1 Meer info
1881101300 7260 WATER SUPPLY TUBE GROUP 8 1 Meer info
1749490200 7261 UPPER SPRAY ARM GUIDE ADJUSTABLE BASKET 3 1 Meer info
1741503100 7510 SUMP GROUP 11 1 Meer info
1889860700 7514 CORNER PADDING GR-FRONT 10 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1788060100 7517 UPPER PACKAGE COVER 7 1 Meer info
1890080200 7518 PACKAGE STRAFOR - BOTTOM 12 1 Meer info
1740110100 7550 HOSE BETWEEN SUMP AND HEATER 5 1 Meer info
1888100100 7560 OVERFLOW FLOAT GROUP 8 1 Meer info
1884280100 7561 SIFHON 2 2 Meer info
1740400100 7610 METAL FILTER GROUP (Rv.0.8-1.75) 14 1 Meer info
1740900600 7611 FILTER SUPPORT GROUP-RAL 7037 4 1 Meer info
1740220700 7620 MICRO FILTER GROUP-7037 10 1 Meer info
1740230200 7630 COARSE FILTER-7037 8 1 Meer info
1740800500 7640 FILTER GROUP-7037 8 1 Meer info
1740160300 7810 DRAIN HOSE 8 1 Meer info
1740130100 7831 HOSE (SUMP OUTLET) 6 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800866600 7839 HOSE. 4 1 Meer info
1800862300 7844 HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT) 2 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1754250100 8004 FAN SUCTION TUBE - WELDED 8 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 4 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
1800710000 8351 HOSE FILTER D3422 6 1 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 2 Meer info
2002740100 8365 DRAIN HOSE HOLDER 2 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 4 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 2 Meer info
1883170100 9022 MAIN PLUG HOLDER 1 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 5 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 6 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 12 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 20 Meer info
1889330100 9116 SCREW FOR REAR BOTTOM SUPPORT 1 2 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1883440300 9155 SCREW (5x22)(MOTOR) 1 1 Meer info
1831780000 9213 WASHER 1 4 Meer info
1882280200 9640 NOISE ISOLATION FOR TUB RAL 7037. 4 1 Meer info
1882281100 9640 NOISE ISOLATION FOR TUB 1 1 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1886750200 9937 SCREW 1 6 Meer info
1738470200 9985 INTERFERENCE FILTER COVER SMALL 1 1 Meer info
1738480200 9985 INTERFERENCE FILTER FRONT COVER 1 1 Meer info
1718990200 9992 DETERGENT DISPENCER CAB HAR HOLD 7037 1 1 Meer info
Mode d'emploi (3.16 MB)
Handleiding (3.14 MB)
