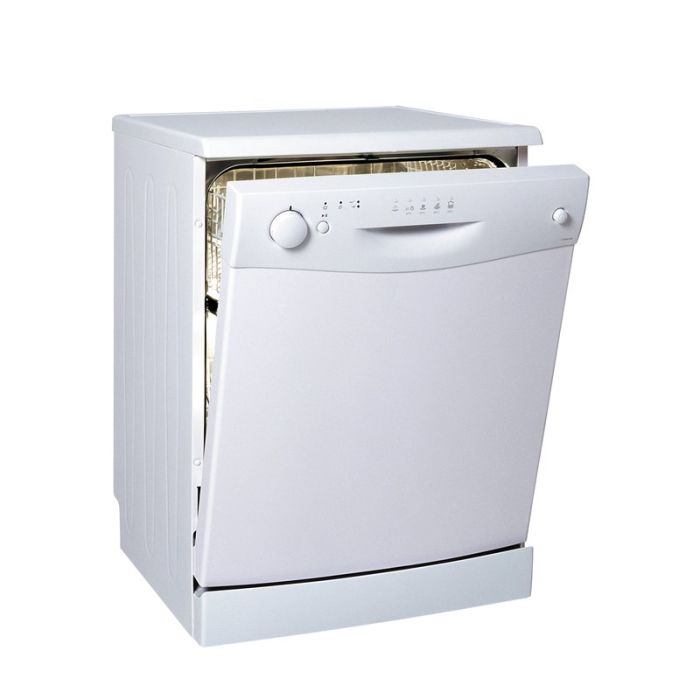

D5543FW VAATWASMACHINE elektronisch

Artikelnr: 114795

Referentienr: D5543FW

Productomschrijving

Electronic 5 progr. 4 temp.

Specificaties

Meer informatie
Hoogte	85
Breedte	60
Diepte	57
Gewicht (Kg)	52
Verpakkingseenheid	1
ArtRef	D5543FW
AsogemID	114795
Merk	BEKO
Soort	Vaatwasser
ArtEAN	8690842612282

Onderdelen

Onderdeelnr	Nr	Omschrijving	Prijscode	Aantal
1800681300	0	O-RING	2	1	Meer info
1887550100	11	FREE STANDING FOOT SUPPORT LEFT	5	1	Meer info
1887550200	12	FREE STANDING FOOT SUPPORT RIGHT	5	1	Meer info
1881790100	13	FOOT SUPPORT PART	4	2	Meer info
1880080292	40	BOTTOM TRAY	10	1	Meer info
1883140300	110	FOOT GROUP-ADJUSTABLE	1	4	Meer info
1759490501	220	SIDE PANEL-LEFT	15	1	Meer info
1759490601	221	SIDE PANEL-RIGHT	15	1	Meer info
1880012000	240	REAR BOTTOM SUPPORT	10	1	Meer info
1889901400	300	TOP PLATE GROUP	22	1	Meer info
2003030000	335	SEAL	1	2	Meer info
1741810202	401	HINGE ARM-RIGHT	8	1	Meer info
1741810102	402	HINGE ARM-LEFT	8	1	Meer info
1888190100	403	HINGE ARM SUPPORT	3	1	Meer info
1881020100	440	HINGE SPRING	4	2	Meer info
1881040200	470	HINGE WHEEL	1	2	Meer info
1881040300	470	HINGE WHEEL-RED	1	2	Meer info
1881090100	472	HINGE SPRING HOLDER-LEFT	3	1	Meer info
1881090200	473	HINGE SPRING HOLDER-RIGHT	4	1	Meer info
1884410100	500	KICK PLATE	26	1	Meer info
1731440100	610	BALANCE WEIGHT	9	1	Meer info
1880180510	1030	OUTER DOOR	15	1	Meer info
1732600200	1200	INNER DOOR GR	23	1	Meer info
1880020100	1201	LOWER SUPPORT- FRONT	8	1	Meer info
1882410100	1230	DOOR INSULATION	11	1	Meer info
1750900400	1300	DOOR LOCK GROUP PA6-NAT-I-V0 45-60 CM	7	1	Meer info
1881970100	1310	DOOR LOCK HOOK	1	1	Meer info
1884690100	1910	DOOR SEALING GASKET	9	1	Meer info
1882250100	1911	DOOR SEALING END ADDITION PART RIGHT,	3	1	Meer info
1882250200	1912	DOOR SEALING END ADDITION PART LEFT	3	1	Meer info
1882470100	1920	DOOR SEALING GASKET - BOTTOM	7	1	Meer info
1740001300	2000	WELDED MECHANICAL GROUP	40	1	Meer info
1740810300	2411	SHELF GROUP - ADJUSTABLE	4	2	Meer info
1885800600	2413	UPPER BASKET WHEEL GROUP	4	8	Meer info
1799500200	2414	UPPER BASKET GROUP	22	1	Meer info
1799300100	2420	LOWER RACK GR.	19	1	Meer info
1885900800	2421	LOWER BASKET WHEEL GROUP-7037	1	8	Meer info
1883200400	2430	CUTLERY BASKET GROUP-7037	12	1	Meer info
1881860200	2437	SEPERATOR.	7	1	Meer info
1880240300	2610	RAIL (430 STAINLESS STEEL)	8	2	Meer info
1880580400	2611	RAIL CAP	2	2	Meer info
1887460200	2612	RAIL CAP-7037	1	2	Meer info
1737601657	3010	PANEL GROUP	11	1	Meer info
1735802500	3310	KNOB GROUP	6	1	Meer info
1886450100	3320	ON OFF BUTTON	3	1	Meer info
1887080100	3321	START STOP BUTTON	8	1	Meer info
1886540100	3510	PROGRAM FOLLOW UP GLASS	1	1	Meer info
1886570100	3512	POWER GLASS	5	1	Meer info
1740701200	4000	MOTOR_SPRAY PUMP	30	1	Meer info
1880390100	4001	MOTOR FIXING CAP D3731 D3421	2	1	Meer info
1740150100	4002	MOTOR BRACKET GROUP	4	1	Meer info
1881440200	4003	DAMPENING RUBBER TPV	3	1	Meer info
1740600100	4004	MOTOR BRACKET GROUP	7	1	Meer info
1732370100	4200	CAPACITOR	9	0	Meer info
1883790200	4200	CAPACITOR	10	1	Meer info
1886870100	4210	INTERFERENCE FILTER	8	1	Meer info
1740300100	4300	DRAIN PUMP GROUP	14	1	Meer info
1888130100	4500	FLOW THROUGH HEATER	22	0	Meer info
1888130200	4500	FLOW THROUGH HEATER	21	0	Meer info
1888150100	4500	FLOW THROUGH HEATER	21	1	Meer info
1719990100	4504	PUMP INLET HOSE	4	1	Meer info
1735870100	4800	CABLE HARNESS GROUP	22	1	Meer info
1892101600	4901	MAIN PLUG GROUP 220-230 V smart 1	11	1	Meer info
1899450150	5050	ELECTRONIC CARD A305	25	1	Meer info
1746360400	5051	CARD HOLDER-FRONT	4	1	Meer info
1746380400	5052	CARD HOLDER-BACK	4	1	Meer info
1883550200	5710	WATER INLET VALVE	13	1	Meer info
1883570300	5710	WATER INLET VALVE	11	0	Meer info
1886740200	5710	WATER INLET VALVE	13	0	Meer info
1887760100	5710	WATER INLET VALVE	8	0	Meer info
1764950100	5750	REGENERATION VALVE GR SNAP FIT	11	1	Meer info
1744290100	5760	over_floating_house_3	1	1	Meer info
1760900100	5830	COUNTER GROUP	9	1	Meer info
1768000100	6160	SALT INDICATOR SWITCH	8	1	Meer info
1718830100	6161	RINSE AID SWITCH	6	1	Meer info
1886580100	6201	BUTTON HOLDER - e OEM 1	1	1	Meer info
1731040100	6210	ON OFF SWITCH -7mm	8	1	Meer info
1734600100	6211	SELECTION SWITCH	3	1	Meer info
1883240100	6311	OVER FLOW SWITCH (LOW END) D3731 D3421	6	1	Meer info
1760940100	6315	COUNTER PCB_4	7	1	Meer info
1731970101	6330	DOOR SWITCH	12	1	Meer info
1718601000	6800	DETERGENT DISPENSER GROUP	19	1	Meer info
1718670100	6801	DETERGENT DISPENSER GASKET	9	1	Meer info
1831470000	6802	THERMOACTUATOR D3731 D3421	13	1	Meer info
1718750100	6811	RINSE AID GASKET	3	1	Meer info
1718640100	6812	COVER SPRING	1	2	Meer info
1805100700	7010	WATER INLET HOSE	11	1	Meer info
1883740200	7011	DRAIN HOSE HOLDER 7037	2	2	Meer info
1764900100	7100	WATER_SOFTENER_ASSY_2012	20	1	Meer info
1888290100	7102	WATER SOFTENER NUT-7035	2	1	Meer info
1766470100	7103	SOFTONER O-RING	2	1	Meer info
1883910300	7108	WATER SOFTENER CAP GASKET	3	1	Meer info
1766560100	7140	WATER SOFTONER CAP GROUP-RAL7016	5	1	Meer info
1741600500	7160	REGENERATION UNIT GR	11	1	Meer info
1882630200	7161	AIR FUNNEL GASKET	2	1	Meer info
1882620600	7162	AIR FUNNEL COVER	1	1	Meer info
1800862100	7169	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	1	1	Meer info
1746100200	7211	LOWER SPRAY ARM GROUP	7	1	Meer info
1746200300	7220	UPPER SPRAY GROUP	9	1	Meer info
1759600100	7221	UPPER SPRAY ARM FEED PIPE -RAL 7037	8	1	Meer info
1800720800	7228	GASKET	3	1	Meer info
1881100500	7260	WATER SUPPLY TUBE GROUP	9	1	Meer info
1741502200	7510	SUMP GR	11	1	Meer info
1740110100	7550	HOSE BETWEEN SUMP AND HEATER	5	1	Meer info
1888100100	7560	OVERFLOW FLOAT GROUP	8	1	Meer info
1884280100	7561	SIFHON	2	2	Meer info
1740040300	7610	PLASTIC FILTER	5	1	Meer info
1740900600	7611	FILTER SUPPORT GROUP-RAL 7037	4	1	Meer info
1740220700	7620	MICRO FILTER GROUP-7037	10	1	Meer info
1740230200	7630	COARSE FILTER-7037	8	1	Meer info
1740800500	7640	FILTER GROUP-7037	8	1	Meer info
1740160300	7810	DRAIN HOSE	8	1	Meer info
1800631600	7834	HOSE (VALVE-COUNTER)	2	1	Meer info
1800632000	7835	HOSE BETWEEN COUNTER AND REGENERATION U.	2	1	Meer info
1800866600	7839	HOSE.	4	1	Meer info
1800862300	7844	HOSE- (OVERFLOW SIPHON-OVERFLOW FLOAT)	2	1	Meer info
1740050300	7910	SUMP GASKET	6	1	Meer info
2002370900	8318	HOSE CLAMP (├â╦£ 16.4)	1	5	Meer info
1800710000	8351	HOSE FILTER D3422	6	1	Meer info
2002370800	8353	HOSE CLAMP (x 15.88)	1	2	Meer info
2002372100	8357	HOSE CLAMP.(├â╦£ 34_1)	1	1	Meer info
2002372500	8360	HOSE CLAMP (x 47.0)	1	2	Meer info
2002740100	8365	DRAIN HOSE HOLDER	2	1	Meer info
9003270400	8385	PLASTIC SCREW (4_10)	1	2	Meer info
1732850100	9013	Hose Clamps With Screw ├â╦£40 White	2	2	Meer info
1883170100	9022	MAIN PLUG HOLDER	1	1	Meer info
1831680000	9101	SCREW (WATER INLET VALVE)	1	1	Meer info
1883430100	9105	SCREW (PANEL-DOOR LOCKED)	1	6	Meer info
1883470100	9113	BOLT M4X8 D3731 D3421	1	22	Meer info
1883460100	9114	SCREW (INNER-OUTER DOOR)	1	6	Meer info
1801080100	9115	SCREW (3.9x9.5)	1	18	Meer info
1889330100	9116	SCREW FOR REAR BOTTOM SUPPORT	1	2	Meer info
1883410100	9118	SCREW (SIDE WALLS - INNER TUB)	1	4	Meer info
1802860200	9153	SCREW M5x8	1	4	Meer info
1882290100	9154	SCREW CAP-SIDE PANELS-WHITE	1	4	Meer info
1883440300	9155	SCREW (5x22)(MOTOR)	1	1	Meer info
1831780000	9213	WASHER	1	4	Meer info
1882280400	9640	NOISE ISOLATION FOR TUB Ral 7037 Blomber	2	1	Meer info
1886750200	9937	SCREW	1	2	Meer info
1738470200	9985	INTERFERENCE FILTER COVER SMALL	1	1	Meer info
1738480200	9985	INTERFERENCE FILTER FRONT COVER	1	1	Meer info
