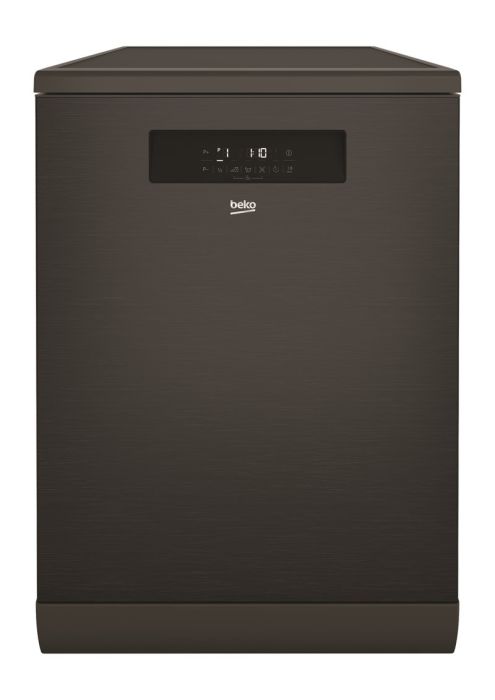

main product photo

DFN38530DX VAATWASMACHINE DARK INOX

Artikelnr: 114135
Referentienr: DFN38530DX
Vergelijk

Productomschrijving

Dark Inox 8 progr. 9,5L - 44 DBA
Meer informatie
Hoogte 85
Breedte 59.8
Diepte 57
Gewicht (Kg) 45
Verpakkingseenheid 1
Hoogte met verpakking 85.9
Breedte met verpakking 64.4
Diepte met verpakking 66.1
Gewicht VPE (Kg) 48
ArtRef DFN38530DX
AsogemID 114135
MPN 7637762277
Merk BEKO
Soort Vaatwasser
ArtEAN 8690842198649
EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1783130100 40 ANGORA BOTTOM TRAY 11 1 Meer info
1783130200 40 ANGORA BOTTOM TRAY 9 0 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 2 Meer info
1763190105 220 SIDE PANEL FS LONG FORM 60CM 17 1 Meer info
1763190205 221 SIDE PANEL FS LONG FORM 60CM 17 1 Meer info
1515130700 300 TOP PLATE GR 24 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1888190200 403 HINGE ARM SUPPORT 4 1 Meer info
1783160200 440 ANGORA HINGE SPRING 4 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050300 471 HINGE ROPE GROUP L=333-PURPLE 4 2 Meer info
1515100500 500 BEKO17 KICK PLATE SPONGE GR 16 1 Meer info
1783070200 530 ANGORA FS KICK PLATE STEEL 8 1 Meer info
1783170200 610 ANGORA BALANCE WEIGHT 10 1 Meer info
1744930100 649 REAR FRAME COTTON FLEECE 16 1 Meer info
1783830100 655 ANGORA INNER TUB ISOLATION LEFT 10 1 Meer info
1783950100 660 ANGORA KICK PLATE ISOLATION 12 1 Meer info
1762650100 953 ATLANTIS MOTOR CLAMP GROUP 34 1 Meer info
1766220013 1039 DOOR GROUP 38 1 Meer info
1783050200 1201 ANGORA FRONT LOWER SUPPORT SHEET 9 1 Meer info
1781060500 1230 DOOR INSULATION BEKO18 25mm 12 1 Meer info
1510600200 1300 SELFRESETING LOCK GROUP 5 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760970100 1311 DOOR LOCK HOOK SUPPORT 3 1 Meer info
1783500400 1725 ANGORA FLAP FUNNEL GROUP 14 1 Meer info
1749190100 1910 DOOR SEALING GASKET- L=1775 10 1 Meer info
1882470100 1920 DOOR SEALING GASKET - BOTTOM 7 1 Meer info
1887560300 1920 DOOR SEALING GASKET - BOTTOM 5 1 Meer info
1513402002 2000 ATLANTIS STRUCTURE GR. 33 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1783710100 2004 ANGORA FS BOTTOM TRAY GR 17 1 Meer info
1783710400 2004 ANGORA FS BOTTOM TRAY GR 20 0 Meer info
1752970300 2408 TRAY HOLDER 1 2 Meer info
1752970400 2409 TRAY HOLDER 1 2 Meer info
1512900100 2411 EU3 BEKO SHELF TPV GR 9 2 Meer info
1513360018 2414 EU3 UPPER BASKET GROUP 28 1 Meer info
1513100100 2416 EU3 MECHANISM GROUP 12 1 Meer info
1513100200 2417 EU3 MECHANISM GROUP 12 1 Meer info
1766810023 2420 LOWER RACK GR. 25 1 Meer info
1742960100 2421 lower basket stoper plastic whell gr. 1 2 Meer info
1782020100 2421 GRD LOWER BASKET WHEEL GROUP 4 6 Meer info
1513590101 2423 LOWER BASKET PLATE HOLDER BACK LEFT1 6 1 Meer info
1513610101 2424 LOWER BASKET PLATE HOLDER BACK RIGHT1 6 1 Meer info
1769250600 2428 LOWER BASKET HANDLE/INOX-PURPLE 12 1 Meer info
1769230500 2438 LOWER BASKET HANDLE BACK PART/PURPLE 2 1 Meer info
1513280500 2439 EU3 BEKO HANDLE BACK PART INOX 2 1 Meer info
1513300100 2440 EU3 BEKO HANDLE INOX GROUP 11 1 Meer info
1513620101 2447 LOWER BASKET PLATE HOLDER BACK LEFT2 6 1 Meer info
1513670101 2450 LOWER BASKET PLATE HOLDER BACK RIGHT2 6 1 Meer info
1513010101 2457 EU3 FOLDABLE WIRE OF THE BOWL HOLDER 9 1 Meer info
1513020101 2458 EU3 FOLDABLE WIRE OF THE BOWL HOLDER 9 1 Meer info
1513050101 2461 EU3 FOLDABLE WIRE OF THE GLASS HOLDER 8 1 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 4 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 8 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1512980100 2719 EU3 TOP BASKET BOWL FOLDABLE PART 7016 1 2 Meer info
1512990100 2720 EU3 TOP BASKET GLASS FOLDABLE PART 7016 1 1 Meer info
1780732900 3010 PANEL PRINTED BEKO DFN38530G 17 1 Meer info
1512040100 4000 ATLNATÄ°S MOTOR GROUP 32 0 Meer info
1752480100 4000 ATLANTIS FERRIT MOTOR GROUP 33 1 Meer info
1757420100 4001 CIRCULATION PUMP DAMPENING RUBBER 2 3 Meer info
1512080100 4007 KARÄ°NA QUADRO MOTOR HANGING BRACKET 10 1 Meer info
1757190100 4210 AMERICA BOBBIN TERFERENCE FILTER 16 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1759320400 4800 MESE CABLE HARNESS 18 1 Meer info
1736491800 4801 DISPLAY CABLE 10 1 Meer info
1745691000 4801 CABLE HARNESS-1.5MM 2 1 Meer info
1758430300 4810 MESE CABLE HARNESS 21 1 Meer info
1751591800 4901 MAIN PLUG-CABLE PROTECTION GR 1 1 Meer info
1510150400 5050 ELECTRONIC CARD C614859 24 1 Meer info
1512230200 5051 MESE CARD HOLDER FRONT PART 4 1 Meer info
1512240200 5052 MESE CARD HOLDER BACK PART 4 1 Meer info
1749580100 5056 TURBIDITY FRAME_2K 4 1 Meer info
1898900400 5058 TURBIDITY CARD AND LED HOLDER GR-WHITE 11 1 Meer info
1739140350 5060 ELECTRONIC CARD C6 ATL BK18 INOX 28 1 Meer info
1515070100 5062 BEKO 17 CARD HOLDER PART 8 1 Meer info
1883550200 5710 WATER INLET VALVE 13 1 Meer info
1883570300 5710 WATER INLET VALVE 11 0 Meer info
1886740200 5710 WATER INLET VALVE 13 0 Meer info
1887760100 5710 WATER INLET VALVE 8 0 Meer info
1764950100 5750 REGENERATION VALVE GR SNAP FIT 11 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1768000100 6160 SALT INDICATOR SWITCH 8 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1761940200 6311 hitit_micro_switch_zingear 5 0 Meer info
1760940100 6315 COUNTER PCB_4 7 1 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1512300100 6800 BITRON DETERGENT BOX GROUP 18 1 Meer info
1831470000 6802 THERMOACTUATOR D3731 D3421 13 1 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1764900100 7100 WATER_SOFTENER_ASSY_2012 20 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600700 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 3 Meer info
1882620700 7162 air funnel cup 1 3 Meer info
1764790200 7211 ATLANTS LOWER SPRAY ARM GROUP 2 8 1 Meer info
1512700100 7220 ATLANTIS TOP SPRAY ARM GROUP COMPLETE 8 1 Meer info
1512280100 7221 ATLANTIS UPPER SPRAY ARM FEEDING HOSE GR 8 1 Meer info
1800865900 7229 HOSE (REGENERATION UNIT) 3 1 Meer info
1512590100 7260 ATLANTIS WATER SUPPLY TUBE GR. 16 1 Meer info
1512590400 7260 ATLANTIS WATER SUPPLY TUBE GR. 15 0 Meer info
1512510100 7261 UPPER SPRAY ARM FEED PIPE CENTERING PART 3 1 Meer info
1511900200 7510 KARÄ°NA SUMP GROUP 37 1 Meer info
1889860200 7514 CORNER PADDING GR-FRONT 9 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1788060400 7517 UPPER PACKAGE COVER 7 1 Meer info
1764150400 7518 ATLANTIS PACKAGING BOTTOM STYROPHOR 11 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1799990100 7562 2019 CABLE HOLDER UPPER PART 3 1 Meer info
1799980100 7563 2019 CABLE HOLDER TOP PART 2 1 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1512150100 7611 KARÄ°NA FILTER SUPPORT GROUP 7 1 Meer info
1512000200 7612 KARÄ°NA VALVE GROUP 21 1 Meer info
1517420100 7616 THINCUT LOGO BEKO 8 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230300 7630 COARSE FILTER-7016 8 1 Meer info
1796092100 7640 FILTER GROUP COMPLETE 3 NO RING 9 1 Meer info
1740161400 7810 DRAIN HOSE 8 1 Meer info
1800631600 7834 HOSE (VALVE-COUNTER) 2 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800866600 7839 HOSE. 4 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
1734730100 7919 CAD ITEM 1 2 Meer info
1783300200 8000 ANGORA FAN GROUP 17 1 Meer info
1783330100 8003 Fan Outlet Part-Angora 3 1 Meer info
1766500100 8004 FAN FUNNEL GR 16 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 4 Meer info
2002370800 8353 HOSE CLAMP (x 15.88) 1 3 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1761990100 8365 HÄ°TÄ°T DISCHARGE HOSE HOLDER 2 0 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9001231200 8382 PLASTIC CLAMP. 298 mm 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 6 Meer info
1757470300 9019 CRIMP CLAMP 2 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1803430300 9104 SCREW 16mm 2 5 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 7 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1889270100 9106 SCREW TERMINAL GROUP - REAR BRACKET 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 15 Meer info
1883460700 9114 SCREW Ø 3.9 L=11 (INNER-OUTER DOOR) 5 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 6 Meer info
1883460500 9120 SCREW FOR STEEL (INNER-OUTER DOOR) 6 1 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1882290200 9154 SCREW CAP-SIDE PANELS-GREY 1 2 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1803430100 9203 SCREW (4x14) 1 6 Meer info
1803431300 9203 SCREW (TOP TABLE) 1 3 Meer info
1831780000 9213 WASHER 1 4 Meer info
1784160100 9640 ANGORA LARGE UPPER SOUND GASKET 5 1 Meer info
1880270200 9641 NOISE ISOLATION-7037 4 2 Meer info
1767650900 9654 FLEXIBLE CUTLERY TRAY WHEEL MECHANISM GR 6 1 Meer info
1767651000 9655 FLEXIBLE CUTLERY TRAY WHEEL MECHANISM GR 6 1 Meer info
1513630100 9659 FOLDABLE PART LONG 1 4 Meer info
1513640200 9660 CLIPS LONG 1 4 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1512710600 9950 ATLANTIS CUTLERY TRAY GR 21 1 Meer info
1733830200 9952 KICK PLATE ISOLATION 4 1 Meer info
1764050100 9971 Hitit rear upper traverse 8 1 Meer info
1764050200 9971 Hitit rear upper traverse 8 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1883490100 9981 BOLT M4X8 1 2 Meer info
1786700100 9991 ZONE WASH GROUP-7016-PURPLE 9 1 Meer info
1512220300 9997 MESE CARD HOLDER CASING 10 1 Meer info
1762670200 9998 KARÄ°NA SUMP GROUP 21 1 Meer info
