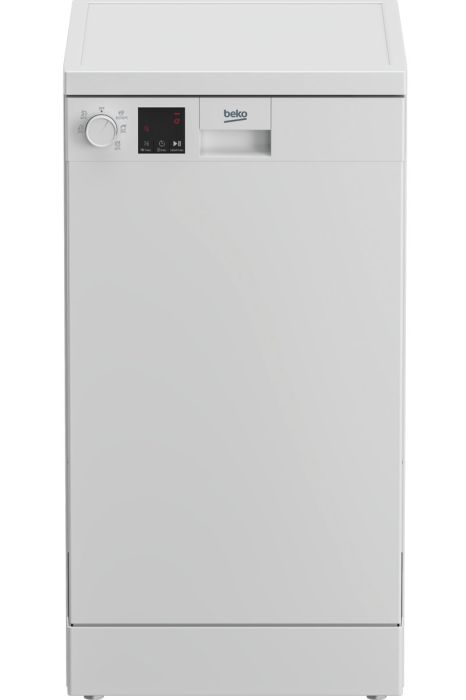

DVS05024W VAATWASMACHINE SLIMSIZE

Active
Artikelnr: 111279
Referentienr: DVS05024W
Aanbevolen verkoopprijs: € 449,99 (BTW & recupel inbegrepen)
Vergelijk

Productomschrijving

Electronic 5 progr. 10 c-11,9L 49 DBA SLIM

EXPLODED VIEWS
ONDERDELEN
Onderdeelnr Nr Omschrijving Prijscode Aantal Alternatief onderdeel
1786320100 40 POSEIDON BOTTOM TRAY 45CM 10 1 Meer info
1786320200 40 POSEIDON BOTTOM TRAY 45CM 11 0 Meer info
2906860200 106 WATER INLET HOSE ASSEMBLY L=1550 10 1 Meer info
1883140300 110 FOOT GROUP-ADJUSTABLE 1 2 Meer info
1763190101 220 SIDE PANEL FS LONG FORM 60CM 17 1 Meer info
1763190201 221 SIDE PANEL FS LONG FORM 60CM 17 1 Meer info
1783030201 401 HINGE ARM-RIGHT 8 1 Meer info
1783030101 402 HINGE ARM-LEFT 8 1 Meer info
1743240300 403 HINGE ARM SUPPORT 7 1 Meer info
1783160500 440 ANGORA HINGE SPRING 4 2 Meer info
1783140100 470 ANGORA U GINGE ROLLER 2 2 Meer info
1881040200 470 HINGE WHEEL 1 2 Meer info
1881050400 471 HINGE ROPE GROUP L=333-PURPLE 2 2 Meer info
1768020100 500 BEKO2014 KICK PLATE 45cm WITH SPONGE 10 1 Meer info
1513780200 530 POSEIDON FREE STAND KICK PLATE SHEET 8 1 Meer info
1786170100 610 BALANCE WEIGHT 11 1 Meer info
1743930100 650 INNER TUB ISOLATION 9 1 Meer info
1783830100 655 ANGORA INNER TUB ISOLATION LEFT 10 1 Meer info
1769010101 1030 BEKO OUTER DOOR 45CM 15 1 Meer info
1746970100 1034 HANDLE AUXILARY PART 1 1 Meer info
1517100100 1200 45PSD INNER DOOR BITUMEN GR 2mm 23 1 Meer info
1513760300 1201 POSEIDON FRONT LOWER SUPPORT SHEET 8 1 Meer info
1781060400 1230 DOOR INSULATION POSEIDON 25mm 11 1 Meer info
1510600300 1300 SELFRESETING LOCK GROUP 6 1 Meer info
1764130100 1310 HITIT_LOCK_HOOK-7016 2 1 Meer info
1760970100 1311 DOOR LOCK HOOK SUPPORT 3 1 Meer info
1749190200 1910 DOOR SEALING GASKET- L=1625 10 1 Meer info
1882470200 1920 DOOR SEALING GASKET - BOTTOM 4 1 Meer info
1887560400 1920 DOOR SEALING GASKET - BOTTOM 5 1 Meer info
1513800200 2000 POSEIDON STRUCTURE GR 32 1 Meer info
1783400100 2001 ANGORA CORNER BRACKET 1 1 Meer info
1783400200 2002 ANGORA CORNER BRACKET 1 1 Meer info
1786390100 2004 PSD FS BOTTOM TRAY GR 21 1 Meer info
1513080100 2411 EU3 BEKO TOP BASKET SHELF GR 4 2 Meer info
1761160500 2413 EU3 UPPER BASKET WHELL GROUP 2 4 Meer info
1765700003 2414 EU3 UST SEPET GROUP 45CM 27 1 Meer info
1510300005 2420 EU3 LOWER BASKET GROUP 45CM 25 1 Meer info
1763680200 2421 LOWER BASKET WHEEL GROUP 45CM 5 8 Meer info
1516960101 2423 POSEIDON LOWER BASKET FOLDING WIRE BACK1 9 1 Meer info
1516970101 2423 POSEIDON LOWER BASKET FOLDING WIRE BACK2 9 1 Meer info
1513940500 2430 SLIDING CUTLERY BASKET 45CM 13 1 Meer info
1513970100 2431 CUTLERY BASKET BODY 45CM 10 1 Meer info
1513980200 2437 45CM SEPERATOR 2 2 Meer info
1752600400 2609 RAIL WHEEL GROUP-RAL7037 2 4 Meer info
1880240300 2610 RAIL (430 STAINLESS STEEL) 8 2 Meer info
1732840100 2611 RAIL CAP- FRONT&BACK -RAL7037 2 4 Meer info
1748940200 2613 RAIL WHEEL SCREW 1 8 Meer info
1749910100 2615 RAIL WHEEL HOLDER 2 4 Meer info
1758100038 3010 PANEL GROUP 17 1 Meer info
1519820100 3310 A6 ARCELIK ROTARY KNOB GROUP 2 1 Meer info
1740704200 4000 MOTOR_SPRAY PUMP 30 0 Meer info
1513840100 4001 POSEIDON MOTOR CONNECTION PART 1 1 Meer info
1783290100 4003 ANGORA DAMPER DISK RUBBER 1 1 Meer info
1883790200 4200 CAPACITOR 10 1 Meer info
1740301000 4300 DRAIN PUMP GROUP 18 0 Meer info
1748200100 4300 ALUMINIUM WRAPPED DISCHARGE ENGINE 17 1 Meer info
1888130100 4500 FLOW THROUGH HEATER 22 0 Meer info
1888130200 4500 FLOW THROUGH HEATER 21 1 Meer info
1888130300 4500 FLOW THROUGH HEATER 21 0 Meer info
1888150100 4500 FLOW THROUGH HEATER 21 0 Meer info
1719970100 4504 SOLO PUMP INLET HOSE - 2 4 1 Meer info
1522210200 4800 A6 CABLE HARNESS GROUP 45cm 23 1 Meer info
1751593100 4901 MAIN PLUG-CABLE PROTECTION GR 1 1 Meer info
1732452280 5050 ELECTRONIC CARD A626503 24 1 Meer info
1519520100 5061 A6 CARD HOLDER FRONT PART 5 1 Meer info
1519530100 5062 A6 CARD HOLDER BACK PART 5 1 Meer info
1883550300 5710 WATER INLET VALVE 13 1 Meer info
1764950400 5750 REGENERATION VALVE GR SNAP FIT 12 1 Meer info
1761920100 5760 HITIT OVER FLOATING CASING 2 1 Meer info
1760900100 5830 COUNTER GROUP 9 1 Meer info
1732490200 5867 BOTTOM TRAY GASKET GR. 4 1 Meer info
1761940100 6311 hitit_micro_switch 8 1 Meer info
1760940100 6315 COUNTER PCB_4 7 2 Meer info
1731980300 6330 NEW DOOR SWITCH 7 1 Meer info
1512300100 6800 BITRON DETERGENT BOX GROUP 18 1 Meer info
1887740400 6920 NTC GROUP 7 1 Meer info
1768300400 7100 WATER SOFTENER GROUP 14 1 Meer info
1742450100 7102 WATER SOFTENER NUT-RAL7037 2 1 Meer info
1766470100 7103 SOFTONER O-RING 2 1 Meer info
1744250100 7104 O-RING - SALT BOX- BELOW 3 2 Meer info
1883910300 7108 WATER SOFTENER CAP GASKET 3 1 Meer info
1766560100 7140 WATER SOFTONER CAP GROUP-RAL7016 5 1 Meer info
1741600200 7160 REGENERATION UNIT GR 11 1 Meer info
1882630200 7161 AIR FUNNEL GASKET 2 1 Meer info
1882620700 7162 air funnel cup 1 1 Meer info
1515200100 7211 POSEIDON LOWER SPRAY ARM GROUP 7 1 Meer info
1515260100 7220 POSEIDON TOP SPRAY ARM GROUP COMPLETE 8 2 Meer info
1515300100 7221 PSD UPPER SPRAY ARM FEED PIPE GROUP 9 1 Meer info
1512510100 7261 UPPER SPRAY ARM FEED PIPE CENTERING PART 3 1 Meer info
1741503200 7510 SUMP GR 11 1 Meer info
1889860200 7514 CORNER PADDING GR-FRONT 9 1 Meer info
1889870100 7515 REAR CORNER PADDING GR-BACK 8 1 Meer info
1745190100 7516 PACKAGE COVER - BOTTOM 7 1 Meer info
1788430100 7517 PACKAGE COVER - UPPER 6 1 Meer info
1516120200 7518 45PSD PACKAGING BOTTOM STYROPHOR 12 1 Meer info
1743650100 7550 HOSE BETWEEN SUMP AND HEATER 8 1 Meer info
1752350100 7561 ANGORA OWERFLOW SIPHON 1 2 Meer info
1799990100 7562 2019 CABLE HOLDER UPPER PART 3 1 Meer info
1799980100 7563 2019 CABLE HOLDER TOP PART 2 1 Meer info
1786610200 7610 METAL FILTER HALF 13 1 Meer info
1757830100 7611 HALF FILTER SUPPORT 45CM 6 1 Meer info
1796080500 7620 MICRO FILTER GROUP_3 NO RING 7 1 Meer info
1740230300 7630 COARSE FILTER-7016 8 1 Meer info
1796092100 7640 FILTER GROUP COMPLETE 3 NO RING 9 1 Meer info
1740161400 7810 DRAIN HOSE 8 1 Meer info
1786150100 7831 hose 6 1 Meer info
1800632400 7834 HOSE (VALVE-COUNTER) 7 1 Meer info
1800632000 7835 HOSE BETWEEN COUNTER AND REGENERATION U. 2 1 Meer info
1800862600 7839 HOSE BETWEEN WATER SOFT AND REJEN. UNIT 3 1 Meer info
1740050300 7910 SUMP GASKET 6 1 Meer info
2002370900 8318 HOSE CLAMP (Ø 16.4) 1 6 Meer info
2002373200 8319 HOSE CLAMP (x 40.0) 1 1 Meer info
2002372100 8357 HOSE CLAMP.(Ø 34_1) 1 1 Meer info
2002372200 8358 HOSE CLAMP (├© 35.6) 1 2 Meer info
2002372400 8359 HOSE CLAMP (Ø 38.8) 1 1 Meer info
2002372500 8360 HOSE CLAMP (x 47.0) 1 1 Meer info
1761990100 8365 HÄ°TÄ°T DISCHARGE HOSE HOLDER 2 0 Meer info
1783370100 8365 ANGORA WATER INLET VALVE HOSE HOLDER 2 2 Meer info
9001231200 8382 PLASTIC CLAMP. 298 mm 1 1 Meer info
9003270400 8385 PLASTIC SCREW (4_10) 1 5 Meer info
1732850100 9013 Hose Clamps With Screw Ø40 White 2 1 Meer info
1519450900 9022 NETWORK CABLE HOLDER 5 1 Meer info
1831680000 9101 SCREW (WATER INLET VALVE) 1 1 Meer info
1889340100 9102 SCREW 4x14 1 3 Meer info
1883430100 9105 SCREW (PANEL-DOOR LOCKED) 1 8 Meer info
1883430300 9105 SCREW (FILTER SUPPORT) 1 2 Meer info
1883470100 9113 BOLT M4X8 D3731 D3421 1 10 Meer info
1883460100 9114 SCREW (INNER-OUTER DOOR) 1 6 Meer info
1801080100 9115 SCREW (3.9x9.5) 1 6 Meer info
1802860200 9153 SCREW M5x8 1 4 Meer info
1882290100 9154 SCREW CAP-SIDE PANELS-WHITE 1 2 Meer info
1883440400 9155 SCREW (5x14) 1 4 Meer info
1883440500 9155 PT screw 1 1 Meer info
1803430100 9203 SCREW (4x14) 1 6 Meer info
1803431300 9203 SCREW (TOP TABLE) 1 2 Meer info
1831780000 9213 WASHER 1 4 Meer info
1784160600 9640 ANGORA LARGE UPPER SOUND GASKET 4 1 Meer info
1880270200 9641 NOISE ISOLATION-7037 4 2 Meer info
1513630100 9659 FOLDABLE PART LONG 1 2 Meer info
1513640200 9660 CLIPS LONG 1 4 Meer info
1732380100 9935 SALT FUNNEL 2 3 1 Meer info
1513750100 9971 POSEIDON BACK TRAVERSE 7 1 Meer info
1513750200 9971 POSEIDON BACK TRAVERSE 9 0 Meer info
1783190100 9973 ANGORA 1MM NETWORK CABLE LOCK 2 1 Meer info
1761930100 9975 HÄ°TÄ°T FLOAT STYROPOR 1 1 Meer info
1883490100 9981 BOLT M4X8 1 2 Meer info
